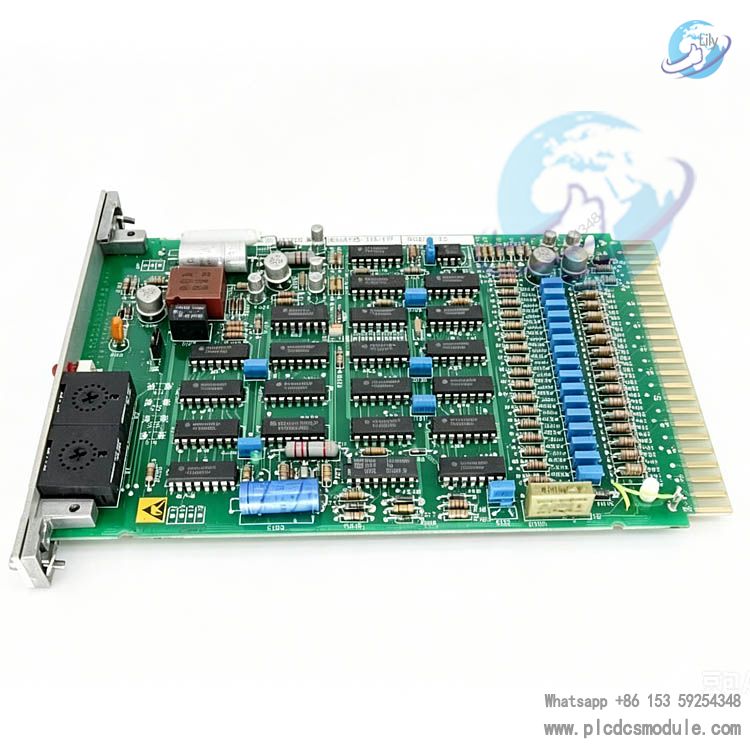

ABB 70EB02C‑ES HESG447220R4 Control board is an original ABB product manufactured in Sweden, belonging to the Procontrol P13/P14 series industrial control board (I/O control card). It is primarily used for digital signal acquisition and control output in DCS/PLC systems, acting as a signal hub between controllers and field devices in critical process industries such as power plants, oil & gas facilities, and water treatment plants.
Product Advantages
Strong Anti-interference & Electrical Isolation: Featuring 2 kV isolation voltage and opto-isolation design, it effectively resists EMI/EMS and is applicable to industrial sites with severe electrical noise.
Fast Response & High Precision: The response time is approximately 0.5 μs. With 16 independent processing channels, it guarantees real-time and accurate signal transmission.
Hot-swap Capability & Easy Maintenance: Supports online replacement without system shutdown. Multiple on-board LED indicators enable quick troubleshooting for channel, power supply and communication faults.
Full Compatibility with ABB Ecosystem: Natively compatible with Procontrol P13/P14, AC500 PLC and DeviceNet bus. It can be automatically detected and configured via Automation Builder.
Product Specifications
1. Basic Parameters
Model: 70EB02C‑ESPart No.: HESG447220R4
Type: 16-channel mixed digital input/output control boardPower Supply: 24 V DC ±10%, max. current 0.2 A, power consumption 4.8 WOperating Temperature: -20 ℃ ~ +60 ℃Storage Temperature: -40 ℃ ~ +85 ℃Ingress Protection: IP20 (for cabinet mounting)Dimensions: Approx. 210×67×20 mmWeight: Approx. 0.34 kg
2. Functional Features
Signal Processing: 16 configurable digital input/output (DI/DO) channels; single channel current approx. 2 mA
Communication Interface: Integrated DeviceNet slave station, supporting up to 64 nodes and compatible with mainstream master stations
Status Indication: Real-time LED indicators for Power (PWR), Run (RUN), Error (ERR) and Channels (CHx)
Flexible Configuration: DeviceNet address set via DIP switches; supports cyclic polling and Change-of-State (COS) trigger modes
Application Scenarios
Power & Energy: Applied to DCS systems of thermal, hydro and nuclear power plants for digital signal acquisition and interlock control of valves and pumps.
Petrochemical Industry: Signal acquisition and Emergency Shutdown (ESD) control in hazardous areas of refining facilities and pipeline pump stations.
Water Treatment: Status monitoring of bar screens, dosing pumps and valves in municipal sewage plants, water purification plants and industrial wastewater treatment facilities.
Manufacturing Industry: Acquisition of signals from workstation sensors, safety doors and emergency stops in automotive, electronics production lines and packaging machinery.
Building & Infrastructure: Control of fans, water pumps and fire dampers in large-scale HVAC and fire protection systems.
Frequently Asked Questions
Q1: PWR indicator stays off after power-on?Check the polarity and voltage of the 24 V DC power supply (within ±10% tolerance).Test for short circuits at power terminals and try replacing the power supply unit.Inspect the on-board fuse (if equipped); replace it with a fuse of the same specification if blown.
Q2: RUN indicator flashes but no I/O response?Ensure no duplicate DeviceNet addresses and correct DIP switch settings.Verify bus wiring (no reversed CAN_H/CAN_L) and termination resistor configuration.Re-download the configuration program and confirm proper I/O address assignment.
Q3: Channel indicator flashes or fault is reported?
- Input channels: Check for loose connections, short circuits or broken wires on sensors and switches.
- Output channels: Check for overload loads and damaged relay coils.Measure channel voltage and resistance with a multimeter. Replace the module only after eliminating external faults.
Q4: Can it replace older models such as HESG447220R3?Fully compatible. It features identical hardware pinouts and software configuration, allowing direct replacement without program modifications.
Q5: Warranty and lead time?12-month warranty. In-stock items ship within 3 days with global delivery available.
