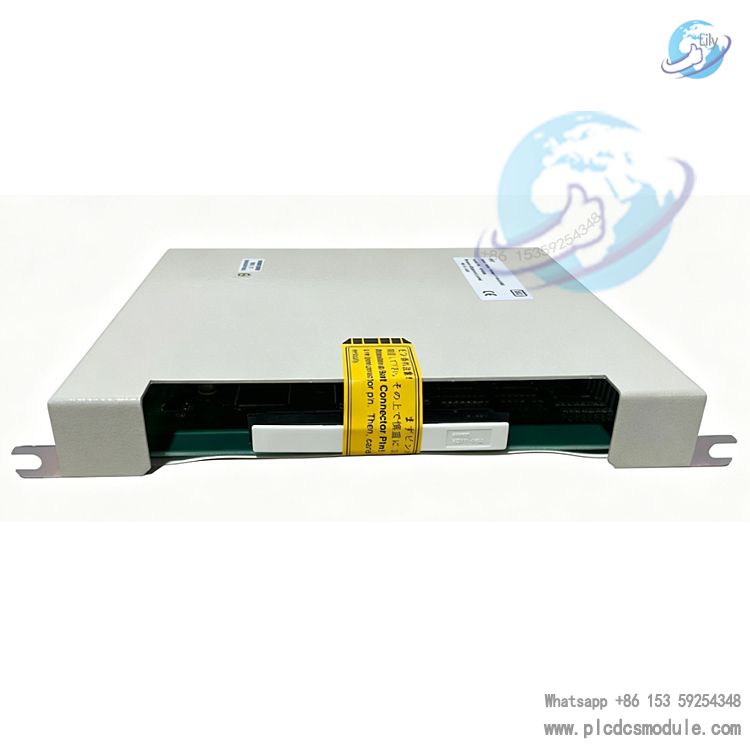

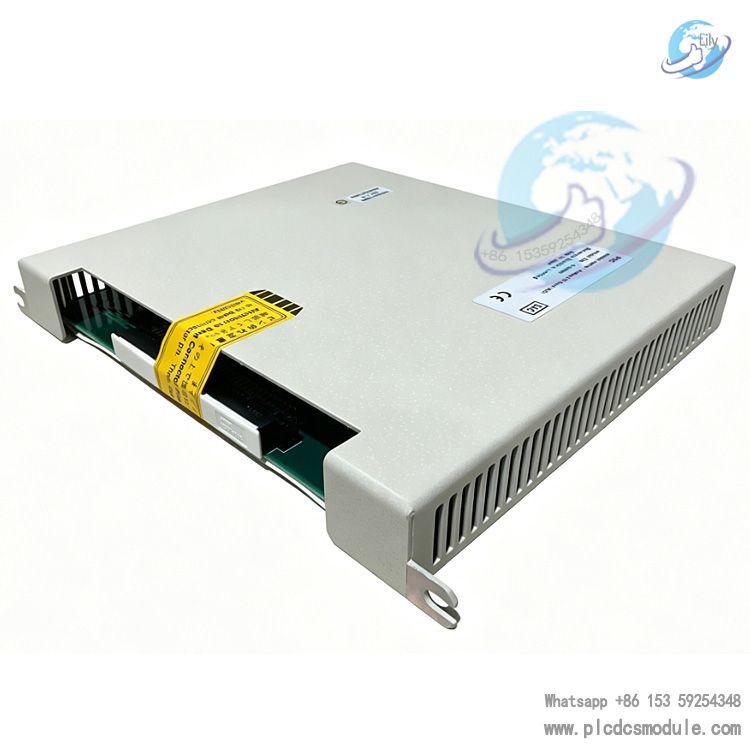

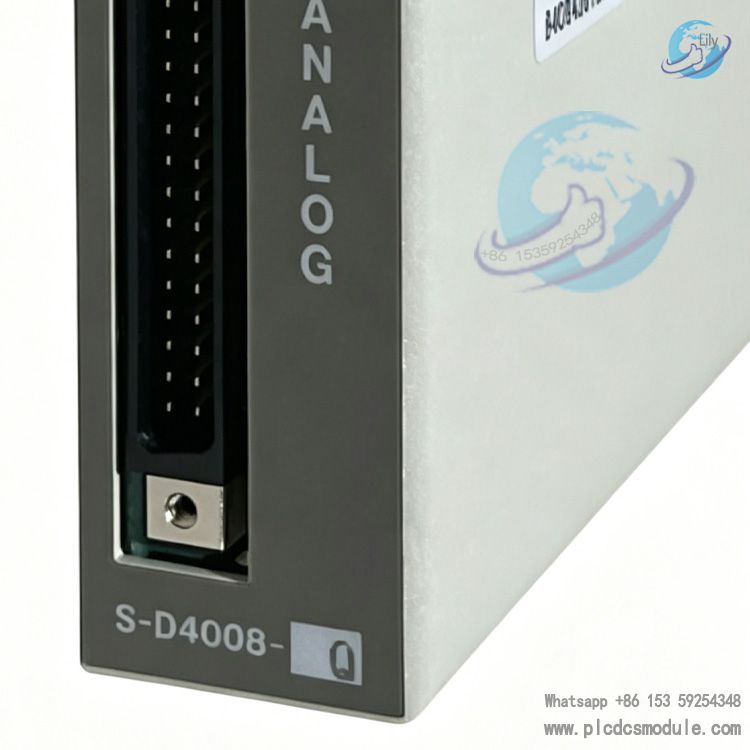

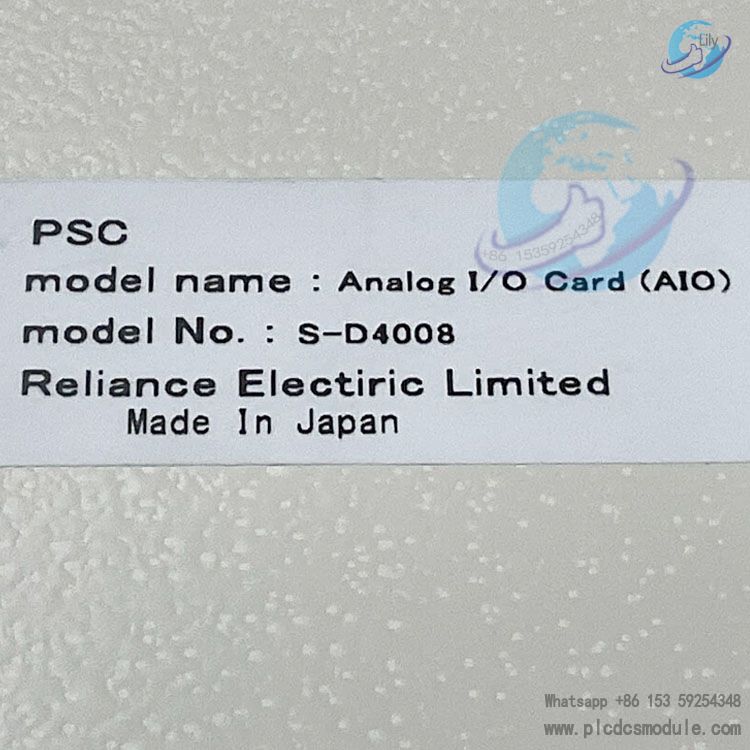

Reliance S-D4008-Q (commonly referred to as S-D4008) is a high-performance 8-channel analog I/O card launched by Reliance Electric, a brand of Rockwell Automation. Part of the PSC (Process System Control) series, it is developed for industrial process control and automation systems. The card performs high-precision acquisition and output of voltage and current analog signals, and is compatible with DCS, PLC and servo control systems, serving as a core module for signal interaction in process industries.
Product Advantages
High Precision & Excellent StabilityAdopts 16-bit ADC/DAC with an accuracy of ±0.02% FS and temperature drift ≤25 ppm/°C, ideal for high-precision process control applications.
Full-channel Electrical IsolationEach channel features 2500 Vrms isolation to resist common-mode interference, suitable for environments with strong electromagnetic interference such as areas around motors and inverters.
Wide Signal CompatibilityNatively supports ±10 V, 0–10 V, 4–20 mA and 0–20 mA signals. No external signal conditioning circuitry is required, cutting costs and potential failure points.
Industrial-grade DurabilityOperates stably within a wide temperature range of -20℃ to +70℃. With IP20 protection rating and excellent vibration & shock resistance, it adapts to harsh working conditions in chemical, metallurgical and other industries.
Plug-and-Play & Easy IntegrationStandard 3U rack-mounted design, compatible with Reliance PSC racks and mainstream DCS backplanes. It supports Modbus RTU/TCP and DNP3 protocols for seamless connection with host systems.
Product Specifications
1. Hardware Specifications
- Channel Configuration: 8 analog input (AI) + 8 analog output (AO) channels, fully isolated between channels
- Signal Range: Software-configurable for both AI and AO: ±10 V, 0–10 V, 4–20 mA, 0–20 mA
- Resolution: 16-bit (65,536 levels); Sampling rate: 1 kHz per channel for real-time response to dynamic processes
- Isolation Rating: 2500 Vrms isolation between channel-to-ground and channel-to-channel, compliant with UL/CE/CSA certifications
- Power Supply: 24 V DC (±10%), power consumption ≤ 15 W; supports redundant power switchover
- Dimensions & Weight: 3U (142×95×20 mm), approx. 0.3 kg; standard rack mounting
- Ambient Conditions: Operating temperature: -20℃ ~ +70℃; Humidity: 5%–95% RH (non-condensing)
2. Functional Features
- Signal Conditioning: On-board programmable gain, low-pass/high-pass filtering, and wire break detection for current signals
- Calibration Function: Built-in factory and user calibration; supports single-point and multi-point calibration to compensate for temperature drift and aging errors
- Diagnosis & Protection: Overvoltage, overcurrent and short-circuit protection; channel status monitoring, fault code output and remote diagnosis support
- Communication Interfaces: RS-485 (Modbus RTU), Ethernet (Modbus TCP/IP); Baud rate: 1200–115200 bps
Application Scenarios
Chemical & Petrochemical IndustriesAcquire signals from temperature (thermocouple/RTD), pressure, flow and liquid level; control actuators including control valves, pumps and heaters.
Metallurgy & Metal ProcessingClosed-loop control of furnace temperature, rolling force and speed; analog command output for servo systems.
Power & Energy SectorTemperature and vibration monitoring of generator sets, boiler water level and pressure control, as well as signal acquisition for photovoltaic and wind power systems.
Water Treatment & Environmental ProtectionMonitor pH value, conductivity and dissolved oxygen; control dosing pumps and regulating valves.
Automotive & Equipment ManufacturingTemperature and pressure monitoring on production lines, analog control of servo motors, and signal interaction for precision testing equipment.
Frequently Asked Questions
Q: The ALM indicator stays on after power-up. What are the possible causes?A: Common causes: ① Abnormal power voltage (out of 24VDC±10% range); ② Short circuit or broken wire on channel wiring; ③ Module hardware failure.Troubleshooting: First measure the power supply, then inspect the wiring, and finally replace the module for testing.
Q: The AI reading fluctuates severely. How to fix it?A: ① Enable software filtering (e.g. 50Hz low-pass filter); ② Check if the sensor cable is shielded and properly grounded; ③ Verify normal channel isolation and eliminate external interference; ④ Perform channel calibration.
Q: No signal from AO output. What should I do?A: ① Check AO channel configuration (signal type and range); ② Measure voltage/current at output terminals to locate faults on the module or load side; ③ Ensure normal communication and valid commands issued from the host system; ④ Restart the module or restore factory defaults.
Q: Does the module support hot swapping?A: No. Always power off the system before plugging or unplugging the module, otherwise the backplane or main board may be damaged.
Q: How to set up networking for multiple modules?A: Daisy-chain modules via RS-485 bus and assign unique addresses (1–247) to each unit. The host system performs data acquisition and control via Modbus RTU polling. For Ethernet networking, connect modules directly to a switch and use Modbus TCP for communication.
