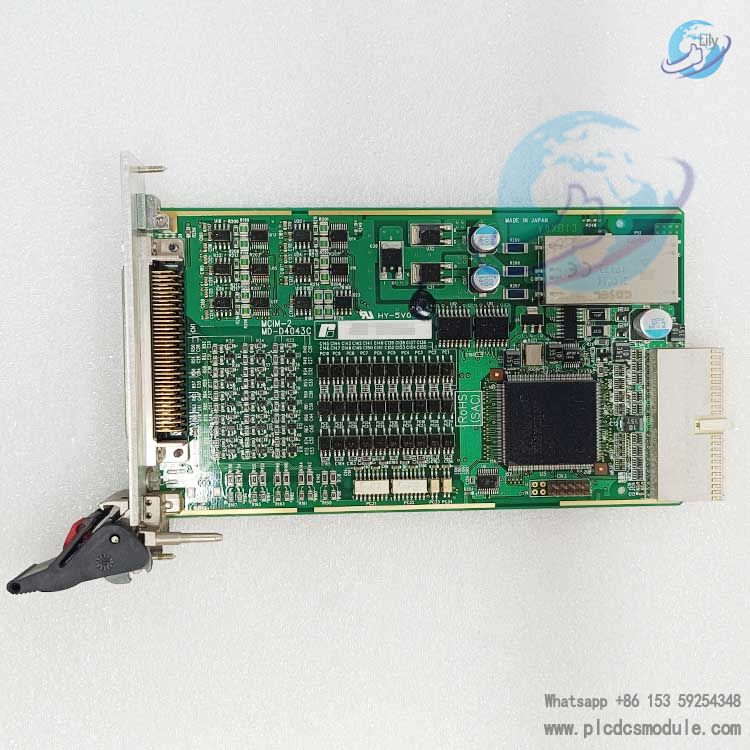

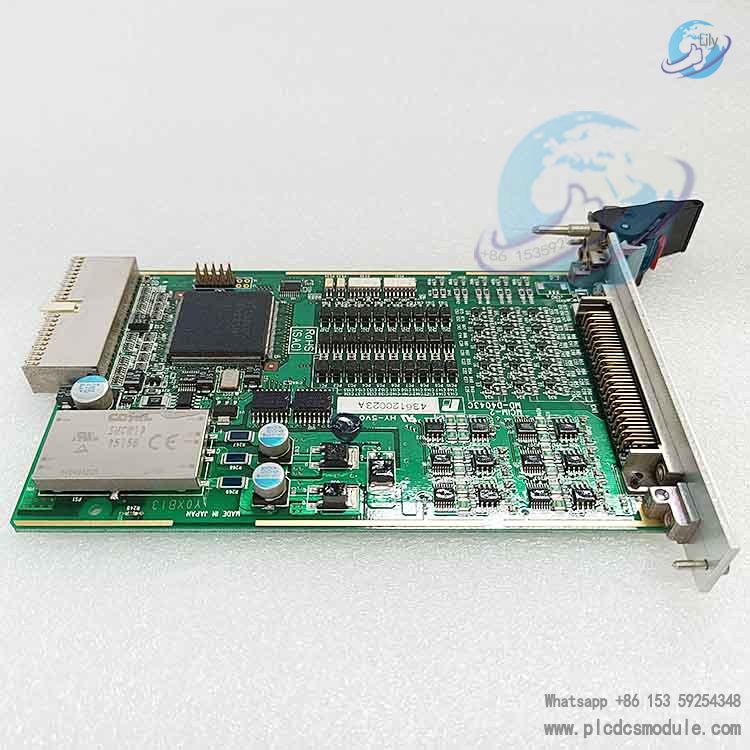

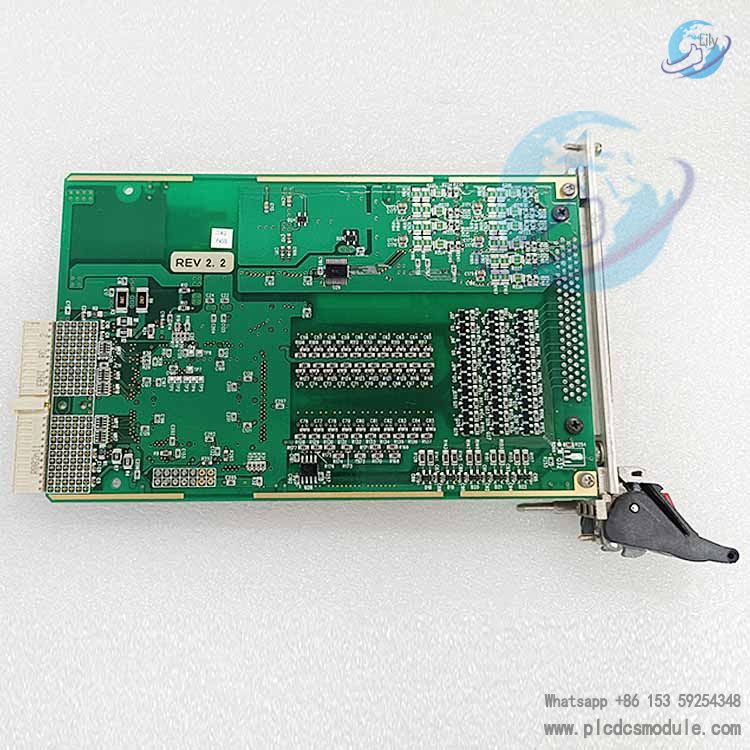

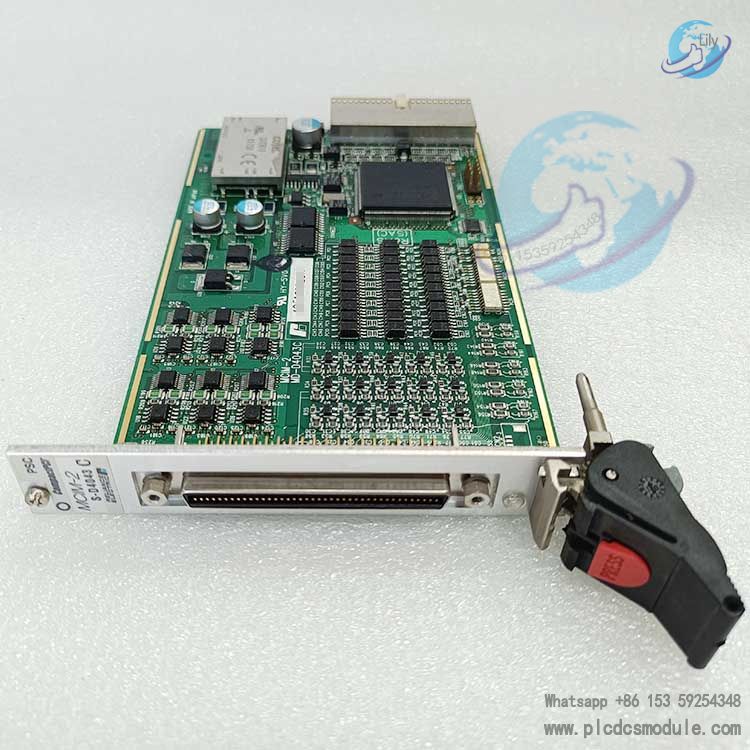

The S-D4043 (MCIM-2) is a high-performance CompactPCI-based 5-axis integrated servo control card developed by Baldor-Reliance (formerly Reliance Electric, ABB Group) exclusively for the PSC7000 motion control system. As an upgraded version of the MCIM-1, this card features high-speed pulse feedback acquisition and analog command output. Adopting the industry-standard 3U Eurocard form factor and native PSC7000 bus compatibility, it serves as the core hardware unit for high-precision multi-axis synchronization, high-speed flying shear, and electronic cam applications.
Installed directly on the expansion slots of the PSC7000 main control backplane, the card integrates full closed-loop control functions, including encoder position sampling, motion algorithm calculation, speed/torque analog output, and hardware latching for home and marker signals. It delivers a maximum pulse sampling bandwidth of 1.2MPPS, effectively eliminating pulse loss, positioning deviation and synchronization lag in high-speed production scenarios. A single card supports independent control of 5 servo axes, while dual-card expansion enables up to 10-axis synchronous motion. It is perfectly compatible with RELIANCE S-D series servo drives and supports most mainstream third-party ±10V analog servo systems, making it ideal for both new equipment configuration and legacy system renovation.
Core Product Advantages
1. High-Bandwidth Pulse Sampling, No Step Loss at High Speed
Compared with the legacy MCIM-1, the S-D4043 improves pulse processing performance by 40%, achieving a 4x oversampling rate up to 1.2MPPS. It ensures stable and distortion-free encoder signal acquisition for high-speed spindles above 10,000rpm and high-speed reciprocating equipment, completely resolving positioning errors under dynamic high-speed operating conditions.
2. Industrial-Grade CPCI Architecture, Excellent On-Site Adaptability
Built with a mature 3U CompactPCI industrial structure, the card supports hot-swap maintenance and delivers low-latency high-speed data transmission via the backplane parallel bus. The full-channel optoelectronic isolation design effectively suppresses on-site EMI interference. With an IP20 cabinet protection rating, it maintains stable long-term operation in harsh workshop environments with dust, vibration and drastic temperature changes.
3. Integrated 5-Axis Design, Simplifies Cabinet Wiring
This all-in-one card integrates 5-channel encoder feedback inputs and 5-channel analog command outputs, requiring no additional adapter boards or expansion modules. It greatly simplifies cabinet wiring, reduces connection nodes and potential circuit faults, saves installation space, and lowers long-term operation and maintenance costs.
4. Native PSC7000 System Compatibility, Low Debugging Effort
The onboard firmware is deeply optimized for the DSP core of the PSC7000 main control system. Core process algorithms including electronic gear, master-slave synchronization, flying shear and electronic cam are factory-tuned. No third-party drivers are required; the card is plug-and-play upon installation, significantly shortening equipment debugging cycles.
5. Hardware Position Latching, Superior Repeat Positioning Accuracy
Each axis is equipped with independent hardware latching channels for home and marker signals, capturing precision points for cutting, printing and laminating in microseconds without system calculation delay. The repeat positioning accuracy is stably controlled within ±1 pulse, fully meeting the requirements of precision cutting and accurate registration processes.
6. Dual-Level Encoder Compatibility, Supports Legacy Equipment Upgrades
It supports both 5V differential signals and 12V open-collector/emitter-follower encoder signals. Legacy production lines can be upgraded simply by replacing the control card, without replacing existing encoders or feedback components, minimizing renovation costs.
7. Independent Channel Protection, No Impact on Overall Production
Each channel is equipped with a dedicated fault indicator for real-time operating status monitoring. Built-in hardware self-locking protection against overvoltage, short circuit and pulse overflow enables independent fault isolation for a single axis. Faulty channels will not affect the operation of other axes, maximizing production uptime.
8. Standardized Structure, Flexible System Expansion
Featuring a standard 3U CPCI Eurocard size, the card can be freely mixed with CPU cards, communication cards and DSP operation cards. Axis expansion and function upgrades can be completed by adding extra cards without modifying the original equipment structure, delivering outstanding system scalability.
3. Detailed Technical Specifications
3.1 Hardware Channel Configuration
Encoder Feedback Channels: 5 independent channels, supporting quadrature A/B phase pulses + Z-phase zero-position home pulse acquisition;
Pulse Processing Capacity: Single-channel maximum 300KHz, 4x oversampling peak up to 1.2MPPS (exclusive MCIM-2 high-performance parameter);
Analog Output Specification: 5-channel analog command output, adjustable ±8V/±10V, 13-bit high resolution;
Analog Output Accuracy: Gain error ±55LSB, offset error ±11LSB, built-in 1.6KHz low-pass filter for stable and fluctuation-free signal output;
Dedicated Latching Input: Independent optically isolated Mark latching and Home latching digital inputs per axis.
3.2 Electrical Isolation & Environmental Parameters
Encoder Input Voltage: 5V differential (threshold ≥2.3V), 12V open-collector/emitter-follower (threshold ≥5V);
Isolation Design: Full-channel optoelectronic isolation completely separates field equipment terminals from the system bus side, eliminating signal drift and errors caused by ground loop interference;
Power Supply: Powered uniformly by the PSC7000 backplane, no external independent power supply required for simple wiring;
Operating Environment: Operating temperature: -10℃ ~ +60℃; storage temperature: -40℃ ~ +85℃; humidity: 0~95% non-condensing, adaptable to various industrial workshop conditions.
3.3 Mechanical Structure & Bus Specifications
Physical Dimensions: 3U CompactPCI Eurocard compliant with IEEE1101.1 standard, size 250mm×150mm×40mm, net weight 164g;
Installation: Compatible with Slot1 and Slot2 expansion slots of PSC7000 main control backplane, maximum 2 cards per system;
Bus Performance: High-speed CPCI parallel backplane bus, hot-swap supported, compliant with PICMG 2.0 industrial specification;
Certifications: UL, CSA, CE industrial certifications, meeting international automation equipment safety and performance standards.
3.4 Software Functions & Debugging Features
Core Motion Functions: Native support for electronic cam, master-slave synchronization, electronic gear, fixed-length cutting and position following;
Fault Self-Diagnosis: Automatically detects common faults including encoder disconnection, pulse loss, analog output short circuit and overcurrent, with real-time hardware alarm for efficient fault tracing;
Programming & Debugging: Matched with official MotionWorks programming software, supporting ladder logic and motion function block programming for easy operation and efficient debugging;
Data Interaction: Real-time uploads operating data including position, speed and fault alarms to the main CPU for equipment monitoring, parameter calibration and troubleshooting.
4. Application Industries & Scenarios
Leveraging its high-speed synchronization, ultra-precision positioning and strong anti-interference capabilities, the card is widely applied in roll material processing and precision automated production equipment across multiple industries:
Printing & Packaging: High-speed gravure printing, flexographic printing, slitting, laminating and label die-cutting flying shear synchronization systems;
Lithium Battery New Energy: Multi-axis tension synchronization and positioning control for pole piece coating, calendering, slitting and winding equipment;
Textile & Chemical Fiber: Multi-roller synchronous transmission systems for high-speed texturing machines, warp knitting machines and printing & setting machines;
Metal Processing: Steel coil leveling, slitting, longitudinal shearing and fixed-length flying shear production lines;
Industrial Test Equipment: CPCI-based industrial control test platforms and motor dynamic performance synchronous test benches;
Paper & Non-Woven Fabric: Closed-loop positioning control for high-speed rewinding, slitting and punching equipment;
Precision Machine Tool Accessories: Multi-axis feeding and cam indexing servo auxiliary control systems for precision machine tools.
Frequently Asked Questions (FAQ)
Q1: Can the S-D4043 directly replace the old MCIM-1 model? Is program modification required?A: Full compatibility is achieved. No program adjustments, wiring changes or parameter resetting are needed. Direct plug-and-play replacement enables lossless upgrade.
Q2: Does it support both 5V and 12V encoders?A: Dual voltage level compatibility is available. Legacy 12V encoders and new 5V differential encoders can be connected directly, ideal for revamping both new and existing production lines.
Q3: What is the maximum number of axes controlled by a single card? Can multiple cards be mixed for use?A: Each single card controls up to 5 axes. Two cards can be installed via the dual-slot backplane, supporting synchronized control of a maximum of 10 axes with flexible capacity expansion.
Q4: Will pulse loss or position deviation occur during high-speed operation?A: Equipped with 1.2MPPS high-bandwidth sampling and optimized proprietary algorithms, it delivers stable performance at ultra-high speeds up to 10,000 RPM without pulse loss, completely eliminating position deviation during high-speed synchronization.
Q5: Does it support hot swapping? How is its anti-interference performance on site?A: Hot swapping is supported for maintenance. All channels adopt optoelectronic isolation, tailored for harsh industrial electromagnetic environments to maintain stable signals without drift.
Q6: Will a single-axis fault trigger a full machine shutdown?A: No. Each channel features independent self-locking isolation upon failure, allowing other axes to keep running and maximizing uninterrupted production.
