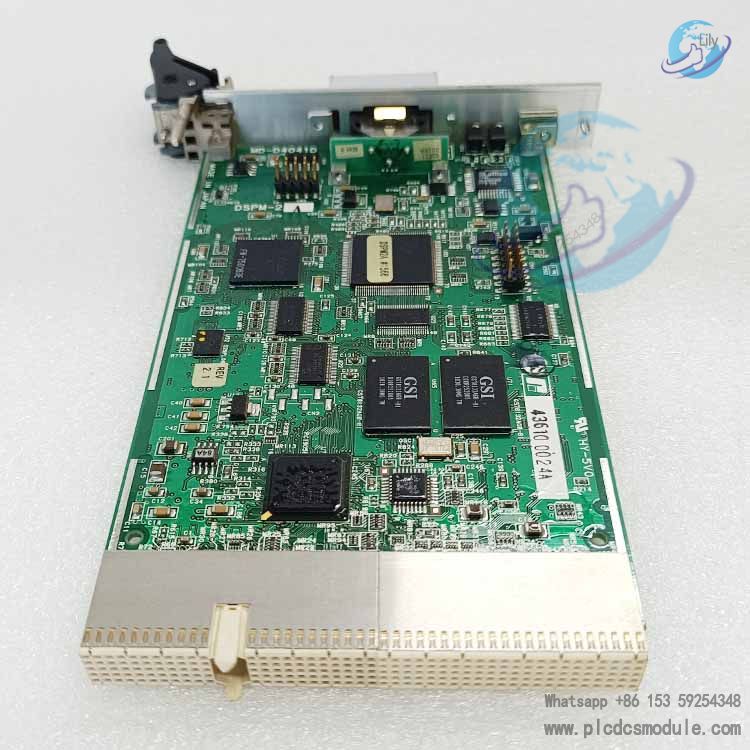

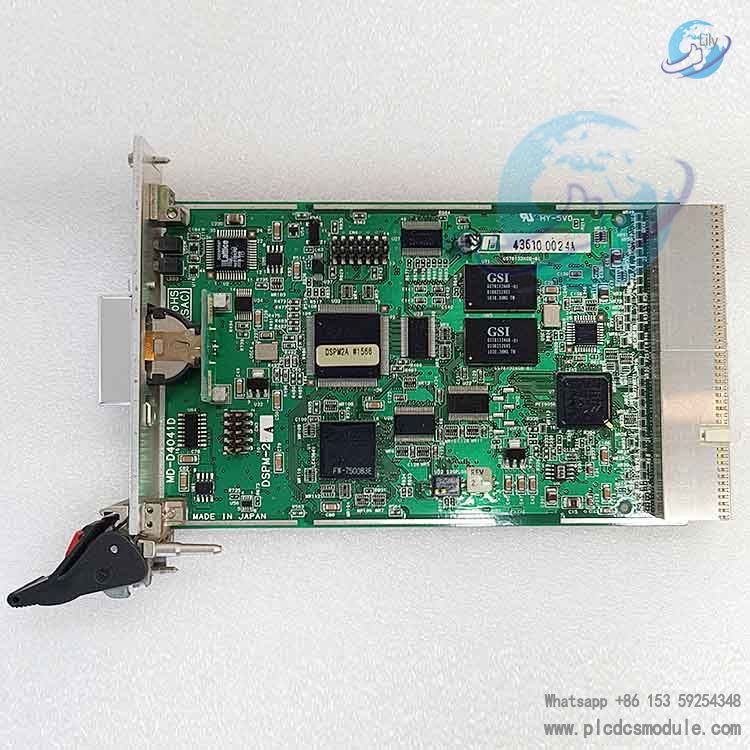

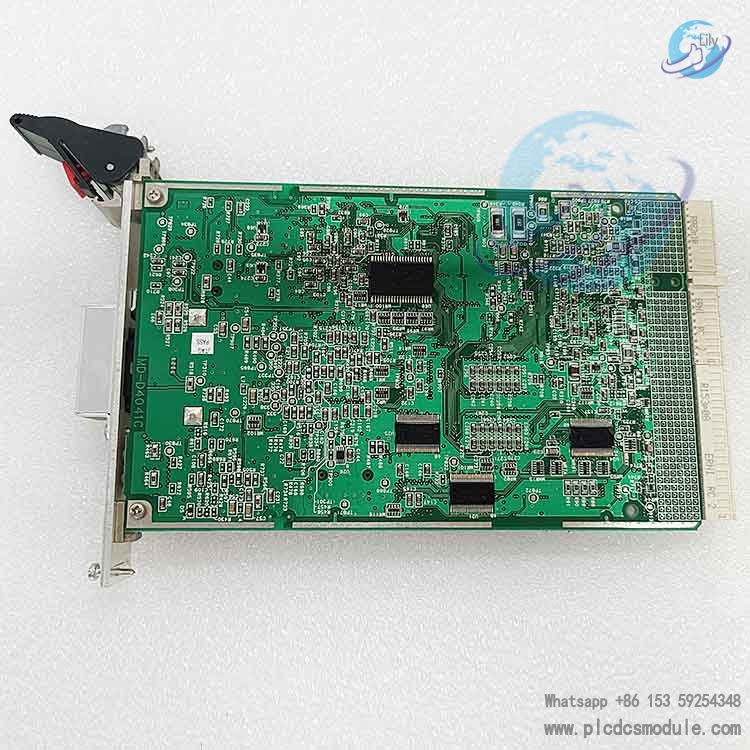

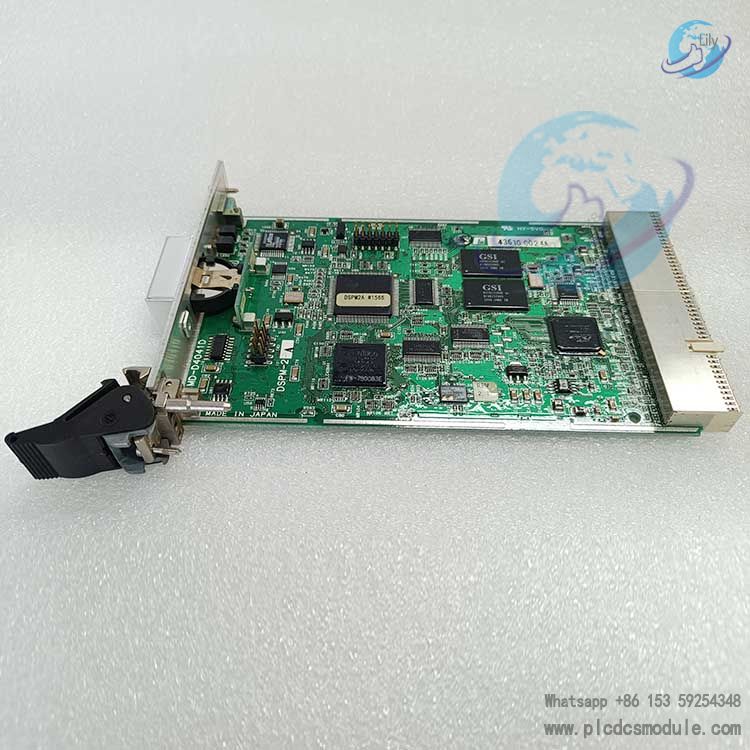

The S-D4041B is a core PLC main control computing board originally developed by Reliance Electric exclusively for the PSC7000 CompactPCI motion control platform. It is an upgraded and improved variant based on the base S-D4041 model. As the computing core of the entire multi-axis servo system, it undertakes core tasks including logic operation of the whole control system, motion algorithm scheduling, bus data exchange and overall program storage.
Adopting a standard 3U Eurocard CPCI bus architecture, the S-D4041B board can be directly inserted into the main Slot of the PSC7000 main backplane. A complete automation control solution can be configured by pairing it with S-D4043 (MCIM-2) pulse feedback boards, communication cards and I/O expansion cards. The board integrates an independent high-speed DSP computing chip, delivering dual functionality of conventional PLC logic control and high-end multi-axis motion control. Unlike simple I/O acquisition or pulse feedback boards, it parses ladder diagrams and motion function block programs programmed via MotionWorks, transmits speed and position commands to servo drives, and synchronously receives encoder feedback signals to execute closed-loop calculations.
Optimized by the original manufacturer for high-dynamic continuous production lines such as printing, lithium battery and metal coil processing, this board has been out of production for many years. At present, it is mainly used as spare parts replacement for legacy equipment and production line retrofitting & upgrading projects.
Detailed Specifications
1. Computing & Program Features
- Core Processor: Dedicated floating-point DSP chip. The scan cycle of motion algorithms can reach sub-millisecond level at minimum, realizing lag-free multi-axis synchronization.
- Programming Compatibility: Original MotionWorks software supports three programming modes: ladder diagram, motion function blocks and basic PSC language.
- Storage Specifications: Equipped with on-board built-in storage plus external CF card expansion, capable of storing multiple sets of equipment recipes, cam curves and complete control programs.
- Native Motion Functions: Electronic cam, master-slave multi-axis synchronization, electronic gear, flying shear cutting, tension closed-loop control, position follow-up and homing.
- PLC Logic Functions: Sequential interlock, fault judgment, timing & counting, analog PID regulation, digital input and output logic scheduling.
2. Bus & Electrical Parameters
- Bus Standard: 3U CompactPCI parallel backplane bus, compatible with dedicated PSC7000 main backplane.
- Power Supply: Powered uniformly by the PSC7000 backplane; supports wide-range industrial input voltage of 115/230VAC, compatible with 50/60Hz power frequency.
- Communication Interfaces: Dual on-board serial ports (RS232 and RS485) supporting Modbus protocol for connection with touch screens and upper monitoring systems.
- Isolation Design: Full optoelectronic isolation for bus side and external communication interfaces to block on-site electromagnetic interference.
- Protection Mechanism: Hardware-level self-locking protection against overvoltage, overcurrent, bus short circuit and storage failure; independent fault indicator lights to identify different fault types.
3. Environmental & Mechanical Specifications
- Standard Dimension: 3U Eurocard form factor, 250mm × 150mm × 40mm, net weight 160g.
- Operating Temperature & Humidity: Operating temperature: -10℃ ~ +60℃; storage temperature: -40℃ ~ +85℃; humidity range 0~95% non-condensing.
- Protection Class: IP20 protection inside cabinets, suitable for general industrial workshops with moderate dust and slight vibration.
- Certifications: Fully certified with UL, CSA and CE industrial automation safety standards before delivery.
- Installation Position: Main expansion slot of PSC7000 backplane. One set of system only requires one S-D4041B as the main controller, and can be matched with up to two S-D4043 pulse expansion cards.
Core Advantages
Dual-function motion + PLC computing eliminates the need for an extra standalone PLC
Equipped with a dedicated built-in DSP core, the board handles standard PLC sequential controls including equipment start-stop, alarm interlocks and conveying logic. It also independently runs complex motion algorithms such as electronic cam, electronic gear, flying shear synchronization and fixed-length cutting. No third-party PLC installation is required, which simplifies control cabinet layout and reduces hardware & software communication failure points.Natively compatible with the full PSC7000 ecosystem with zero compatibility barriers
Its underlying firmware seamlessly communicates with other series modules including the S-D4043 pulse board, SERCOS communication card and analog I/O card. Mixed installation on the same backplane requires no additional driver configuration. It perfectly matches original RELIANCE S-D series servo drives and can connect to third-party ±10V analog servos. Existing hardware wiring remains unchanged during new or old production line retrofits.Upgraded hardware circuitry delivers superior stability for long-term continuous operation
Compared with the base S-D4041 model, the S-D4041B features optimized power regulator circuits and bus signal filtering circuits to strengthen EMI resistance against interference generated by workshop inverters and motor startup/shutdown. Critical signals across the entire board are isolated to prevent program loss, computing lag and false alarms caused by ground loop interference and voltage fluctuations, making it ideal for 24/7 non-stop production environments.Large-capacity on-board local storage supports complex multi-axis projects
On-board solid-state storage fully accommodates large-scale multi-axis synchronization programs, hundreds of cam curves and equipment recipe parameters. All programs and parameters are automatically retained after power failure without re-downloading and commissioning after power-on. The built-in CF card slot enables quick backup and duplication of full system programs, drastically boosting efficiency for mass equipment commissioning.Comprehensive built-in hardware self-diagnosis lowers troubleshooting difficulty
Multiple segmented status LED indicators on the front panel separately display power supply, bus communication, program execution and fault alarm status. Integrated hardware self-locking protection safeguards against overvoltage, overcurrent and bus short circuits. A single channel fault only locks the corresponding functional zone instead of shutting down the entire system, enabling maintenance technicians to quickly locate malfunctions.Hot-swap support drastically cuts downtime for maintenance
Compliant with the industrial PICMG 2.0 CompactPCI standard, the board supports hot swapping when the system is powered down. Module replacement for maintenance does not require full power-off or backplane disassembly, making it highly suitable for production line emergency repairs and spare part replacements.
Applicable Industries & Equipment Scenarios
Leveraging integrated control of PLC logic and high-speed multi-axis motion, this product is primarily applied to continuous web material production lines and high-precision synchronized automated lines, especially for legacy imported machinery equipped with the PSC7000 control system.
Printing & Packaging Industry
High-speed gravure printing machines, flexo laminators, label flying shear die-cutters, slitting and rewinding complete production lines
Lithium Battery New Energy Industry
Multi-axis tension synchronization equipment for electrode coating, calendering, slitting, winding and separator cutting processes
Textile & Chemical Fiber Industry
High-speed texturing machines, warp knitting machines, printing & setting machines, production lines with multi-roller synchronized transmission
Metal Processing Industry
Steel coil leveling lines, slitting lines, longitudinal shearing units, fixed-length flying shear cutting lines
Paper & Non-woven Fabric Industry
Closed-loop positioning equipment for high-speed rewinding, perforating and web slitting
Precision Testing & Machine Tools
Dynamic motor synchronization test benches, multi-axis feeding systems, auxiliary servo control systems for cam indexing
Product Comparison
| Comparison Item | S-D4041 (Basic Main Controller) | S-D4041B (Upgraded PLC Main Controller) | S-D4043 (MCIM-2 Pulse Feedback Card) |
|---|---|---|---|
| Product Positioning | Basic motion PLC computing board | Improved anti-interference main control board | Auxiliary expansion card for encoder pulse acquisition |
| Core Functions | PLC logic + basic motion calculation | Full-function PLC + high-speed motion algorithms with upgraded anti-interference circuits | Only collects PG pulses and outputs analog servo commands; no independent computing capability |
| Bus Filter Circuit | Basic filtering, susceptible to interference under complex working conditions | Optimized voltage regulation and signal isolation, stable for 24/7 continuous operation | Basic isolation only, without computing circuits |
| Program Compatibility | Compatible with basic programs; prone to lag with large cam programs | Fully compatible with all programs of S-D4041, supports large-capacity cam curves | No program storage; merely receives commands sent by the main controller |
| Quantity Per Single System | 1 piece per system set | 1 piece per system set | Up to 2 pieces per system set |
| Independent Equipment Control Support | Can be used alone as the main controller of the entire system | Indispensable sole computing core of the whole system | Cannot operate independently; must be matched with S-D4041 / S-D4041B main controller |
| Replacement Application Scenarios | Minor retrofits of legacy equipment with basic programs | Upgrading and replacing old S-D4041 for high-speed, multi-axis production lines with heavy interference | Replacement for faulty encoder feedback modules; system capacity expansion to add more control axes |
FAQ
Q1: Can the S-D4041B directly replace the old S-D4041? Does the program need to be rewritten?
A: It supports fully lossless direct replacement with compatible hardware dimensions, backplane interfaces and communication protocols. All existing MotionWorks ladder diagrams, cam programs and servo parameters can run directly without modification after downloading, greatly shortening on-site replacement downtime.
Q2: How many S-D4041B boards does one PSC7000 system require? Is multi-board parallel connection supported?
A: Each PSC7000 system only needs one S-D4041B as the exclusive main controller, and multi-main-controller parallel connection is unavailable. To expand servo axes, install up to 2 S-D4043 pulse expansion cards for a maximum of 10-axis synchronous control.
Q3: Does the S-D4041B have no pulse acquisition function? What matching board is required?
A: The main controller only undertakes operational tasks without encoder input and analog output channels. It must be matched with the S-D4043 (MCIM-2) pulse feedback card to form a complete servo control loop for servo motor operation.
Q4: Will the S-D4041B generate frequent errors or program loss in workshops with heavy inverter and electromagnetic interference?
A: Upgraded from the old S-D4041, it adopts multi-stage signal filtering and power isolation circuits optimized for interference from inverters and high-power motors. It effectively eliminates program loss and communication garbled codes in high-interference production lines such as printing and lithium battery manufacturing.
Q5: As a discontinued model, is there a significant performance gap between new S-D4041B spare parts and used disassembled boards?
A: Mass production has been discontinued with scarce original new stock. Used disassembled boards in good condition (no repair or corrosion) pass full aging tests, delivering performance comparable to new boards in program operation and bus communication. They feature higher cost performance and are suitable for budget-limited equipment maintenance.
Q6: Does this main controller support third-party touch screens and upper computer monitoring?
A: The built-in RS485 Modbus interface is compatible with most industrial touch screens and SCADA upper monitoring software. It can upload real-time equipment data including speed, position, fault codes and tension parameters for centralized production line monitoring.
Q7: Will programs stored in the S-D4041B be lost after power off?
A: Equipped with on-board non-volatile memory, it automatically saves complete programs, cam curves and servo formula parameters after power failure. The CF card one-click backup function supports fast program copying, avoiding repeated programming for batch equipment commissioning.
Q8: What causes the steady red fault indicator on the board? How to troubleshoot quickly on site?
A: Common causes include unstable backplane power supply, poor bus contact caused by slot dust or oxidized gold fingers, and damaged storage or program logic errors. Standard troubleshooting steps: power off and clean gold fingers → test backplane voltage → re-download programs, which can resolve most on-site simple faults efficiently.
