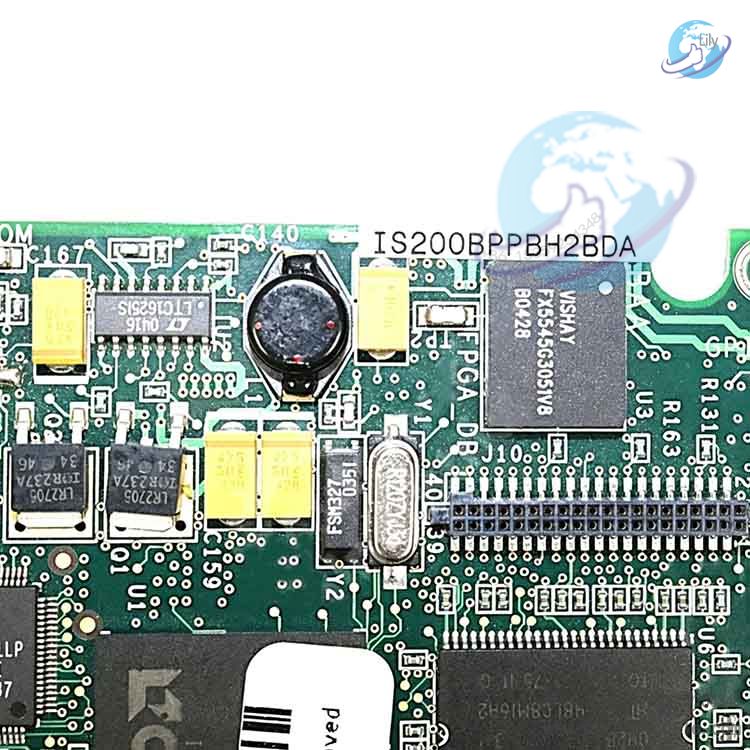

IS200BPPBH2BMD is a core analog I/O processor board of the Mark VI/VIe series under GE Digital and part of the IS200 product line. Engineered for harsh industrial conditions, it acts as an interface between the control system and field devices to collect, process analog signals and deliver control outputs. It is widely applied in turbine control, power generation, oil & gas and other scenarios demanding high precision and reliability.
Product Advantages
Ultimate Reliability: Designed for wide temperature range (-40℃ to +85℃), vibration resistance and EMI immunity. With IP20 protection rating, it operates steadily in harsh conditions such as high temperature and high humidity.
High-Performance Processing: Equipped with a dedicated microprocessor, it supports complex control algorithms and processes multi-channel analog signals at high speed to ensure real-time response.
Seamless Compatibility: Natively compatible with GE Mark VI/VIe DCS and TMR redundancy architecture. It can also connect with mainstream PLC and SCADA systems.
Easy Maintenance: Adopts standard modular design and hot-swap capability, with built-in self-diagnosis function, effectively reducing downtime and maintenance costs.
Flexible Protocols: Integrated with RS-485 interface and compatible with Modbus, Profibus and Ethernet, enabling communication with devices of various brands.
Product Specifications
Core Parameters
Model: IS200BPPBH2BMDType: Analog I/O Processor Board (BPPB)Power Supply: 24V DC input, 5V DC/10A outputOperating Temperature: -40℃ ~ +85℃; Storage Temperature: -40℃ ~ +100℃Protection Class: IP20; Humidity: 5% ~ 95% (non-condensing)Communication: RS-485, compatible with Modbus, Profibus and EthernetDimension: Standard modular form factor; Weight: Less than 1 poundInterface: 8-pin female connectors (18 pins each), integrated lightning protection (6 varistors)
Functional Features
- Multi-channel analog input and output (4-20mA/0-10V) with accuracy of ±0.1%
- Redundancy: Supports TMR and simplex redundancy with automatic switchover upon faults
- Real-time Monitoring: Onboard LED status indicators, built-in fault diagnosis and alarm function
- Protection Mechanism: Over-current, over-voltage and over-temperature protection for equipment safety
Application Scenarios
Power Generation: Control of gas and steam turbines; monitoring of temperature, pressure and rotational speed to guarantee stable power output.
Oil & Gas: Monitoring for compressors, pump stations and pipelines to improve transmission efficiency; suitable for explosion-proof environments.
Industrial Process Control: Closed-loop analog control (temperature, pressure, flow) for chemical, metallurgical and water treatment industries.
Offshore Platforms: Monitoring of power systems and field equipment; anti-salt spray and anti-vibration design for marine environments.
FAQ
- Can it replace the old model IS200BPPBH2CAA?Yes. The hardware interfaces are fully compatible for direct replacement. Please migrate the original jumper settings, re-download programs via ControlST and verify all channels before use.
- Does it support HART protocol?No. It is a native analog I/O board. A separate external HART module is required to connect HART devices.
- What happens if the operating temperature exceeds the specified range?When temperature goes above +85℃ or below -40℃, the module will activate over-temperature/low-temperature protection, cut off outputs and light up the fault LED. Long-term operation beyond the temperature range will cause permanent damage to internal components.
- How to calibrate analog channels?Input standard 4-20mA/0-10V signals via a signal generator. Access the channel calibration page in ControlST, perform zero and span calibration, then save the settings.
- Is GE original power supply mandatory?Original GE power supply is recommended. If using a third-party 24V DC power supply, it shall meet the requirements: voltage fluctuation within ±5%, ripple less than 100mV and rated power no less than 50W, to avoid module malfunctions caused by unstable power.
