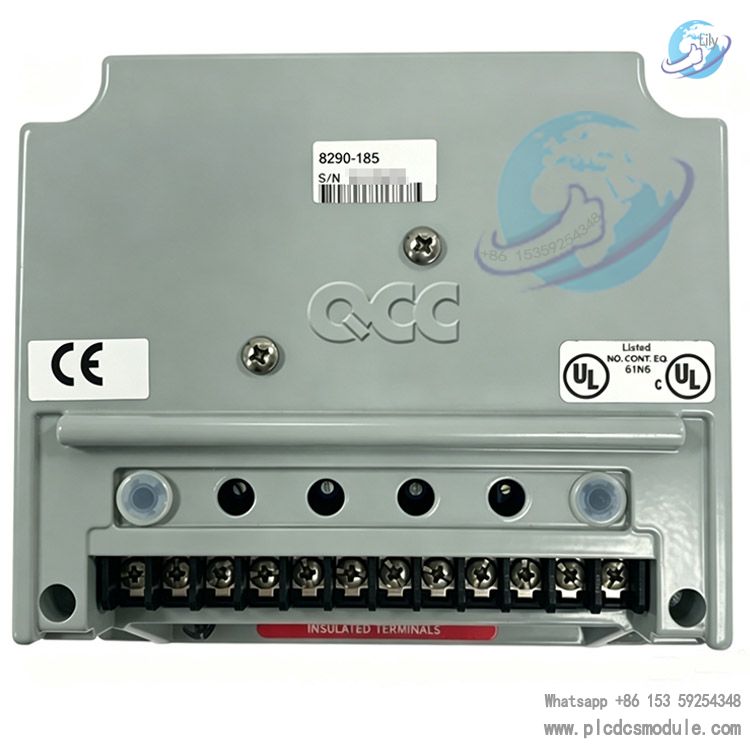

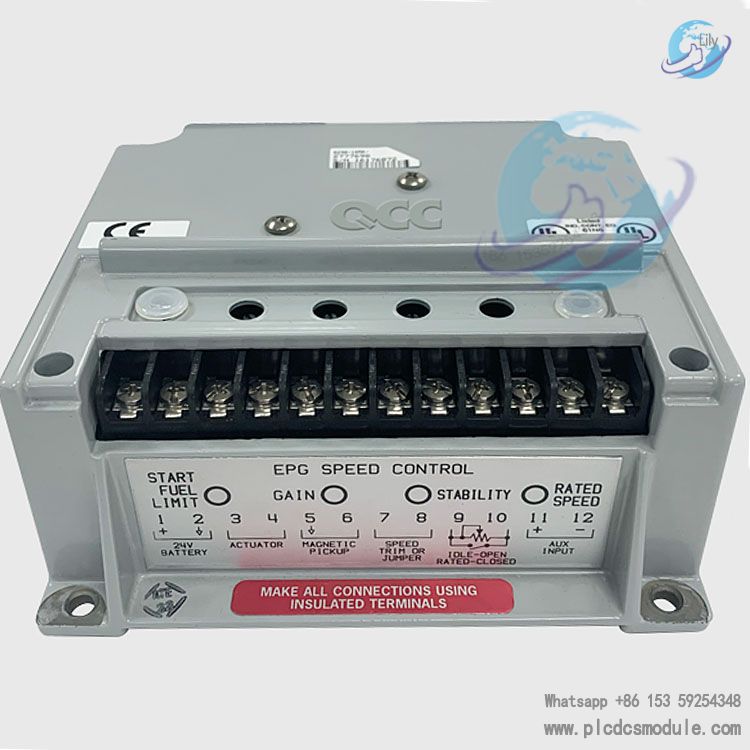

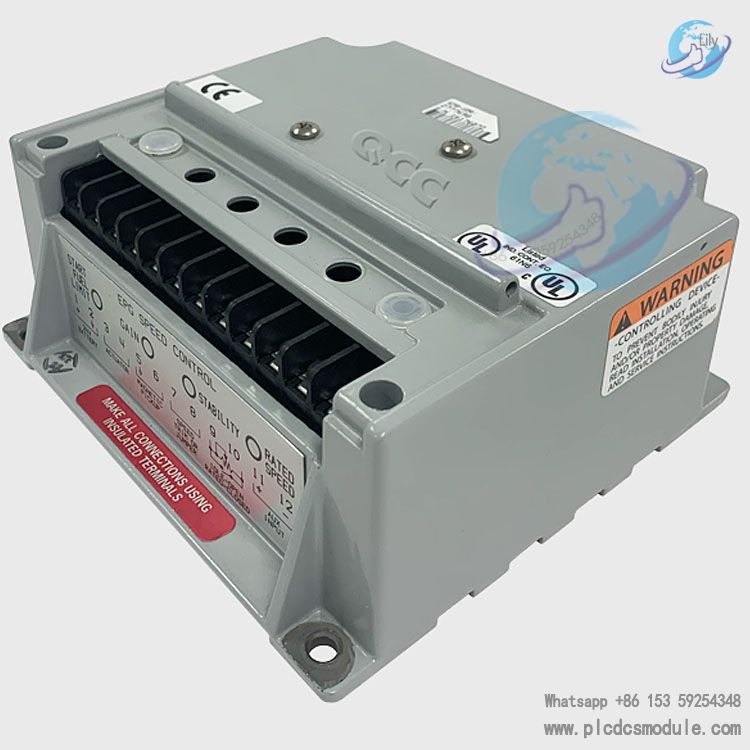

The Woodward 8290-185 is a fully electronic governor of the EPG series developed by Woodward. Designed for gasoline and natural gas engines, it works with Model 524/1724 actuators. Requiring no hydraulic oil or mechanical transmission, it adopts digital PID algorithm to realize precise speed control with a steady-state speed regulation accuracy of ±0.25%. It serves as a core speed control module for small and medium-sized generator sets, marine power systems and industrial drive equipment.
Technical Specifications
Control Mode: Digital isochronous speed control with dual dynamic parameters (independent adjustment for no-load and on-load conditions).
Input Signals: Speed signal (magnetoelectric sensor), 4–20 mA / 0–10 V analog signals and digital signals.
Output Signals: Actuator drive (compatible with Model 524/1724), alarm relay and analog feedback signals.
Communication Protocols: Modbus RTU (standard), CANopen (optional); supports remote monitoring and parameter configuration.
Protection Functions: Start fuel limiting (to prevent startup overspeed and black smoke emission), overspeed shutdown, underspeed alarm and reverse power connection protection.
Physical Parameters: IP20 protection degree; dimensions 100×150×70 mm; weight approx. 0.9 kg, suitable for standard control cabinets.
Core Advantages
High-precision and Stable ControlAdopted with a 32-bit microprocessor and dual dynamic PID algorithm, it delivers slight speed fluctuation and quick response under sudden load changes. The applicable speed frequency range is 3000–6000Hz.
High Reliability for Extreme EnvironmentsFeaturing industrial rugged construction, it operates within -40℃ to +75℃. With outstanding vibration and electromagnetic interference resistance, it performs reliably in harsh working conditions.
Plug-and-Play & Easy IntegrationIt runs on 24VDC power supply with power consumption ≤ 95W. Supporting Modbus RTU and CANopen protocols, it is fully compatible with all Woodward actuators and sensors.
Comprehensive Safety ProtectionBuilt-in protection functions cover overspeed/underspeed, overvoltage/undervoltage and start fuel limiting. It realizes self-diagnosis and alarm output to minimize downtime risks.
Application Industries
Power GenerationSpeed control for natural gas and gasoline generator sets to ensure stable output frequency at 50/60Hz.
Marine PowerSpeed regulation for marine auxiliary machinery and emergency generators, suitable for humid and vibration-prone offshore environments.
Oil & GasEngine speed control for drive pumps and compressors in oil and gas fields, applicable to explosion-proof areas.
Industrial AutomationEngine speed governing for construction machinery, pump stations, air compressors and other equipment, adapting to varying load conditions.
Product Comparison
| Model | Applicable Prime Mover | Core Functions | Application Scenarios |
|---|---|---|---|
| 8290-185 | Gasoline / Natural Gas Engine | Isochronous speed control, start fuel limiting, dual dynamic regulation | Small & medium-sized gas generator sets, marine auxiliary machinery |
| 8290-184 | Diesel Engine | Isochronous speed control, heavy load optimization | Diesel generator sets, industrial drive pumps |
| 8290-186 | Diesel Engine / Gas Turbine | Isochronous speed control, high-speed adaptation | Gas turbines, large compressors |
| 8290-158 | Gasoline / Natural Gas Engine | Dual dynamic regulation, compact design | Small generator sets, construction machinery |
FAQ
Q: Which actuators are compatible with 8290-185?A: It only works with Woodward 524 (short-stroke) and 1724 (long-stroke) actuators. Actuators from other brands are not interchangeable.
Q: What is the allowable fluctuation range of supply voltage?A: Rated voltage is 24VDC with a tolerance of ±10% (21.6–26.4VDC). Operating beyond this range may damage the module.
Q: Can it directly replace model 8290-184?A: No. Model 8290-185 is designed for gasoline/natural gas engines, while 8290-184 is for diesel engines. They adopt different control algorithms and parameters, and must be matched with the corresponding prime mover.
Q: Is a separate sensor required?A: A separate magnetoelectric speed sensor (e.g. 82510) needs to be purchased separately. Keep the sensor gap between 0.38–0.51 mm to prevent signal loss.
Q: Indicator lights stay off after power-on?A: Troubleshooting steps:
- Check for reversed power polarity;
- Verify if the fuse is blown;
- Inspect loose wiring terminals;
- Check the module for water ingress and dampness.
Q: Severe speed fluctuation and frequent oscillation occur?A: Possible causes: excessive gain, insufficient stability or improper sensor gap.Solutions: Turn the gain potentiometer counterclockwise to reduce gain, turn the stability potentiometer clockwise to improve stability, and recalibrate the sensor gap.
Q: Black smoke appears and speed fails to rise during startup?A: Excessive start fuel supply. Turn the Start Fuel potentiometer clockwise to reduce fuel delivery at startup, and meanwhile check if the fuel pressure is normal.
Q: Failed Modbus RTU communication connection?A: Troubleshooting steps:
- Confirm matching baud rate and address (default: 9600bps, address 1);
- Check if Line A and Line B are reversed;
- Ensure the 120Ω terminating resistor is properly installed.
