WOODWARD 9906-619 723 PLUS DIGITAL CONTROL 8280-1092 REV A

Manufacturer:Woodward

Product Number:9906-619

Product Type: DIGITAL CONTROL

Place of Origin: USA

✓ Payment Method: Telegraphic Transfer (T/T)

✓ Warranty Period: 12 months

✓ In Stock

✓ On-site Inspection Supported

Mail： plcdcs-module@foxmail.com

Phone/Wechat/Whatsapp：+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

WOODWARD 9906-619 is the low-voltage hardware version of the 723PLUS series digital controller, paired with the 8280-1092 application program.Designed specifically for gas, diesel and dual-fuel reciprocating engines, it serves as an industrial-grade speed governing and control core integrating speed regulation, load sharing, synchronization control and protection logic.

It is widely used in power generation, marine propulsion, industrial drive and other applications. Featuring programmability, multiple I/O points, strong anti-interference capability and complete certifications, it can be commissioned and configured via a handheld programmer or PC software.

Download

Woodward 9906-619.pdf

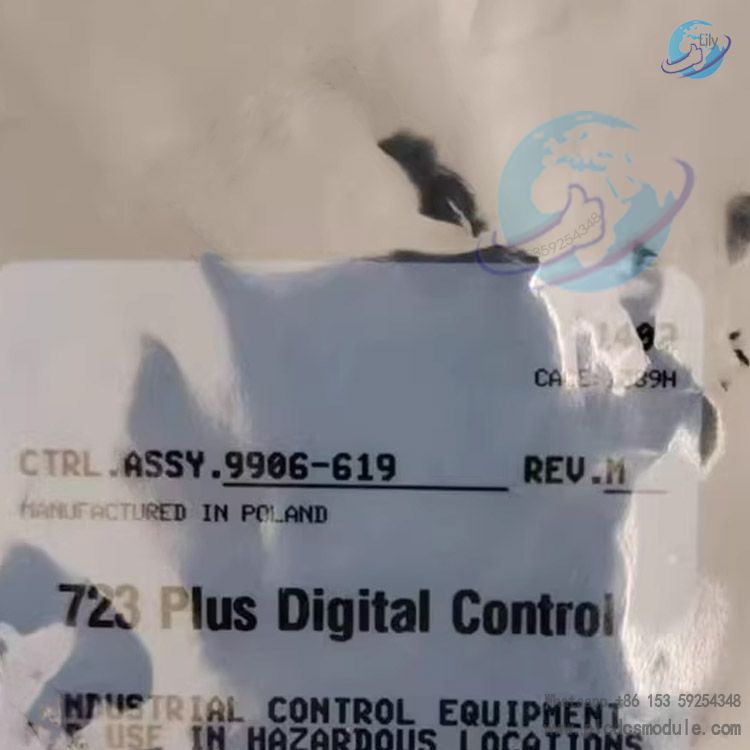

WOODWARD 9906-619 723 PLUS DIGITAL CONTROL 8280-1092..jpg

Basic Information & Model Positioning

Product Series: 723PLUS Digital ControlHardware Model: 9906-619 (Low Voltage Version)Application Program: 8280-1092Manual Number: 02877 (Revision H)Series Equivalents: 9906-620 (High Voltage Version), 9906-700 (Low Voltage Version with Improved Actuator Filtering)

Core Attributes: Pure hardware module, requires supporting software for operation. Supports speed measurement via Magnetic Pickup Units (MPU) and proximity switches.

Hardware Specifications

1. Electrical Parameters

Supply Voltage: 18–40 Vdc (nominal 24/32 Vdc)Power Consumption: 40 W at rated voltageStartup Surge: Low voltage version: 7 A / 0.1 ms, 22 A / 15 msDiscrete Inputs: 8 channels, 24 Vdc / 10 mA, response time 10 msAnalog Inputs: 4 channels, ±5 Vdc or 0–20 mA, accuracy 0.5% FSAnalog Outputs: 2 channels (0–1 mA / 4–20 mA), 2 actuator outputs (0–20 / 0–200 mA)Relay Outputs: 3 channels, resistive load 2.0 A @ 28 Vdc, 0.5 A @ 125 VdcSpeed Inputs: 2 channels, MPU (400 Hz–15 kHz) / proximity switch (30 Hz–15 kHz), minimum steady-state frequency 30 Hz

2. Structure & Interface

Main Unit: Single PCB + metal sheet chassisWiring: 3 terminal blocks, 3 9‑pin D‑Sub connectorsCommunication: 2 serial ports, software configurable as RS‑232 / RS‑422 / RS‑485, supporting Modbus ASCII / RTUCommissioning: J1 port for handheld programmer (9907‑205) or PC (Servlink + Watch Window)

3. Environment & Protection

Operating Temperature: -40℃ ~ +70℃Storage Temperature: -55℃ ~ +105℃Humidity: 95% non‑condensingVibration / Shock: Compliant with LR and MIL‑STD 801C standardsEMI / EMC: EN 50081‑2, EN 50082‑2, meeting industrial and marine requirements

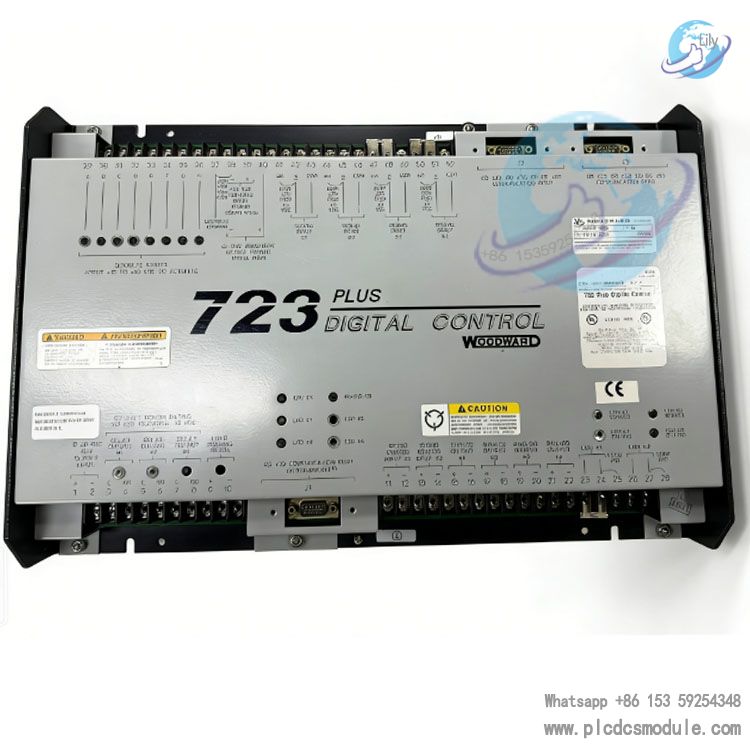

WOODWARD 9906-619 723 PLUS DIGITAL CONTROL 8280-1092.jpg

Key Features & Configuration Highlights

Dual Speed Inputs: Supports dual MPU or dual proximity switches, suitable for complex conditions such as torsional vibration filteringLoad Sharing: Built‑in load sharing circuit, supporting parallel operation of multiple units and droop controlActuator Outputs: Single / dual / series actuator configuration, high‑current drive up to 0–200 mAFlexible I/O: 4AI, 3AO, 8DI, 3DO with programmable function mappingLON / LinkNet: Dual LON channels for expanded I/O nodes and system integrationEasy Commissioning: Local parameter adjustment via handheld programmer; PC software for remote monitoring, program downloading and cross‑unit parameter copyingSafety Protection: Independent overspeed shutdown interface, supporting over-temperature and over-voltage protection logic

Application Scenarios

Speed control and parallel operation of stationary / mobile generator sets
Speed governing and propulsion control of marine main engines / auxiliary engines
Control of industrial drives such as compressors, pumps and fans
Multi-unit load sharing, synchronous grid connection, and islanded operation
Reliable control in hazardous areas and industrial sites including oil & gas, petrochemical and power plants

Installation & Commissioning Guidelines

ESD Protection: Discharge static electricity before operation; handle PCB by edges only.
Power Supply: Low-voltage version must not exceed 18–40 Vdc; a battery charger is required for battery-powered systems.
Wiring: Use shielded twisted-pair cables for signals, with single-point grounding of shields.
Jumpers: 10 internal jumpers for output type and sensor type configuration (default: MPU).
Commissioning: Enter Configure menu with engine stopped; adjust parameters in Service menu during operation, and save settings to EEPROM.
Communication: Terminate both ends of RS-485 with 100–120 Ω resistors; place RS-422 termination at the farthest receiver.
