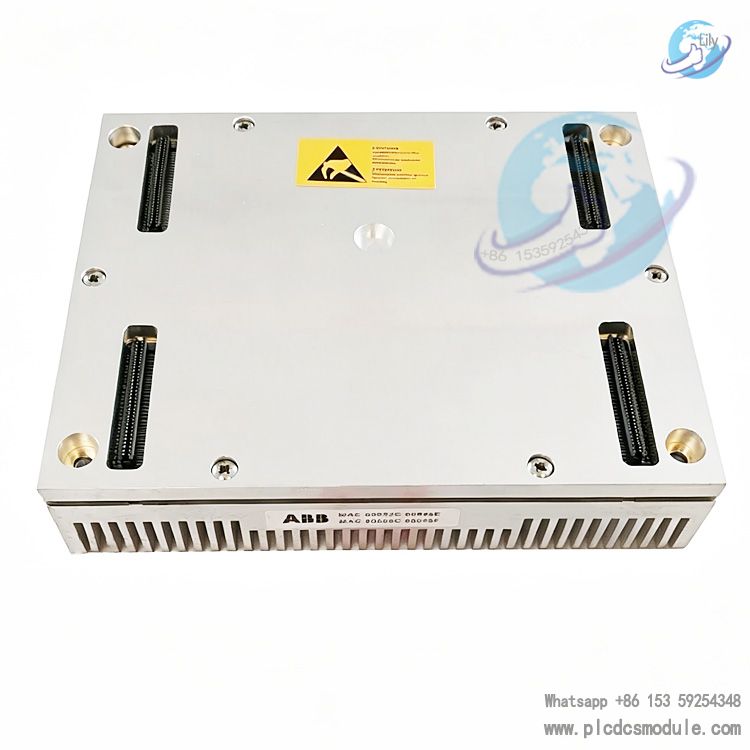

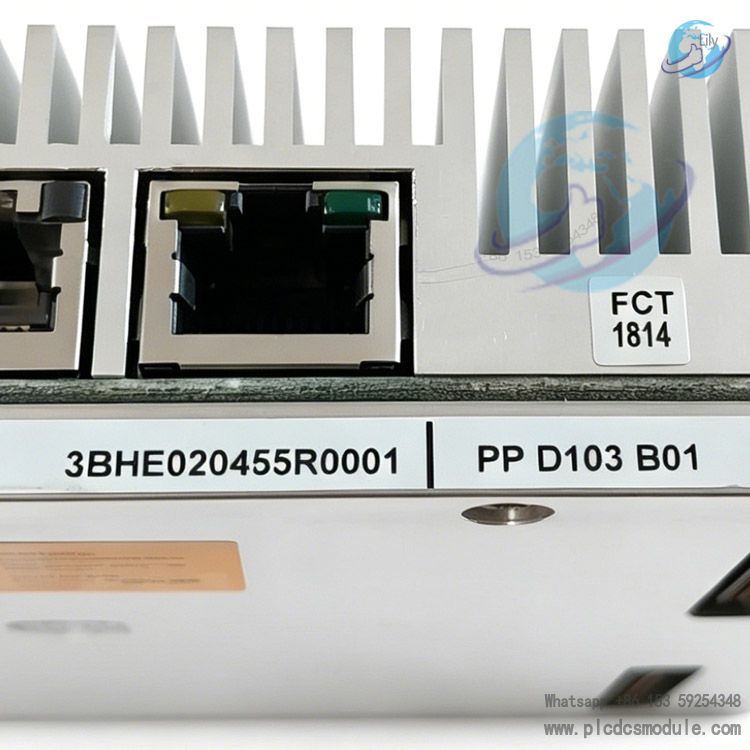

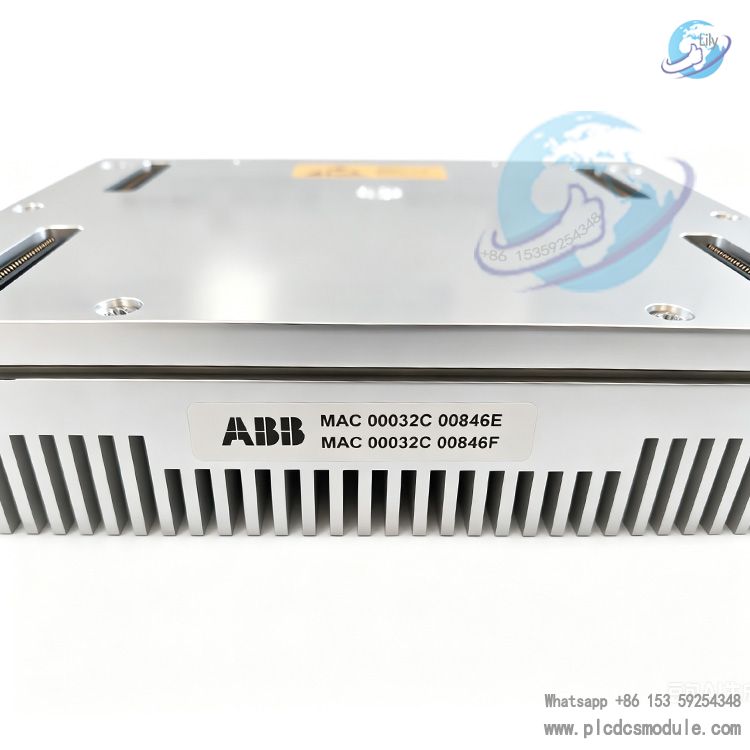

ABB PPD103B01 with part number 3BHE020455R0001 belongs to ABB AC 800PEC high-performance power process control hardware family. It is a dedicated communication control unit designed for generator sets, variable frequency drives and power quality management systems. Functioning as the core logic and data transfer board inside control loops, this unit adopts industrial 32-bit processor and integrates multiple industrial bus interfaces. It enables bidirectional high-speed data exchange between excitation systems, frequency converters, relay protection devices and upper DCS/PLC systems. Every unit passes full industrial certifications including high-low temperature and EMC interference testing at factory, designed for continuous operation in power stations and metallurgical drive workshops. It undertakes four core tasks: real-time parameter collection, closed-loop regulation, fault signal upload and cross-protocol conversion, serving as an indispensable intermediate control component in UNITROL excitation and AC800PEC control links.
Model Code Explanation
Breakdown of PPD103B01
Breakdown of part number 3BHE020455R0001
Product Advantages
- Native compatibility with multiple industrial protocols including IEC61850, Modbus TCP, Profinet and RS485 Modbus RTU, eliminating extra gateway hardware and cutting overall project hardware investment.
- Industrial wide temperature and wide voltage hardware design, stable operation from -20℃ to 60℃, supports 24VDC ±10% power supply tolerance, directly deployable in control rooms, outdoor substations and high-temperature smelting workshops.
- Built-in hardware fault diagnosis circuit, continuously detecting port disconnection, under-voltage power supply, communication timeout and internal chip failures, transmitting fault codes to upper monitoring system to shorten maintenance troubleshooting time.
- Gigabit Ethernet communication channels with maximum 1000Mbps throughput, transmitting transient power fluctuation and generator impact load data without delay, meeting millisecond-level control response demands of power systems.
- Plug-in modular DIN rail mounting structure, allowing independent replacement without disassembling the whole control cabinet and greatly reducing maintenance downtime.
- Native hardware redundancy support, dual-module hot standby operation available, automatic switchover to backup unit upon single card failure to avoid unplanned shutdown of generator sets and heavy drive equipment.
Product Specifications & Features
- Processing Unit: 32-bit ARM Cortex-A9 processor with 800MHz main frequency, 512MB RAM and 4GB local storage, capable of caching 72-hour operation logs without data loss after power cut.
- Interface Layout: 4 adaptive gigabit RJ45 Ethernet ports, 2 isolated RS485/RS232 multi-function serial ports, 1 USB2.0 local debugging port; all communication ports equipped with electrical isolation to prevent common-mode interference damage.
- Electrical Parameters: Rated 24VDC power supply, maximum power consumption 7.5W, rated input current 0.32A, integrated three-level protection circuit for over-current, reverse connection and surge voltage.
- Protection Grade: IP20 cabinet-level protection with metal dust-proof housing, standard DIN rail mounting; ESD immunity ±8KV, RF radiation resistance compliant with IEC61000 industrial EMC standards.
- Functional Capabilities: Local logic programming, PID closed-loop regulation, cross-protocol data conversion, fault waveform recording storage, remote online firmware upgrade; synchronous real-time parameter collection for up to 32 field power devices.
- Environmental Adaptation: Operating humidity 5%-90% non-condensing, withstand industrial vibration range 10-150Hz, long-term stable performance in power plants, steel rolling mills and chemical heavy-duty drive areas.
Application Industries
- Thermal/Hydro/PV & Energy Storage Power Stations: Data acquisition for UNITROL generator excitation systems, communication transfer for energy storage converters, substation protection device connection with upper DCS monitoring systems.
- Metallurgy & Non-Ferrous Metal Plants: Real-time control data exchange for main rolling mill drives and high-power frequency converters, closed-loop load regulation for rolling production lines.
- Rail Transit Power Supply Systems: Parameter monitoring for traction substation rectifiers, harmonic data collection and upload for power quality control.
- Large Chemical Refining Facilities: Centralized communication management for heavy-duty compressors and pump inverters, unified fault alarm transmission for process equipment.
- Marine Offshore Power Platforms: Generator excitation control for marine power units, data transmission for offshore platform power distribution systems.
- Cement & Mining Heavy Equipment: Multi-device networking communication for high-voltage inverters and belt drives, remote centralized maintenance monitoring.
product comparison
Comparison 1: PPD101B01 Entry-Level Communication Module
Advantages of PPD103B01: Gigabit Ethernet, larger memory, native IEC61850 support and fault waveform storage. PPD101 only supports 100Mbps Ethernet, limited to Modbus RTU protocol without local log storage, only applicable for small low-voltage drive projects.
Comparison 2: PPD113B01 High-Power Premium Control Module
PPD113 features stronger computing power and 6 Ethernet ports, designed for large-scale million-kilowatt generator units. PPD103B01 provides simplified interfaces with lower cost, higher cost performance for medium-small power stations and metallurgical rolling lines to meet standard power control requirements.
Comparison 3: PPD539A102 Dedicated Excitation Single-Function Board
PPD539 only supports exclusive UNITROL excitation protocol without compatibility for third-party inverters. PPD103B01 multi-protocol universal design allows simultaneous connection of excitation units, inverters and protection devices, delivering wider project compatibility.
FAQ
- Q: Is same batch module mandatory when matching UNITROL excitation systems for projects?
- Answer: Same batch purchase is not required. All firmware versions of PPD103B01 are fully backward compatible with full UNITROL excitation series, no cross-batch communication compatibility issues.
- Q: ERR fault light stays solid after power-on, which points should be inspected first?Answer: Inspect in sequence: 24V supply voltage, serial port terminal resistor dip switch, Ethernet IP address conflict, duplicated communication address of downstream excitation equipment, mismatched module firmware version.
- Q: Frequent communication data fluctuation and disconnection, how to improve anti-interference performance?Answer: Replace serial wiring with shielded twisted pair cable with single-end shield grounding; install fiber optic media converters for Ethernet circuits, add filter magnetic rings to module power supply lines.
- Q: Will module stop running automatically when local log storage is full?Answer: No shutdown will occur, the system automatically overwrites the earliest 72-hour historical data. Export log backup every quarter to avoid loss of critical fault records.
- Q: How to import old parameters quickly to new hardware during on-site module replacement?Answer: Export parameter backup file via Control Builder software, connect new module to PC via USB after power-on and import backup file directly without reconfiguring communication protocols.
Q: What hardware damage occurs if operating temperature exceeds 65℃ continuously?Answer: High temperature accelerates internal capacitor aging, resulting in communication delay and computing lag. Long-term over-temperature operation will burn out processor chip directly, cooling fans must be installed inside control cabinets to maintain stable temperature.
