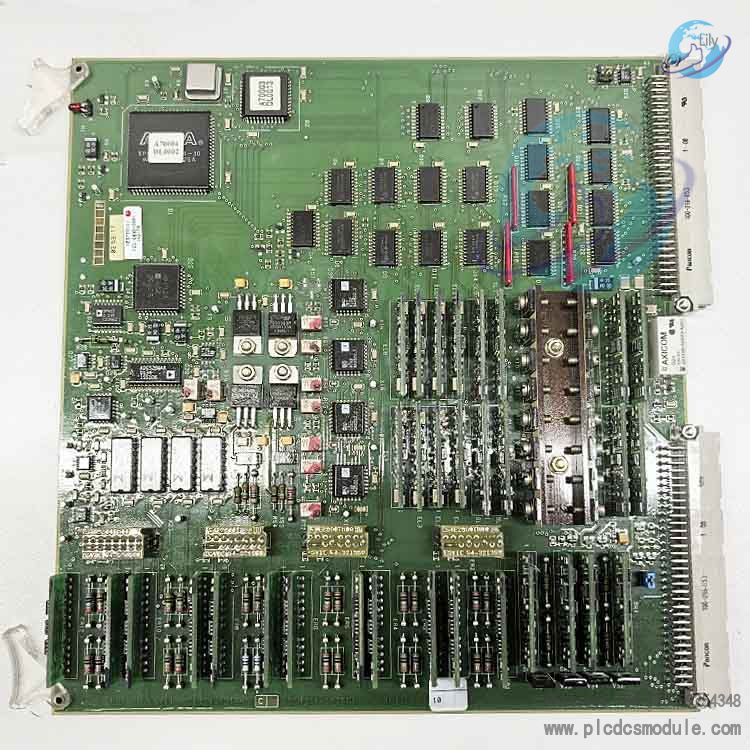

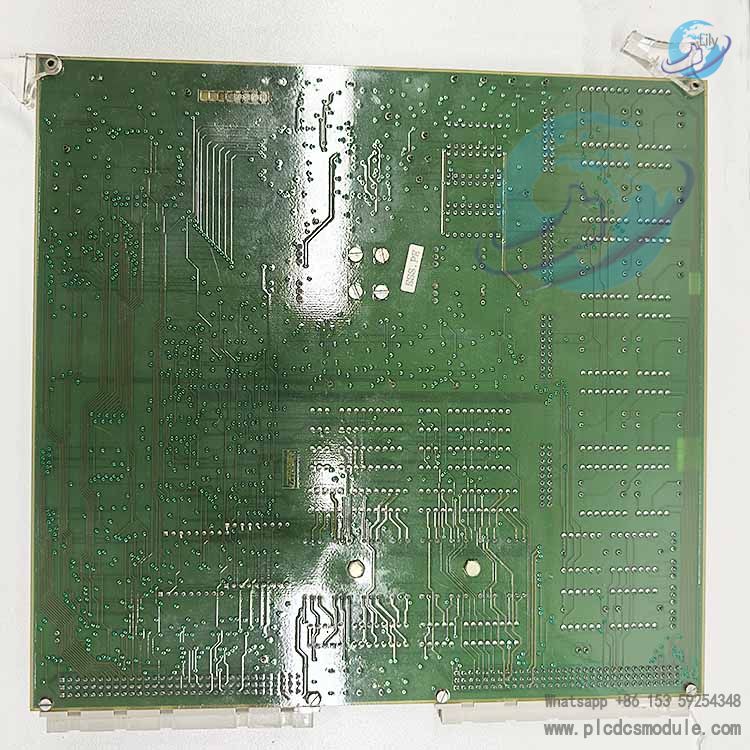

GE ALSTOM L54E1100BB00 CARTE ESVI1 is an integrated PLC I/O board exclusively designed for Alstom ESVI1 control system, co-developed and manufactured by GE Alstom. As the core signal transfer hardware between field devices and main controller, it integrates digital and analog signal input & output channels, compatible with standard 24VDC industrial power supply. It supports real-time data acquisition and logic control under harsh working conditions including rail transit and power generation. The module complies with original Alstom industrial safety standards, equipped with hardware protection and channel diagnosis circuits to realize stable data communication between sensors, actuators and ESVI1 main control unit, serving as an indispensable basic signal processing component of the complete ESVI1 rack system.
Model Decomposition
- L54: Unified prefix of Alstom ESVI series I/O boards, representing signal input & output hardware category
- E1100: Channel specification code, defining standard configuration of 16 digital inputs,16 digital outputs,2 analog inputs,2 analog outputs
- BB: Hardware version code, standard general industrial version without customized explosion-proof or high-voltage modification
- 00: Production batch suffix, factory standard delivery configuration without customized firmware adjustment
- CARTE ESVI1: French marking, CARTE means circuit board, ESVI1 represents affiliation to ESVI1 distributed PLC control system
Product Advantages
- Integrated multi-channel layout, single card integrates DI, DO, AI and AO channels, saving rack slots and cutting total hardware investment and cabinet installation space
- Full-channel electrical isolation design with 2500V AC isolation withstand voltage between input, output and power supply, effectively resisting electromagnetic interference for substations, locomotives and chemical plants
- Wide temperature and humidity adaptability, continuous stable operation from -20℃ to 70℃, long-term service under 5%-95% non-condensing humidity, withstand 5g vibration and 30g impact, suitable for vehicle-mounted and outdoor cabinet deployment
- Built-in real-time hardware diagnosis circuit with independent fault LED for each channel, instant positioning of short circuit, overvoltage and wire breakage faults to reduce field maintenance time
- Standard rack gold finger connector supporting quick plug-and-play replacement without cabinet rewiring, greatly shortening equipment shutdown maintenance duration
- 16-bit high-precision ADC chip, full-scale accuracy of analog signal collection reaches ±0.1%, minimizing control error for closed-loop systems and ensuring stable operation of generators and rail equipment
- Certified by CE, UL, CSA international industrial standards, meeting access specifications of railway signal and power industrial control industries, applicable for critical safety control circuits and export projects
Application Industries
- Rail Transit: On-board traction control system for metro, railway signal interlock equipment, locomotive brake logic monitoring, automatic platform equipment
- Power Generation: Excitation monitoring of hydro/steam turbine generator sets, auxiliary PLC control of substation, pitch signal collection of wind power, power distribution automation system of power grid
- Oil & Chemical: Valve control of oil & gas transmission pump station, temperature & pressure signal collection of refining production line, remote logic control cabinet for explosion-proof plant area
- Industrial Process Automation: Closed-loop control of large production lines, signal transfer of hydraulic servo equipment, instrument data collection of sewage treatment plant
- Large Infrastructure Building: Central HVAC control of commercial complex, underground parking security linkage, environment monitoring of large computer room
Frequently Asked Questions
Q: What is the maximum quantity of L54E1100BB00 installable on one ESVI rack?
A: Standard ESVI1 rack supports up to 8 identical I/O boards running synchronously, multi-rack can be cascaded via communication module to expand total channel capacity.
Q: Can this module directly replace old L54E1100AA00 without program revision?
A: Physical rack interface is fully compatible, only channel address parameters need modification in upper configuration software, no rewrite of control logic program required.
Q: Does this module meet EU railway industry certification standards for export rail transit projects?
A: Equipped with CE and UL industrial certificates, compliant with EN railway industrial control norms, applicable for customs clearance of overseas rail projects in EU and Southeast Asia.
Q: Red fault light keeps flashing after module power-on, what is troubleshooting sequence?
A: First check stability of 24V supply voltage; second disconnect each channel terminal one by one to eliminate short circuit and ground fault; third reinsert module to clean gold finger connector; fourth update firmware version of main controller.
Q: Analog collected value fluctuates sharply, how to reduce signal interference?
A: Replace analog signal wire with double-shielded cable with single-end shielding grounding; add signal isolation terminal between input and output channels, shorten wiring length on site.
Q: Does this module support hot swapping, will live plugging burn hardware?
A: Official specification requires power-off replacement, live hot swapping may cause backplane surge current to break down chips, total rack power cut is mandatory for fault replacement.
Q: How often should maintenance be conducted for modules installed in outdoor cabinets long-term?
A: Clean terminal dust every six months under dry dust-free environment; clean every 3 months for humid and dusty chemical plants, retighten all wiring terminals annually.
