It supports compatible replacement with multiple versions of modules from the same series, suitable for spare part retrofits of aging wind turbines and complete set integration for new wind units.
Model Code Breakdown

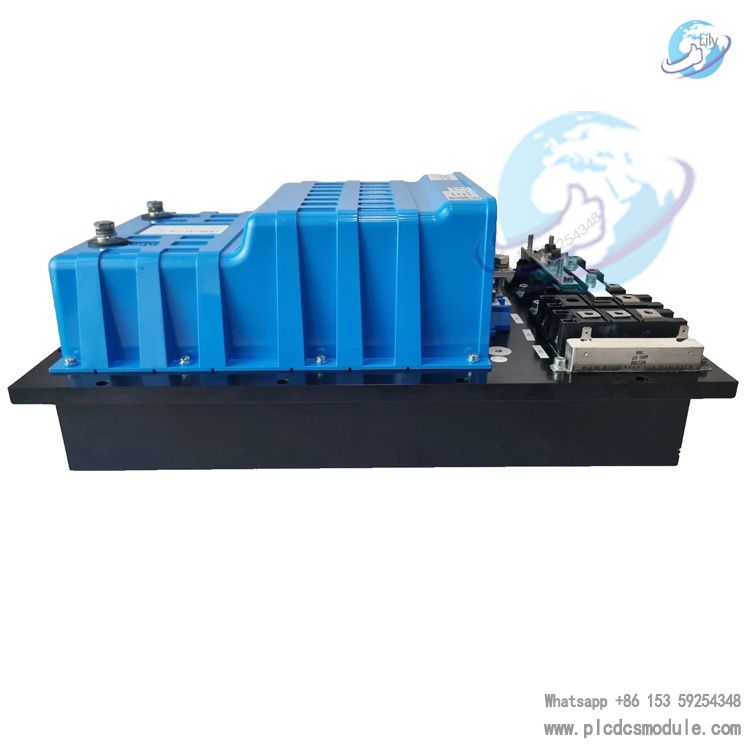

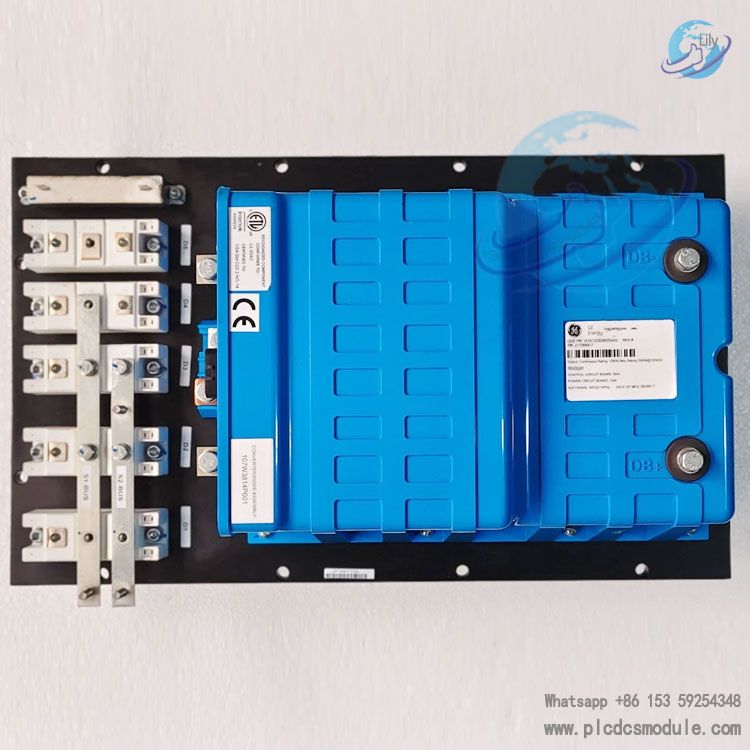

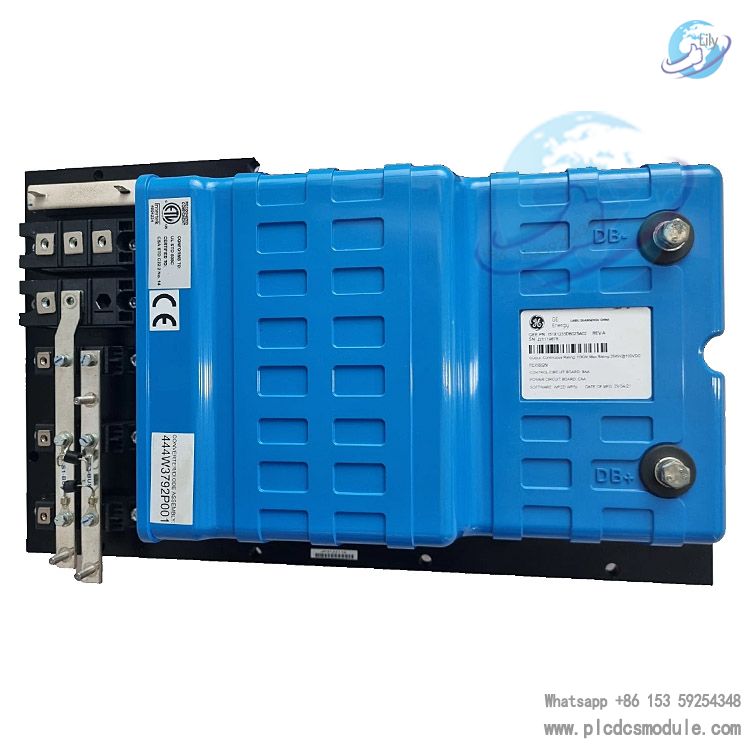

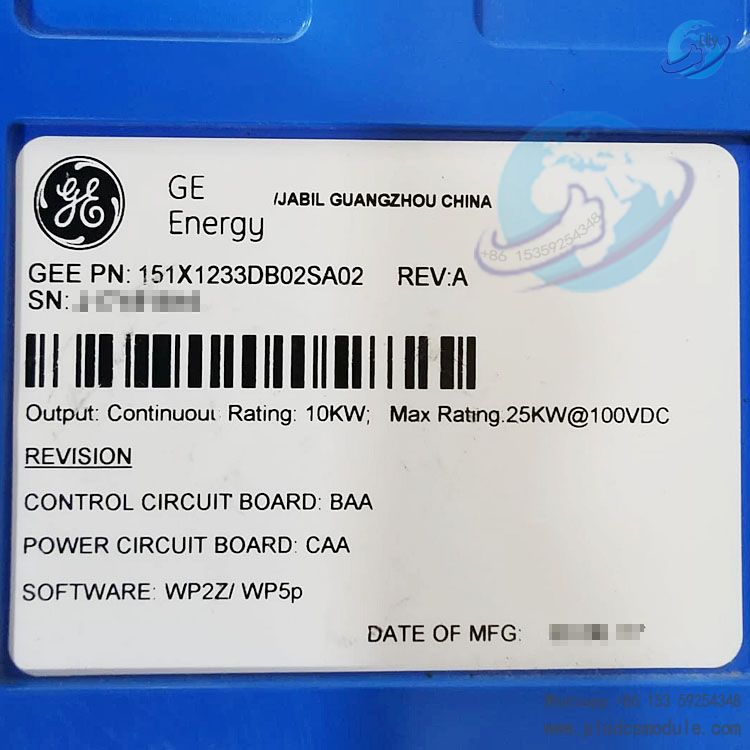

Full Model: 151X1233DB02SA02 REV A
151X: General product category code, the universal prefix for all power conversion modules of GE power generation control platforms.
1233: Sub-function code, specifying the dedicated hardware architecture for DC pitch conversion at wind turbine hubs.
DB: Hardware structure code. D stands for DC conversion unit; B denotes the integrated dual-board design.
02: Power rating version number, corresponding to the standard pitch drive output torque of 30 Nm.
SA02: Interface and firmware version. SA indicates communication protocols exclusive to wind power applications, and 02 refers to the second edition of embedded firmware.
REV A: Hardware revision mark. Revision A is the initial stable mass-production iteration, interchangeable with legacy spare parts of DB01SA01.
Product Features
Electrical Specifications: Accepts 230 V–460 V industrial AC input with multiple isolated regulated DC outputs. Rated power consumption is 15 W, supporting dual communication modes including fiber optics and parallel bus.
Protection & Compliance: Certified to UL, CE and RoHS industrial electrical standards. The board surface is coated with moisture-proof insulating coating to resist corrosion caused by condensation inside turbine nacelles.
Control Performance: Built-in real-time PWM calculation circuits deliver millisecond-level response to blade angle adjustment commands, with support for reactive power compensation computation.
Mounting Dimensions: Overall size 210 mm × 150 mm × 45 mm. Multi-point bracket isolated mounting design, compatible with standard control cabinet DIN rails.
Redundancy Compatibility: Supports hot standby parallel configuration with dual modules. If one module fails, the other unit seamlessly takes over all pitch control tasks.
Data Acquisition: Real-time collection of input voltage, output current and board temperature data, uploaded to the Mark VIe upper system for alarm log storage.
Load Compatibility: Matches three-phase DC pitch servo motors, compatible with two wind turbine hardware layouts: single-motor and dual-motor hub drive systems.
Application Industries
On-Grid Onshore Wind Power
Energy Storage Converter Supporting Equipment
Heavy-Duty Industrial DC Drives
Auxiliary power conversion modules for DC drive cabinets of large metallurgical rolling mills and mine hoists.
Distributed Energy Power Stations
Power conversion for auxiliary drive control loops of small gas turbine fans and waste heat power generation equipment.
Oil & Gas Production Equipment
Control conversion units for backup small wind turbines at onshore gas extraction stations and offshore platforms.
Product Comparison
151X1233DB01SA01 REV R4 (Legacy Pitch Converter)
Similarities: Both adopt the 1233 wind turbine pitch control architecture, with identical mounting dimensions and communication interfaces, and share cabinet bases of the same specification.
Differences: The DB01 features an outdated power heat dissipation design, resulting in excessive temperature rise under full load. Its legacy firmware does not support extended MPPT functions for new-generation wind turbines. The REV A version optimizes power devices and delivers more detailed categorized fault alarms for higher maintenance troubleshooting efficiency. Direct interchangeable replacement is available between the two models.
151X1235DB15SA02 (Gas Turbine Power Conversion Module)
Similarities: Both are integrated power conversion boards under the 151X series, compatible with ControlST configuration software and subject to uniform hardware protection standards.
Differences: The 151X1235 is designed for power supply of gas turbine control loops and has no output channels for pitch motor driving. Its input and output voltage specifications match turbine sensors, making it inapplicable to wind turbine hub drive scenarios; hardware functions are not interchangeable.
151X1238WP99BK01 (Static Start Inverter Module)
Similarities: Both support high-power AC-DC conversion and high-speed fiber-optic communication, and comply with wide-temperature industrial operation standards.
Differences: This model is a six-pulse grid start conversion hardware for large generator static starting systems, with control logic oriented to grid synchronization. It does not support closed-loop adjustment of blade angles, resulting in completely separated applicable scenarios.
Supporting Products
Mark VIe Main Controller Unit
Core computing hardware of the entire system, responsible for issuing pitch adjustment commands and receiving module fault data.
Wind Power Dedicated Fiber-optic Communication Jumpers
High-speed data transmission medium between modules and controllers, isolating electromagnetic interference.
GE Pitch Servo DC Motors
Actuators directly driven by the DC output terminals of the module to realize blade deflection.
IONet Bus Terminal Base
Carrier base for parallel communication of multiple 151X series modules to build hardware redundant networks.
ControlST Upper Configuration Software
Specialized program for module firmware flashing, parameter configuration and operating data monitoring.
Control Cabinet Isolation Power Filter
Eliminates grid harmonics and protects the converter power circuit from damage caused by voltage distortion.
Temperature Acquisition Terminal Module
Collects nacelle ambient temperature and board temperature, and links with the module overheat protection logic.
FAQ
Q1: Can this module directly replace the old 151X1233DB01SA01 module, and is system program modification required?
A1: Physical direct replacement is supported with fully matched hardware interfaces and mounting dimensions. Only the corresponding SA02 firmware needs to be updated in ControlST software, while the original wind turbine control logic parameters remain unchanged.
Q2: The module frequently triggers overtemperature alarms during operation. What are the common fault causes?
A2: There are three major causes: dust clogging of nacelle cooling fans, dust accumulation on the board’s heat dissipation air ducts, and local overheating caused by loose wiring terminals. The issue can be resolved by cleaning air ducts, tightening cables, and overhauling nacelle ventilation equipment.
Q3: How to troubleshoot communication loss with no data transmission over the fiber link?
A3:
Replace with brand-new fiber jumpers to test connector loss;
Verify whether the bus terminal base is powered normally;
Re-flash the SA02 communication firmware to fix abnormal underlying communication protocols.
Q4: Will inconsistent firmware versions of two modules in redundant parallel configuration for one hub lead to system faults?
A4: Yes. It will cause unsynchronized control outputs and blade jitter alarms. For redundant setup, the SA firmware versions of both modules must be identical.
Q5: What extra protective accessories are required to extend service life for wind farms in high-humidity field environments?
A5: Equip the cabinet with dehumidifying heaters and terminal insulating sleeves. Regularly spray moisture-proof insulating coating on the circuit board to prevent condensation corrosion of metal contacts on the PCB.
