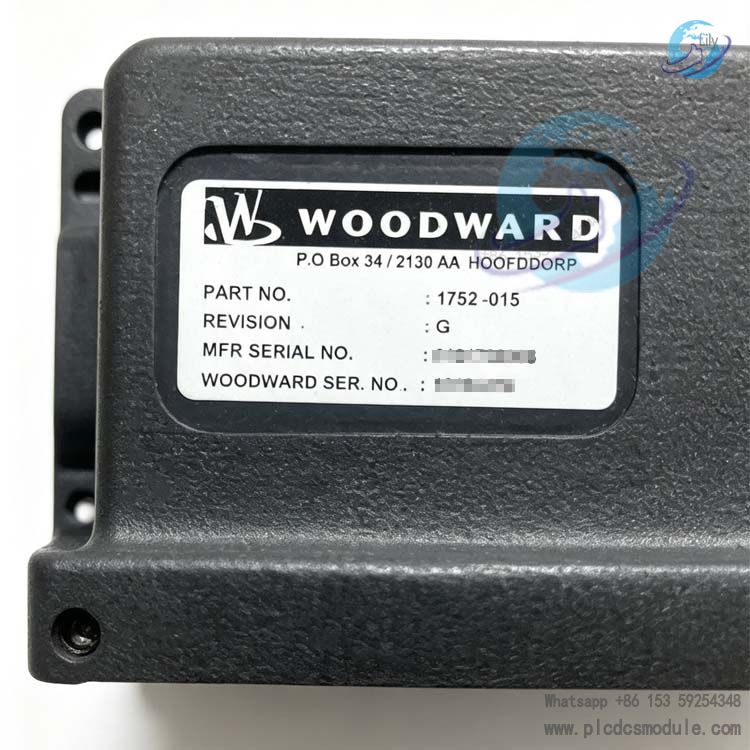

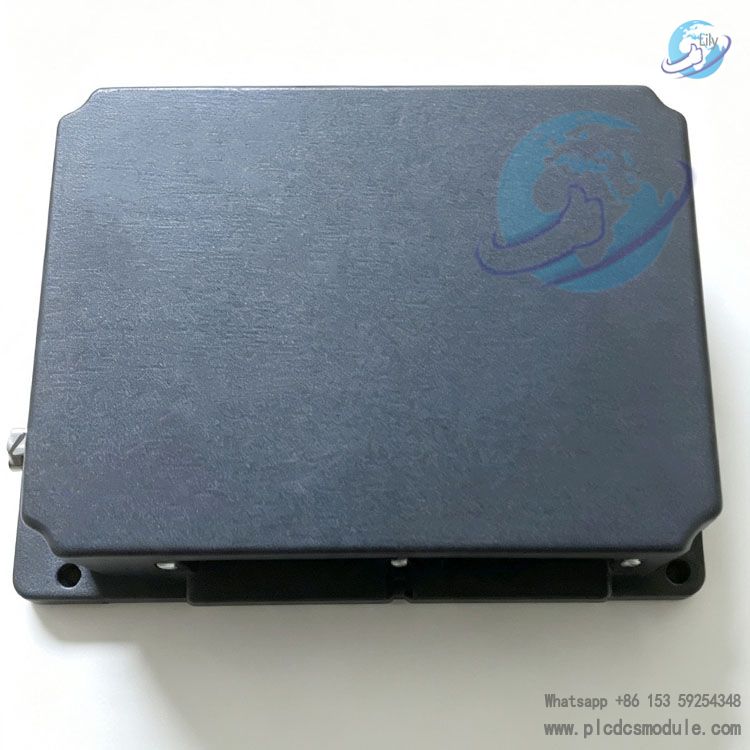

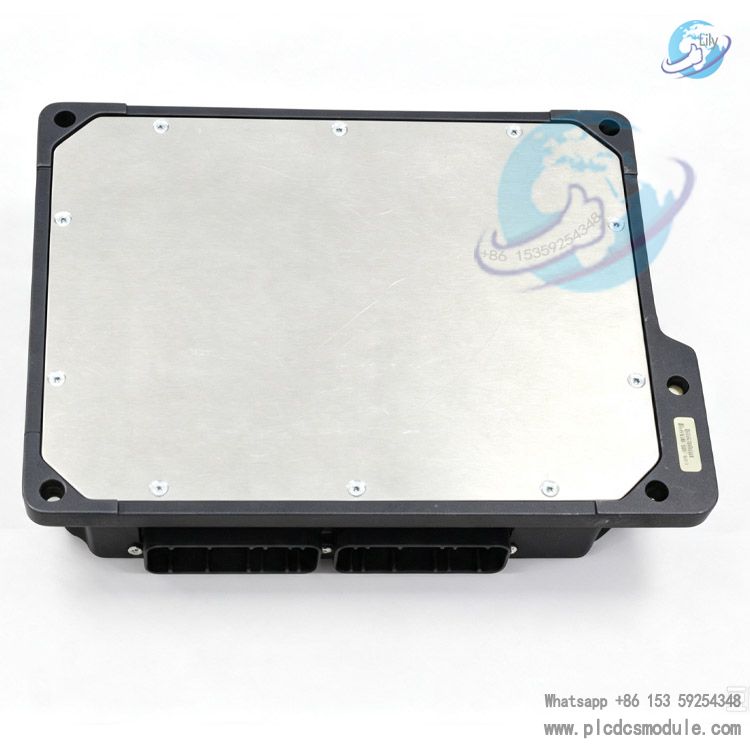

Woodward 1752‑015 Controller Module
The Woodward 1752‑015 is a dedicated load‑sharing controller module manufactured for multi‑generator paralleling systems. Widely deployed in diesel generator sets, industrial power plants and marine power stations, this unit stabilizes power distribution among parallel‑running gen‑sets, ensuring balanced kW load output between multiple generator units.
This Woodward 1752‑015 module supports both isochronous load sharing and droop mode operation. It reads generator voltage and current signals via PT and CT transformers, calculates real‑time power output, and outputs regulating signals to each governor to evenly distribute total system load across paralleled gen‑sets. It helps eliminate load hunting, prevents overload on single units and improves overall power‑system stability.
Key Features of Woodward 1752‑015 Controller Module
- Dual operation modes: isochronous load‑sharing and droop control for flexible paralleling scenarios
- Accurate real‑time load measurement from generator PT / CT inputs
- Analog output control signal for connecting to Woodward speed governors
- Built‑in terminal block for simple field wiring and commissioning
- Rugged metal housing, suitable for cabinet mounting in harsh industrial environments
- Overload‑resistant circuit design for continuous 24/7 gen‑set operation
- Compatibility with most Woodward speed controllers for diesel & gas generator applications
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Load Sharing Controller Module |
| Model | 1752‑015 |
| Operation Mode | Isochronous load sharing / Droop modeWoodward |
| Input Signal | Generator voltage (PT), generator current (CT) |
| Control Output | Analog regulating signal to speed governor |
| Mounting | Panel / cabinet chassis mount |
| Application | Parallel generator sets, gen‑set load balance control |
| Industry | Power generation, industrial plant, marine, backup power station |
Main Applications for Woodward 1752‑015
- Industrial backup power plants with multiple diesel gen‑sets
- Marine vessel on‑board power generation systems
- Distributed power stations and co‑generation facilities
- Utility‑parallel generator installations
- Oil & gas site off‑grid power supply systems
When several generators run in parallel, uneven load distribution often causes some units to run overloaded while others stay lightly loaded. Installing the Woodward 1752‑015 load‑sharing module solves this problem, optimizes fuel consumption and extends generator service life.
FAQ
Q1: What is Woodward 1752‑015 used for?
Q2: Can 1752‑015 work with non‑Woodward governors?
Q3: Where to download Woodward 1752‑015 datasheet and manual?
Q4: Where to download Woodward 1752‑015 datasheet and manual?
A4: Official documentation can be found on Woodward global support portal. Contact us if you need assistance locating manuals for the 1752‑015 controller module.
