TRICONEX 3211S2 Digital Input Module
Product Description
The TRICONEX 3211S2 digital input module is I/O hardware for the Tri‑GP v2 Safety Instrumented System (SIS). It adopts TMR (Triple Modular Redundancy) architecture and is dedicated to acquiring discrete digital input signals from field devices. The TRICONEX 3211S2 features comprehensive on‑board self‑diagnostics and supports hot‑spare online hot‑swap. Module faults will not interrupt controller operation. It is configured and debugged via Tri‑Station1131 software and widely deployed in SIS safety interlock systems for petrochemical, chemical and power industries. It performs field wiring with corresponding baseplates and external terminal panels (ETP). The TRICONEX 3211S2 forms a complete fault‑tolerant control system together with MP main processor modules and CM communication modules.
Technical Specifications
| Module Type | TMR triple‑modular‑redundant Digital Input Module, TRICONEX 3211S2 |
| Input Channels | 32 common‑grouped digital input channels |
| Rated Input Voltage | 24 VDC; operating range 19.2‑30 VDC; maximum withstand 33 VDC, reverse voltage ‑0.6 VDC |
| Input Threshold | 0‑5 VDC off‑state, 6‑14 VDC transition zone, 15‑30 VDC on‑state |
| Input Impedance | >30 kΩ without baseplate; approx. 3 kΩ with baseplate installed |
| Signal Delay | Channel on‑off delay ＜10 ms |
| Diagnostic Function | FVD (Forced Value Diagnostic); single test duration ＜2 ms |
| Scan Performance | ADC scan time for all channels ＜1 ms; maximum signal toggle rate ＜20 times per second |
| Isolation Rating | Minimum 500 VDC between functional ground and protective ground; minimum 800 VDC between functional grounds |
| Logic Power Supply | 24 VDC redundant power supply; power consumption per module ＜3 W |
| Operating Temperature | ‑20℃ ~ +70℃; storage temperature ‑40℃ ~ +85℃ |
| Relative Humidity | 5‑95 % non‑condensing |
| Vibration & Shock | Complies with IEC 60068‑2 standard |
| Safety Certifications | TÜV SIL1‑2, FM, CSA, CE |
| Software Compatibility | TriStation1131, compatible with Tri‑GP v2 controller hardware |
| Mounting | DIN‑rail baseplate mounting; supports dual‑slot hot‑spare configuration |
Core Advantages
- TMR triple‑modular‑redundant architecture. Three independent channels acquire signals with 2‑out‑of‑3 voting logic. System continues operation upon single‑channel fault and eliminates single‑point‑of‑failure risks.
- Online hot‑swap maintenance. The TRICONEX 3211S2 supports hot‑spare mode. Module replacement requires no disconnection of field wiring and does not disturb interlock process operation.
- Built‑in continuous FVD self‑diagnostics. Detects signal stuck‑at conditions and field‑circuit faults. Faults are indicated via front‑panel LEDs and system alarms for predictive maintenance.
- Robust industrial environmental tolerance with anti‑vibration, wide‑temperature and high‑EMI‑immunity performance, suitable for harsh sites in chemical plants and oil‑gas facilities.
- Mechanical keying for hardware anti‑mis‑insertion. Prevents reverse insertion and module mismatch to reduce installation and wiring human errors.
Complete fault‑alarm link. Fault information can be uploaded to DCS or TriStation host computer for convenient operation and maintenance monitoring.
Product Features
Each input channel of the TRICONEX 3211S2 digital input module uses an independent ASIC chip for signal scanning. Three TMR channels are fully hardware‑isolated; failure of one channel will not propagate to the other two channels. Front‑panel PASS, FAULT and ACTIVE LED indicators offer visual status for channels and module health. The TRICONEX 3211S2 can run in TMR triple‑redundant mode or DUAL dual‑redundant mode. Its baseplate supports dual‑module hot‑spare configuration; the system automatically switches to the standby I/O module when the primary module fails. Diagnostics can detect static‑state input points and perform circuit fault detection even when field signals remain unchanged for long periods. The module exchanges data with the MP main processor over the triple I/O bus. Field wiring can be implemented via direct‑wiring baseplates or hazardous‑location External Terminal Panels (ETP).
Application Fields
Safety Instrumented System (SIS) interlock for petrochemical industry, Emergency Shutdown (ESD) for chemical plants, Boiler Management System (BMS), safety protection for thermal‑power and gas‑fired power plants, safety control for oil‑gas pipeline stations, coal‑chemical safety interlocks, and critical safety shutdown loops for general manufacturing. The TRICONEX 3211S2 receives discrete signals from field pressure switches, level switches, valve position feedback and local push‑buttons and delivers them to the Triconex safety controller for logic processing.
Product Comparison
| Model | Product Name | Channel Count | Key Differences |
|---|---|---|---|
| 3301S2 | Digital Input Module | 32 DI | Standard 24VDC digital input, no SOE (Sequence‑of‑Events) |
| 3311S2 | Digital Input Module | 32 DI | Supports SOE, time resolution ≤1 ms |
| TRICONEX 3211S2 | Digital Input Module | 32 DI | Basic TMR DI for general‑purpose projects, balanced cost, basic diagnostic functions |
| 3361S2 | AI/DI Combined Module | 16 AI+16 DI | Integrated analog‑digital input to save rack slots |
Related Matching Products
- 2301S2 DI Baseplate: Standard mating baseplate for TRICONEX 3211S2 digital‑input direct wiring
- 2302S2 High‑Voltage DI Baseplate Kit: For AC high‑voltage digital‑signal interfaces
- 9573‑610F DI Hazardous‑Location ETP: External terminal panel for hazardous‑area explosion‑proof applications
- 2281 I/O Bus Extender Module: I/O bus expansion for additional I/O racks
- 2291 I/O Bus Termination Kit: I/O bus termination assembly

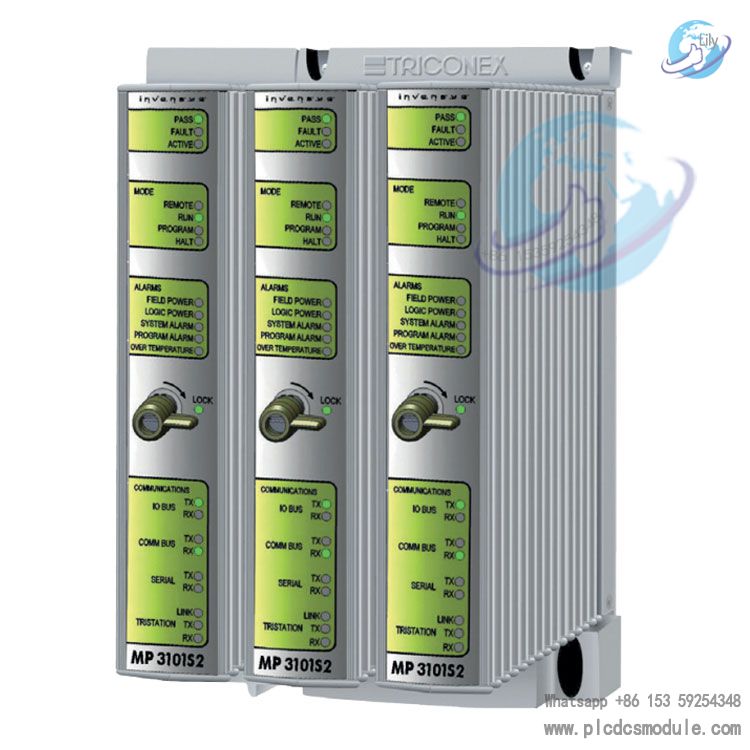

- 3101S2 MP Main Processor Module: Main processor unit
- 3201S2 CM Communication Module: Communication module
- 8401 Accessory Kit: Accessories including address jumpers and fuses
FAQ
Q: Can the TRICONEX 3211S2 module be hot‑swapped under power?
A: Yes, online hot‑swap is supported. The controller remains operational during replacement. It is recommended to activate the hot‑spare module before removing the faulty TRICONEX 3211S2. Take proper ESD anti‑static precautions for live‑work operations.
Q: Does TRICONEX 3211S2 support SOE Sequence‑of‑Events recording?
A: TRICONEX 3211S2 does not feature SOE capability. Select model 3311S2 digital input module if millisecond‑scale event logging is required.
Q: When the FAULT LED on TRICONEX 3211S2 illuminates, does it definitely indicate hardware damage to the module?
A: Not necessarily. FAULT indication may originate from channel‑circuit faults, abnormal field signals or FVD diagnostic alarms rather than internal module damage. Retrieve detailed diagnostic information via TriStation1131 to differentiate field‑circuit faults from hardware failures.
Q: Can TRICONEX 3211S2 directly accept AC220V field switch signals?
A: Direct connection of AC220V is prohibited. Use the 2302S2 baseplate kit plus SSR‑equipped external terminal panels; signals shall be isolated and converted via intermediate relays prior to module connection.
Q: What is the maximum quantity of TRICONEX 3211S2 digital input modules for one Tri‑GP v2 controller?
A: Tri‑GP v2 system maximum total DI capacity is 640 points. Each TRICONEX 3211S2 provides 32 points, giving theoretical maximum 20 DI‑type modules. Meanwhile the system is limited to maximum 25 I/O baseplates.
Q: Can different DI module models be mixed on one TRICONEX 3211S2 baseplate?
A: Mixing is not recommended. The 2301S2 baseplate is compatible with TRICONEX 3211S2, 3301S2 and 3311S2. However, both modules within one logic slot must be identical; hot‑spare configuration strictly requires matching part‑numbers.
Q: What accessories are mandatory for TRICONEX 3211S2 deployed in hazardous explosion‑risk areas?
A: The 9573‑610F hazardous‑location ETP external terminal panel shall be adopted. Direct field‑wiring baseplates are not permitted to satisfy non‑incendive loop explosion‑proof certification requirements.
Q: Where is firmware upgrade performed for TRICONEX 3211S2?
A: Module firmware is downloaded and updated by TriStation1131 software through the MP main processor. No standalone firmware download port exists on the module itself. Avoid power loss during firmware upgrade.
Hot‑selling Same‑brand Product Models
- 3101S2 Main Processor Module, 3201S2 Communication Module, 3301S2 Digital Input Module, 3311S2 Digital Input Module, 3351S2 Analog Input Module, 3361S2 AI/DI Combined Module
- 3382S2 Pulse Input Module, 3401S2 Digital Output Module, 3411S2 Supervised Digital Output Module, 3451S2 Solid‑State Relay Output Module, 3481S2 Analog Output Module
- 2301S2 DI Baseplate, 2351S2 AI Baseplate, 2401S2 DO Baseplate, 2481S2 AO Baseplate
Notes
- Anti‑static measures including ESD wrist straps must be applied during installation and removal of TRICONEX 3211S2 to prevent electrostatic damage to internal ASIC chips.
- Logic power shall be supplied via two independent redundant 24 VDC feeds to guarantee TMR module power‑supply reliability.
- Cable shields shall be single‑point bonded to protective ground per manual specifications. Multi‑point grounding will introduce interference and may trigger false signal actions.
- For hazardous explosion‑prone environments, only designated hazardous‑area ETP terminal panels shall be used; ordinary baseplates shall not connect to field devices located in hazardous zones.
- For hot‑spare slot configuration, both paired modules must share identical part‑number and firmware revision.
- Termination‑resistor kit must be fitted at the physical end of the I/O bus; missing termination will result in communication anomalies and module status alarms.
- Do not short‑circuit input channels for testing purposes; this will trigger FVD forced‑value diagnostic fault alarms.
- Store modules in dry environments free of corrosive gases; implement moisture‑proof precautions for long‑term storage.
