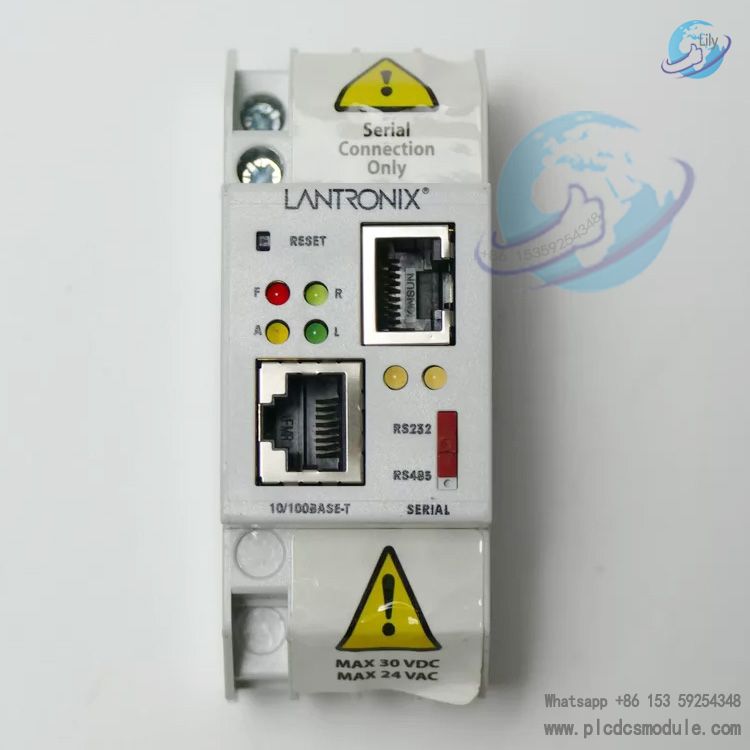

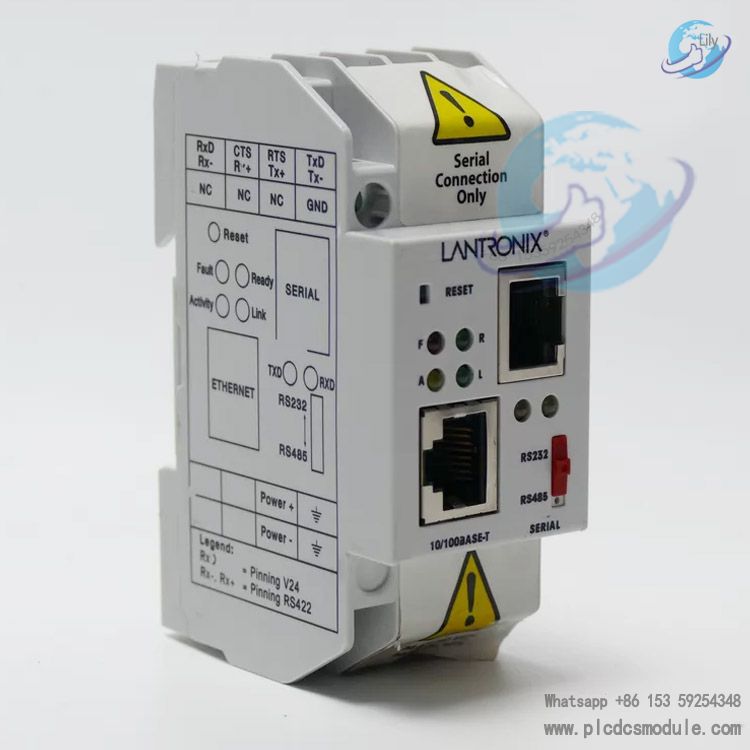

Lantronix 080‑338‑000‑R Network Module
Product Overview
080‑338‑000‑R belongs to the Lantronix DSTni‑XPress‑DR series DIN‑rail industrial gateway, designed for industrial hazardous‑area applications. It converts traditional RS232/RS422/RS485 serial devices to 10/100Mbps Ethernet for LAN access. The module features 3000VDC galvanic isolation between serial and Ethernet ports, and carries Class I Div2 explosion‑proof certification. Widely deployed in oil & gas, petrochemical and process automation industries, it connects PLCs, transmitters, inverters and serial instruments to realize network retrofitting of legacy field equipment without modifying existing hardware.
Key Features
- Ethernet: 10/100Base‑TX RJ45, Auto‑MDIX auto‑crossover, full‑/half‑duplex auto‑negotiation
- Serial: Hardware‑selectable RS232 / RS422 / RS485 with 3000VDC galvanic isolation
- Baud Rate: 300bps‑921600bps
- Power Supply: 9‑30VDC / 9‑24VAC terminal block power input
- Protocol Stack: TCP, UDP, DHCP, Telnet, HTTP, SNMP v1/v2c/v3, Modbus RTU over TCP
- Configuration: Built‑in Web management, Telnet CLI, TFTP firmware upgrade

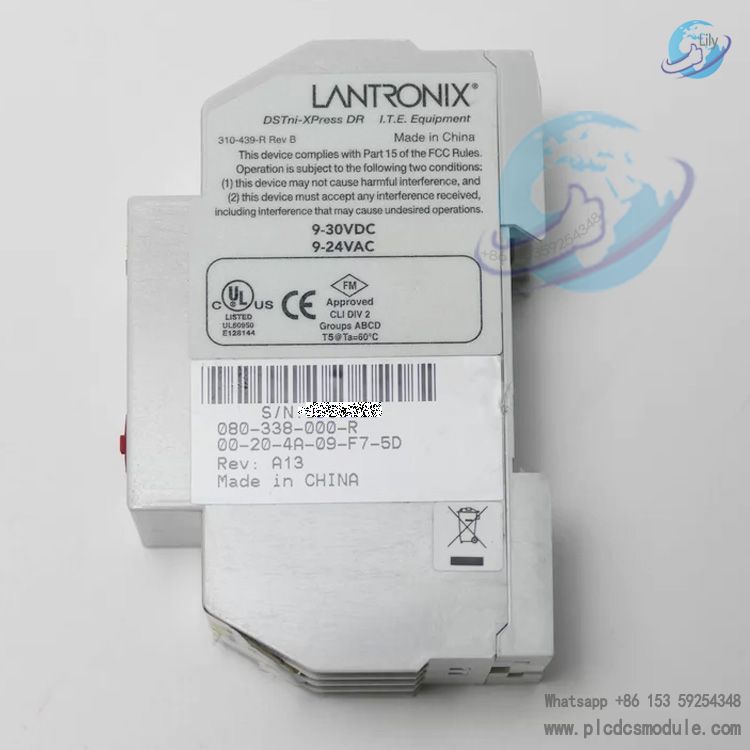

- Hazardous‑Location Certification: Class I Div 2 A/B/C/D, T5@60℃
- ESD Protection: Contact discharge ±8kV, air discharge ±15kV
- Mounting: Standard DIN‑rail clip for industrial cabinet installation
Technical Specifications
| Part Number | 080‑338‑000‑R |
| Product Series | DSTni‑XPress‑DR (XPress‑DR) |
| Ethernet Interface | 10/100 Base‑TX RJ45 |
| Serial Interface | Isolated RS232 / RS422 / RS485 |
| Isolation Voltage | 3000 VDC |
| Power Input | 9‑30VDC / 9‑24VAC |
| Supported Protocols | TCP/UDP, Modbus RTU‑over‑TCP, SNMP, HTTP, Telnet |
| Explosion‑Proof Certification | Class I Div 2 A/B/C/D T5 |
| Mounting | DIN‑rail |
| Weight | Approx. 120g |
Typical Applications
- Ethernet networking retrofit for legacy serial PLCs, industrial meters and variable‑frequency drives
- Virtual COM port for remote access to field serial devices
- Serial‑to‑Ethernet gateway for Class I Div2 hazardous locations
- Spare‑part replacement & maintenance for legacy petrochemical and oil‑gas systems
Compatible Reference Replacements
- Lantronix EDS2100: Single‑port isolated serial device server, without Class I Div2 certification, for use only in ordinary safe areas
- X‑Direct Series: On‑board embedded module version without DIN‑rail housing, intended for PCB integration
Important Note: Hardware without Div2 certification cannot directly replace 080‑338‑000‑R in hazardous explosion‑prone sites.
FAQ
Q1: How to troubleshoot intermittent packet loss and communication failures on Modbus RTU‑over‑TCP?
A: According to official documentation, common firmware versions for this unit are A12 and A13. Older firmware releases contain known Modbus compatibility defects; prioritize firmware upgrade. Also verify serial wiring, RS485 termination resistor and network timeout parameters.
Q2: Can EDS2100 directly replace 080‑338‑000‑R for explosion‑prone field sites?
A: No. EDS2100 does not carry Class I Div2 hazardous‑location certification. It may only be installed inside ordinary safe cabinets and cannot be used for explosion‑risk operating conditions.
Q3: How to restore the device to factory default settings?
A: Two official methods: use the hardware reset button on the unit; or execute factory‑reset commands via Telnet / serial console CLI. After reset, IP address, serial parameters and protocol configurations will revert to factory defaults.
Q4: Does the MAC address printed on the device label indicate a part‑number revision?
A: The base part number remains 080‑338‑000‑R. The appended MAC address is the unique hardware identifier; the product model itself has not changed.
