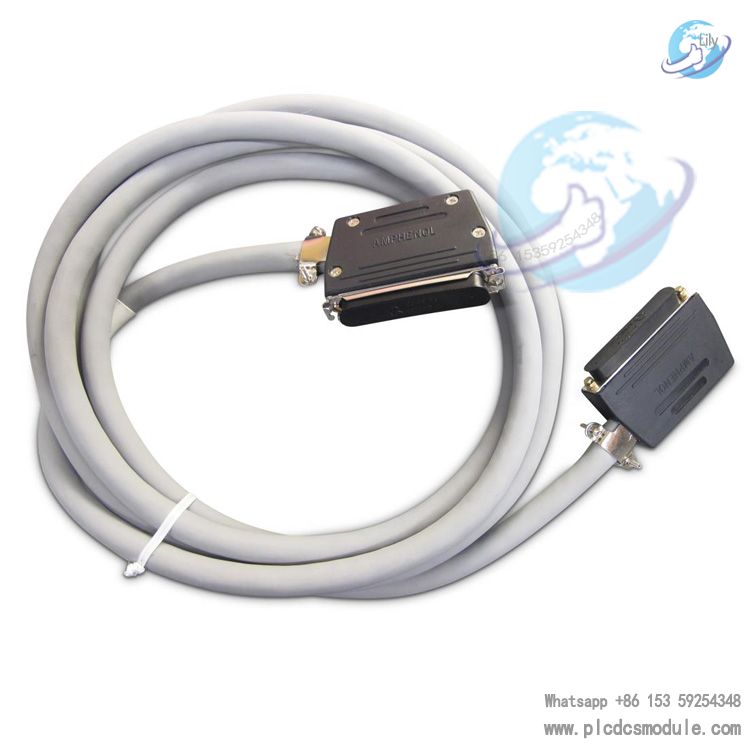

Woodward 5417‑173 MicroNet Low Density Discrete cable
Product Overview
Woodward 5417‑173 is a complete cable assembly for MicroNet control system, which realizes analog and discrete signal transmission between I/O modules and field terminal devices. As the internal signal link of MicroNet system, Woodward 5417‑173 performs signal transfer from controller rack to external terminal boards, and achieves stable intercommunication of control commands and field acquisition signals. It is compatible with simplex and TMR redundant hardware configurations, and serves as an indispensable connection component for wiring of turbine and gas‑turbine control loops. During field commissioning, Woodward 5417‑173 directly affects the signal acquisition accuracy of the whole MicroNet control system. The conditions of cable connectors and shielding layer will directly interfere with unit operation stability.
Technical Specifications
| Part Number | 5417‑173 |
| Product Category | MicroNet Low‑Density Discrete / Analog Mixed‑Signal Cable Assembly |
| Cable Length | 10 Feet |
| Signal Type | Transmit analog signals and discrete switch signals simultaneously |
| Connector Specification | Dedicated MicroNet high‑density male and female connectors at both ends |
| Shielding Structure | Double‑layer shielding design |
| Operating Temperature | ‑40℃ ~ +85℃ |
| Storage Temperature | ‑40℃ ~ +70℃ |
| Net Weight | Approx. 560g |
| Compatible Platforms | Woodward MicroNet Simplex, MicroNet Plus, MicroNet TMR Control Systems |
Core Advantages
- The double‑layer shielding structure of Woodward 5417‑173 effectively suppresses electromagnetic interference generated by motors and frequency converters on industrial sites, ensuring no distortion of weak analog signals.
- Integrated pre‑fabricated connectors, no on‑site crimping required, reduces wiring error probability and shortens cabinet wiring working hours.
- The cable body is oil‑resistant and bending‑resistant, suitable for high‑temperature and dusty working conditions in power plants, and internal wire breakage will not occur rapidly after repeated long‑term bending.
- The signal channel layout matches the pin definition of MicroNet I/O modules, and inter‑channel isolation meets standards to avoid crosstalk issues.
- Compatible with simplex and TMR triple‑redundant hardware architectures. The single Woodward 5417‑173 fits multiple system configurations and reduces spare‑part types for projects.
Product Features
- Complete pre‑assembled cable assembly with integrally molded connectors and cables.
- Supports simultaneous transmission of analog 4‑20mA signals and discrete switch signals.
- Double‑layer shielding; shielding can be single‑point grounded on module side to meet EMC electromagnetic compatibility specifications.
- Flexible cable material, bending radius for cabinet‑internal routing complies with industrial control installation standards.
- Pins fully align with MicroNet high‑density I/O module ports, plug‑and‑play; custom rewiring is not supported.
- Vibration resistance adapts to rotating‑machinery control sites; connectors will not loosen under unit vibration conditions.
Application Fields
- Signal wiring for gas turbine unit control systems
- Cabinet‑internal and inter‑cabinet connections for turbine speed‑governing & protection MicroNet control cabinets
- I/O signal links for generator set grid‑connection control
- Monitoring systems for compressor and turbine units
- Control cabinets for petrochemical power equipment
- Wiring for MicroNet control units of marine power main engines
- Wiring for industrial turbine TMR triple‑redundant control systems
Product Comparison
Woodward 5417‑173 is 10 feet long, designed for low‑to‑medium density mixed discrete and analog signal scenarios.
5417‑172 is the 8‑foot version with close channel configuration, suitable for short‑distance wiring inside cabinets.
5417‑175 is 12 feet long, applied to projects with long distance between cabinet and terminal boards for long‑distance wiring.
All three models maintain identical pin definitions, differing only in total cable length. Select models according to actual on‑site routing distance during project specification. 5417‑173 is the most frequently‑used specification in industry projects, meeting both in‑cabinet and short‑range inter‑cabinet wiring requirements.
Related Matching Products
- 5466‑257 TMR High Density Analog I/O Module
- 5453‑279 MicroNet TMR Main Chassis
- 5501‑372 Field Termination Interface Module
- 5466‑1300 MicroNet XT CPU Controller
- 5466‑1320 XT Series Power Supply Module
- 5417‑672 Actuator Drive Terminal Module
- 5453‑1219 14‑slot MicroNet Expansion Chassis
FAQ
Q：Can Woodward 5417‑173 be cut and re‑crimped with connectors on‑site?
A：On‑site cutting and re‑crimping is not recommended. Woodward 5417‑173 is a pre‑fabricated assembly. Pin phase and shielding treatment are completed at factory. On‑site modification will damage shielding structure, trigger signal crosstalk and cause unit jump alarms. Purchase official cable part numbers of alternative lengths if length does not match requirements.
Q：Can 5417‑173 directly replace 5417‑172?
A：Electrical pin definitions are fully consistent and direct replacement is feasible. Only total cable length differs. Evaluate on‑site routing allowance and confirm physical installation space can accommodate 10‑foot cable before deployment.
Q：Does random I/O channel fluctuation on MicroNet system result from 5417‑173 failure?
A：Channel fluctuation has multiple root causes. Damaged shielding or loose connectors of 5417‑173 are common inducements. Inspect connector latches and shielding grounding first, then troubleshoot I/O modules and terminal boards.
Q：Does Woodward 5417‑173 support TMR triple‑redundant MicroNet systems?
A：Yes. 5417‑173 is compatible with both Simplex standalone system and TMR triple‑redundant MicroNet hardware architectures, no hardware reconfiguration required.
Q：Can 5417‑173 transmit high‑power drive signals for servo actuators?
A：No. Woodward 5417‑173 only transmits low‑level analog and discrete switch signals. Dedicated actuator‑cable part numbers shall be adopted for high‑power actuator drive signals.
Q：Are matching terminal modules included when purchasing 5417‑173?
A：Terminal modules are not included. 5417‑173 is merely a cable assembly; terminal boards and I/O modules shall be ordered separately.
Q：How to judge internal wire breakage and damage of 5417‑173?
A：Visually check for damaged cable sheath, bent or oxidized connector pins. Via system diagnostics: if signal of corresponding channel fluctuates sharply when cable is wiggled, internal core‑wire damage is highly probable.
Q：Can 5417‑173 be laid directly in open‑air outdoor environments?
A：Direct open‑air installation is not recommended. Cable jacket is not outdoor weather‑resistant. It must be routed inside cable conduits or control cabinets.
Related Woodward Part Numbers
- 5417‑172 MicroNet High Density Analog/Discrete cable
- 5417‑175 MicroNet High Density Analog/Discrete cable
- 5417‑041 MicroNet Actuator Interface cable
- 5417‑672 MicroNet Field Termination Module cable
- 5416‑966 MicroNet Low Density Discrete cable
- 5416‑967 MicroNet Low Density Discrete cable
- 5417‑026 NetCon Low Density Analog cable
- 5417‑391 MicroNet System Ethernet cable
- 5466‑257 TMR High Density Analog I/O Module
- 5453‑279 MicroNet TMR Main Chassis
- 5501‑372 MicroNet Field Termination Module
- 5466‑1300 MicroNet XT CPU Module
- 5466‑1320 MicroNet XT Power Supply
- 5453‑1219 MicroNet 14‑slot Chassis
- 5501‑432 Actuator Controller Module
Precautions
- Do not pry connectors forcibly during installation of Woodward 5417‑173. Align ports and insert flatly until latches lock to avoid bent pins.
- Do not set too small cable bending radius; prevent sharp edges and corners from squeezing cable sheath.
- According to MicroNet manual requirements, shielding layer shall be single‑point grounded only on I/O module side. Dual‑end grounding will introduce ground‑loop interference.
- Keep storage environment dry and ventilated; avoid exposure of connector metal contacts to humid and corrosive gas.
- Grip connector housing instead of pulling cable body when disconnecting cables for system maintenance.
- Clean connector pins in case of oxidation. Replace the whole Woodward 5417‑173 cable assembly under severe oxidation conditions.
