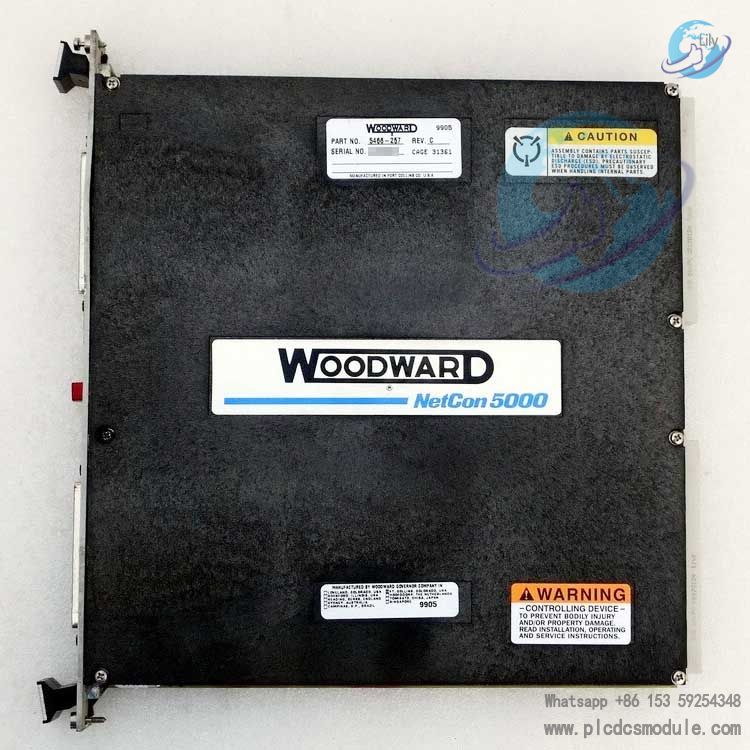

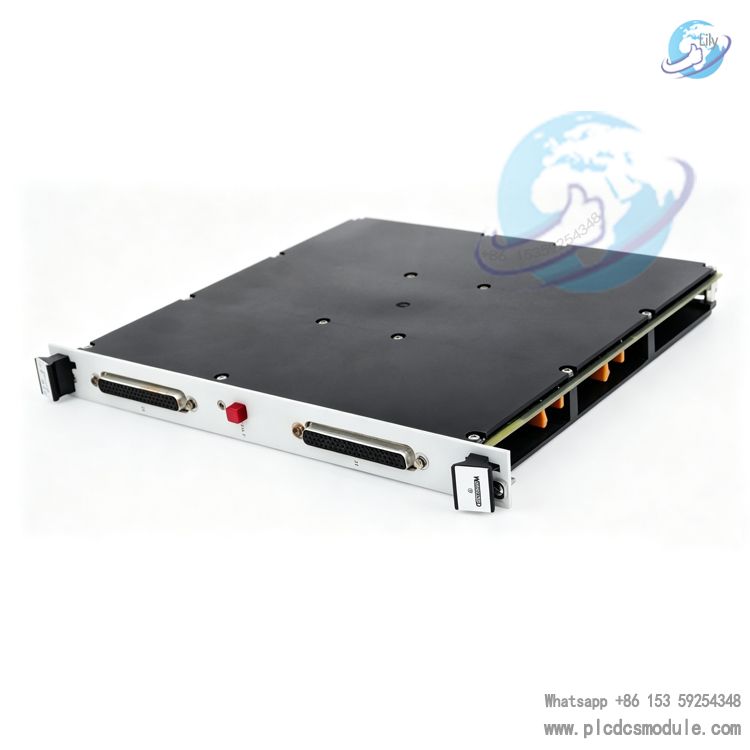

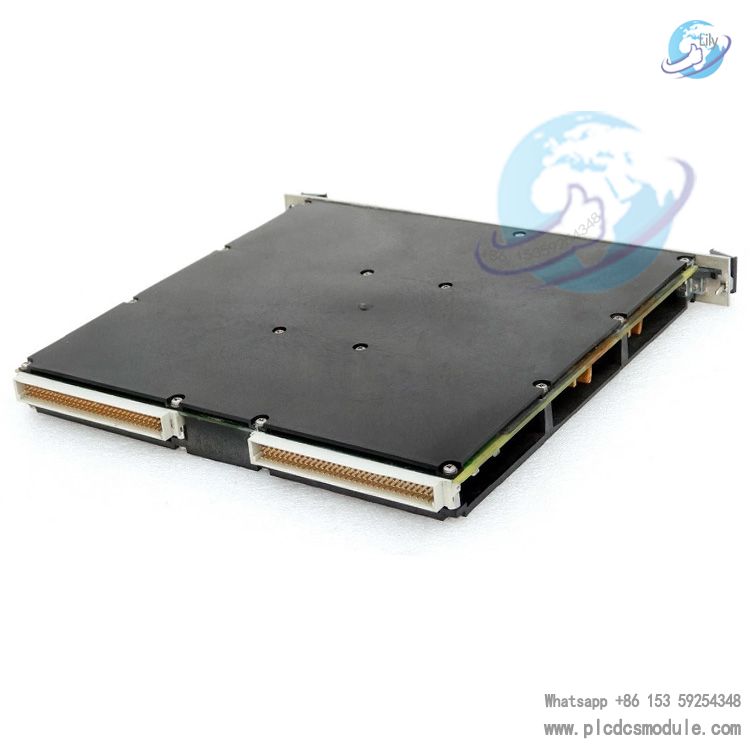

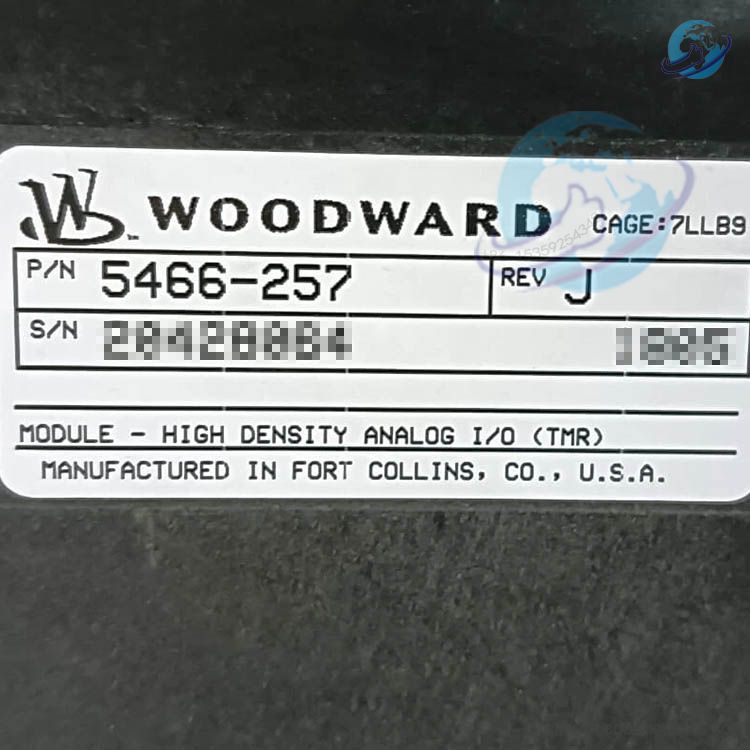

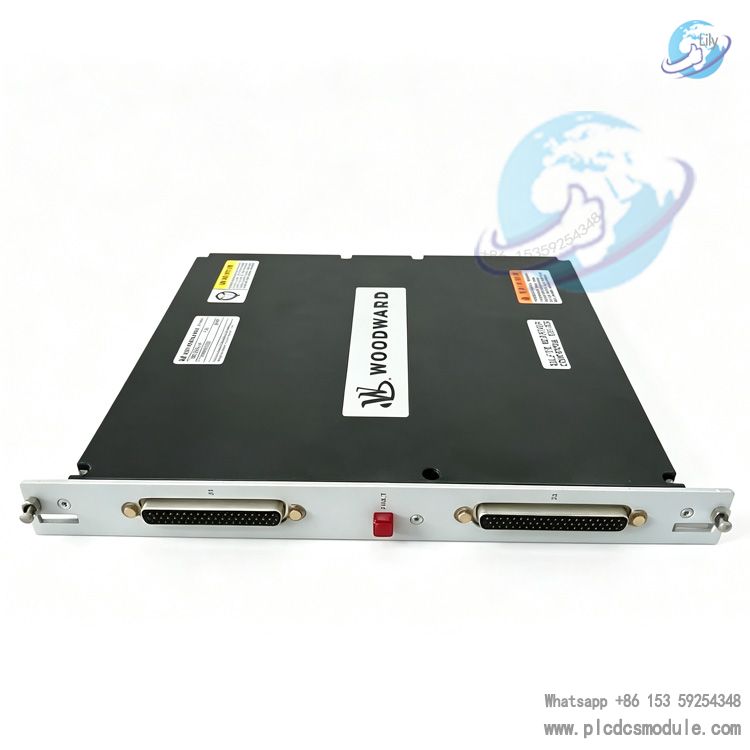

Woodward 5466‑257 High Density Analog I/O Module
Overview
Woodward 5466‑257 is a high‑density analog I/O module within the MicroNet control system, featuring TMR Triple Modular Redundancy architecture and developed for critical operating conditions such as steam turbines, power generation and oil & gas. Within compact rack space, the 5466‑257 integrates multiple analog and digital signal channels to complete field sensor signal acquisition and actuator output drive. Designed for harsh industrial environments, this module ensures stable operation of control systems in continuous‑run scenarios with high failure risks. The 5466‑257 is widely deployed for spare‑part expansion and field retrofit projects of legacy control systems, serving as a vital signal‑processing unit in Woodward turbine control I/O links.
Technical Specifications
| Module Model | 5466‑257 |
| Product Type | High Density Analog I/O Module |
| Architecture | TMR Triple Modular Redundancy |
| Analog Input | 16 single‑ended / 8 differential configurable |
| Analog Output | 8 single‑ended / 4 differential configurable |
| Digital Input | 8 channels |
| Digital Output | 8 channels |
| Power Supply | 24VDC |
| Operating Temperature | ‑40℃ ~ +85℃ |
| Vibration Resistance | 2‑13.2Hz amplitude 1mm; 13.2‑150Hz 0.7g |
| Shock Resistance | 10g half‑sine wave, 11ms duration |
| Humidity | 5%‑95%, non‑condensing |
| Pollution Degree | ISA‑S71.04‑1985 G3 |
| Physical Dimensions | 15.2cm × 5.1cm × 20.3cm |
| Weight | Approx. 0.998kg |
| Signal Types | Voltage, current industrial analog signals |
Core Advantages
- TMR triple‑redundant hardware architecture. Single‑channel failure will not shut down the complete control loop, improving unit fault‑tolerance capability.
- High‑density channel layout. A single 5466‑257 can process abundant field measuring points and reduce rack slot occupancy.
- Wide‑temperature and anti‑vibration hardware design, suitable for high‑temperature, dusty and vibrating field conditions in power plants and oil‑gas facilities.
- Channels support switchover between differential and single‑ended modes to match various sensor wiring schemes.
- Built‑in hardware diagnostics. Panel indicator lights enable fast channel fault localization and shorten on‑site troubleshooting time.
Deep compatibility with the MicroNet control platform, reducing configuration and commissioning workload.
Product Features
- The 5466‑257 supports hardware switchover between differential / single‑ended analog channels for flexible compatibility with field transmitter wiring.
- Analog channels are equipped with basic electrical isolation to mitigate common‑mode interference impact on signal acquisition.
- Integrated digital input and output channels. Analog and discrete signals are processed within one single module to simplify cabinet wiring.
- Reinforced metal board‑structure, cage‑style plug‑in installation for convenient disassembly and maintenance.
- Hardware self‑check function for real‑time monitoring of channel and power‑supply status, with fault alerts for abnormal conditions.
- Complies with industrial pollution‑degree standards for long‑term operation in harsh cabinet environments of chemical and power‑generation plants.
Application Fields
- Gas turbine control systems
- Steam turbine governing & protection systems
- Thermal power generation and distributed generator unit control
- Oil & gas compressor and turbomachinery equipment
- Offshore and marine power‑control units
- Closed‑loop control for key industrial process parameter acquisition
Retrofit and spare‑part replacement projects for legacy MicroNet‑platform systems
Woodward Product Comparison
| Item | Woodward 5466‑257 | Woodward 5466‑315 | Woodward 5466‑425 |
|---|---|---|---|
| Architecture | TMR Triple Modular Redundancy | Simplex | Simplex |
| Analog Input | 16 single‑ended / 8 differential | 24 channels | 24 channels |
| Analog Output | 8 single‑ended / 4 differential | 8 channels | 8 channels |
| Positioning | High‑reliability redundant working conditions | Non‑redundant general‑purpose systems | Dataforth signal‑conditioning version |
| Application Scenarios | High safety‑level units where shutdown is prohibited | Conventional power‑generation process control | Field scenarios requiring high signal noise‑rejection performance |
Related Matching Products
- 5466‑1045 MicroNet CPU5200 Processor Module
- 5501‑365 TMR Power Supply Matching Module
- 5466‑258 High‑Density Discrete I/O Module
- 5466‑268 Speed‑Sensor Drive Module
- 5466‑318 TMR Core Power‑Supply Module
5501‑431 Actuator Control Module
Frequently Asked Questions
Q：Can the 5466‑257 directly replace the 5466‑315?
A：Direct interchange is not supported. The 5466‑257 adopts TMR redundant architecture while 5466‑315 is simplex. Hardware configuration and supporting power supplies differ. Replacement requires full system‑architecture review; hot‑swap direct replacement is unavailable.
Q：Can the 5466‑257 be used for new‑build projects?
A：This module is oriented toward spare‑part supply and retrofit expansion for legacy systems. New‑build projects are recommended to adopt Woodward latest‑generation I/O hardware. The 5466‑257 is more suitable for original legacy MicroNet platforms.
Q：If channels of 5466‑257 get burnt out, can single‑channel repair be performed?
A：The board is an integrated hardware assembly. Single‑channel repair is generally unsupported. Full‑module replacement is the mainstream on‑site solution.
Q：What signals does 5466‑257 support? Can it connect RTD resistance temperature detectors?
A：It natively supports voltage and 4‑20mA current signals. RTD signals require external dedicated RTD acquisition modules; the 5466‑257 cannot process RTD signals directly.
Q：What pre‑installation inspections shall be carried out after receiving purchased 5466‑257 units?
A：Inspect board surface for impact damage and deformed connector pins; verify part‑number labels; confirm matching model of supporting power‑supply modules; verify 24VDC cabinet power‑supply stays within allowable range before power‑on.
Q：Will unit trip occur upon single‑module failure of 5466‑257 under TMR architecture?
A：Under TMR two‑out‑of‑three voting logic, failure of one 5466‑257 module allows the remaining two modules to keep operating. The unit will not trip immediately, yet spare‑part replacement shall be completed as soon as possible.
Q：Which MicroNet Plus software versions are compatible with 5466‑257?
A：It matches legacy MicroNet Plus firmware versions. Provide system coder version for compatibility confirmation before ordering; mismatched firmware will trigger module‑recognition anomalies.
Q：What hard requirements apply to cabinet environment for 5466‑257 installation?
A：Operating temperature ranges from ‑40℃ to +85℃ with non‑condensing humidity. Dust and corrosive gas inside cabinets shall meet ISA‑S71.04‑1985 G3. Exceeding environmental limits will shorten module service life.
Woodward Related Model List
- 5466‑253 TMR High‑Density Combined I/O Module
- 5466‑256 TMR High‑Density Discrete I/O Module
- 5466‑258 Simplex High‑Density Discrete I/O Module
- 5466‑315 Simplex High‑Density Analog I/O Module
- 5466‑316 Simplex High‑Density Combined I/O Module
- 5466‑318 TMR Core Power‑Supply Module
- 5466‑425 High‑Density Analog I/O Module
- 5466‑5025 Isolated High‑Density Analog I/O Module
- 5466‑5026 Simplex High‑Density Analog I/O Module
- 5466‑1050 High‑Density Discrete I/O Module
- 5466‑1105 High‑Precision Speed Combined I/O Module
- 5501‑365 TMR Power‑Supply Module
- 5466‑268 Speed‑Sensor Drive Module
Precautions
- Discharge static electricity from human body before installing 5466‑257. Static electricity may cause latent damage to internal chips.
- Module insertion‑removal must be performed under power‑off status. Hot‑swap is prohibited; hot‑swap may damage backplane connectors and board‑level circuits.
- Within a full TMR system set of three 5466‑257 modules, keep consistent hardware versions as far as practicable. Version discrepancies may trigger synchronization exceptions.
- Distinguish differential and single‑ended wiring configurations. Improper wiring directly leads to inaccurate signal acquisition.
- Avoid damp and salt‑fog storage environments; apply moisture‑proof protection for long‑term storage.
- When module fault indicator lights activate, review MicroNet system diagnostic logs immediately for fault source localization instead of repeated direct restarts.
