Eaton XV‑430‑12TSB‑1‑10 Industrial Touch Panel
Product Basic Information
Eaton XV‑430‑12TSB‑1‑10 belongs to the XV400 series industrial HMI touch panel, part number 139909. It is a 12.1‑inch resistive touch all‑in‑one human‑machine terminal with expandable HMI‑PLC functions, designed for cabinet flush‑mount installation.
The XV‑430‑12TSB‑1‑10 runs Windows CE operating system and is equipped with multiple industrial communication interfaces. PLC logic control capability can be activated via optional license, enabling one unit to handle both visualization and logic processing.
It features an anodized metal housing with front‑face IP65 rating to resist workshop dust and oil splashes. Widely used to connect inverters, sensors and third‑party controllers for equipment monitoring and operator interaction.
Download
Technical Specifications
| Display Unit: | 12.1‑inch TFT color display |
| Resolution: | SVGA 800×600 pixels |
| Viewing Area: | 246 mm ×185 mm |
| Color Depth: | Switchable 65536 colors / 256 colors |
| Contrast: | 350:1; Brightness: 350 cd/m² |
| Backlight: | 2‑channel CCFL, software dimmable, typical service life 50000 hours |
| Touch: | 4‑wire resistive touch, glass‑plus‑film protective overlay |
| Processor: | 32‑bit RISC CPU @400 MHz |
| Memory: | DRAM 64 MB; available Flash ~1.5 MB; NVRAM 32 KB |
| Storage Slots: | 2× CompactFlash I/II slots |
| RTC: | Solder‑mounted CR2032 battery, non‑replaceable; typical backup time 10 years |
| Operating System: | Windows CE (corresponding license required) |
| PLC Software Support: | GALILEO HMI software, XSOFT‑CODESYS‑2, XSOFT‑CODESYS‑3; PLC function requires license 140390 LIC‑PLC‑MXP‑MEDIUM |

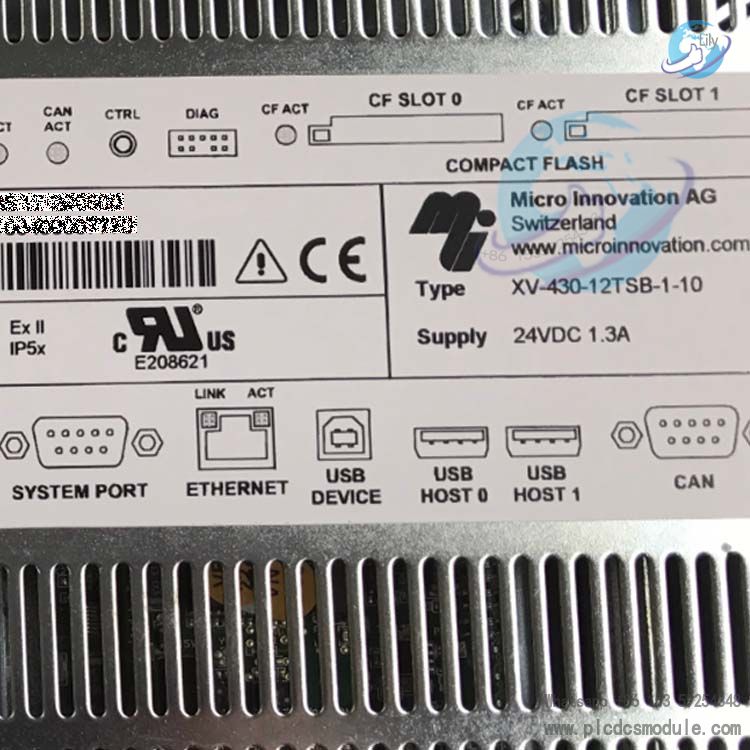

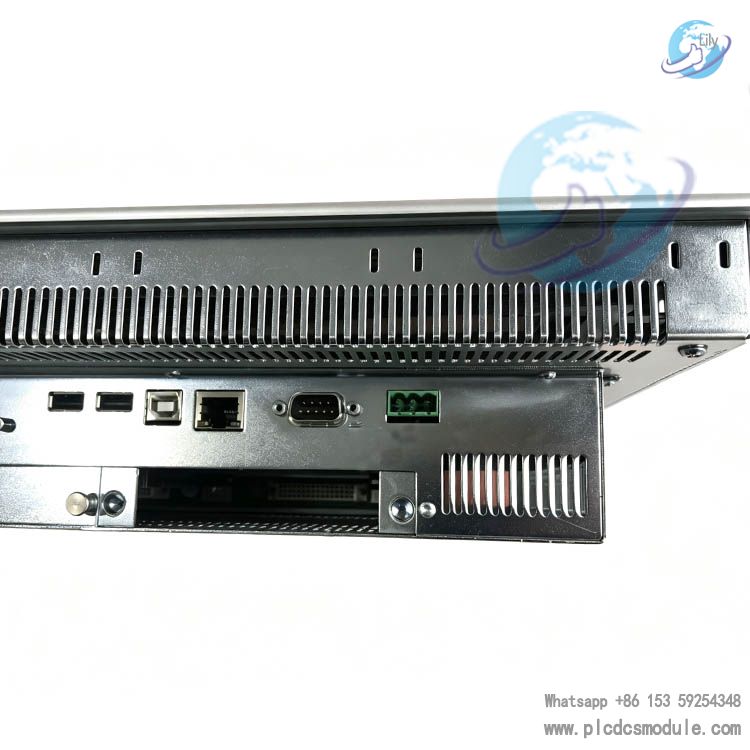

| On‑board Interfaces: | 1× Ethernet 100base‑TX/10base‑TX, 1×RS232, 1×galvanically‑isolated CAN, 2×USB Host, 1×USB Device |
| Expansion Slots: | 2 slots for optional communication modules |
| Power Supply: | 24 V DC SELV; nominal range 20.4‑28.8 V DC; absolute transient range 19.2‑30.0 V DC (<100 ms) |
| Power Consumption: | Max 32 W; typical operation 14 W; reverse‑polarity protection, internal non‑accessible fuse |
| Potential Isolation: | No galvanic isolation; 0V connected to chassis ground |

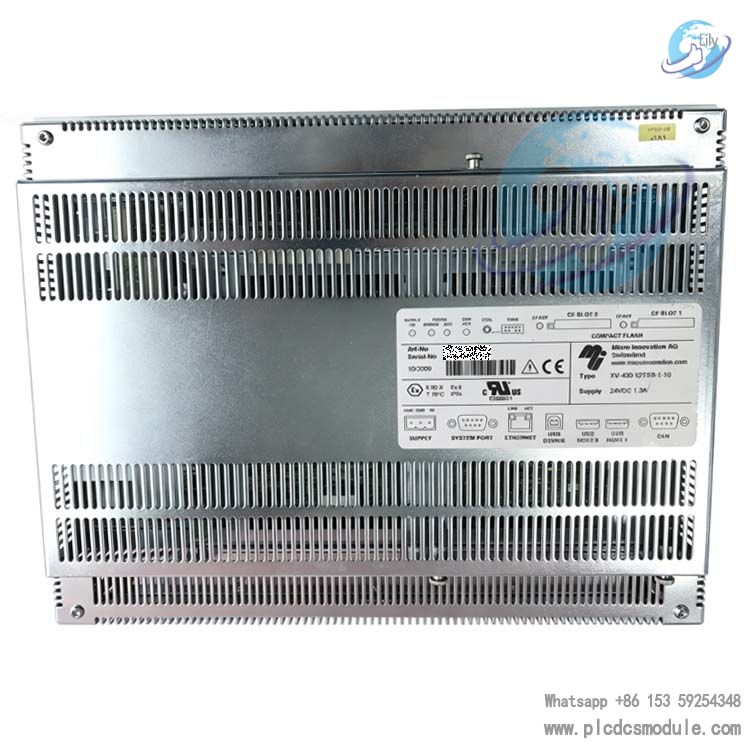

| Dimensions: | W 361 mm × H 279 mm × mounting depth 88 mm; weight 4.5 kg |
| Protection Rating: | Front IP65, rear IP20 |
| Temperature: | Operating: 0℃~+50℃; storage/transport:‑20℃~+60℃ |
| Relative Humidity: | 10‑95 %, non‑condensing |
| Certifications: | cUL UL508, UL60950, CE, ATEX Zone22 dust certification |
Core Advantages
- HMI‑PLC upgradeable all‑in‑one architecture: No PLC logic pre‑installed at factory. Activate CODESYS programming after purchasing license, eliminating separate PLC hardware and reducing cabinet components.
- High‑flexibility communication expansion: Native Ethernet, CAN bus, RS232 plus two module slots for additional field‑bus interfaces for multi‑vendor device networking.
- Industrial‑grade robustness: Resistive touch supports gloved‑hand operation; long‑life CCFL backlight; NVRAM preserves process parameters; hardware RTC maintains time for up to 10 years to lower maintenance workload.
- Dual‑CF‑card storage: Two CompactFlash slots separate system firmware, project application and recipe data for backup and fast on‑site recovery.
Full‑range compliance certifications: UL, CE and ATEX Zone22 approvals for export‑oriented machines and dust‑prone production environments.
Product Features
- Recipe management, alarm message buffer, password permission (up to 200 levels), on‑the‑fly multi‑language switching, external printer for report output.
- Remote access, FTP service and built‑in web browser support; process value display and parameter input/output functions.
- Full laminated front panel for flush cabinet mounting to prevent dust and oil accumulation.
- Galvanically‑isolated CAN interface reduces communication faults caused by bus noise.
- Built‑in reverse‑polarity protection prevents hardware damage from field wiring mistakes.
- Loadable software components for function expansion according to project requirements.
Application Fields
- Packaging machinery, textile automation lines, material handling equipment, rubber‑plastic processing machines, woodworking machinery
- Compact automated units and test fixture equipment
- Export‑targeted machines requiring UL / ATEX certifications
- CAN‑bus‑based networking control systems
Compact cabinet solutions where local HMI also performs light‑duty PLC control
Product Comparison
| Item | XV‑430‑12TSB‑1‑10 | XV‑440‑12TSB‑1‑10 | XV‑432‑57CQB‑1‑10 |
|---|---|---|---|
| Touch Type: | Resistive touch | Infrared touch | Resistive touch |
| Screen Size: | 12.1 inch | 12.1 inch | 5.7 inch |
| PLC Capability: | License‑expandable | License‑expandable | License‑expandable |
| Front Panel: | Standard laminated overlay | Standard laminated overlay | Standard laminated overlay |
| Typical Application: | 12‑inch projects requiring gloved‑hand operation | Heavy‑oil, high‑abrasion environments | Space‑constrained compact cabinets |
Compared with other models in the series, the XV‑430‑12TSB‑1‑10 features resistive touch for reliable operation while operators wear protective gloves. The XV‑440 series infrared touch suits heavy‑oil and frequent‑wipe scenarios. The XV‑432‑57CQB‑1‑10 is smaller for space‑limited enclosures.
Related Accessories
- 140390 LIC‑PLC‑MXP‑MEDIUM: PLC function license key to activate internal CODESYS PLC runtime for XV‑430‑12TSB‑1‑10
- CompactFlash I/II industrial memory card: Stores system image, application project and recipe data
- XV400‑series communication expansion cards: Installed in two expansion slots to add extra field‑bus interfaces
- MN04802010Z: XV400‑series hardware operation manual
- MN048008ZU: XSOFT‑CODESYS‑3 programming manual
- GALILEO visualization configuration software: For HMI screen project development
Relevant Part Numbers
XV‑432‑57CQB‑1‑10, XV‑442‑57CQB‑1‑10, XV‑450‑57TQB‑1‑10, XV‑460‑57TQB‑1‑10, XV‑440‑10TVB‑1‑10, XV‑440‑10TVB‑1‑50, XV‑440‑12TSB‑1‑10, XV‑460‑12TSB‑1‑10, XV‑460‑15TXB‑1‑10, XVS‑430‑12MPI‑1‑10, XVS‑440‑57MPI‑1‑10, XVM‑410‑65TVB‑1‑11, XVM‑430‑65TVB‑1‑11, MC2‑430‑12TSB‑1‑10, MC2‑440‑12TSB‑1‑10
Important Notes
- The RTC real‑time‑clock battery is soldered‑on CR2032 and cannot be replaced by end‑users. Clock data will be lost once battery expires.
- PLC logic runtime must be enabled via separate license 140390 LIC‑PLC‑MXP‑MEDIUM; no PLC runtime license is embedded in hardware.
- CompactFlash memory card is not supplied with unit. Industrial‑grade CF cards are required for system and project files; consumer‑grade CF cards may cause data corruption.
- Power supply must be 24 V DC SELV safety extra‑low voltage; do not connect high‑voltage directly.
- Rear housing is IP20; ensure proper dust‑proof wiring inside cabinet. Front‑side IP65 rating is valid only when mounting gasket is fully seated and intact.
- CAN interface is galvanically‑isolated; Ethernet, RS232 and USB interfaces have no isolation. Surge protection is recommended for field cabling.
- Calculate cabinet thermal dissipation based on maximum power draw of 32 W. Enclosure temperature must stay within 0‑50 °C; over‑temperature shortens backlight service life.
FAQ
Q: Does XV‑430‑12TSB‑1‑10 come with built‑in PLC function?
A: The hardware supports HMI‑PLC architecture, but PLC runtime requires separately‑ordered license 140390 LIC‑PLC‑MXP‑MEDIUM. No PLC license is pre‑installed on unit.
Q: Can operators wear gloves when operating XV‑430‑12TSB‑1‑10 touch‑screen?
A: It adopts 4‑wire resistive touch. Thin work gloves work normally; thick rubber gloves reduce touch sensitivity.
Q: Can ordinary consumer‑grade CF memory cards be used on XV‑430‑12TSB‑1‑10?
A: Industrial‑grade CompactFlash I/II cards are recommended. Long‑term operation with consumer‑grade cards may result in file damage and program loss.
Q: Can the real‑time‑clock battery of XV‑430‑12TSB‑1‑10 be replaced on‑site?
A: RTC battery is soldered onto mainboard and cannot be replaced by end‑users. System time resets upon battery depletion, other HMI functions remain unaffected.
Q: What software is supported for XV‑430‑12TSB‑1‑10 programming?
A: HMI visualization projects are developed in GALILEO software. PLC logic programming supports XSOFT‑CODESYS‑2 and XSOFT‑CODESYS‑3.
Q: Is the Ethernet interface of XV‑430‑12TSB‑1‑10 galvanically‑isolated?
A: Ethernet is non‑isolated while CAN interface is galvanically‑isolated. Isolation protection components are suggested for field network wiring.
Q: What is the production status of XV‑430‑12TSB‑1‑10? Are spare parts available?
A: This model is end‑of‑production for new builds. Market supply consists of stock surplus and replacement spares. Evaluate alternative XV‑series models for new projects.
Q: Max power consumption is 32 W; what is typical power draw in real‑world installation?
A: Base unit typical running power ~14 W. Power rises when communication modules or USB peripherals are attached. Cabinet thermal calculation must use maximum rating of 32 W.
