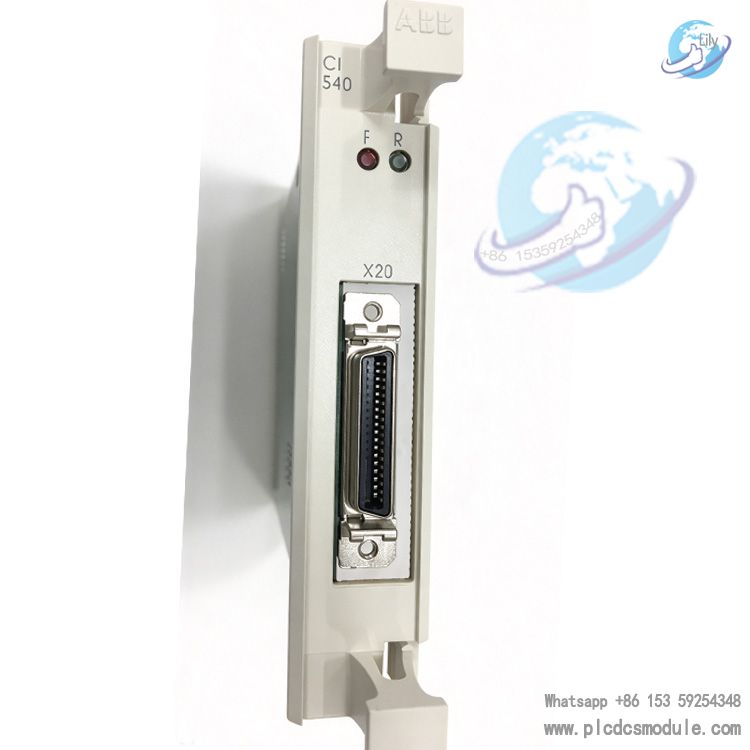

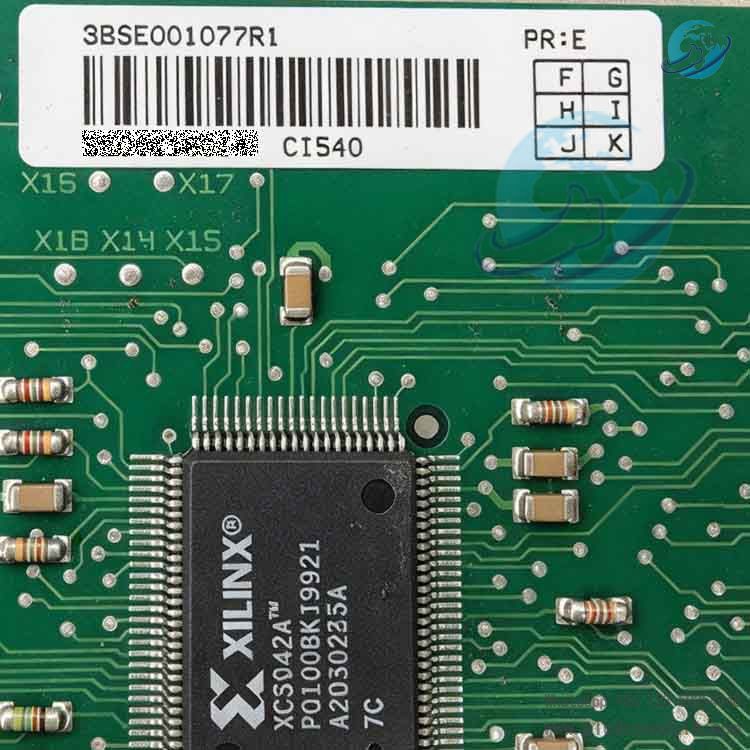

ABB CI540 3BSE001077R1 S100 I/O Bus Extension Module
Overview
ABB CI540, Part Number: 3BSE001077R1 is an official ABB communication module named S100 I/O Bus Extension, designed for the ABB Advant Master / Advant OCS distributed control system (DCS) S100 I/O family.
The core function of CI540 3BSE001077R1 is to extend the S100 I/O bus, enabling high-speed deterministic data communication between Advant controllers and distributed S100 I/O subracks. It separates the I/O racks physically from the main controller rack, implementing remote I/O deployment. Users can configure redundant CI540 modules to build a redundant S100 I/O bus for higher system availability, which is critical for continuous process industries.
With the CI540 S100 bus extension module, the S100 I/O bus can reach up to 12 meters via copper extension cable. When paired with optical bus extension components, the remote I/O distance can be extended up to 500 meters, solving the layout limitation of control rooms and field instrument cabinets in large plants.
Key Features
- S100 I/O Bus Expansion: Official ABB S100 bus extension interface, connects Advant controller to multiple S100 I/O subracks for step-by-step I/O capacity expansion.
- Redundancy Support: Supports redundant bus configuration with dual CI540 modules, transparent bus redundancy improves system uptime and avoids single-point failure.
- High-speed Deterministic Communication: Real-time process data transmission between controller and field S100 I/O modules, stable signal transmission for time-critical process control.
- Robust Industrial Design: High EMC performance, meets EC electromagnetic compatibility requirements, suitable for harsh industrial automation environments.
- System Self-diagnostics: Works with S100 I/O series to provide comprehensive self-diagnosis, quickly locate bus communication faults and module status.
- Modular & Compact Structure: Standard rack-mounted module, easy installation inside DCS cabinet; supports hot replacement of S100 I/O modules on the extended bus without system shutdown.
- Compliance: ABB CI540 3BSE001077R1 is exempted from EU RoHS directive 2011/65/EU per ABB official product documentation.
Technical Specifications
- Brand: ABB
- Model: CI540
- Part Number: 3BSE001077R1
- Product Category: Communication Module / S100 I/O Bus Extension
- Compatible System: ABB Advant Master, Advant OCS DCS with S100 I/O system
- Copper Bus Extension Max Length: 12 m
- Optical Bus Extension Max Length: 500 m
- Net Dimensions: 234 mm (L) × 108 mm (W) × 31.5 mm (H)
- Net Weight: 0.3kg
- Origin: Sweden
- Product Type: Bus extension interface for distributed S100 remote I/O
Applications
ABB CI540 3BSE001077R1 S100 I/O Bus Extension Module is widely deployed in continuous process industries using Advant Master DCS and S100 I/O:
- Oil & Gas production and refining
- Chemical and petrochemical plants
- Power generation, thermal power plants
- Pulp & paper industry
- Water treatment and wastewater control
- Metallurgy and mining process control
It is used when automation engineers need to distribute S100 I/O racks near field sensors and actuators while keeping the main controller in the central control room, reducing long field wiring and improving signal integrity.
Frequently Asked Questions
Q: What is ABB CI540 3BSE001077R1 used for?
A: CI540 is an S100 I/O bus extension communication module. It extends the S100 bus of ABB Advant DCS, connecting the main controller to remote S100 I/O subracks for distributed I/O control.
Q: Which system does CI540 3BSE001077R1 belong to?
A: It belongs to ABB Advant Master / Advant OCS DCS S100 I/O system family.
Q: Can ABB CI540 support redundancy?
A: Yes, dual CI540 modules can be configured to implement redundant S100 I/O bus to enhance system reliability.
Q: What is the maximum extension distance of S100 bus via CI540?
A: Copper cable extension max 12 meters; with optical bus extension, up to 500 meters for remote I/O layout.
Q: Is CI540 3BSE001077R1 a DCS controller module?
A: No. CI540 is a communication bus extension module, not a CPU controller; it only handles S100 I/O bus data transmission.
Q: Does CI540 work with S800 I/O?
A: No, CI540 is dedicated for S100 I/O system, not compatible with ABB S800 I/O modules.
Q: Are S100 I/O modules hot swappable when using CI540 bus extension?
A: Yes, S100 I/O modules on the extended bus support hot replacement during system operation.
Q: Is 3BSE001077R1 the order number of CI540?
A: Yes, 3BSE001077R1 is the ABB official product ID for CI540 S100 I/O Bus Extension Module.
