AMAT 0190-28651 CPCI-3840 Single Board Computer

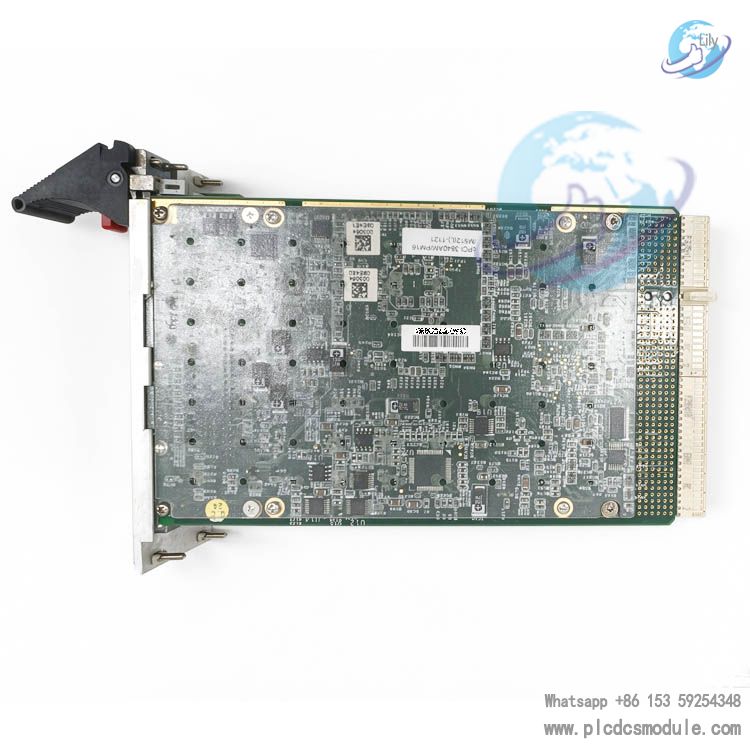

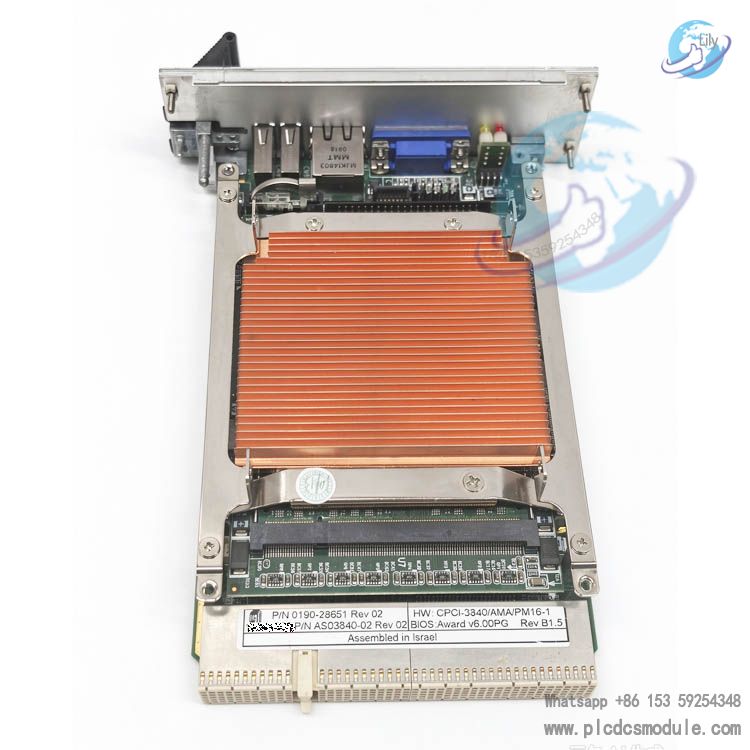

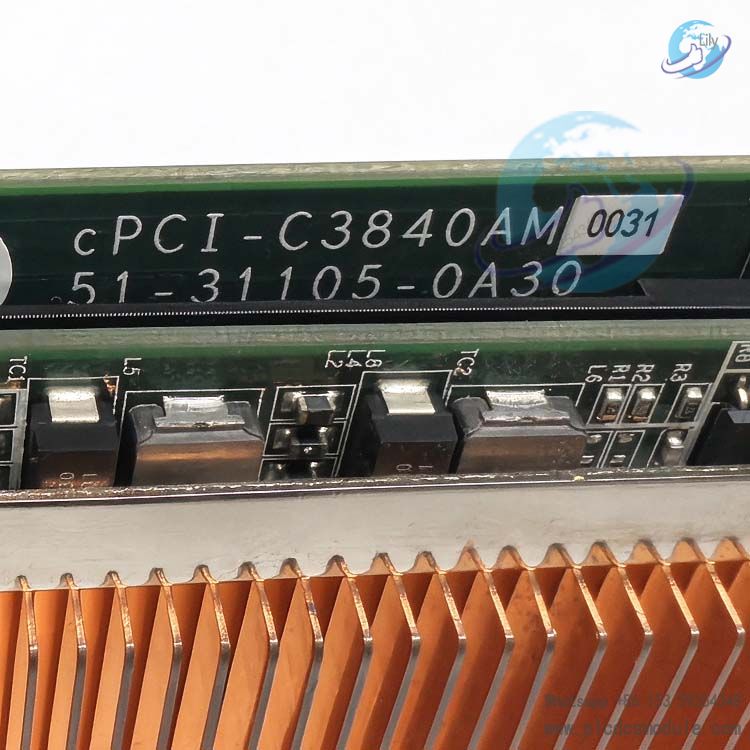

AMAT 0190-28651, CPCI-3840 is a 3U CompactPCI industrial CPU single board computer (SBC). Built on the low-power Intel Pentium M processor, this board is custom-engineered for AMAT semiconductor process equipment. It serves as the host unit for equipment process control, system monitoring and human-machine interface. Compliant with PICMG 2.0 R3.0 and PICMG 2.1 R2.0 CompactPCI bus standards, it adopts a 32bit/33MHz CPCI backplane bus. It supports the matching CPCI-R3840 RTM (Rear Transition Module) to route rear I/O signals.
Core Hardware Specifications
- Processor: Intel Pentium M 1.6GHz (standard for AMAT custom version), up to 2MB L2 cache. Low power consumption design for long-term non-stop operation inside equipment cabinets; Celeron M version available as an option.

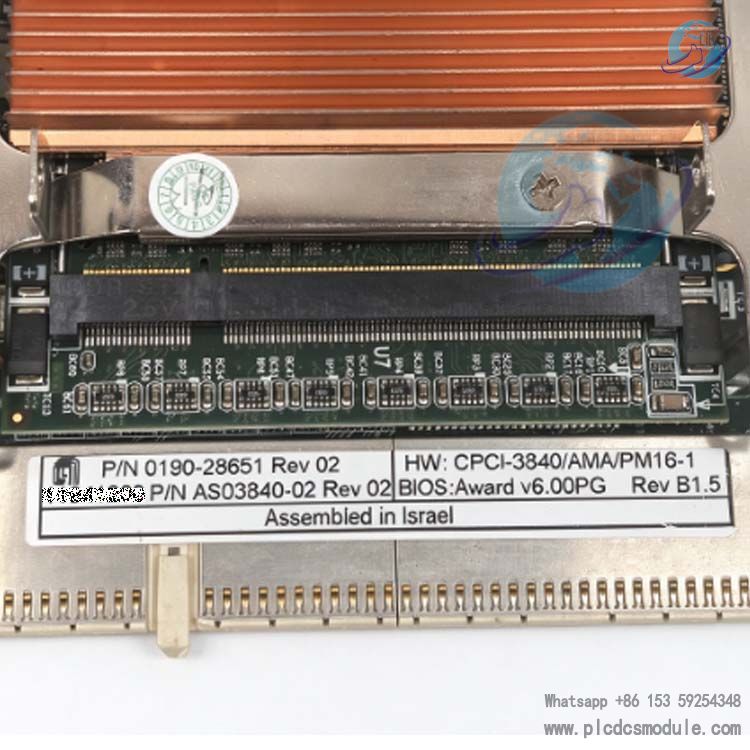

- Memory: Supports PC2700 DDR-SDRAM, maximum 2GB, dual 200pin SODIMM memory sockets.

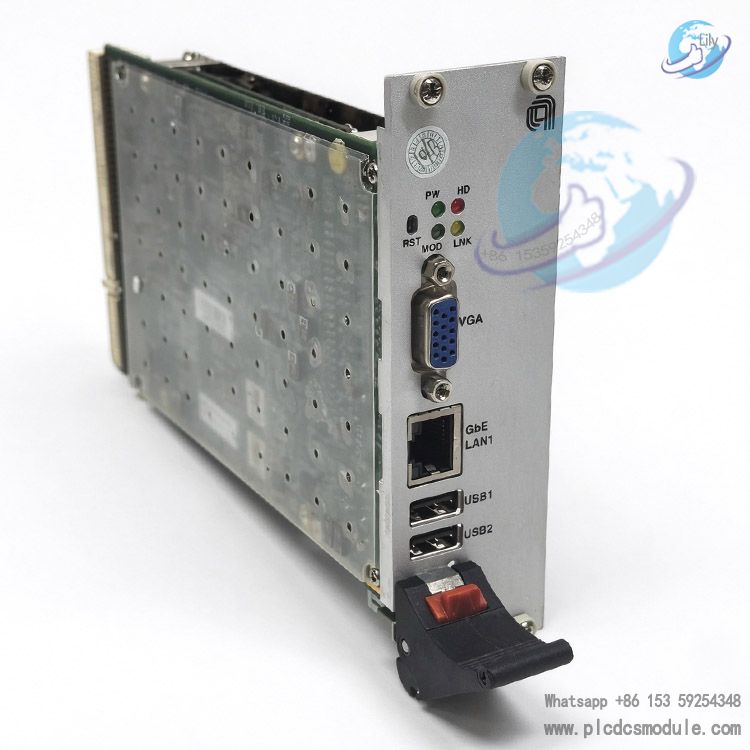

- Graphics: Intel 855GME integrated graphics with 32MB shared video memory. Front panel VGA port; DVI output available via RTM module.
- Ethernet: Dual Gigabit Ethernet controllers Intel 82546EB. One front-facing Gigabit LAN port, the second Gigabit LAN routed through J2 backplane to RTM, realizing isolated control network and data network for semiconductor equipment.
- Storage Interfaces: Ultra ATA100 IDE, CompactFlash and SATA. Supports CF card and 2.5-inch IDE hard disk, available for both diskless industrial operation and local storage.
- Peripheral Interfaces: USB2.0, AC97 audio (line out + microphone input).
- Bus Specification: 3U CompactPCI, 32-bit 33MHz PCI bus.
- Accessory: CPCI-R3840 Rear Transition Module (RTM), to expand rear I/O including DVI, Ethernet and audio signals.
Application on AMAT Equipment
0190-28651 is an industrial control mainboard for Applied Materials semiconductor systems. Installed inside a CompactPCI chassis, it is deployed on wafer processing tools such as etchers and deposition systems. Its main functions include:
- Overall equipment process logic control
- Sensor data acquisition and system status monitoring
- HMI operation and recipe management
- Equipment alarm handling, log recording and communication with host controller
This embedded CPCI single board has reached end of life. Units available on the market are mainly used spare parts, applied for maintenance and replacement of AMAT semiconductor equipment.
Key Features
Low-power Intel Pentium M platform, reliable for continuous long-run operation
Dual independent Gigabit Ethernet ports for segregated network control in semiconductor tools
Multiple storage options, CF card preferred for shock-resistant industrial environments
Standard 3U CompactPCI form factor with hot-swap capability, easy maintenance in cabinet
Compatible with RTM rear transition board for flexible front/rear I/O configuration
