AMAT Applied Materials 0195-14157 CMP Tool Controller

Part Number：0195-14157Part Name：CMP Tool ControllerManufacturer：Applied Materials (AMAT)Platform：Reflexion Series CMP Chemical Mechanical Polishing System (Reflexion / Reflexion LK / Reflexion LK Prime)

The 0195-14157 is the core process control chassis for the Reflexion CMP system. Serving as the main control unit of the CMP polishing module, it performs closed-loop control for the full polishing sequence. It coordinates all subsystems including the polishing head, polishing pad, pressure actuators, wafer carrier, in-situ film thickness metrology, slurry delivery, temperature regulation and safety interlocks. It is the critical hardware enabling global wafer planarization on the CMP tool.

A core challenge of CMP processes lies in real-time micron-level adjustment of pressure, rotational speed and polishing duration. According to AMAT  official CMP technical documentation, the CMP system continuously acquires multi-point film thickness data across the wafer and dynamically adjusts polishing head pressure to guarantee within-wafer and wafer-to-wafer uniformity. The 0195-14157 executes this real-time process calculation and output.

Core Functions

Polishing Head Closed-Loop Pressure Control

Real-time control of zoned polishing head pressure. Differentiated pressure is applied to distinct regions of the wafer to compensate for wafer surface topography and regulate material removal rate. It supports CMP processes for diverse thin films including copper, tungsten, silicon oxide and cobalt.

Synchronized Motion Axis Control

Synchronizes the rotation of the polishing platen and polishing head, wafer oscillation, carrier lifting/lowering, and timing of wafer transfer robot. Ensures high-precision synchronization of rotational speed and position during polishing.

In-Situ Thickness Measurement Acquisition & Process Termination Control

Receives signals from the CMP Optical Endpoint Detection (EPD) sensor, calculates residual film thickness in real time and automatically terminates polishing to prevent over-polishing. This is critical for yield in advanced semiconductor processes.

Slurry & Process Fluid Control

Controls slurry delivery, flow rate and spray timing, and coordinates polishing pad dressing operations.

Safety Interlock & Condition Monitoring

Oversees the tool safety circuit, vacuum/pneumatic pressure, temperature, door interlocks, fault diagnostics and alarm collection. It supports the semiconductor SECS/GEM communication protocol to upload production data, alarms and process logs to fab host systems.

HMI & Recipe Management

Stores multiple CMP process recipes, handles recipe loading and parameter distribution, and supports local tool diagnostics and log recording.

Hardware Architecture & Features

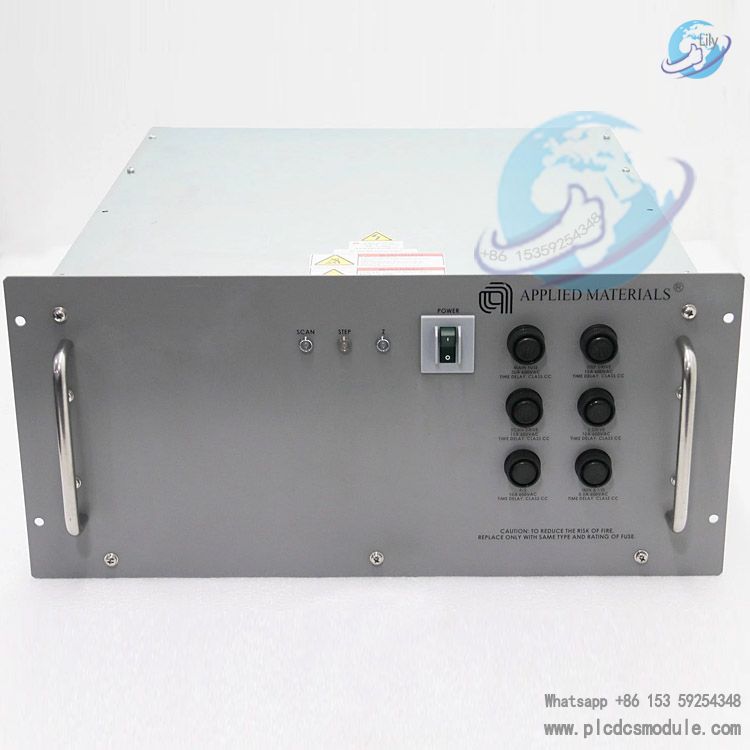

This is a rack-mount controller chassis equipped with front-panel status indicators, power switch and local operation buttons, plus industrial side handles for installation inside the CMP equipment cabinet.

It integrates a high-performance processor, multi-channel analog/digital I/O boards and multi-channel signal acquisition channels for high-speed closed-loop feedback.

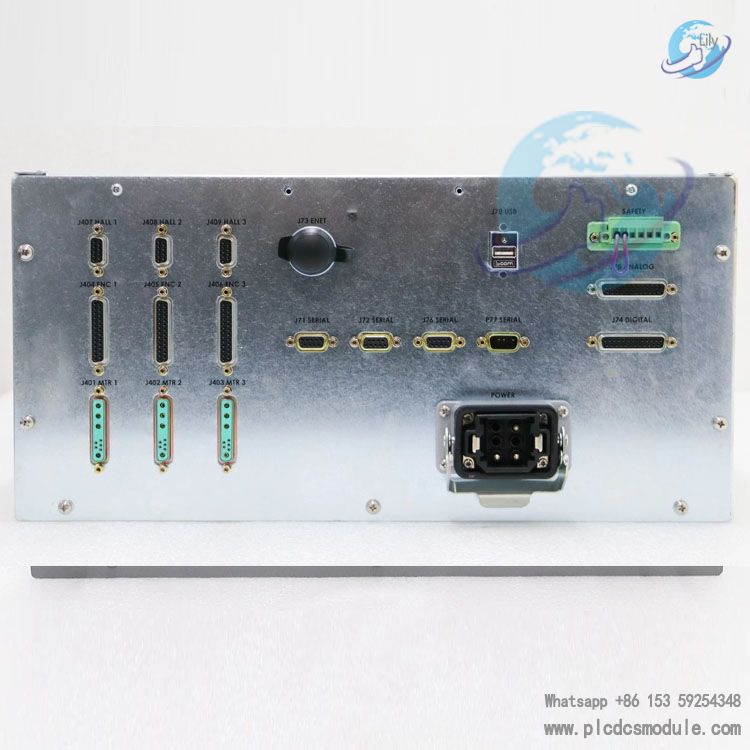

Communication Interfaces: Ethernet, serial bus and VME bus to interface with all CMP sub-modules. SECS/GEM supported for connection to fab MES systems.

Built for cleanroom environments: anti-static, dust-resistant, immune to electromagnetic interference from process environments, designed for 24/7 continuous wafer mass production.

Modular construction: Internal boards can be maintained or replaced individually to minimize tool downtime. It is an AMAT factory repairable spare part; AMAT-certified RMA refurbished units (0195-14157.RMA) are widely available in the spare market.

Compatible Tools & Processes

Compatible Tools: AMAT Reflexion, Reflexion LK, Reflexion LK Prime CMP Polisher (200mm / 300mm wafers)

Applicable Processes: Silicon oxide CMP, tungsten CMP, copper interconnect CMP, cobalt metal CMP for wafer planarization in logic and memory chip manufacturing.

Industry Applications: Mature nodes from 14nm to 28nm, plus CMP stations for selected 3D NAND fabs.

Product Position & Spare Part Notes

0195-14157 is a complete main controller assembly, not a single circuit board. It is a high-value critical spare part for wafer fab maintenance.

Typical Fault Symptoms: CMP tool fails to load polishing recipes, abnormal pressure control, EPD endpoint detection failure, loss of tool communication, motion axis errors.

After replacement, tool process characterization, pressure calibration and EPD optical verification must be completed before releasing the tool back to mass production.

Additional AMAT Background

Applied Materials Reflexion CMP is an industry-leading classic chemical mechanical planarization platform, renowned for dynamic zoned pressure control plus in-situ endpoint detection. Within tens of seconds, the CMP process removes material from the wafer surface. The controller must adjust pressure at millisecond-level response to achieve nanometer-scale flatness across the entire wafer. The 0195-14157 is the hardware platform carrying this control logic. AMAT’s newer-generation Opta CMP platform uses updated controllers, while the 0195-14157 is mainly used for maintenance and retrofitting of legacy Reflexion CMP tools still in operation.
