GE IS215ACLEH1A | EX2100 Application Control Layer Module

The GE IS215ACLEH1A EX2100 excitation control system application control layer module serves as the main control unit of the complete excitation system. Built on a microprocessor architecture, it executes excitation outer-loop control, data calculation, alarm management and multi-link communication. Occupying 2 standard slots in the cabinet, the IS215ACLEH1A fits all standard EX2100 control racks and can directly replace the older IS215ACLAH1A module. It is widely applied in generator excitation regulation and undertakes core computing tasks in power plants and industrial drive units. Powered by the QNX real-time operating system for fast control response, the IS215ACLEH1A works with Toolbox software for configuration, diagnosis and firmware maintenance. It is the hardware carrier for the EX2100 system to realize AVR, PSS, UEL and VAR/PF functions.

GE IS215ACLEH1CA | IS215ACLEH1CAA Application Control Layer.pdf

Specifications & Parameters

Model: IS215ACLEH1A

Series: EX2100 Excitation Control System

Processor: 486‑100MHz; some hardware revisions use Pentium P5‑266MHz processor

Memory: 128MB DRAM, CompactFlash solid-state storage for firmware

Communication Interfaces: 2 × 10BaseT Ethernet ports, 2 × RS‑232 serial COM ports

Operating System: QNX Real-Time OS

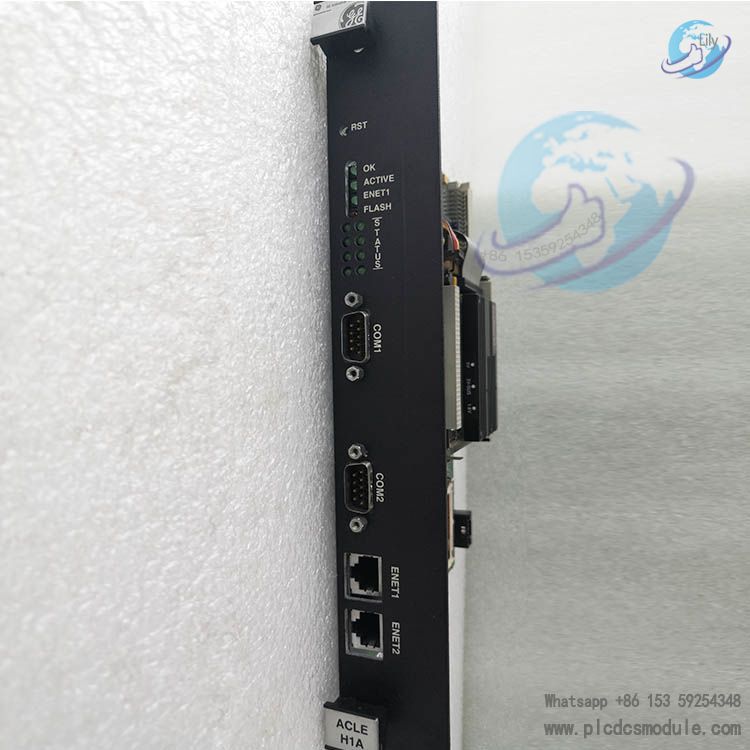

Status Indicators: Active, OK, ENET, Status, Flash LED indicators, onboard reset button

Mounting: VME rack mount, 2-slot occupancy

Operating Temperature: 0℃‑45℃

Power Supply: 5V DC from backplane

Dimensions: 159mm (H) × 102mm (W)

Weight:2kg

Support Manuals: GEI‑100584, GEI‑100434

Function Description

The IS215ACLEH1A performs upper-layer application control for the EX2100 excitation system. It collects excitation operating parameters, runs algorithms for automatic voltage regulation, power system stabilization, reactive power and power factor control, processes system alarms and uploads status data. Via Ethernet and serial ports, the IS215ACLEH1A exchanges data with upper-level DCS, HMI and local debugging tools to download parameters, run online diagnostics and retrieve fault records. Cooperating with the rack backplane, it interfaces with DSPX signal processing boards, sends outer-loop control commands to underlying power control units, and supports simplex and redundant rack architectures to meet reliability requirements for different generator units.

Product Features

On the hardware side, the IS215ACLEH1A has dedicated status LEDs for quick on-site diagnosis of module operation, network and firmware status, plus a hardware reset switch for local fault reset. Firmware and configurations are stored on non-volatile CF cards to prevent data loss after power loss. On the software side, the QNX real-time OS guarantees low-latency excitation control logic. It is compatible with GE Toolbox configuration software for online parameter editing, fault log export and firmware upgrade. The hardware design supports multiple EX2100 backplanes and fits simplex, hot-standby and redundant regulator racks. It comes with a fixed set of I/O interfaces and requires no extra I/O expansion boards.

ACLE Highlights

ACLE stands for Application Control Layer. As the ACLE hardware unit, the IS215ACLEH1A focuses on excitation outer-loop application algorithms and does not generate underlying thyristor firing pulses; pulse generation is handled by the DSPX board, separating algorithm control and signal drive at the hardware level. The ACLE unit has independent networking capability, with dual Ethernet ports for network redundancy and serial ports for local debugging. It supports system-level fault diagnosis to detect faults on the module itself, communication links and interconnected boards, and generates corresponding alarm codes. As the upgraded ACLE hardware, the IS215ACLEH1A delivers higher processor performance and larger memory than the legacy ACLA, supporting newer EX2100 firmware. It is not fully compatible with certain operating conditions of the Innovation series exciters.

Product Advantages

1. Decoupled hardware & software design: The IS215ACLEH1A handles upper-level control computation while DSPX manages underlying signal processing, enabling clearer fault isolation and easier maintenance.
2. Dual Ethernet + dual serial communication: Supports remote host connection and local debugging to fit various power plant maintenance workflows.
3. Multiple rack modes: Simplex, hot standby and redundant configurations are available for flexible deployment based on generator criticality.
4. Real-time operating system: Ensures fast excitation control response to meet strict timing requirements for grid connection and reactive power regulation of generators.

5. Standard slot mounting: Compatible with existing EX2100 backplanes including IS200ESBP, IS200EBKP, IS200ERBP and IS200ERRB, minimizing rework for retrofits and replacements.

Application Scenarios

• Excitation control for thermal power steam turbine generator sets
• Excitation control for gas turbine generator sets
• Excitation regulation for large industrial drive equipment
• Retrofit & upgrade of aging power plant excitation systems
• Spare part replacement for EX2100 control systems in power stations Ideal for power generation sites requiring stable AVR voltage regulation and PSS power system stabilization, mainly used for grid-connected synchronous generators.

Comparison with Other GE Products

表格

Compatible Associated Part Numbers

Backplanes: IS200ESBP (Simplex Thyristor Rack Backplane), IS200EBKP (Hot-Standby Thyristor Rack Backplane), IS200ERBP (Simplex Regulator Backplane), IS200ERRB (Redundant Regulator Backplane)

Signal Processing Board: IS200DSPXH1C

Feedback Acquisition Boards: IS200EACFG2A, IS200EDCFG1A

De-excitation Board: IS200EDEXG1A

Selection Board: IS200ESELH1A

Debug Cable: 336A3582P1 Serial Adapter Cable

Frequently Asked Questions

Q: Can IS215ACLEH1A and IS215ACLAH1A be swapped directly?

A: They fit the same slot mechanically, but you must confirm matching firmware version of the whole EX2100 system. Mismatched firmware causes communication failures, and parameter settings need re-verification after replacement.

Q: What should I check if the ENET LED stays off after power-up?

A: First inspect the Ethernet cable, shielded twisted pair quality and powered status of the peer network device. Then verify module firmware revision, check backplane contact and rule out gold finger oxidation on the slot.

Q: What key information is required when purchasing IS215ACLEH1A?

A: Confirm hardware revision suffix, on-site EX2100 rack backplane part number, system firmware version, simplex/redundant architecture, and whether the 336A3582P1 serial debug cable is needed.

Q: Can the system keep running temporarily if the IS215ACLEH1A fails?

A: For redundant rack configurations, the healthy backup IS215ACLEH1A takes over control and the generator can stay online. In simplex architecture, module failure leads to excitation system loss and generator shutdown.

Q: Does IS215ACLEH1A support all operating modes of Innovation series exciters?

A: The IS215ACLEH1A is designed for the EX2100 excitation system. It cannot fully replace ACLA for Innovation exciter applications. Check the hardware manual for compatibility boundaries.

Q: What tools are needed to upgrade IS215ACLEH1A firmware?

A: GE Toolbox software, 336A3582P1 serial cable and a host PC. Back up the original project configuration before upgrade, and complete firmware verification before downloading.

Q: What does flashing OK LED on IS215ACLEH1A indicate?

A: Flashing OK LED means self-test failure, including corrupted CF card firmware, backplane bus communication fault or internal hardware damage. Export fault logs for further troubleshooting.

Q: What inspections should be performed before installing used/refurbished IS215ACLEH1A?

A: Complete visual inspection and gold finger cleaning; verify hardware revision; read firmware version offline; power on under no load and confirm normal LED status; restore backup configuration before integrating into the full EX2100 system.

Recommended GE Part Numbers

IS215ACLAH1A

IS200DSPXH1C

IS200EACFG2A

IS200EDCFG1A

IS200EDEXG1A

IS200ESELH1A

IS200ESBPG1A

IS200EBKPG1C

IS200ECTBG1A

IS200ERRBG1A

IS200ERBPG1A

IS215GFOIH1A

IS200HSLAH2A

Notes

1. ESD anti-static protection is mandatory during installation. Static electricity can damage onboard chips.
2. Do not disassemble the IS215ACLEH1A. No user-serviceable internal components.
3. Avoid corrosive gas and high condensation humidity in the operating environment, and keep operating temperature within 0‑45℃.
4. When deploying two IS215ACLEH1A modules in a redundant system, complete data synchronization configuration to prevent control logic conflict.
5. Fully back up project parameters before firmware upgrade. Do not cut power during upgrade, otherwise CF card firmware may be corrupted.
6. Use industrial shielded twisted-pair Ethernet cables with properly grounded shielding to reduce communication packet loss caused by strong electromagnetic interference in power plants.
