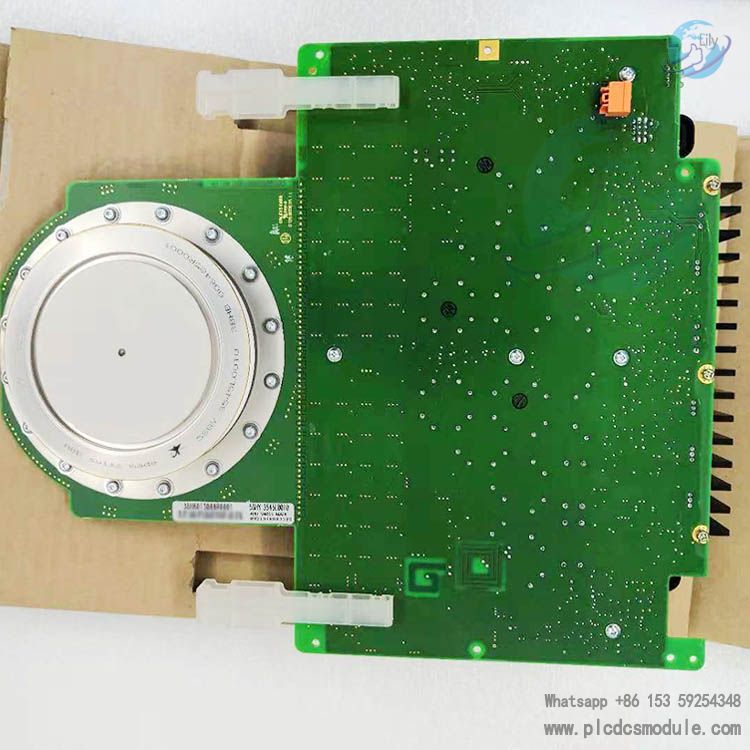

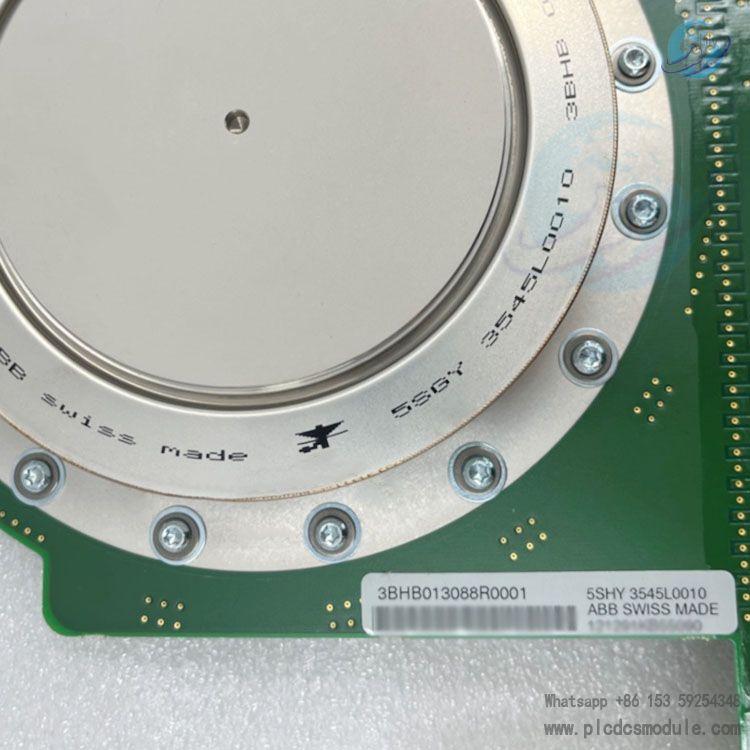

ABB 5SHY3545L0010 3BHB013088R0001 Asymmetric IGCT module

The ABB 5SHY3545L0010 3BHB013088R0001 high-performance asymmetric Integrated Gate Commutated Thyristor (IGCT) module is specifically designed for powerful power control in harsh industrial environments. The 5SHY3545L0010 3BHB013088R0001 high-performance asymmetric IGCT module achieves an excellent balance between high-voltage tolerance and fast switching performance, making it an ideal choice for large-scale power conversion systems.

This module integrates advanced thermal management functions, enabling it to cope with extreme operating conditions and ensuring stable operation even under heavy loads. Its compact design facilitates installation in space-constrained scenarios, while built-in protection mechanisms such as overcurrent and overvoltage protection further enhance system reliability. Widely used in renewable energy (e.g., wind power and photovoltaic inverters), high-power drive equipment, and grid stabilization systems, this module can realize efficient energy transmission and precise power regulation, providing strong support for sustainable industrial operations.(5SHY3545L0009、5SHY3545L0003)

• High power: Capable of carrying large currents, suitable for high-power application scenarios.
• Fast switching: Fast switching speed enables high-frequency switching, helping to improve system efficiency.
• High voltage resistance: Has the ability to withstand high voltages and can be used in harsh electrical environments.
• Low loss: Low conduction voltage drop and small loss, which can improve the overall efficiency of the system.
• High reliability: Adopts advanced packaging technology, with high reliability.

• Rated voltage: 4500V
• Rated current: 3500A
• Peak turn-on gate current: 1000A
• Peak turn-off gate current: 1000A
• Turn-on time: 1.5μs
• Turn-off time: 1.5μs
• On-state voltage drop: 2.5V
• Off-state leakage current: 10mA
• Junction temperature: 125°C

• Dimensions: Approximately 120x80x60mm

• Weight: Approximately 1kg

• Power electronic frequency converters: Used to control motor speed and achieve variable frequency speed regulation.
• DC power transmission: Can be applied to commutation in DC power transmission systems.
• Static var compensation: Capable of improving the power factor of the power grid.
• Others: Also suitable for power systems such as power transformers and power electronic equipment, as well as industrial automation fields like motor drives. It is also used in new energy fields such as wind power generation and photovoltaic power generation.

• ACS6000 frequency converter: This module is often used in high-voltage inverter systems and can be matched with ABB's ACS6000 series frequency converters. It is applied to power conversion of the frequency converter to realize variable frequency speed regulation control of the motor.
• SD822 and SS822 control modules: Its G3 compatible version can be used with ABB's SD822 and SS822 control modules, which is suitable for scenarios requiring high common-mode rejection rating and/or bipolar voltage or current input.
• Module Terminal Unit (MTU): It can be matched with ABB's Module Terminal Unit (MTU). MTU is a passive basic unit module for accommodating I/O, which can provide relevant interfaces and support for 5SHY3545L0010.
