ABB 3BHL000986P0006 Processor Module
The 3BHL000986P0006 IGCT is optimized for low conduction losses. Its typical on/off switching frequency is in the 500 Hz range. However, in contrast to the GTO, the upper switching frequency limit is limited only by operating thermal losses and the system's ability to dissipate heat. This feature, combined with the device's fast transition between on and off states, allows for short switching pulse groups with switching frequencies up to 40 kHz

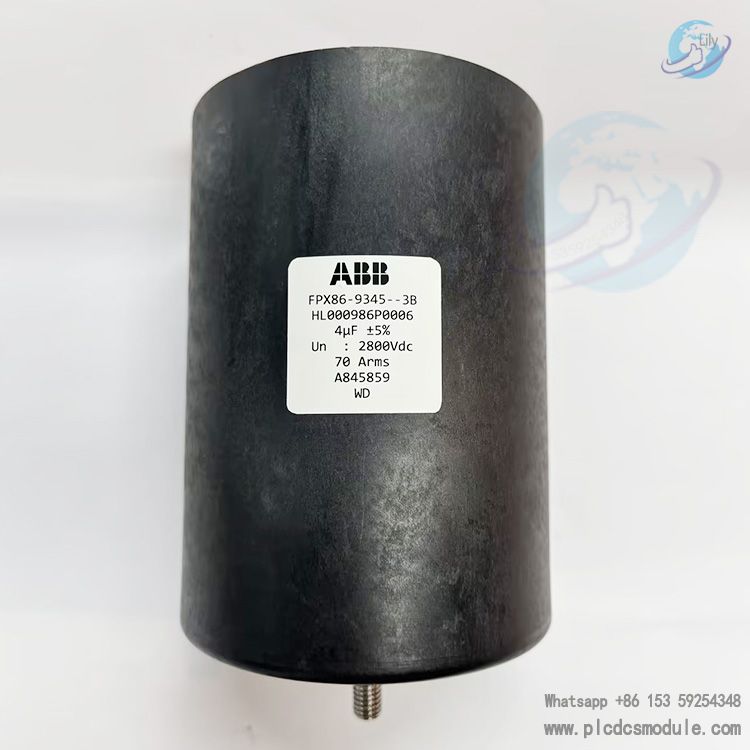

Basic Parameters:

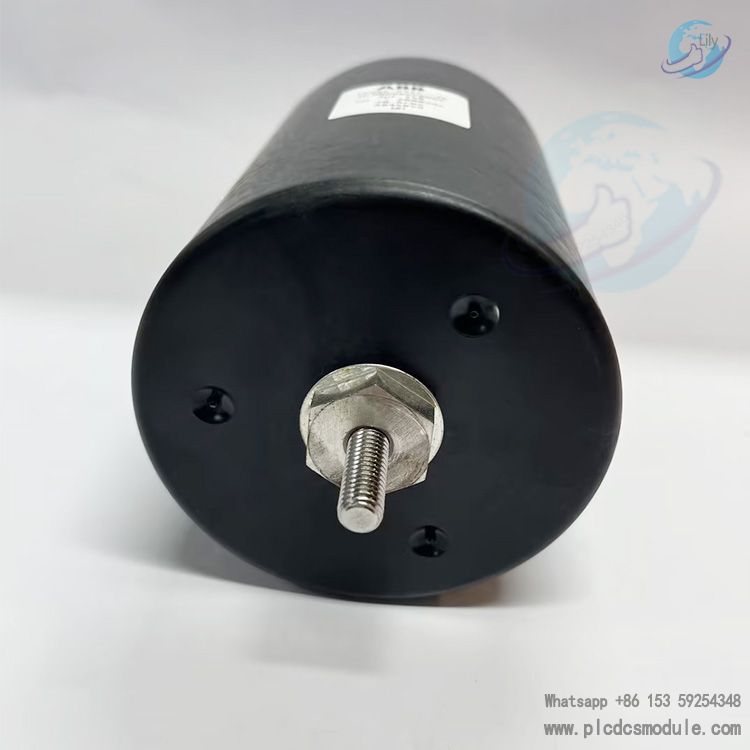

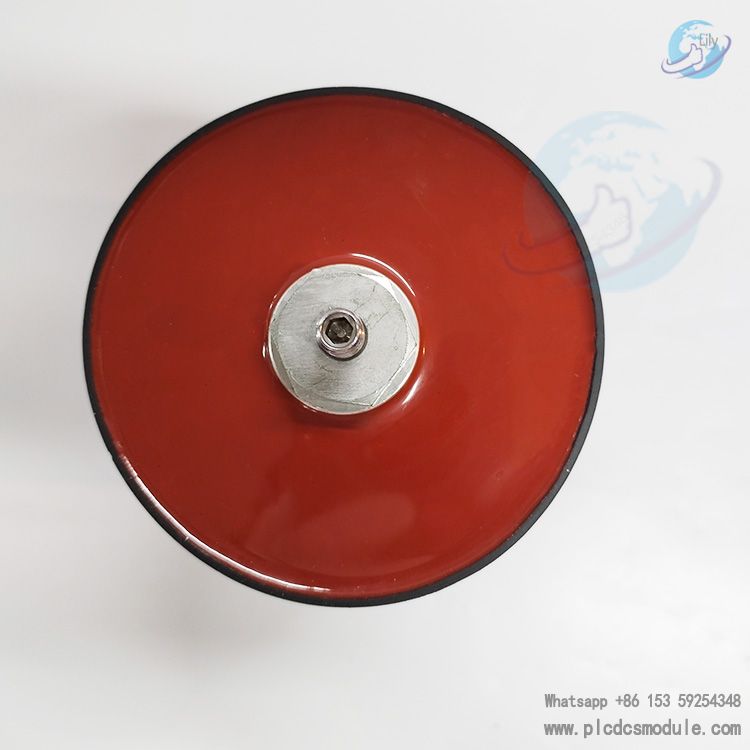

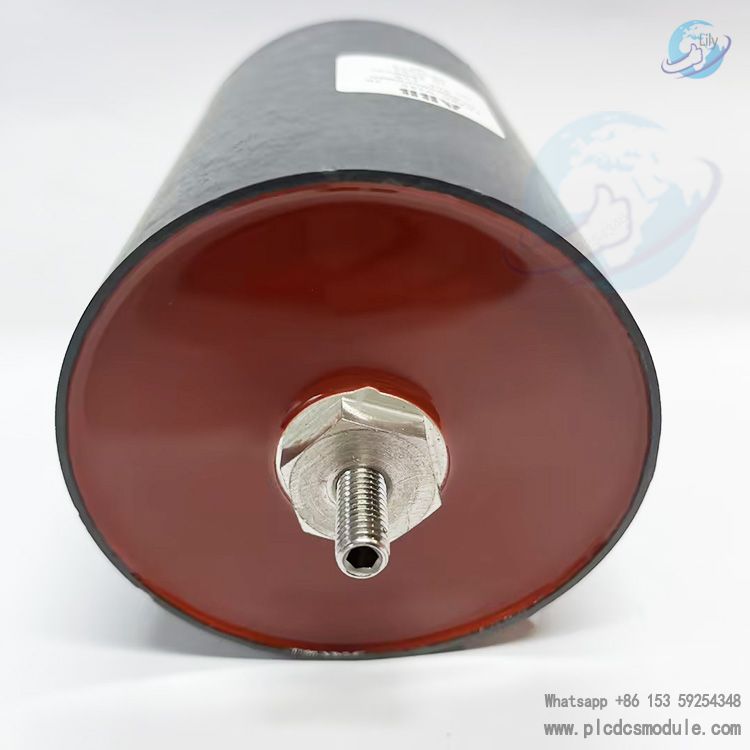

Capacitance: 4μF, which represents the charge storage capacity of the capacitor.
Rated Voltage: 2800VDC, indicating the maximum DC voltage that the capacitor can withstand without breakdown during long-term stable operation in the circuit.
Rated Current: 70A, referring to the maximum current allowed to pass through the capacitor during normal operation.
Other Possible Speculations (based on data of similar models):
The frequency is likely 50/60Hz, with a loss ≤1.5%, impedance accuracy ≤±2%, and temperature rise ≤80K.
Application Fields:
This series of ABB products is typically used in industrial process control, robotics, power equipment, new energy equipment, and other fields.
Product Features:
It is known for high efficiency, reliability, and flexibility, capable of meeting the requirements of various complex industrial environments.
ABB 3BHL000986P0006 Processor Module
