What You Need to Know About ICS Triplex Trusted TMR Safety Systems
Many process industries such as oil & gas, petrochemicals and power generation rely on safety instrumented systems (SIS) to prevent catastrophic accidents. The ICS Triplex Trusted system is one of the most widely adopted triple modular redundant (TMR) safety controllers developed by ICS Triplex, now part of Rockwell Automation. This article covers core principles, key features, product differences, common applications and frequently asked technical points.
1. What Is ICS Triplex Trusted System?

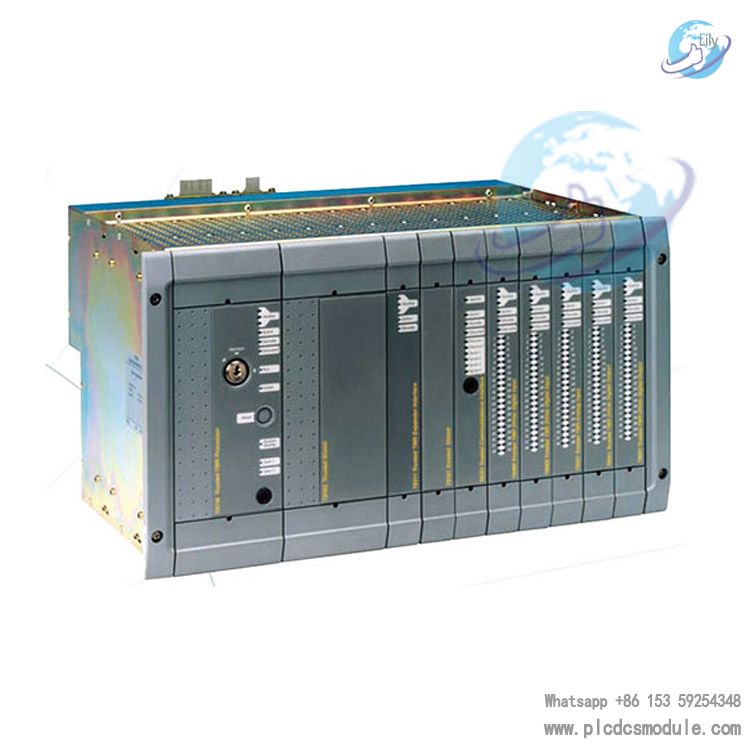

ICS Triplex Trusted is a proven TMR safety control platform designed for critical safety applications.TMR means three independent parallel processing channels run the same logic simultaneously. The system uses voting technology to detect single-channel faults and continue normal operation without shutdown.As a certified SIS solution, it is mainly deployed for Emergency Shutdown (ESD), Burner Management Systems (BMS) and Fire & Gas (F&G) protection systems.
2. Core Working Principle of Trusted TMR Architecture
The triple-channel hardware architecture is the biggest advantage of Trusted systems:
- Three identical processor channels execute safety logic independently.
- Input and output signals are voted across three channels.
- If one channel fails, the other two channels maintain safe operation; the faulty channel can be replaced online without system trip.
- Built-in continuous self-diagnosis detects hardware failures at module level.
This design achieves high availability while meeting strict safety integrity requirements.
3. Main Difference: ICS Triplex Trusted vs AADvance
Many customers confuse the two flagship ICS Triplex platforms.
- Trusted System: Mature heavy-duty TMR platform, large rack-based architecture, suited for large-scale complex SIS projects; uses dedicated rack modules such as T8231 power supply, T8300 expander chassis, T8403 / T8471C I/O modules.
- AADvance System: Flexible scalable platform, supports TMR, dual redundant or simplex configurations, more compact, suitable for medium and small safety control applications.
4. Safety Certification & SIL Rating
The Trusted system is certified to meet SIL 3 requirements in accordance with IEC 61508 and IEC 61511 standards.SIL 3 certification makes it qualified for high-risk process safety loops in chemical and energy plants.
5. Typical Industry Applications
- Oil & gas onshore and offshore platforms
- Petrochemical and refining plants
- Power generation (thermal power, gas turbine safety control)
- Fertilizer and chemical manufacturing
- Pipeline emergency shutdown control
6. Popular Hardware Modules for Trusted Systems
The complete system consists of main chassis, expander chassis, power modules and various I/O modules. Common spare part models include:
- T8231: Power supply module
- T8300: Trusted expander chassis
- T8403: Digital input module
- T8471C: Digital output module
- T8193, T8225, T8292: Control & communication related modules
7. Frequently Asked Technical Questions
Q1: Is ICS Triplex Trusted still supported by Rockwell Automation?
A: The Trusted series has entered end-of-life status. Rockwell no longer supplies brand-new original factory units. End users mainly source tested surplus/refurbished spare modules for plant maintenance.
Q2: Can faulty Trusted modules be hot-swapped?
A: Yes. Most I/O and power modules support online hot replacement under normal operating conditions, avoiding plant shutdown during maintenance.
Q3: Can Trusted system communicate with mainstream DCS?
A: It supports multiple communication protocols to connect with DCS platforms for data exchange, alarm transmission and status monitoring.
Q4: Can I mix Trusted and AADvance modules in one system?
A: No. Trusted and AADvance are two independent hardware platforms; modules cannot be cross-used.
