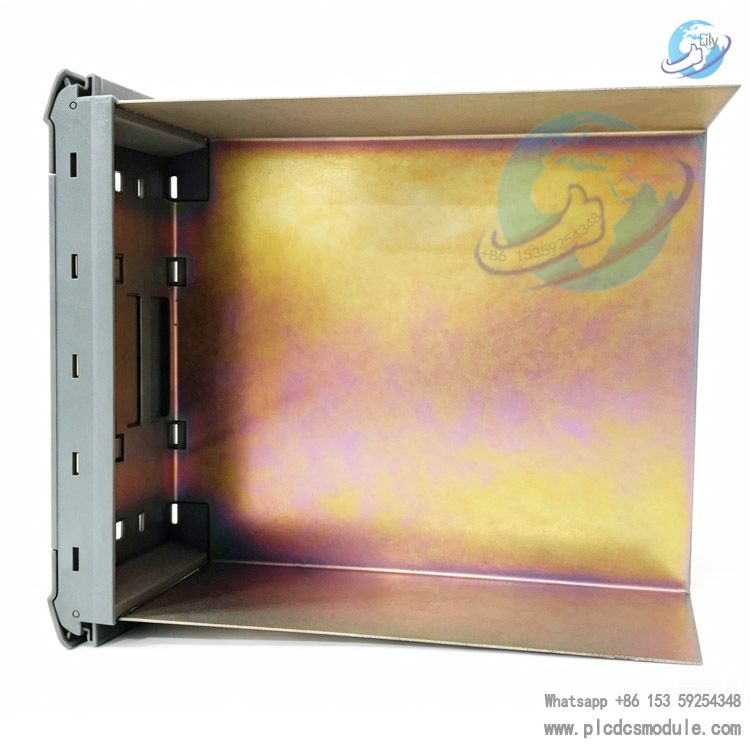

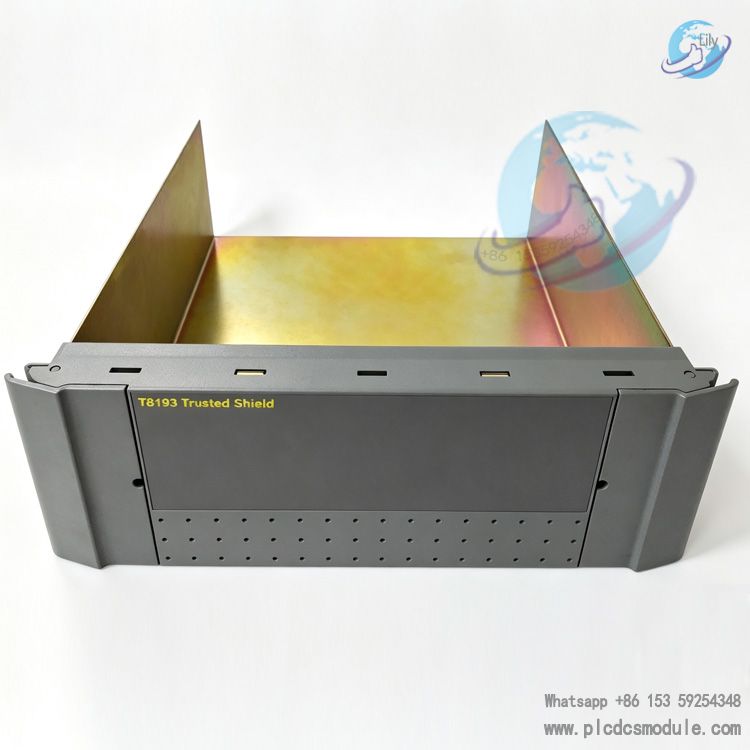

ICS Triplex T8193 is an accessory for the Rockwell Allen‑Bradley Trusted TMR platform, named the 3-Slot Trusted Shield Blank.This device contains no built-in control circuitry. It is primarily used to block vacant slots on the T8100 system rack, maintain the integrity of electromagnetic shielding inside the cabinet, prevent dust ingress and airflow disturbance, and ensure a stable operating environment for the triple modular redundant safety control system.As an essential auxiliary component for racks of the Trusted 8000 safety system series, it complies with cabinet assembly specifications for SIL-rated systems.
Technical Features
Standard Rack Adaptation: Occupies 3 standard rack slots with a universal backplane pluggable structure, sharing a unified mechanical outline with all Trusted functional modules.
Excellent Electromagnetic Shielding: Integrated metal housing suppresses internal electromagnetic crosstalk between rack modules and ensures stable signal transmission.
Hot-Swappable Support: Allows tool-free installation and removal without system power shutdown, facilitating on-site maintenance and renovation.
Integrated Appearance & Structure: Precisely matches the installation benchmark of T8100 main chassis, ensuring a continuous and neat front-panel appearance after assembly.
Industrial Environmental Adaptability: Tolerates standard temperature and humidity ranges of industrial control cabinets with vibration resistance compliant with process control site standards.
Standard Compliance: Meets the mandatory system requirement that all vacant rack slots must be equipped with shielding blanks for formal system acceptance.
Model Breakdown
T8193
- T8: Represents the Trusted 8000 product series
- 1: Classification for controller rack auxiliary accessories
- 93: Part code for 3-slot width Trusted shielding blank
The model has no derivative suffixes and adopts a unified standard version with no differences in channel configuration or electrical parameters.
Product Characteristics
- Effectively maintains rack electromagnetic shielding performance and reduces signal interference between internal modules
- Seals idle slots to prevent dust and foreign debris from contaminating backplane connector terminals
- Adopts unified mechanical interface, compatible with the plugging structure of rack processors and I/O modules
- Lightweight metal structure causes no extra load on the rack chassis
- Zero-power passive design, occupying no system power resources
- Unified color and appearance with the full series of Trusted modules for convenient on-site identification
- Fully compliant with IEC 61508 cabinet assembly requirements for safety-related systems
Application Fields
- Safety Instrumented Systems (SIS) for petroleum and refining industries
- Control systems for offshore oil and gas platforms
- Protection systems for thermal power and gas-fired power stations
- Safety interlock devices for fine chemical processes
- High-risk process control cabinets for water treatment projects
- Automatic systems for pharmaceutical explosion-proof areas
- Fault-tolerant control systems for coal chemical processes
Operation Instructions
1. Confirm the target installation position on the T8100 rack is three continuous vacant slots.
2. Grasp the handles on both sides of the blank and align horizontally with the rack slot guide rails.
3. Push steadily inward until the backplane connector is fully seated, then fasten the latches on both sides.
4. Verify the front face of the blank is flush with other modules without looseness or gaps.
5. For removal, release the bilateral latches first, then pull out horizontally at a constant speed; prying forcibly is prohibited.
6. During system modification and module adjustment, all continuous three vacant slots must be filled with T8193 blanks.
Working Principle
The T8193 is a purely mechanical accessory and does not participate in control logic operation, signal acquisition or data communication. It forms a continuous metal shielding cavity to compensate for structural gaps on the rack housing. The blank suppresses external electromagnetic radiation from entering the chassis and eliminates mutual electromagnetic interference between internal modules. Meanwhile, it fully seals slot openings to reduce dust accumulation on backplane contacts, stabilize the internal airflow distribution of the cabinet, and assist TMR triple redundant controllers in maintaining long-term stable operating conditions.
Product Comparison
- T8193 (3-Slot Shield Blank): Occupies 3 continuous rack slots; pure passive mechanical shielding accessory with no electrical functions, specially used for sealing large continuous vacant areas.
- T8191 (1-Slot Shield Blank): Single-slot passive sealing accessory, suitable for scattered individual vacant slots.
- T8110B / T8111 Processor Module: Active electronic core module with complete control and arithmetic functions for system logic operation.
- T8403 Digital Input Module: Active I/O module for field analog and digital signal acquisition.
- T8461 Digital Output Module: Active I/O module for driving on-site execution devices.
Core Difference: T8193 and T8191 are passive mechanical accessories without any electrical control functions. All other modules are active functional components responsible for system control, signal interaction and logic processing.
Compatible Products
- T8100 Trusted Main Chassis
- T8110B / T8111 TMR Processor Module
- T8270 Rack Fan Tray Assembly
- Full range of T84xx / T83xx I/O Modules
- Full range of T88xx Communication Interface Modules
- T8191 Single-Slot Shield Blank
Frequently Asked Questions
Q1: Are T8193 and T8191 interchangeable?
A1: No. T8193 occupies three continuous slots while T8191 fits a single slot. The physical widths are incompatible. Users must select the correct model according to the actual number of vacant slots.
Q2: What risks will be caused without installing T8193 on continuous empty slots?
A2: Unsealed slots will destroy the overall electromagnetic shielding performance and easily cause signal interference. Dust accumulation on exposed backplanes will increase contact failure risks in long-term operation. In addition, non-standard cabinet assembly will fail SIS system inspection and project acceptance.
Q3: Does T8193 have different hardware versions for procurement?
A3: The standard T8193 has no version differentiation. Only the complete model number needs confirmation during procurement. Ensure the dimensional specification matches the T8100 rack to avoid mismatching with other series blanks.
Q4: Does T8193 support hot swapping?
A4: Yes, hot swap is supported. Avoid touching internal backplane metal contacts during operation to prevent static damage to active electronic modules.
Q5: Does T8193 have independent certification for overseas projects?
A5: As a supporting auxiliary accessory, T8193 inherits CE and SIL certifications of the complete Trusted system. It does not provide independent individual certification documents.
Q6: Can slightly deformed blanks continue to be used?
A6: Replacement is mandatory if deformation causes poor fitting and gaps. Gaps will severely weaken electromagnetic shielding and dustproof performance, failing to meet system installation standards.
Q7: What is the maximum quantity of T8193 that can be installed on one T8100 rack?
A7: No fixed quantity limit. Install T8193 for all continuous three-slot vacant positions to fully complete chassis sealing.
