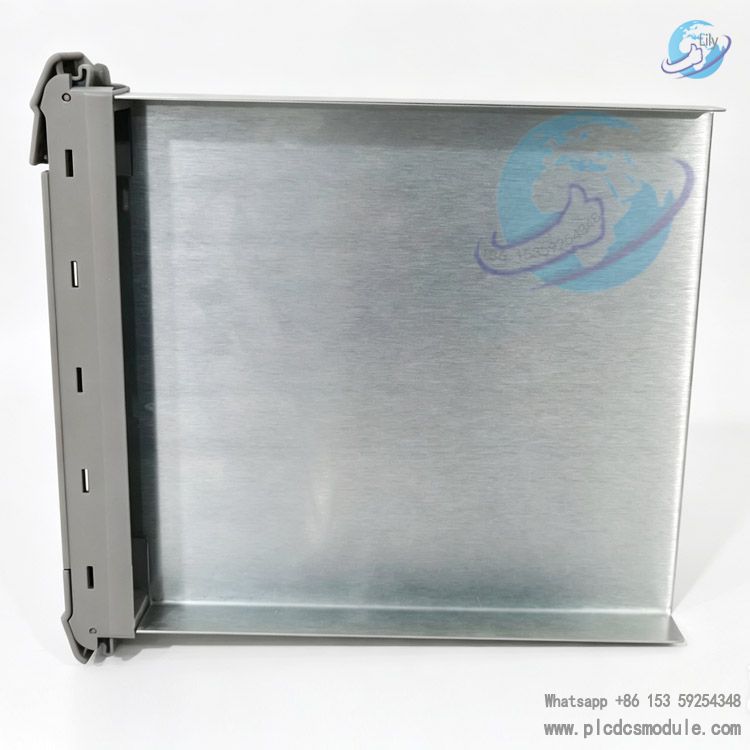

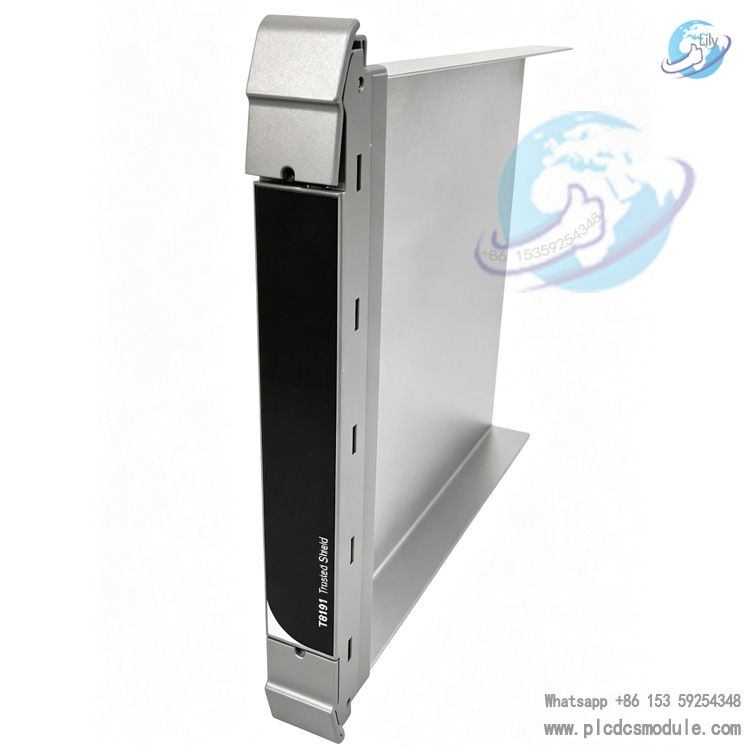

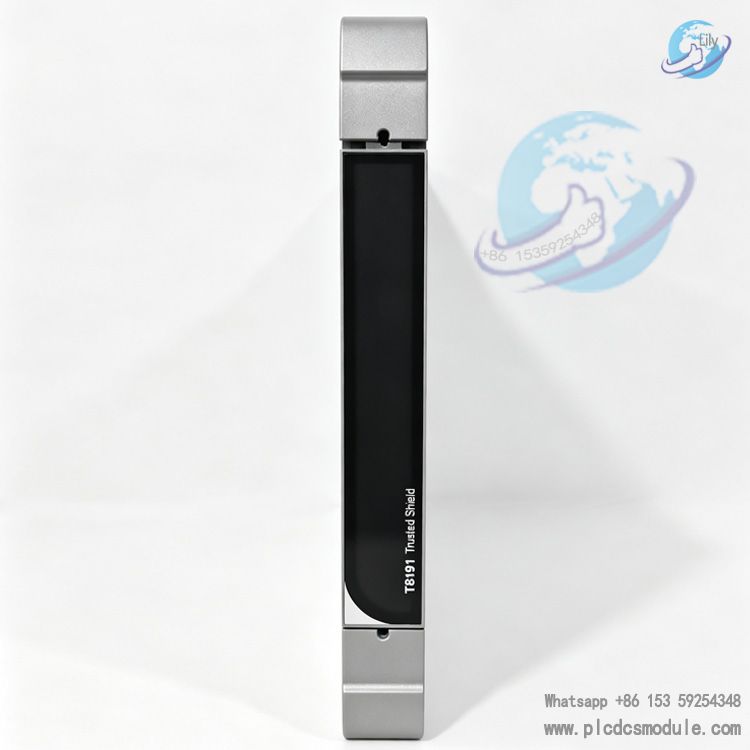

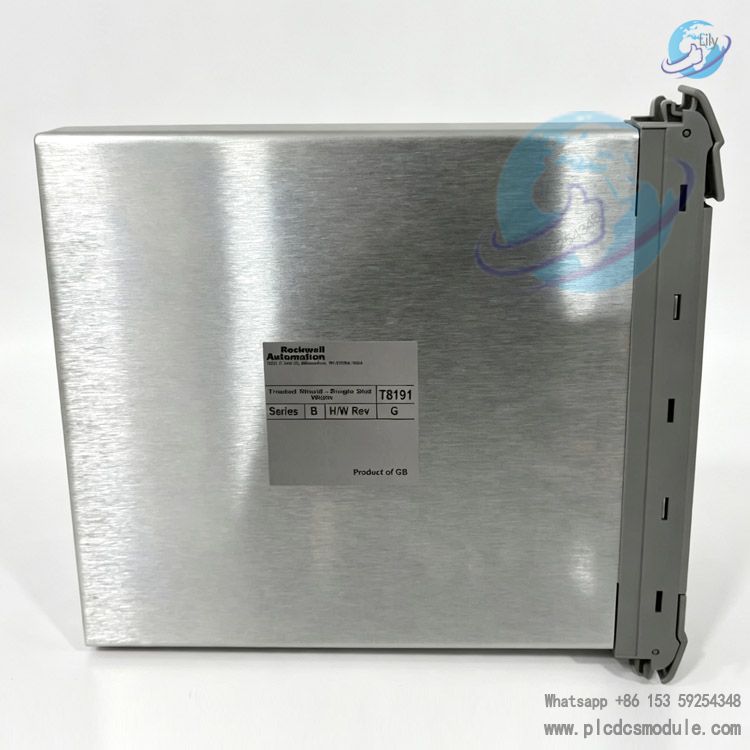

Adopting a compact single‑slot design, the module mounts directly into slots on the Trusted chassis backplane. Together with processors and various I/O modules, it forms a complete safety control architecture. Its shielded housing structure mitigates electromagnetic interference generated by inverters and high‑power equipment in industrial sites, ensuring consistent signal transmission across the three channels of the TMR system. It is widely deployed in process industry control applications requiring SIL 3 safety certification.
Product Features
Application Fields
Product Comparison
T8191 vs T8193
T8191 vs T8190
Compatible Products
Frequently Asked Questions
Q1: Can T8191 directly replace T8193?
A1: Direct interchange is not available. The T8191 is single-slot while the T8193 is dual-slot. They differ in physical slot occupation and are hardware incompatible. Selection shall be made according to chassis slot layout.
Q2: Is software configuration required for this module?
A2: No programming configuration is needed. The T8191 is a passive shielding accessory. The control system software only detects its presence without parameter setup.
Q3: What consequences will occur if the module grounding is disconnected?
A3: Shielding effectiveness will degrade significantly. Under strong electromagnetic conditions, backplane communication disturbances and intermittent communication faults on modules may occur. This also violates installation specifications for safety systems.
Q4: Does the T8191 support hot swapping?
A4: Hot swapping is permitted while the system is running. Minimize the swapping duration to reduce the exposure time of the backplane bus to interference.
Q5: How to distinguish new modules from used surplus parts during procurement?
A5: Check the printing clarity of housing markings and wear conditions of connector pins, as well as package labels. Prioritize goods with scratch-free pins and intact housings without dents.
Q6: Can a module with deformed housing remain in service?
A6: Housing deformation compromises the integrity of the shielding enclosure and disables anti-interference capability. Continued installation is prohibited; a new module replacement is required.
Q7: What is the maximum quantity of T8191 modules installable in one Trusted chassis?
A7: The maximum number depends on available physical slots in the chassis; there is no software quantity limit. It can be installed in any vacant slot.
Q8: Are extra protective measures required for modules in low-temperature and humid environments?
A8: It is recommended to equip the cabinet with temperature control and dehumidification devices to avoid persistent condensation on the module surface, which may cause abnormal grounding impedance of the shielding housing.
