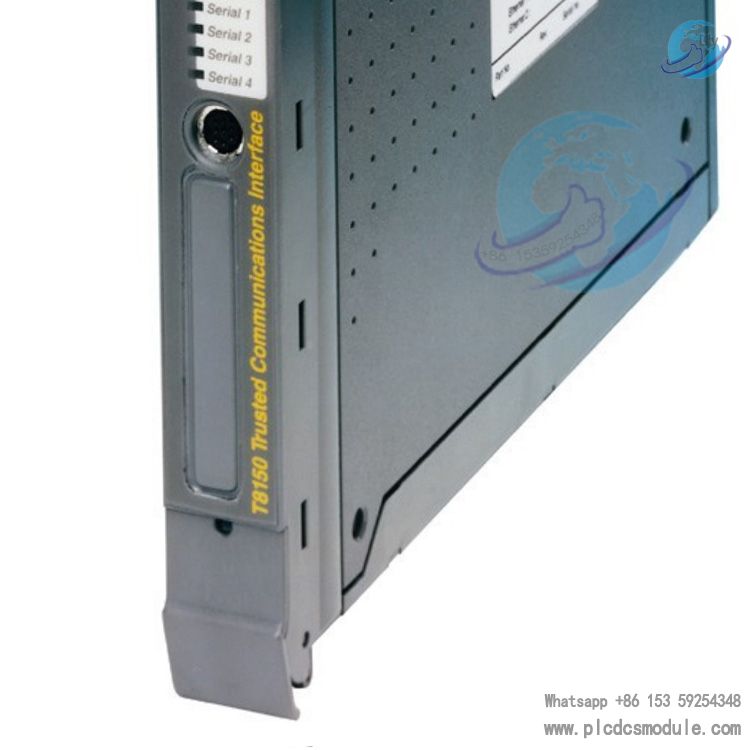

ICS Triplex T8150 Trusted Communication Interface module is a core intelligent communication component of the ICS Triplex Trusted safety control system. It is specifically designed for SIL 3 safety-critical applications, enabling secure and reliable data exchange between the Trusted controller, engineering workstations, third-party devices, and other Trusted systems, while reducing the communication load on the TMR (Triple Modular Redundancy) processor. This module provides multi-protocol and multi-medium communication capabilities for the Trusted system, supporting single/dual module redundancy configuration. It serves as the standard communication gateway for safety control systems in high-risk industries such as oil and gas, chemical processing, and power generation.

Key Features and Benefits

Safe and Reliable Communication Architecture

• Uses a Triple Modular Bus (IMB) interface and performs 2oo3 data voting during communication with the TMR processor, ensuring secure and interference-free communication data.
• All communication transceivers are electrically isolated with transient protection, supporting SIL 3 safety-rated data transmission. Dual-module configuration enables redundant communication paths.
• Built-in watchdog monitors the processor and power status in real time, initiating an automatic safe shutdown in the event of a fault without compromising system safety functions.

Extensive Communication Capabilities

• Supports dual Ethernet + four serial ports, enabling simultaneous operation of multiple industrial protocols to meet multi-device and multi-network access requirements.
• Supports Peer-to-Peer networking, connecting up to 40 Trusted controllers on a single network. A single controller supports up to 8 Peer networks with automatic redundant routing for efficient and reliable data transfer.
• Supports Modbus Master/Slave mode (Master mode requires a T812X processor interface adapter), allowing seamless integration with third-party devices such as DCS, PLC, and HMI.

Intelligence and Usability

• Runs the Trusted operating system independently and autonomously handles communication tasks, significantly reducing TMR processor load and improving overall system performance.
• Front-panel status LEDs (Health, Active, Communication, etc.) provide intuitive module status indication. A built-in command-line diagnostic interface supports remote/local troubleshooting.
• Firmware can be upgraded online via the front-panel port, and configuration parameters can be loaded online without system shutdown.

Flexible System Compatibility

• A single Trusted system supports up to 4 communication interface modules, expanding the number of communication ports and network connectivity.
• Supports SOE (Sequence of Events) over Modbus, enabling fast transmission of a 4000-event buffer to meet safety system event recording requirements.
• Compatible with the full range of Trusted controllers and expansion modules, suitable for applications ranging from small standalone to large distributed safety control systems.

Installation and Maintenance

(I) Installation Procedure

• Pre-installation Inspection: Verify the module is free of physical damage, pins are intact, confirm the model matches the system configuration, and observe ESD precautions (do not touch exposed pins).
• Chassis Preparation: Ensure I/O slots are clean; install the appropriate communication cable (e.g., TC-305-01) or T8153 communication adapter.
• Module Installation: Release the module ejector latches, align the module with the slot and insert firmly, then close the latches to secure the connection.
• Configuration Loading: Download communication configurations (IP address, protocol, port parameters, etc.) via the Engineering Workstation (EWS). The module will complete initialization automatically.

(II) Maintenance Guidelines

• Routine Maintenance: Regularly check module status LEDs to confirm the “Healthy” LED is solid green and communication LEDs flash normally. Verify communication cables are securely connected with no looseness or damage.
• Troubleshooting: Access the command-line interface via the front-panel RS232 diagnostic port (using TC-304-02 maintenance cable) or Telnet (port 23). Execute diagnostic commands (e.g., t for task status, v for configuration view) to identify faults.
• Module Replacement: T8150 does not support hot swapping. Stop the corresponding communication service before replacement. After removing the faulty module, insert the new one; the system automatically loads the configuration and restores communication.
• Firmware Upgrade: Upload the latest firmware via the front-panel diagnostic port. Maintain stable power during the upgrade. The module will reboot automatically after successful upgrade.

Trusted Controller Core Components

• T8110B/T8111C Trusted TMR Processor Module: System core, communicates with T8150 via the IMB bus, executes control logic and safety voting.
• T8122/T8123 Trusted Processor Interface Adapter: Enables Modbus Master functionality on the T8150 for master station communication.
• T8153 Trusted Communication Adapter: Provides interface conversion between T8150 and external devices, simplifying wiring.

Trusted Expansion and I/O Components

• T8300 Trusted Expansion Chassis, T8310 Expansion Processor, T8311 Expansion Interface Module: Expand system I/O and communication capabilities.
• T8431C Analog Input Module, T8461C Digital Output Module and other TMR I/O modules: Perform field signal acquisition and control output.

Communication and Connection Accessories

• TC-304-01/02 Maintenance Cable: Used for module diagnostics and configuration.
• TC-305-01 Communication Cable: Used for serial/Ethernet connections between T8150 and external devices.
• Standard Ethernet cables, RS485/232 communication cables: For constructing external communication networks.

Recommended Trusted Series Communication Interface Module Models

• T8150: Trusted Communication Interface Module (basic version)
• T8151: Trusted Communication Interface Module (upgraded with enhanced processor)
• T8151B: Trusted Communication Interface Module (dual 10/100BaseT Ethernet, single PCB design)
• T8151C: Trusted Communication Interface Module (advanced version of T8151B, optimized communication performance)
• T9110: Trusted Communication Interface Module (new-generation module supporting OPC UA and other protocols)
• T9111: Trusted Communication Interface Module (enhanced version of T9110 with extended protocol support)
