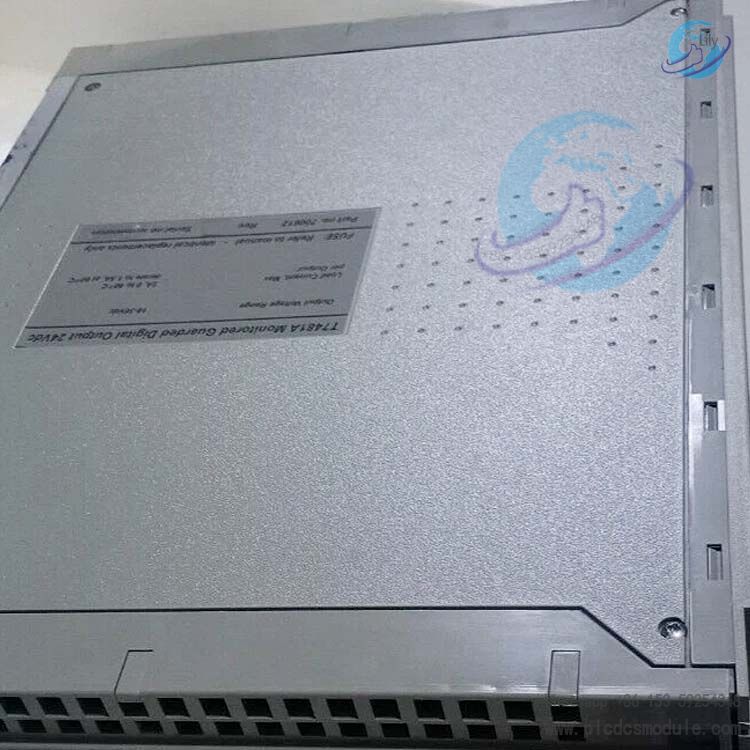

The ICS Triplex T7481A is positioned as a safety-rated redundant monitored protection output unit, designed around two core principles: Fail-Safe and Fault Tolerant, balancing high-speed signal processing with flexible system integration. As a critical execution component in industrial control systems, it converts controller commands into electrical signals to drive field actuators, monitors output loop status in real time, identifies faults promptly, and prevents system malfunctions or shutdowns caused by output module failures. It supports modular expansion to adapt to industrial control systems of varying scales, meeting the stringent requirements for reliability, safety, and maintainability in high-end industrial scenarios.
The module implements a Hardware Implemented Fault Tolerance (HIFT) architecture with Triple Modular Redundancy (TMR) design. Each channel incorporates three independent processors and execution units, ensuring uninterrupted system operation despite single-point failures, enhancing hardware-level fault resilience while simplifying post-maintenance workflows and reducing costs.
1. Key Technical Specifications (Based on Official Documentation)
1.1 Power & Voltage Parameters

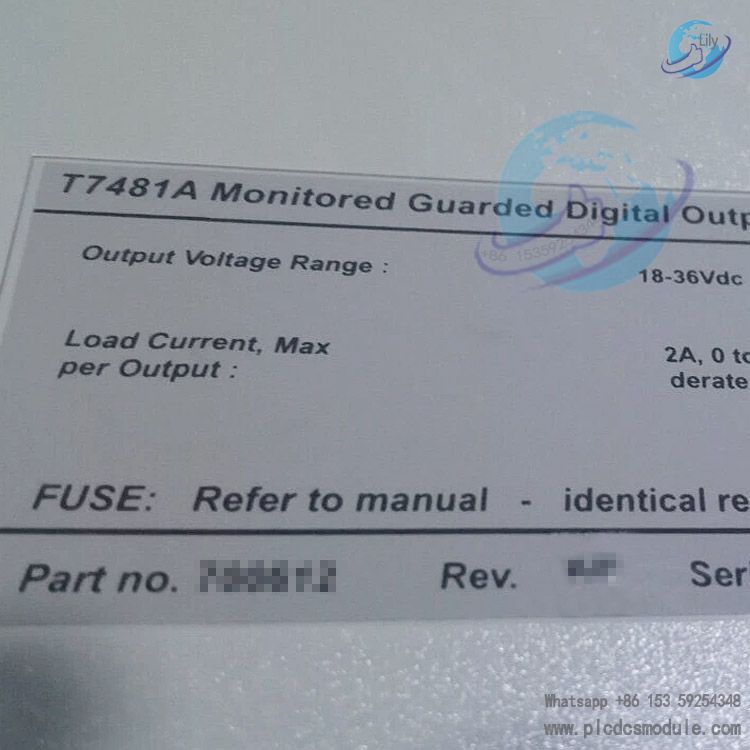

- Voltage Range: 18–36 VDC (nominal 24 VDC), compatible with common industrial DC power supplies, featuring wide voltage tolerance to withstand minor fluctuations and ensure stable operation.
- Safety Bus Power Consumption: 1.5 load units, optimized power draw to minimize total system power load and reduce energy consumption.
- Drive Capacity: +500mA / -800mA, capable of directly driving various industrial actuators without additional driver modules, simplifying system wiring and architecture.
1.2 Output Channel Parameters

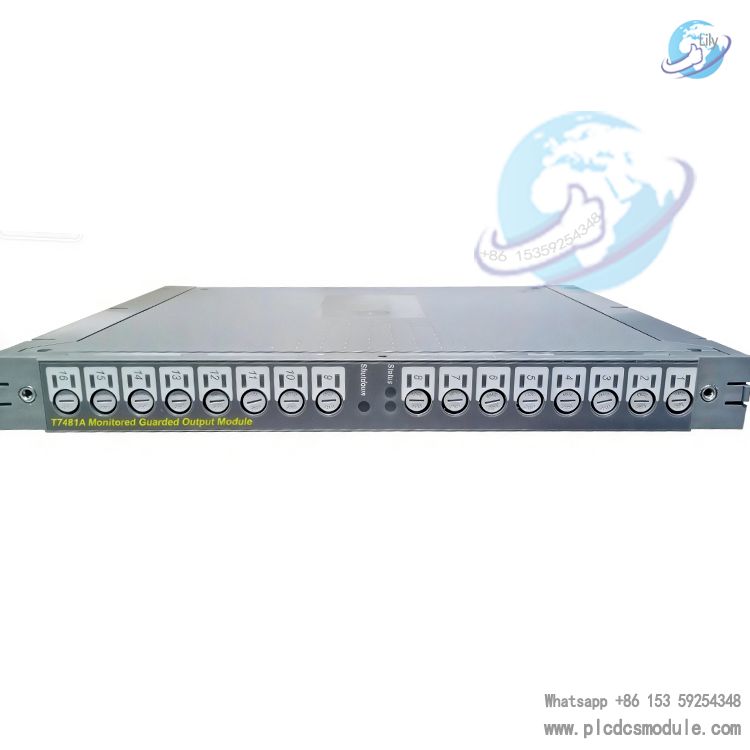

- Number of Output Channels: 16 circuits, divided into two groups of 8, with independent control to support simultaneous multi-device driving and improve system control efficiency.
- Minimum Load Current: 20 mA (slightly higher than some sibling models like 81A/88A), compatible with most standard industrial loads to ensure stable and reliable output signals.
- Output Protection: Each channel is equipped with a 3A, 250V fast-acting rectifier fuse, effectively protecting the output loop against overload, short-circuit, and other faults that could damage the module or field equipment.
- Off-State Voltage: Maintains a stable off-state under nominal field voltage and switch short-circuit conditions to prevent false triggering.
1.3 Environmental & Physical Parameters
- Operating Temperature: -25°C to 70°C (-13°F to 158°F) in non-hazardous environments; complies with UL 508 certification requirements in hazardous environments, adapting to extreme industrial temperature conditions.
- Storage & Transportation Temperature: -40°C to 85°C (-40°F to 185°F), enabling long-distance transport and storage without specialized temperature control.
- Operating Surface Temperature: 43°C (109°F) ±2°C under normal operation, demonstrating excellent heat dissipation for continuous long-term operation.
- Physical Dimensions: Approx. 3.3 cm × 26.4 cm × 32.7 cm, weight approx. 1.6 kg, compact form factor for easy installation in standard control cabinets, saving valuable space.
1.4 Certifications & Safety Ratings
- Functional Safety Certification: Compliant with IEC 61508, achieving SIL 3 certification (capable of meeting SIL 4 requirements in specific scenarios), suitable for safety-critical control systems.
- Additional Certifications: TÜV and UL 508 certified, aligning with international industrial safety standards for global deployment across industrial regions.
1.5 Communication & Compatibility Parameters
- Communication Interfaces: Supports RS-232, RS-485, and Ethernet, offering broad compatibility to integrate seamlessly with diverse industrial control systems.
- Communication Protocols: Supports Modbus and other mainstream industrial protocols, facilitating real-time data exchange and remote monitoring with controllers, monitoring systems, and third-party devices.
2. Core Functional Features
2.1 Dual Modes: Fail-Safe & Fault-Tolerant Operation
The module supports two core operating modes to address varying safety requirements:
- Fail-Safe Mode: Ensures continuous system operation even if a single module fails, preventing production interruptions caused by single-point faults.
- Fault-Tolerant Mode: Allows hot-swapping of faulty modules without interrupting load operation, drastically improving system availability and maintainability while minimizing downtime and production losses.This dual-mode design enables flexible adaptation to control scenarios of different safety levels, balancing safety and cost-effectiveness.
2.2 Real-Time Monitoring & Rapid Fault Response
As a monitored protection output module, the T7481A provides comprehensive real-time monitoring of load status, voltage/current fluctuations, and internal module health. Upon detecting faults (e.g., overload, short-circuit, module failure), it quickly identifies and triggers fault indication signals while relaying diagnostic data to the controller for timely troubleshooting. With a fault switchover time of ≤1 millisecond, it delivers ultra-fast response to prevent fault propagation and ensure system stability.
2.3 High-Reliability Redundant Design
Featuring Triple Modular Redundancy (TMR), three independent processors and execution units operate in tandem to implement a 2-out-of-3 voting logic, guaranteeing that single-point hardware failures do not compromise overall system performance. The modular design also allows flexible channel expansion to match industrial control systems of varying scales, eliminating the need for full system redesign and reducing upgrade costs.
2.4 Robust Environmental Adaptability & Durability
Engineered for harsh industrial environments, the T7481A offers superior resistance to electrical interference, shock, and vibration, withstanding extreme temperatures and voltage fluctuations. It is ideal for demanding sectors such as petrochemicals, power generation, and metallurgy. The industrial-grade enclosure provides dust and moisture protection, extending service life and reducing maintenance frequency.
2.5 Flexible Programming & Integration Capabilities
The module supports multiple programming languages (e.g., ladder logic, function block diagrams) for custom control logic configuration. It also enables integration with third-party software applications and tools, offering high customizability to align with specific industrial use cases and achieve seamless connectivity with existing control systems.
3. Application Scenarios
With its high reliability, safety, and integration flexibility, the T7481A is widely deployed in safety-critical industrial control systems, including:
- Oil & Gas: Controls and monitors solenoid valves, emergency shutdown valves, and other actuators on drilling rigs, pipelines, and refineries to prevent leaks, explosions, and other safety incidents.
- Chemical Processing: Manages reaction vessels, pipeline valves, and pumps, processing safety interlock signals to handle high-temperature, high-pressure, and corrosive environments safely.
- Power Generation: Monitors and controls steam turbines, boilers, generators, and other critical equipment in thermal, hydro, and nuclear power plants to ensure stable operation and avoid unplanned outages.
- Industrial Automation Lines: Drives conveyors, robots, and valves in automotive and electronics manufacturing, enabling automated control and safety protection to boost production efficiency.
- Safety Systems: Processes signals from emergency stop buttons, fire alarms, and other safety devices to trigger protective measures rapidly and prevent incident escalation.
4. Product Advantages & Value
4.1 Core Advantages
- High Safety: SIL 3 certified with fail-safe and fault-tolerant operation, effectively mitigating safety risks and meeting the strictest safety-critical requirements.
- High Reliability: TMR design and industrial-grade protection ensure stable operation in harsh environments and fault conditions, minimizing downtime.
- Flexibility: Modular architecture, multi-protocol communication, and programming support enable seamless integration and scalable adaptation to diverse control systems.
- Maintainability: Hot-swappable fault modules and real-time fault diagnostics simplify maintenance workflows and reduce operational costs.
4.2 Product Value
The T7481A reduces safety risks and production losses from equipment failures, enhancing operational efficiency and system availability. Its flexible integration and scalability lower system design and upgrade costs, while international safety certifications ensure regulatory compliance, providing robust support for safe, stable industrial production.
