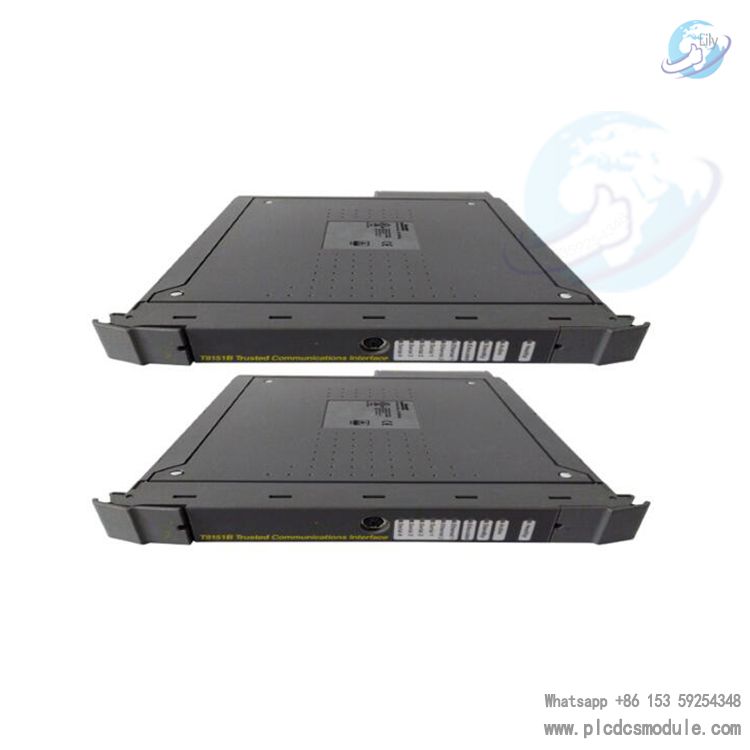

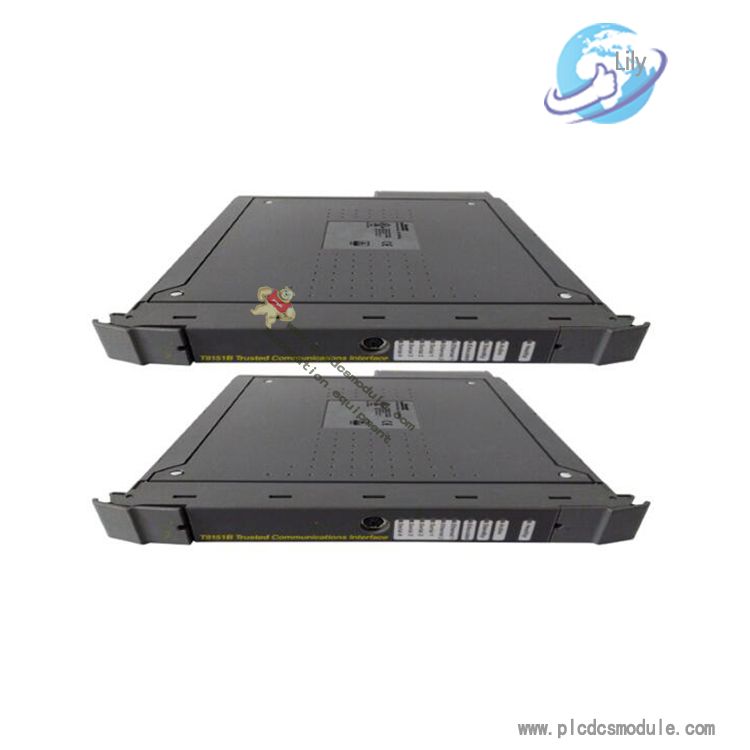

A single Trusted system supports a maximum of four such modules. All ports allow user-customizable communication parameters, enabling connections to upper-level engineering workstations, third-party instrumentation, and other Trusted control systems. It serves as the core relay unit for internal and external data exchange of the entire safety system.
Part of Rockwell Automation ICS TRIPLEX Trusted product line, this module runs a dedicated Trusted real-time operating system. It relies on a 2-out-of-3 voting mechanism over the triple redundant internal bus to guarantee data transmission integrity, meeting communication requirements for SIL 3 safety-critical applications.
Download
Model Decoding
Product Hardware & Software Specifications
Hardware Features
Processor: Motorola Power PC processor. Bootloader stored in EPROM; operational firmware stored in erasable flash memory.

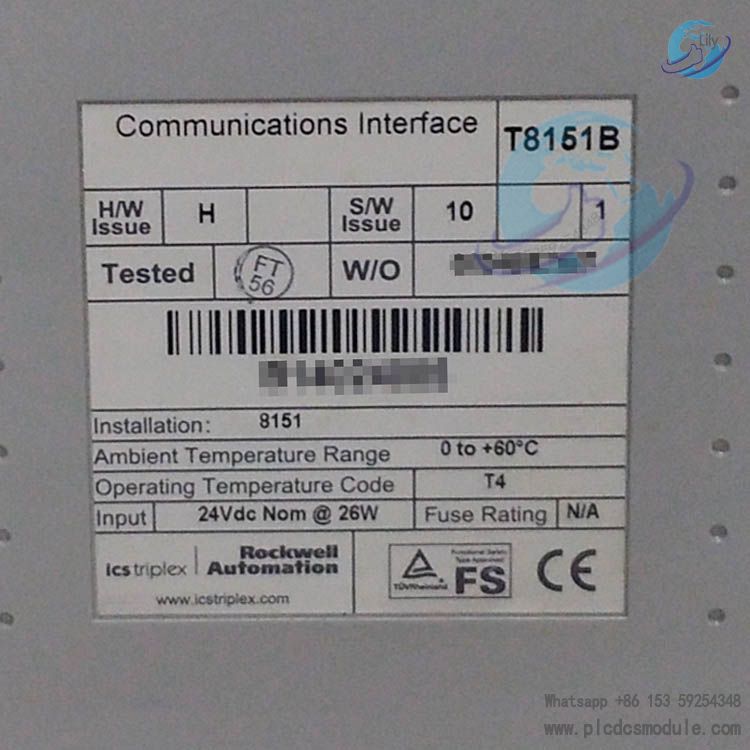

Power Supply: Dual redundant 24VDC input via chassis backplane, with on-board independent power conversion circuitry. Internal power supply is fully galvanically isolated from external ports.
Ethernet Ports (Rev C and above): 2 channels of auto-sensing 10/100BaseT RJ45 Ethernet, each fitted with shield ground terminals.
Serial Ports: 4 galvanically isolated serial channels. 2 channels support RS232/422/485; the other 2 support RS422/485 only. All channels feature independent grounding.
Diagnostic Port: Isolated front-panel RS232 diagnostic serial port, connectable directly to engineering workstations via TC-304-01 cable.
Internal Bus: Triple redundant inter-module bus that performs 2-out-of-3 data voting during communication with TMR processors.

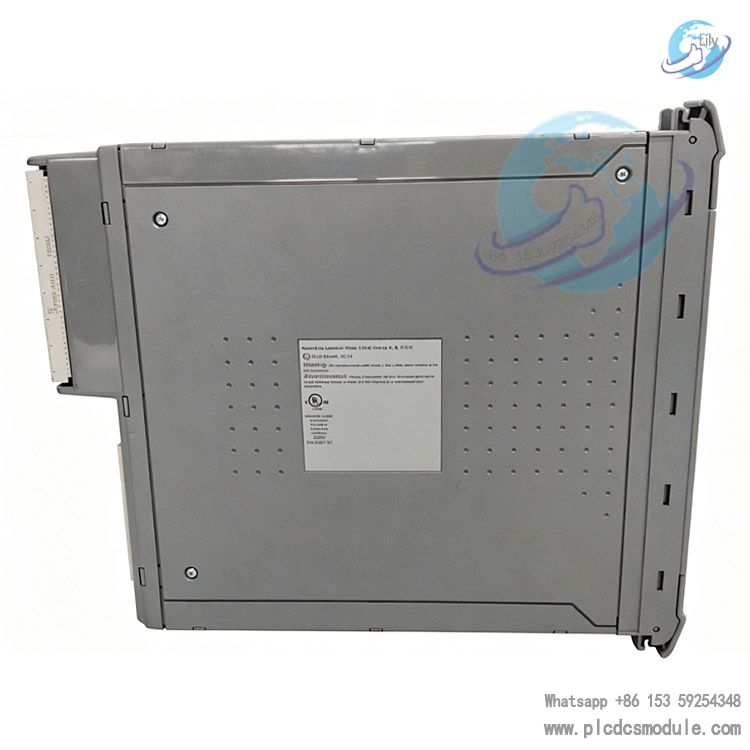

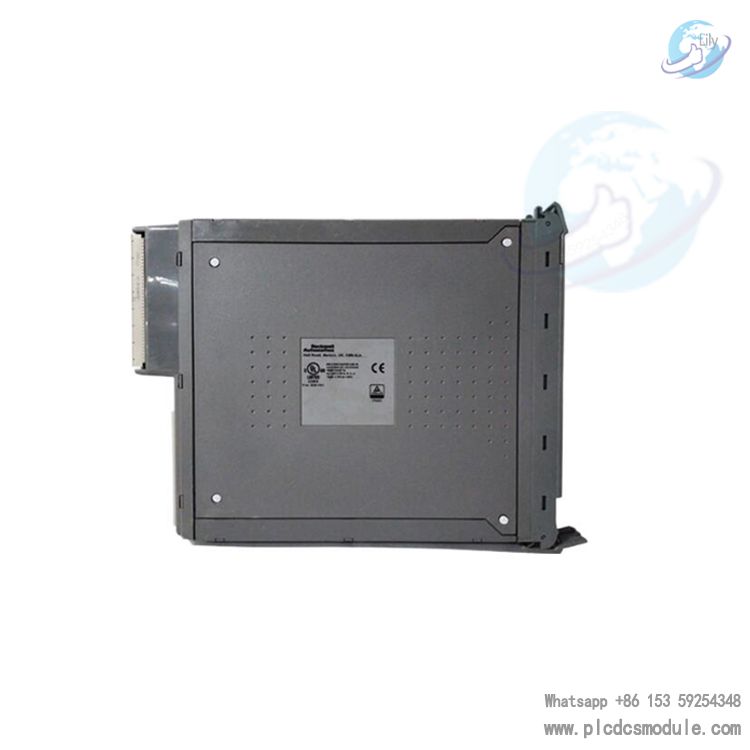

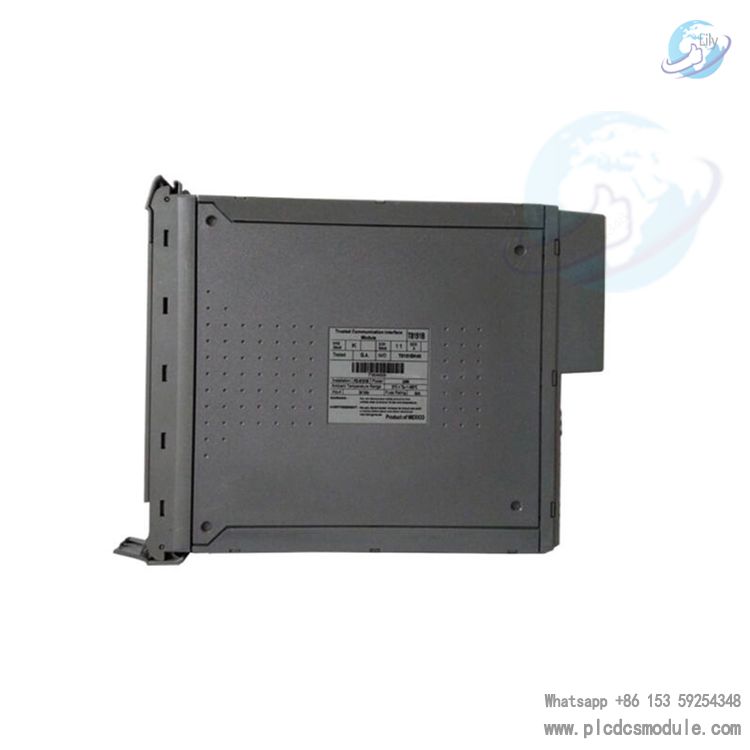

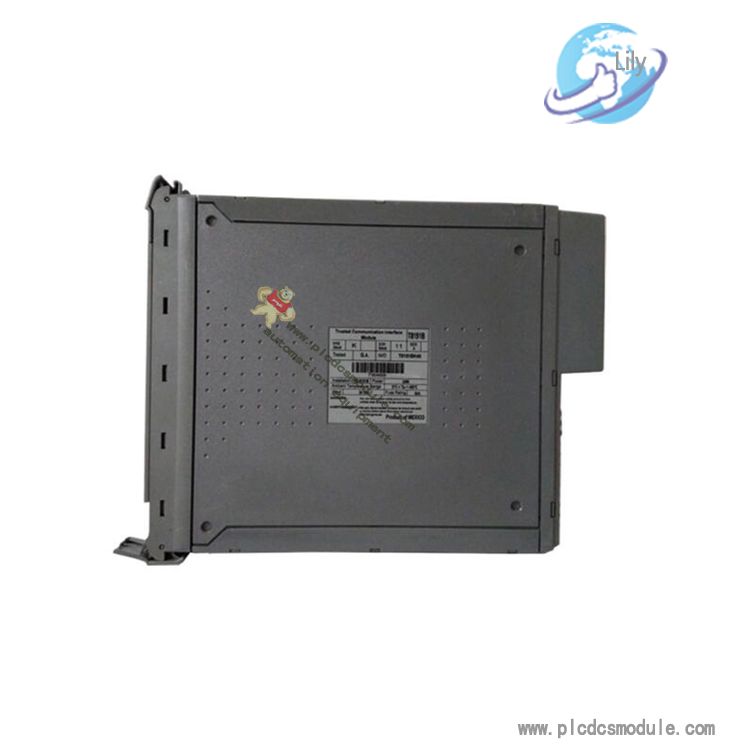

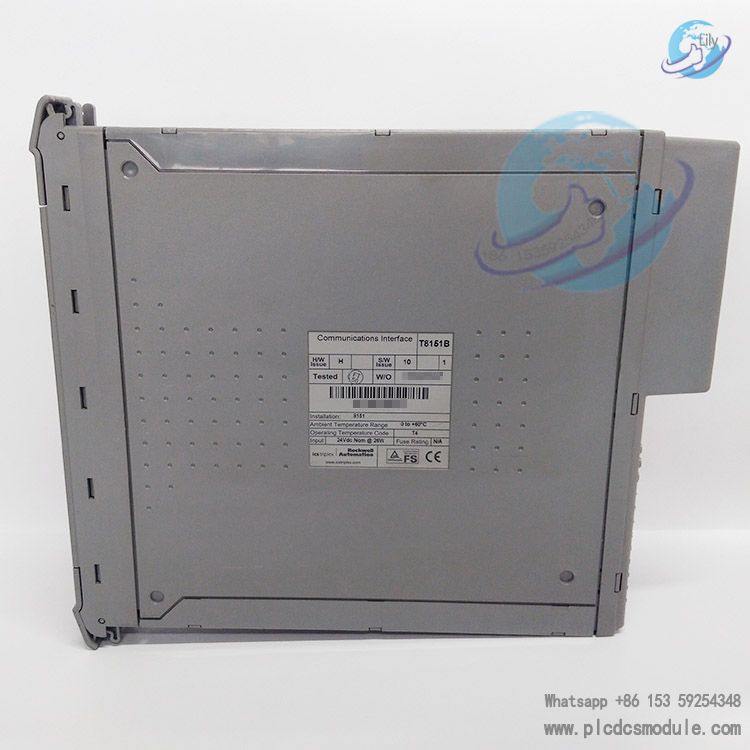

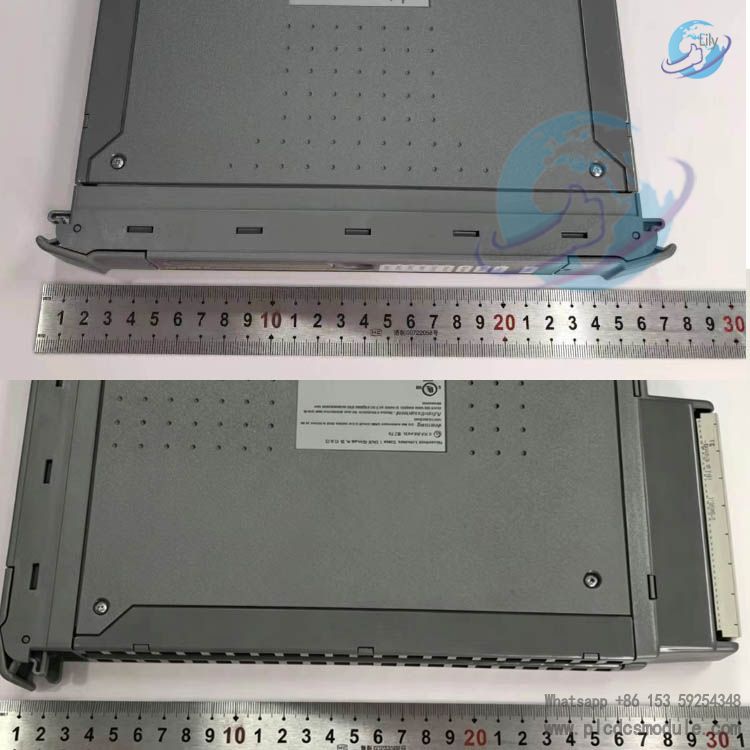

Mechanical Structure: Single integrated PCB card, hot-swappable in chassis I/O slots, with anti-static sealed housing design.
Connector: Rear-mounted 78+2 pin DIN41612 Type M industrial connector, with separate pins allocated for Ethernet, serial communication and grounding.
Software Communication Features
Core Product Advantages
Load Separation Architecture
Communication tasks run on independent computing resources. Main processors only handle safety logic calculations, eliminating logic lag under high-concurrency data exchange conditions.
Triple Modular Redundant Internal Communication Bus
Data exchange between modules and main controllers adopts three-channel redundant voting technology to prevent data distortion caused by single-channel failures.
Fully Isolated Communication Ports
All Ethernet and four serial ports are equipped with galvanic isolation and surge protection, protecting internal circuitry from breakdown due to on-site electromagnetic interference.
Online Parameter Modification Function
System INI configuration files can be edited without system shutdown. Only communication links restart automatically, while the safety logic of controllers keeps running uninterrupted.
Local Data Caching Mechanism
External data reading retrieves local cache stored on the module, significantly cutting data response latency for upper workstations and third-party field devices.
Comprehensive Fault Diagnosis System

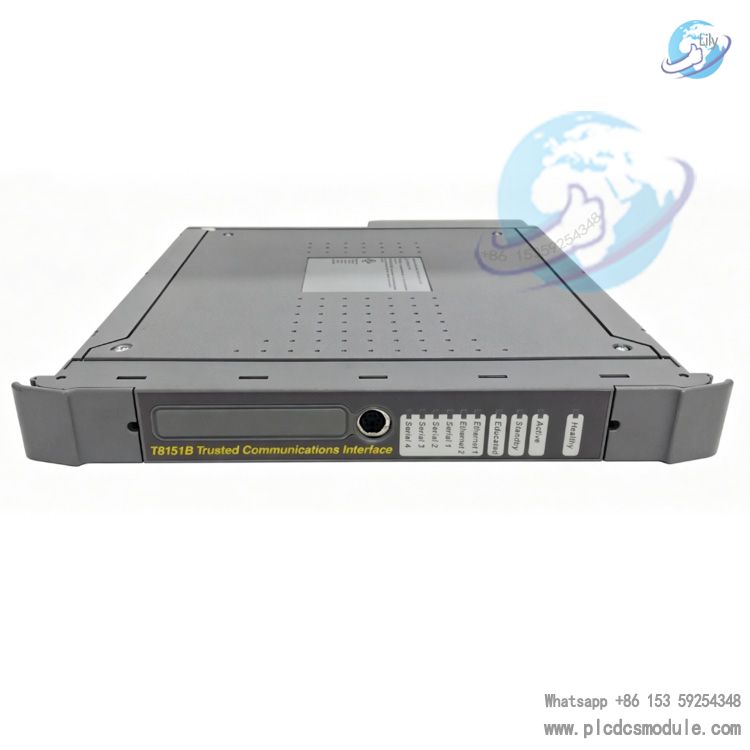

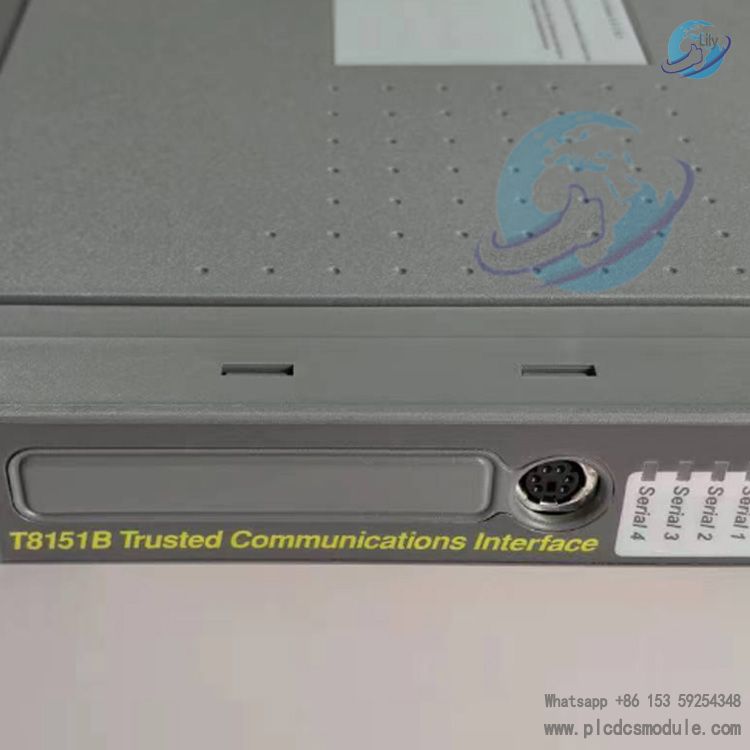

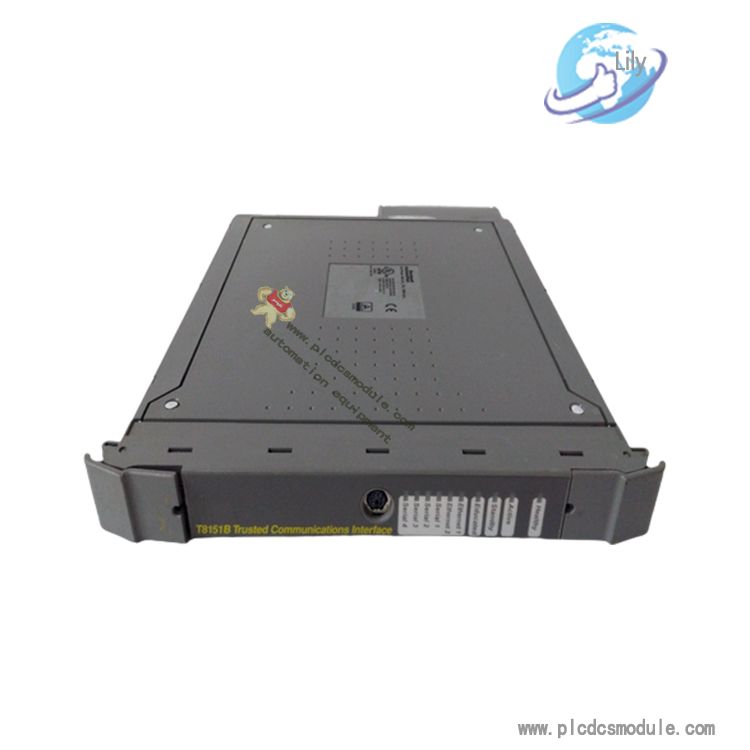

Built-in diagnostic serial port and status LED indicators on the front panel enable rapid troubleshooting for broken ports, protocol errors and internal bus faults.
Redundant 24 VDC Backplane Power Supply
Equipped with on-board power conversion circuits plus overvoltage and overcurrent protection. Stable operation is maintained even if one power feed fails.
Local Firmware Upgrade Channel
Firmware can be updated directly via the front-panel diagnostic port without chassis disassembly or full-system downtime.
Applicable Industries
Oil & Gas Industry
Offshore platforms and refinery ESD emergency shutdown systems; data acquisition and remote monitoring of third-party flowmeters and chromatographs.
Thermal Power & New Energy Power Plants
Generator unit protection and substation interlock systems; cross-platform data communication between relay protection devices and DCS systems.
Fine Chemical & Pharmaceutical Industry
Safety interlock for high-risk reaction kettles; data upload of instruments installed in hazardous explosive areas; SOE sequence-of-event recording for fault tracing.
Rail Transit
Train signal safety control systems and station interlock equipment; peer-to-peer communication among multiple Trusted control systems.
Offshore Wind Power
Wind turbine safety protection systems; real-time data transmission to remote operation & maintenance platforms.
Water Treatment Industry
Safety monitoring for hazardous chemical treatment facilities; interface connection with third-party water quality analyzers.
Comparison of Same-brand Products
Comparison Table
| Model | Core Positioning | Port Configuration | Core Differences | Application Scenarios |
|---|---|---|---|---|
| T8151B | General-purpose multi-media communications interface | Dual 10/100M Ethernet ports + 4 isolated serial ports | Supports both Ethernet and multi-channel serial communication; compatible with Modbus master/slave and SOE collection; up to 4 units per single system | Conventional safety systems in most chemical and power industries, mixed connection of third-party instruments |
| T8153 | Communications terminal adapter | No independent communication computing chip | Only port breakout without independent computing capacity; used in conjunction with T8151B | Centralized wiring of field serial instruments |
| T8173 | Ethernet gateway adapter | RJ45 Ethernet terminal breakout | Only Ethernet circuit lead-out with no data processing capability | Ethernet connection to remote workstations and DCS systems |
| T8122 / T8123 | Processor interface adapter card | No external communication ports | Auxiliary cards to activate Modbus master function for T8151B | Projects requiring active data reading from multiple Modbus instruments |
Matching Supporting Products
Hardware Accessories
T8153: Communications interface adapter for standardized terminal wiring of four serial ports
T8173: Ethernet gateway adapter for wiring breakout of dual Ethernet ports
TC-304-01: Maintenance diagnostic cable dedicated to front-panel debugging and firmware upgrade
TC-305-0X: Split communication cable for direct bare-wire connection to field instruments
T8122 / T8123: Processor interface adapter to enable Modbus master functionSoftware Accessories
T8013: PC software for SOE sequence-of-event recording and process historical data acquisition
T8017: Peer-to-peer communication toolkit for data interaction development among multiple Trusted systems
T8030: OPC server software for connection to third-party upper monitoring systems
FAQ
Q1: How to choose between T8151B Rev B and Rev C during procurement?
Q2: What is the maximum quantity of T8151B modules per single Trusted system? Are there slot limitations?
Q3: The Ethernet LED indicators stay off after T8151B power-up, what is the troubleshooting sequence?
Check the cable connections at both ends of the T8173 adapter;
Verify correct Ethernet MAC address configuration in the System.INI file;
Read module bus status via diagnostic serial port to confirm no triple redundant backplane bus alarms;
Cross-test with alternative Ethernet ports and adapters to identify hardware defects.
Q4: What extra accessories are required to activate Modbus master function for reading multiple field instruments?
Q5: Will online modification of module INI communication parameters cause safety controller logic shutdown?
Q6: Is the module hot-swappable? Does full system configuration re-download required after replacement?
Q7: What functions does the front-panel diagnostic port provide? Which routine maintenance scenarios require its use?
