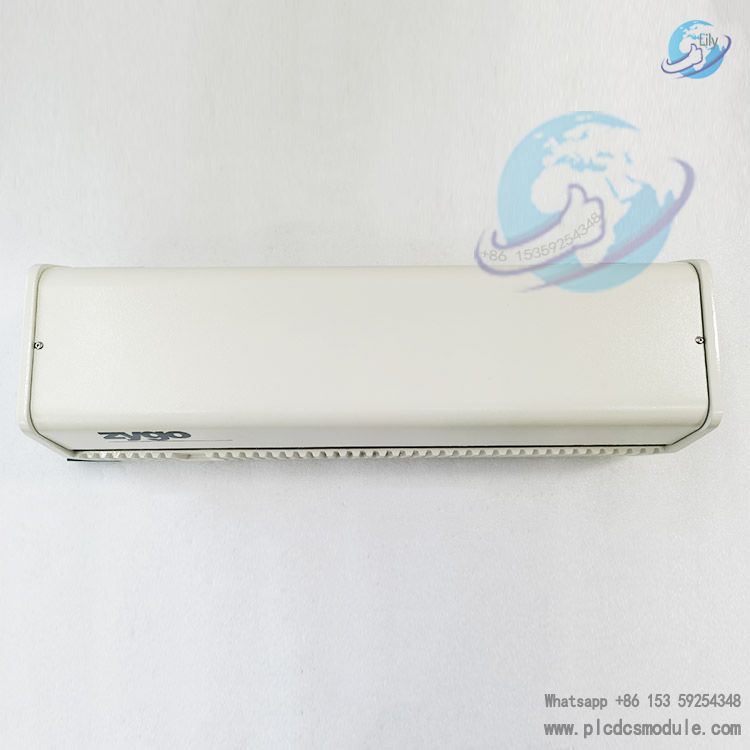

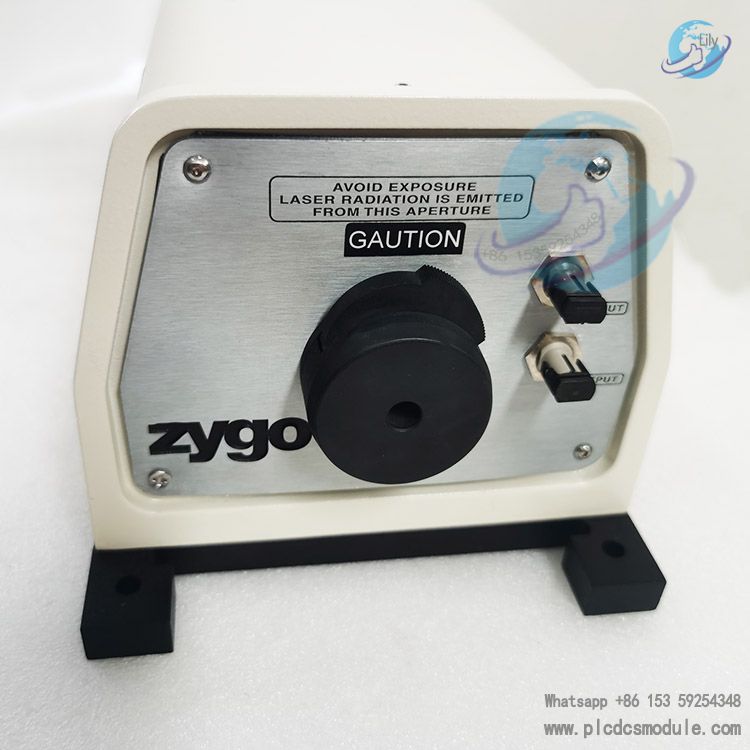

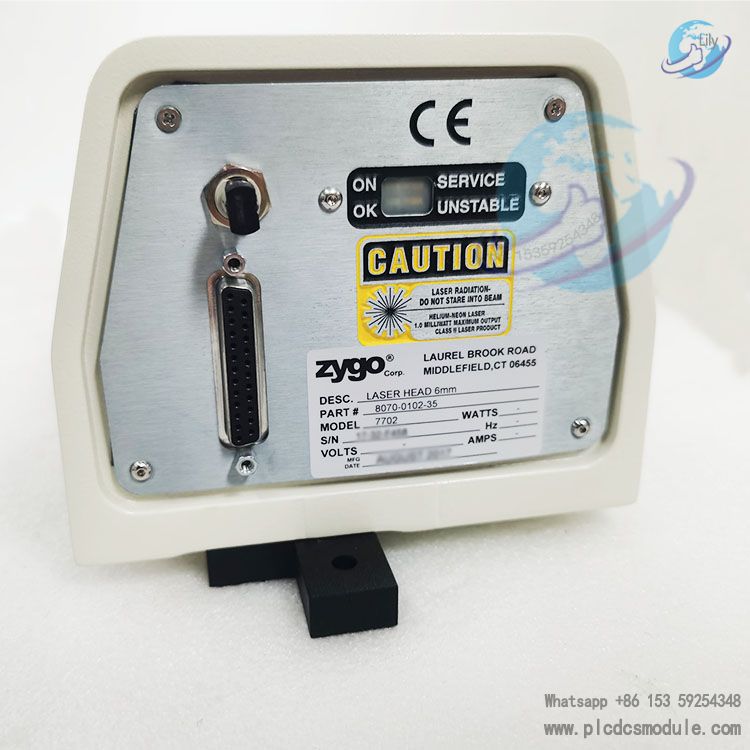

ZYGO ZMI 7702 8070-0102-35 Laser Head

Product Description：ZYGO ZMI 7702 8070-0102-35 Laser Head is a helium-neon, CW, heterodyne, linearly polarized laser head, conforming to Class II laser safety standards of NCDRH regulations.

1. Specific Parameters：
• Power：>525 W
• Beam Diameter：6 mm
• Mount：Narrow
• Weight：5.5 kg
• Materials：Casting-Aluminum; Narrow Feet-Ultem 2400
• Nominal Cable Clearance：135 mm
• Power Requirements (max)：+15 VDC±0.5 V @ 2.1 A; -15 VDC±0.5 V @ 1.2 A
• Power Dissipation (max)：39 W during operation; 50 W during warm-up
• Beam Pointing Stability：<0.5 arc/°C
• Time from turn-on to laser light：<10 sec typical, 70 sec maximum
• Time to wavelength stability：<10 minutes, typical
• Frequency Difference：20 MHz±1600 Hz
• Nominal Vacuum Wavelength：F1: 632.991501 nm (vertical polarization); F2: 632.991528 nm (horizontal polarization)
• Vacuum Wavelength Lifetime Accuracy：±0.1 ppm
• Vacuum Wavelength Stability：0.005 ppm/1 hr; 0.01 ppm/24 hrs
• Operating Temperature：10 to 30°C
• Non-operating Temperature：-40 to 75°C
• Operating Humidity：0 to 90%, noncondensing
• Non-operating Humidity：0 to 90%, noncondensing

• Shock (non-operational)：11 msec 40 g shock on each of three orthogonal axes\

2.

3. Product Performance：It features high power output, stable beam diameter, high wavelength stability, good pointing stability, short start-up and wavelength stabilization time, reasonable power consumption, can work in a wide range of temperature and humidity, and meets laser safety standards with reliable performance.
4. Application Fields：Metrology, semiconductor, precision manufacturing, scientific research, optical detection and other industries.
5. Same Series Models：8070-0102-31, 8070-0102-32, 8070-0102-33, 8070-0102-34, 8070-0102-36
