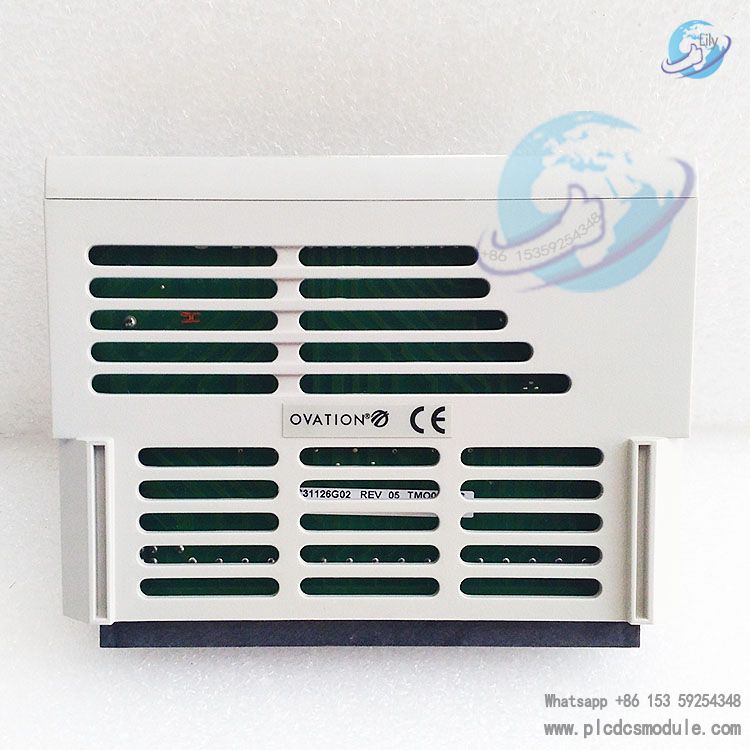

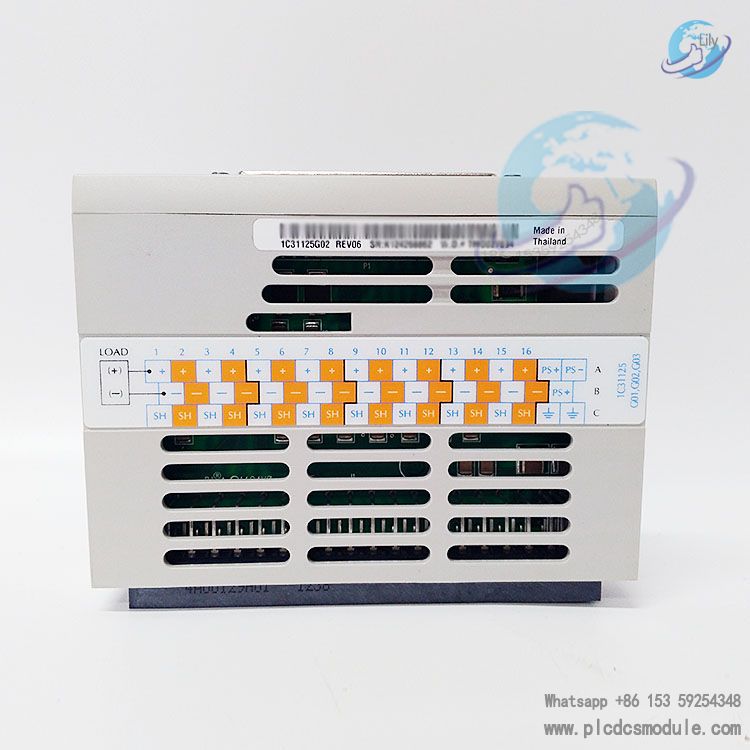

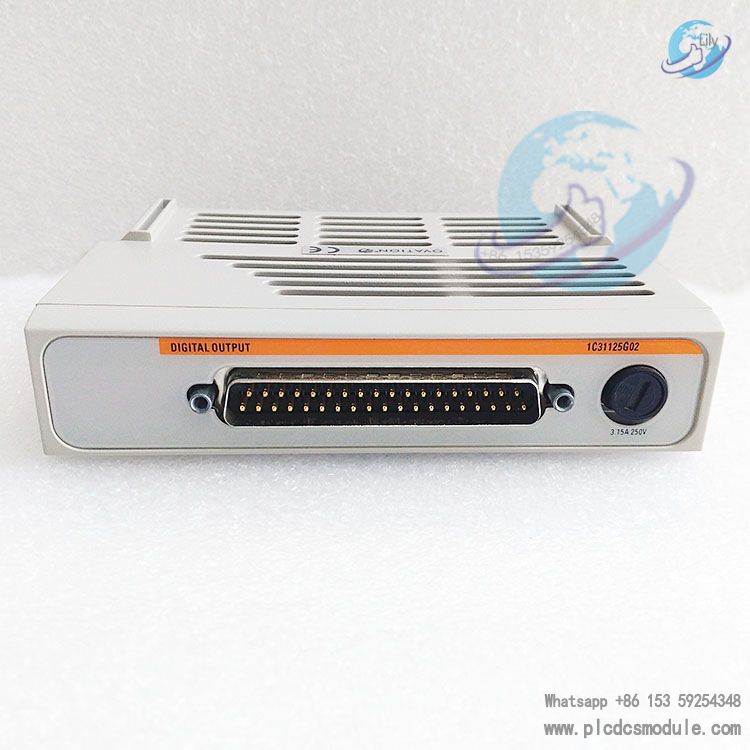

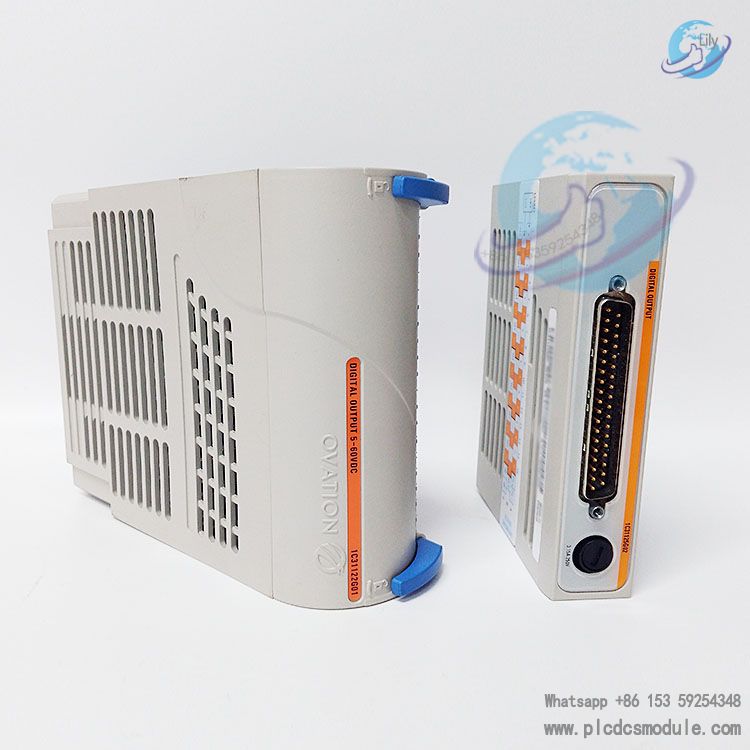

The main function of the EMERSON/OVATION 1C31125G02 Digital Output Personality Module is to output digital signals for the control system, so as to realize precise control of various types of equipment. It often works in collaboration with digital output electronic modules such as the 1C31122G01.
Designed with a compact structure and high-density layout, the module can integrate multiple output channels within a limited space, helping users save installation space and costs. Meanwhile, it features flexible configuration capabilities—users can customize the functions and characteristics of each output channel through software to meet the requirements of different industrial application scenarios.
In addition, the 1C31125G02 module can achieve seamless integration with the Ovation control system, fully supporting various complex control strategies and logical functions to ensure the efficient and stable operation of the entire control system.
Performance Parameters
Number of Channels: Provides 16 digital output channels, which can control multiple output signals simultaneously to meet the demand for multi-channel signal output in complex systems. Each channel can be set independently, allowing users to flexibly assign channel functions according to actual application conditions and achieve precise control of different devices.
Voltage Range: Supports a wide operating voltage range, typically between 50-110 VDC (Note: The original "110-50 VDC" is adjusted to the standard ascending order of voltage range for clarity), and can well adapt to power supply requirements in different industrial environments. The module is equipped with overvoltage and overcurrent protection functions, which can effectively prevent damage to the module and connected devices caused by abnormal voltage or current, ensuring stable operation of the equipment.
Refresh Rate: Features a high refresh rate, enabling quick response to the commands of the control system and meeting the needs of control scenarios with high real-time requirements. It can complete signal update and output in a short time, ensuring that the equipment responds promptly to control commands and improving the response speed and control accuracy of the entire control system.
Signal Isolation: Has a signal isolation function, which can effectively prevent interference between different circuits, realize electrical isolation, and ensure the stability and accuracy of signal transmission. Even in complex electromagnetic environments, it can ensure that the output signal is not interfered with and stably drives external loads.
Weight and Dimensions: Has a net weight of approximately 0.13 kg and a compact overall size, facilitating installation and layout in various control cabinets. It is particularly suitable for industrial sites with space constraints.
Advantages and Features
High Reliability and Stability: Undergoing Emerson's rigorous quality control and testing processes, the 1C31125G02 module can operate reliably in various complex and harsh industrial environments. It boasts excellent anti-vibration, dust-proof, high-temperature-resistant, and moisture-resistant performance, enabling it to adapt to the environmental requirements of different industrial scenarios, reduce the failure rate caused by environmental factors, and ensure the long-term stable operation of the control system.
Flexible Configuration Method: Users can flexibly configure each output channel of the module through supporting software, including parameters such as the type of output signal, working mode, and response time. This flexible configuration feature allows the module to quickly adapt to different industrial application needs, easily handling both simple equipment control and complex automated production lines.
Easy Integration: Specifically designed for seamless integration with the Emerson Ovation control system, the module can be quickly connected to the existing control system architecture. During the integration process, no complex interface conversion or additional hardware equipment is required, which greatly reduces the difficulty and cost of system integration. At the same time, it ensures smooth and stable data communication with other Ovation series products, improving the collaborative work efficiency of the entire control system.
High-Density Design: Adopting an advanced high-density design concept, it integrates 16 output channels in a limited space. Compared with traditional modules, it significantly reduces the occupation of installation space. This feature has great advantages in industrial control cabinets or on-site installation environments with limited space, helping users optimize equipment layout and reduce overall equipment costs.
Application Fields
Power Industry: In thermal power units, it is used to control the start-stop and operating status of equipment such as boiler combustion systems, fans, and feedwater pumps, ensuring the safe and stable operation of the units. For example, by controlling the start and stop of fans, it adjusts the air volume in the furnace, ensures full combustion of fuel, and improves power generation efficiency. In substations, it can be used to control the opening and closing operations of high-voltage switchgear, realizing safe switching and control of the power system.
Petroleum and Chemical Industry: In oil refining equipment, it accurately controls equipment such as reactors, pumps, and valves to ensure the stability and safety of chemical production processes. For instance, it controls the feed valves of reactors, precisely adjusts the input volume of materials, and guarantees the smooth progress of the reaction process. In natural gas processing plants, it can be used to control equipment such as compressors and separators, enabling efficient processing and transportation of natural gas.
Industrial Automated Production Lines: In manufacturing automated production lines, it is used to control the operation of robots, conveyors, automated assembly equipment, etc., improving production efficiency and product quality. For example, it controls the start and stop of conveyors to achieve precise material transportation and cooperates with automated assembly equipment to complete product assembly. In production lines of the food and beverage industry, it can control equipment such as filling machines and labeling machines to ensure the smooth operation of the production process.
Environmental Monitoring: In environmental monitoring systems, it is used to control operations such as sampling and data transmission of various monitoring equipment. For example, it controls the start and stop of air samplers to ensure air samples are collected at predetermined time intervals; it controls the data transmission module of water quality monitoring equipment to upload real-time monitoring data to the data center in a timely manner.
Problem Solutions
Q: Can the output channel of the 1C31125G02 module directly drive high-power loads?
A: Generally not. Although it has a certain driving capacity, high-power loads (such as high-power motors and high-voltage equipment) need to be connected through an intermediate relay for signal conversion and electrical isolation, which protects the module from overload impact. In practical applications, it is necessary to select the appropriate transfer equipment according to the load characteristics and make correct wiring.
Q: What are the possible causes of module communication failures and the troubleshooting methods?
A: The causes include loose connection/damage of communication cables, mismatched communication parameters (such as protocol, baud rate, etc.), damage to the module's communication interface, and faults in the control system (such as problems with the communication module or software). Troubleshooting should be carried out from simple to complex: first check the cable connection and conductivity, then verify the communication parameters, next test/replace the communication interface, and finally inspect the control system.
Q: Can the 1C31125G02 module work normally in a high-temperature environment, and what precautions should be taken?
A: It can work within a specific high-temperature range (please refer to the product manual for details), but the following precautions should be noted: ensure good ventilation in the installation environment, and add a cooling fan if necessary; regularly check the module status through indicator lights or monitoring software; avoid being in the temperature limit for a long time. If the ambient temperature exceeds the limit, cooling measures should be taken or equipment suitable for high-temperature environments should be replaced to prevent impacts on performance and service life.
