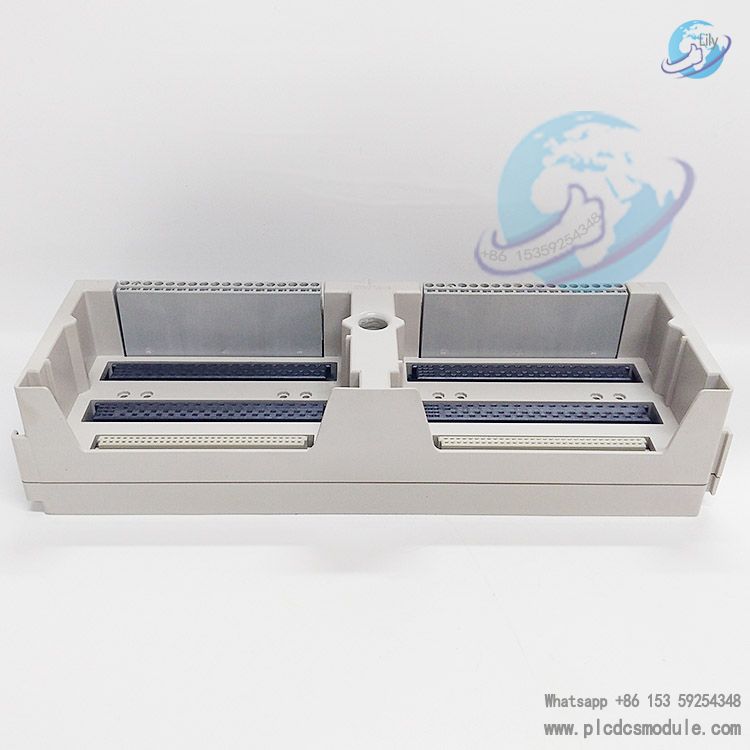

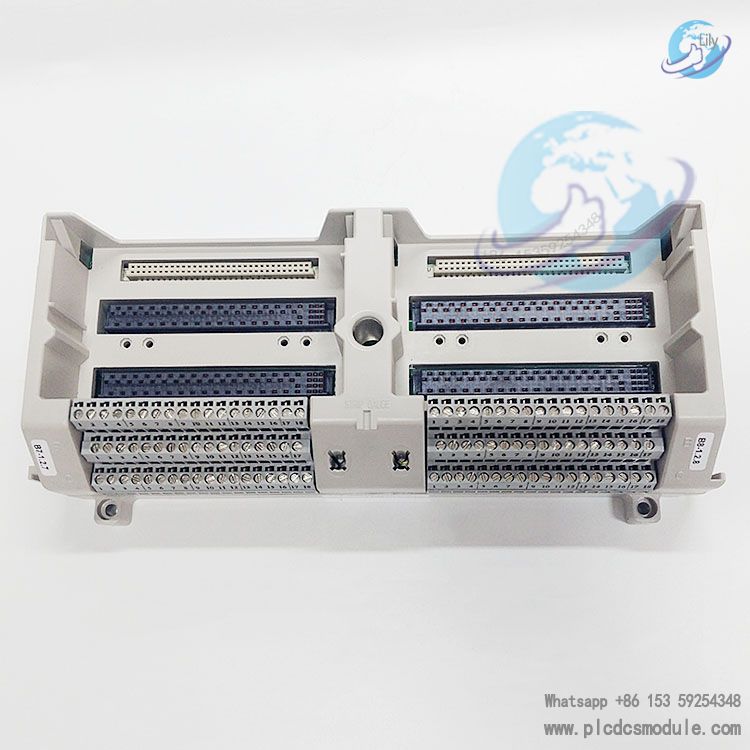

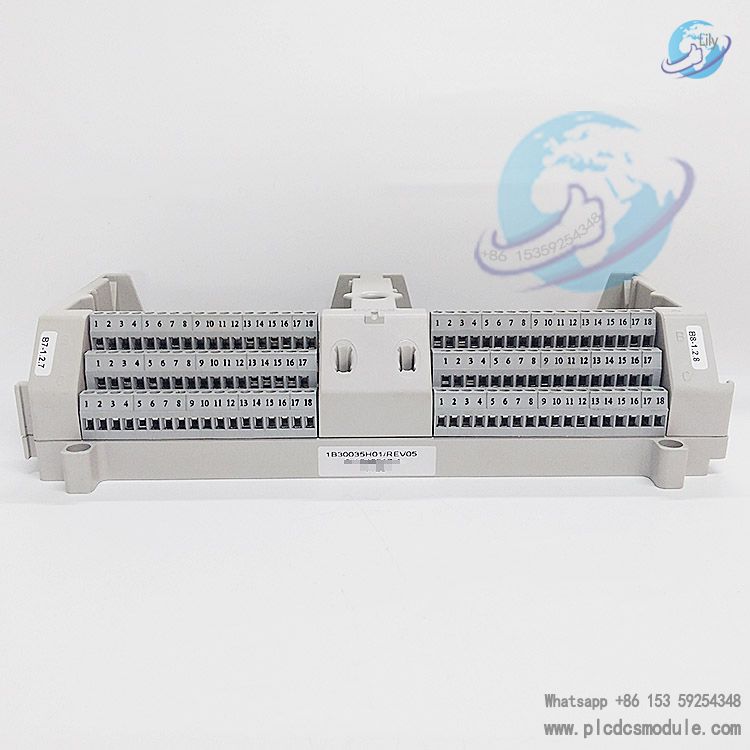

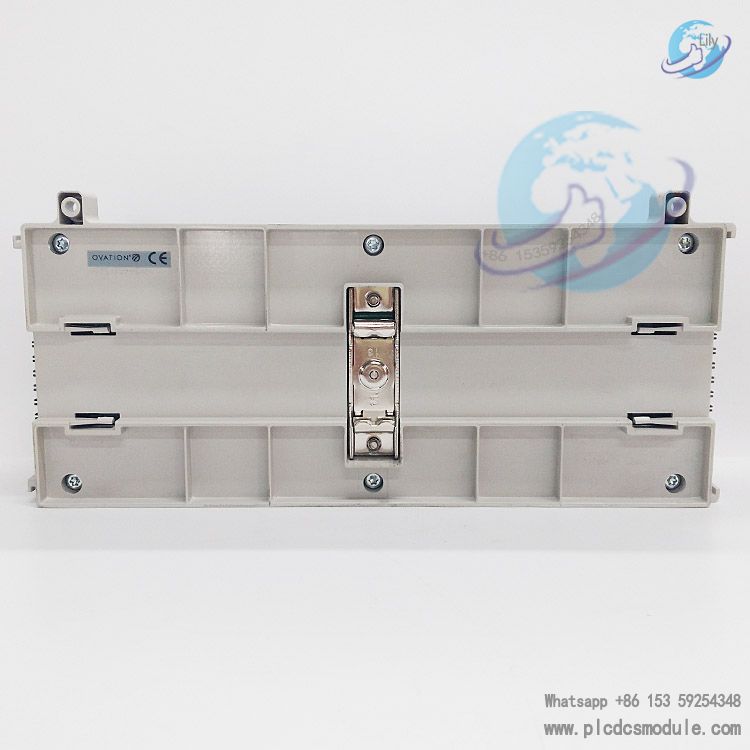

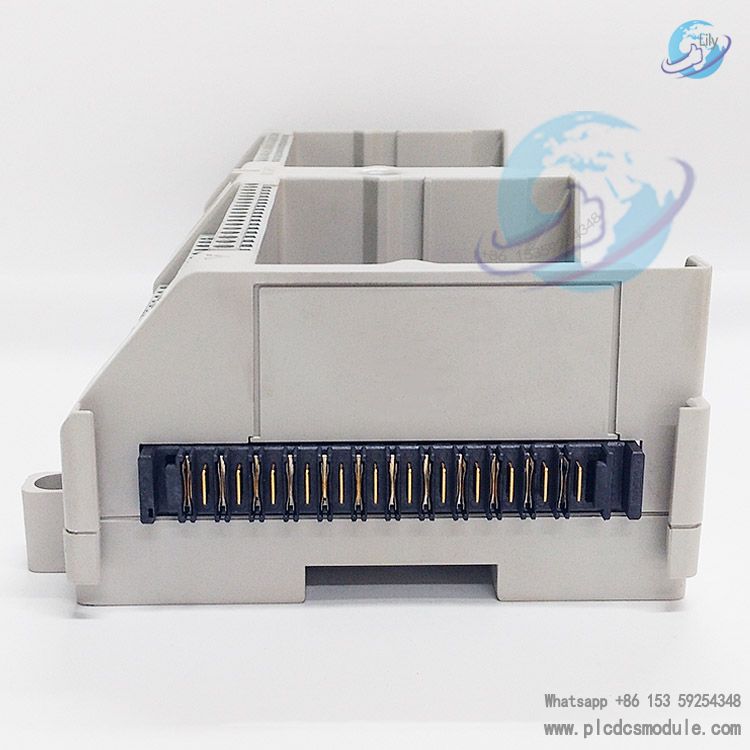

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. Emerson Ovation 1B30035H01 is one of the core basic hardware components in the Ovation control system. Designed in compliance with Emerson stringent quality procedures, it covers the entire lifecycle from R&D, manufacturing to installation and testing. It is intended to provide stable and reliable I/O module installation and operational support for the control system, helping users minimize system downtime to the greatest extent, ensure the integrity and continuous operational capability of the control system, and is suitable for various industrial application scenarios of the Ovation series control systems.
related documents
ovation 1B30035H01.pdf
Working Principle
The core function of the 1B30035H01 2-slot standard I/O chassis component is to provide physical mounting support and signal transmission channels for the I/O modules of the Ovation control system. It integrates precise circuit connection interfaces inside. When the corresponding I/O modules (such as analog input modules, digital output modules, etc.) are inserted into the slots, the chassis component enables reliable connection between the modules and the main bus of the control system, and completes power distribution and bidirectional transmission of data signals.
With its standardized interface design, it ensures stable and interference-free signal transmission between modules and the chassis, while providing secure mechanical fixation for the modules. This guarantees the normal operation of I/O modules under harsh industrial conditions (such as vibration, temperature fluctuations, etc.), thereby enabling the control system to collect signals from and send commands to field devices.
Application Fields
This product is mainly applied in industrial automation scenarios relying on the Emerson Ovation control system, including but not limited to the following fields:
Power Industry: It is suitable for the control systems of thermal power plants, nuclear power plants, hydropower plants, etc. It provides the mounting and connection foundation for I/O modules related to unit operation status monitoring and equipment control, supporting the stable operation and automatic control of power generation units.
Petrochemical Industry: In process industries such as petroleum refining and chemical production, it is used for mounting I/O modules in process control links, helping to realize the collection and control of process parameters such as temperature, pressure and flow rate, and ensuring the continuity and safety of production processes.
Metallurgical Industry: It is compatible with the control systems in metallurgical production processes, providing mounting support for I/O modules in equipment control and process parameter monitoring of steelmaking, ironmaking and other links, and improving the automation level and production efficiency of metallurgical production.
Other Industrial Fields: All industrial automation scenarios adopting the Emerson Ovation control system, such as cement production and water treatment, can build a stable I/O module mounting and operating environment through this 2-slot standard I/O chassis component, ensuring the overall function realization of the control system.
