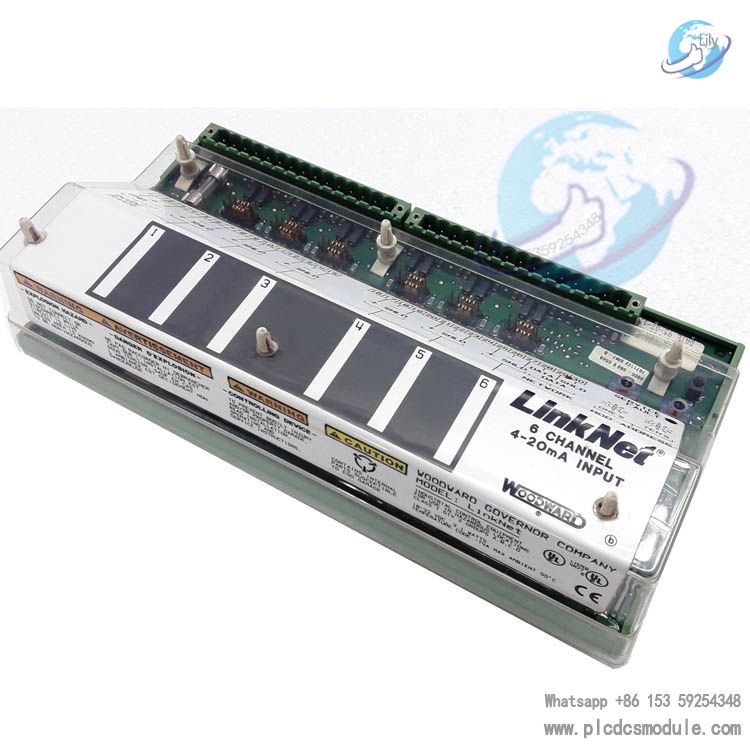

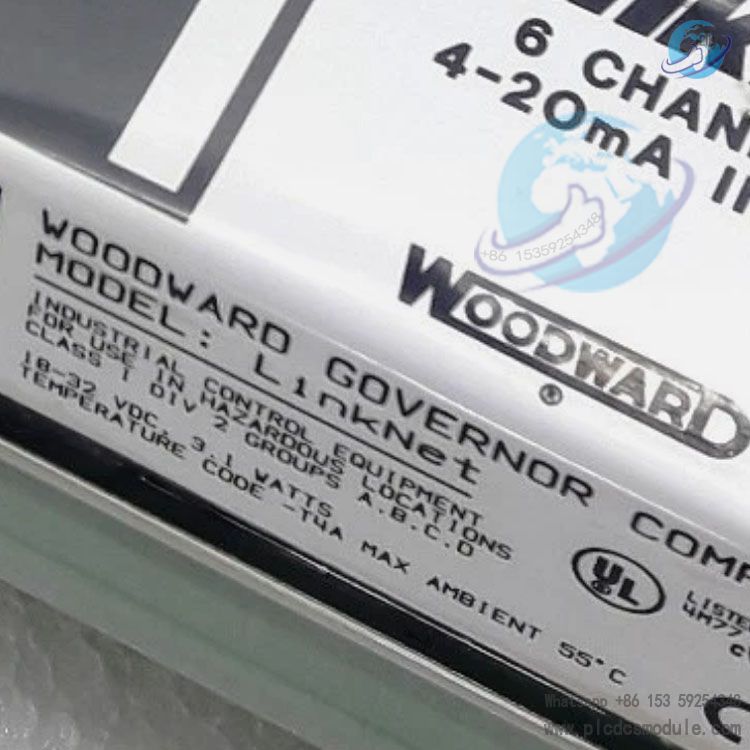

As a classic LON‑based LINKnet distributed I/O node from Woodward, its regular production was officially discontinued in April 2015. It has since been replaced by the LINKnet HT series modules using the CANopen architecture. Currently, it is only available as a spare part or expansion component for existing systems and is not recommended for new system deployments.
RELATED DOCUMENTS
Core Technical Specifications

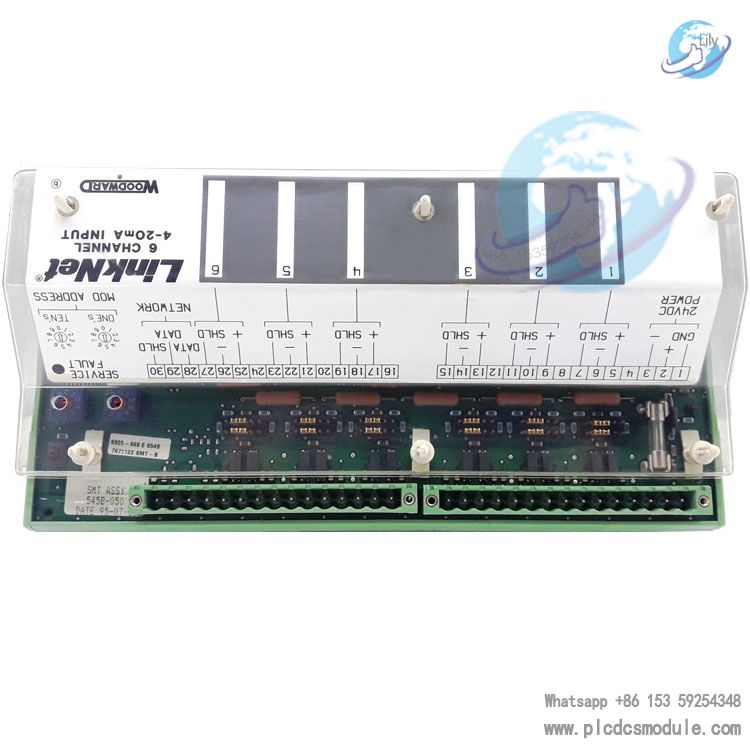

- Input Characteristics: 6 independently isolated analog input channels, supporting only 4–20 mA current input. No internal 24 V loop power supply; external loop power required.
- Communication Protocol: Based on the LON (Local Operating Network) protocol, compatible with the LINKnet distributed I/O architecture, and can seamlessly integrate with related Woodward distributed control systems.
- Power Supply: Nominal 24 V DC, powered via the LINKnet node connector, suitable for standard industrial DC power environments.
- Environmental Protection: Industrial‑grade protection with IP67 rating, dustproof and waterproof, for harsh industrial environments.
- Operating Temperature: -40°C to +85°C, ensuring stable operation under extreme temperature conditions.

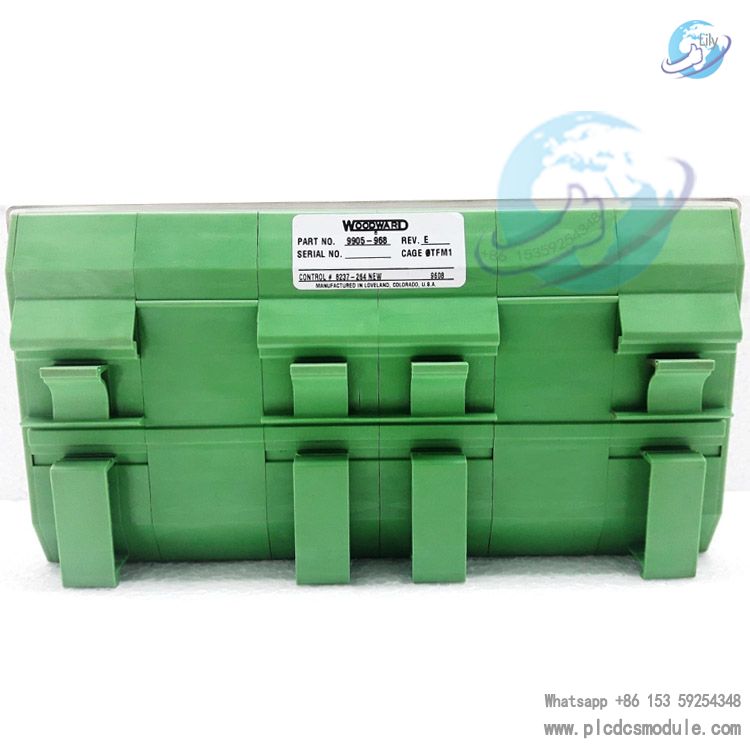

- Physical Specifications: Approximately 29 cm × 18.7 cm × 5 cm, weight 1.82 kg. Supports DIN‑rail or backpanel mounting.
- Signal Processing: Built‑in signal conditioning, amplification, and filtering for accurate and stable signal acquisition in industrial noise environments.

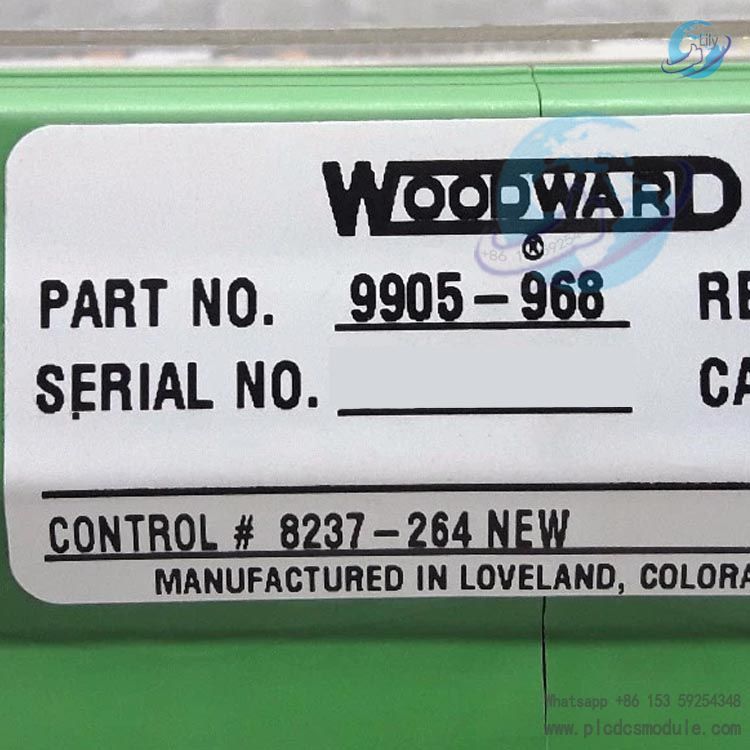

- Origin & Warranty: Made in the USA, with a 12‑month manufacturer warranty.
Core Functions & Features
- Multi‑Channel Independent Acquisition: 6 isolated input channels independently capture 4–20 mA signals from pressure, temperature, position, and other sensors without interference, supporting simultaneous multi‑parameter monitoring.
- Industrial‑Grade Reliability: Rugged industrial hardware design, wide operating temperature range, and IP67 rating enable direct field deployment in demanding applications such as turbine control.
- High‑Speed Real‑Time Acquisition: Fast sampling rate supports real‑time data capture for rapid control system response.
- LON Bus Compatibility: LON protocol integration allows connection to the Woodward LINKnet distributed I/O network. A single controller can support multiple modules for distributed signal acquisition and transmission.
Easy System Integration: Standard industrial mounting, direct compatibility with Woodward MicroNet™ series (CPU040 / CPU060 / NT CPU) and 5000 Series CPU systems without additional adapters.
Applications
The WOODWARD 9905‑968 is mainly used in gas turbine control, industrial process automation, and large‑equipment condition monitoring. As a front‑end signal acquisition unit in distributed control systems, it acquires, conditions, and transmits standard 4–20 mA sensor signals, providing accurate raw data for backend controller analysis and equipment control. It is a critical front‑end component for industrial automation and control systems.
