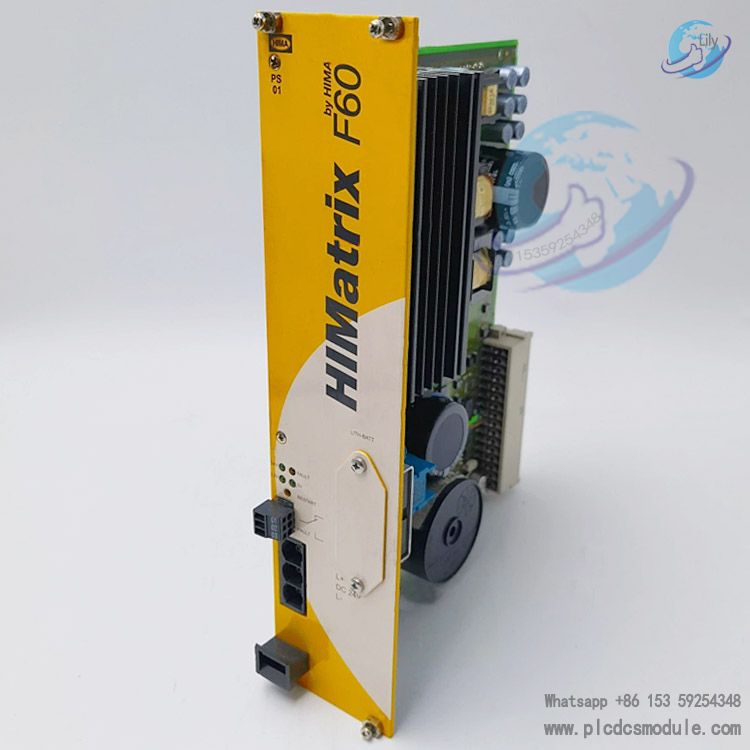

HIMA F60 PS01 (F60PS01) is a dedicated safety-rated power supply module designed by HIMA GmbH, Germany, specifically for the HIMatrix F60 modular safety control system. It serves as the core power supply unit for the F60 series safety controllers. Featuring electrical isolation, this module provides stable and reliable multi-channel DC outputs for the CPU, I/O, and communication modules of the F60 system. It meets the requirements of SIL 3 high safety integrity level applications and is widely used in critical safety control scenarios in industries such as petroleum, chemical, and power.
| Parameter | Specification |
|---|---|
| Model | F60 PS01 (F60PS01) |
| Applicable System | HIMatrix F60 Modular Safety Platform |
| Input Voltage | 24 VDC (SELV/PELV compliant), fluctuation range -15% to +20%, ripple ≤ 15% |
| Max Input Current | 30 A |
| Output Specification | 3.3 VDC / 10 A; 5.0 VDC / 2 A; 24 VDC / 32 A |
| External Fuse | 32 A |
| Protection Class | Protection Class III (IEC/EN 61131-2) |
| Pollution Degree | II |
| Altitude Limit | ＜2000 m |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 10–90% RH, no condensation |
| Installation Method | Rack plug-in type, compatible with F60 dedicated rack |
| Status Indication | Front panel LED for voltage status and fault diagnosis |
Core Product Features
- Safety-Rated Design: Compliant with IEC 61508 standards and supports SIL 3 safety level. Electrical isolation ensures the safety of the system and field circuits, preventing single-point failures from affecting the entire system.
- High Power Density: Integrates three independent outputs with sufficient total output power, capable of supplying power to the F60 CPU01 and multiple I/O modules simultaneously, meeting the power supply demands of large-scale safety control systems.
- Integration and Easy Maintenance: Rack-mountable plug-in structure with hot-swappable support for easy installation and replacement. Front-panel LEDs display voltage status and fault information in real time, facilitating quick diagnosis and maintenance.
- Industrial-Grade Reliability: Wide operating temperature and humidity range, strong resistance to electromagnetic interference, suitable for harsh industrial environments such as petroleum and chemical industries, ensuring long-term stable operation of the system.
Redundancy Compatibility: Can form a redundant power supply system with modules of the same model to achieve bumpless switching, further improving system availability and meeting the continuous operation requirements of critical processes.
Typical Application Scenarios
- Safety Instrumented Systems (SIS): Emergency Shutdown Systems (ESD), Fire & Gas Protection Systems (F&G), and High-Integrity Pressure Protection Systems (HIPPS) in the petroleum, natural gas, and chemical industries.
- Process Safety Control: Burner Management Systems (BMS), long-distance pipeline monitoring systems (SCADA), and unit safety protection systems in the power industry.
- High-Safety Automation: Safety interlock control for critical equipment in pharmaceutical, metallurgical and other industries, ensuring personnel and equipment safety during production.
Supporting Modules for HIMatrix F60 Series
- Core Control: F60 CPU01 (Main controller of F60 series)
- Communication Modules: F60 BUS (System bus module)
- I/O Modules: F6205 (Relay control module), F6217 (8-channel analog input module), etc.
- F7000 Series: F7126 (Three-phase power module, input 380–480V AC, output 24V DC), F7126-E (Enhanced three-phase power module)
- HIQuad X Series: F-PWR 01 (Dedicated power supply module for HIQuad X system)
- H Series: H6200A (High-power power supply module, 500W output), H51Q-HS (Power monitoring module for high-temperature environments)
- PS Series: PS 1000/230 010, PS 1000/230 011, PS 1000/115 021 (General-purpose industrial power supply modules)
