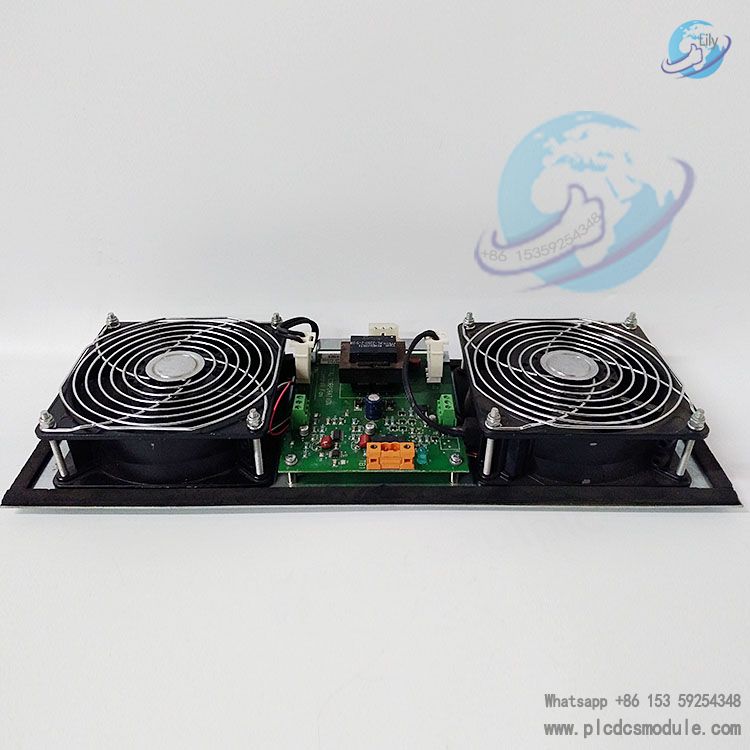

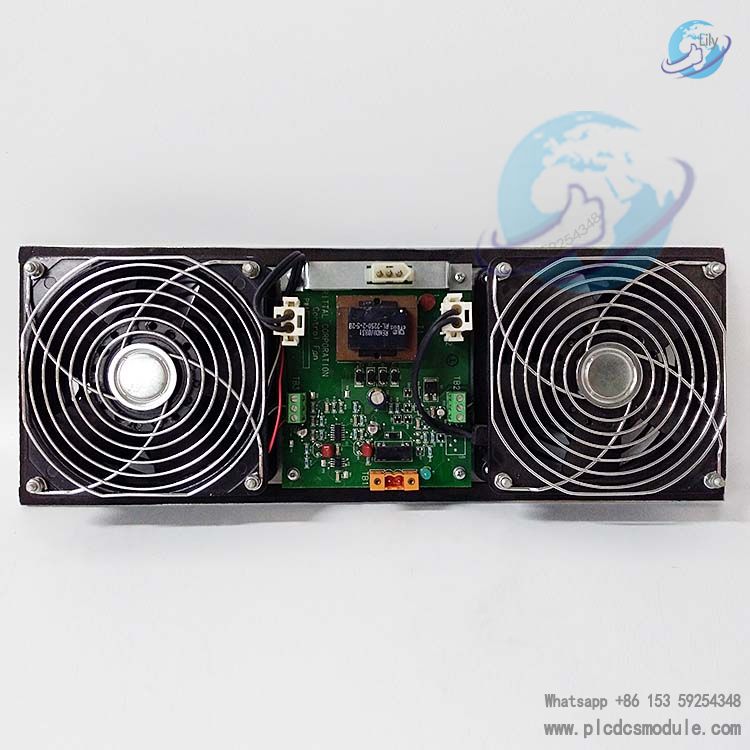

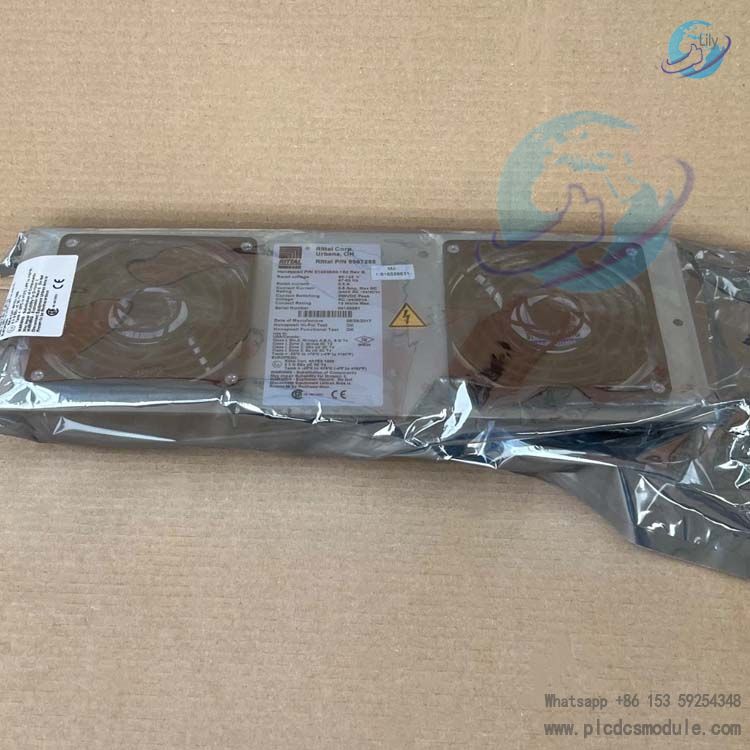

Honeywell 51303940-150 Fan Assembly

The 51303940-150 Fan Assembly is a core auxiliary device under Honeywell UCN (Universal Control Network) series, specifically designed for industrial and electronic cabinets. Also known as the Cabinet Fan Assembly with Alarm, it is positioned to deliver efficient heat dissipation and reliable monitoring. This product provides a stable thermal management solution for sensitive industrial control equipment and electronic components inside cabinets, preventing overheating damage or performance degradation. Its built-in alarm system enables proactive fault alerts, ensuring the continuity and safety of industrial production processes, making it an ideal cooling accessory for high-reliability scenarios. As an integral part of Honeywell  control systems, it is engineered to fit complex industrial operating conditions, combining durability and compatibility for widespread use in industrial automation.

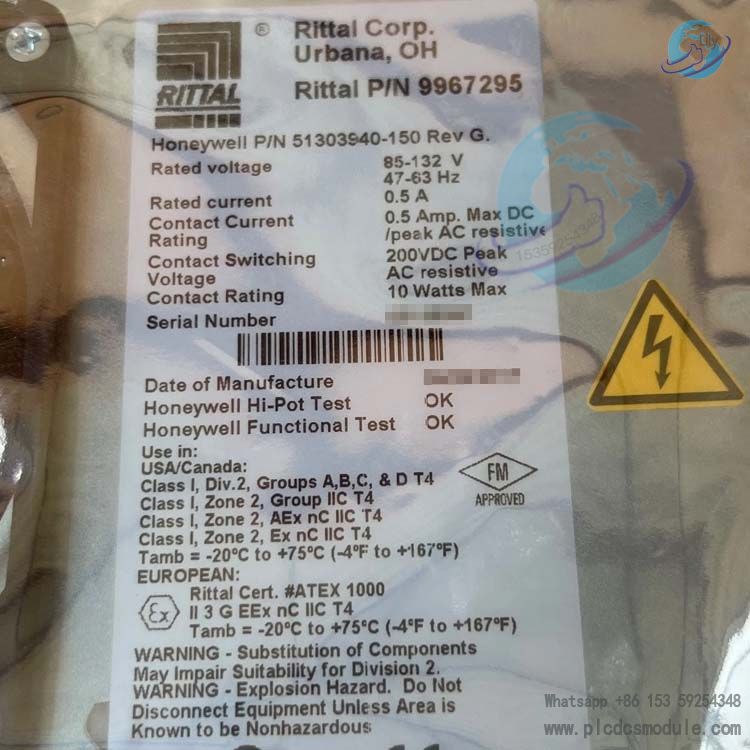

Core Technical Specifications

• Model: 51303940-150
• Type: Cabinet Fan Assembly with Alarm Function
• Rated Voltage: 85–132V, 47–63Hz
• Rated Current: 0.5A
• Touch Current: 0.5A (maximum DC rated peak AC resistance)
• Contact Switch Rating: 200VDC peak
• Fan Speed: 3100 RPM
• Fan Configuration: Integrated dual three-blade fans for strong airflow
• Weight: 3.22 Kg
• Dust Protection: Equipped with dust filtration to trap airborne particles and protect internal cabinet equipment from contamination
• Alarm Function: Built-in real-time fault monitoring system to promptly alert on fan failures or performance degradation

Structure and Core Functions

(I) Product Structure

This fan assembly features an integrated, compact design for easy installation, consisting of three core components that work together to balance cooling efficiency and equipment protection:

1. Fan Main Body: Dual three-blade fan design with durable blade materials suited for long-term industrial operation. It efficiently circulates air between the inside and outside of the cabinet, quickly expelling hot air and drawing in cool air to maintain internal temperature balance.
2. Filter Assembly: Composed of a plastic grille and filter cotton, it effectively intercepts dust and fine particles in the air, preventing impurities from adhering to electronic components and avoiding circuit board corrosion or short circuits, thus extending equipment lifespan.
3. Alarm Monitoring Module: Built-in fault detection circuitry linked to real-time fan operation, accurately detecting abnormal speed or fan stall. It triggers an immediate alarm signal upon anomaly detection, providing timely alerts for maintenance.

(II) Core Functions

1. Efficient Heat Dissipation: Operating at 3100 RPM, it generates strong airflow to rapidly remove heat from industrial control modules, power modules, and communication devices inside the cabinet, ensuring equipment stays within optimal temperature ranges to avoid performance decay or damage and maintain system stability.
2. Real-Time Fault Alarm: The built-in system continuously monitors fan operation. It triggers an immediate alarm upon fan failure, speed reduction, or stall, enabling proactive maintenance, minimizing production downtime from fan faults, reducing operational costs, and enhancing system safety.
3. Equipment Protection: The filter assembly blocks dust, oil mist, and moisture from entering the cabinet and damaging electronics, while a fan guard protects the fan itself from physical impact, adapting to harsh industrial environments.
4. Wide Compatibility: As a Honeywell UCN series product, it seamlessly integrates with Honeywell’s core DCS/PLC systems such as TDC and Experion PKS, and fits standard industrial cabinet specifications without complex modifications, supporting diverse industrial automation scenarios.



Application Areas

1. Industrial Automation: As a supporting cooling device for core DCS/PLC systems, it cools processor modules, I/O modules, power modules, and communication devices in industrial control panels and electrical cabinets. It is compatible with all Honeywell control systems to ensure stable automated production line operation, commonly used in manufacturing and metallurgy.
2. Data Centers & Communications: Used for cooling server racks, network communication equipment, base station switches, and routers, ensuring stable high-performance computing and data transmission and preventing data loss or communication interruptions due to overheating.
3. Power Industry: Deployed in control cabinets of substations and power plants to cool relays, protection devices, and monitoring systems, ensuring power equipment operates at suitable temperatures and safeguarding the safety and stability of power generation and distribution.
4. Process Industries: Widely used in oil, gas, chemical, and pharmaceutical industries to provide reliable cooling for remote I/O stations, analyzer control units, and instrument cabinets, especially in high-temperature field environments to solve heat dissipation challenges.
5. Other Industries: Applied in water treatment and food & beverage processing facilities to provide cooling and equipment protection for various control cabinets, supporting industrial control needs across sectors and ensuring continuous production and product quality stability.

Installation and Maintenance Instructions

(I) Installation Guidelines

1. Direction Confirmation: First, clarify cabinet cooling needs to determine if the fan will draw in cool air or exhaust hot air. Since hot air is less dense than cool air and flows upward in cabinets, it is recommended to install the fan at the lower (air intake) or upper (air exhaust) section of the cabinet front door or side panel to ensure smooth internal air convection.
2. Location Selection: Choose a well-ventilated, unobstructed position away from strong electromagnetic interference sources (e.g., frequency converters, high-power motors) to avoid disrupting fan operation and alarm signal transmission. Reserve sufficient maintenance space for future inspections and component replacement.
3. Fixing and Wiring: Secure the fan assembly to the cabinet’s pre-drilled mounting points using compatible screws to ensure firm, wobble-free installation. Disconnect power before wiring, and strictly follow the product manual’s wiring diagram to connect signal and power cables, distinguishing positive and negative poles to prevent equipment damage. Route cables with proper protection to avoid pulling or bending.
4. Filter Assembly Installation: In dusty or oily environments, install a filter grille at the air intake to enhance impurity filtration and prevent dust from entering the cabinet and damaging electronic components.

(II) Routine Maintenance

1. Regular Cleaning: Clean dust and impurities from the filter cotton and fan blades every 1–3 months to avoid clogging that reduces cooling efficiency. Disconnect power before cleaning to prevent electric shock, and ensure the filter cotton is properly reinstalled and fan blades move freely after cleaning.
2. Status Checks: Regularly inspect fan operation by listening for abnormal noise or vibration. Verify the alarm system functionality, including simulated fault testing to confirm alert effectiveness.
3. Component Replacement: If fan stall, abnormal speed, or alarm failure is detected, inspect the fan motor and alarm module and replace with identical parts if necessary. Replace aged or damaged filter cotton promptly to maintain filtration performance.
4. Environmental Protection: Avoid exposing the fan assembly to corrosive gases or liquids to prevent shell and internal component corrosion. Increase maintenance frequency in high-temperature and high-humidity environments to ensure normal operation.

Product Advantages and Industry Value

(I) Core Product Advantages

1. High Reliability: Manufactured to Honeywell’s stringent industrial-grade standards using durable plastics and corrosion-resistant metals, it withstands complex industrial conditions, has a long service life, and reduces equipment replacement frequency and operational costs.
2. Efficient Cooling: The dual three-blade design with 3100 RPM high speed delivers stronger airflow than standard cabinet fans, rapidly balancing cabinet temperature and effectively preventing overheating failures.
3. Proactive Protection: The built-in real-time fault alarm system provides early warning of fan issues, enabling proactive maintenance to avoid production downtime from fan failure, ensuring industrial production continuity and safety, and reducing economic losses.
4. Wide Compatibility: Compatible with all Honeywell control systems and various industrial cabinet and equipment specifications, it features easy installation without complex modifications, supporting multi-industry applications.
5. Comprehensive Protection: The integrated filter assembly effectively traps dust and particles to protect cabinet electronics, further enhancing control system stability and lifespan in harsh industrial environments.
