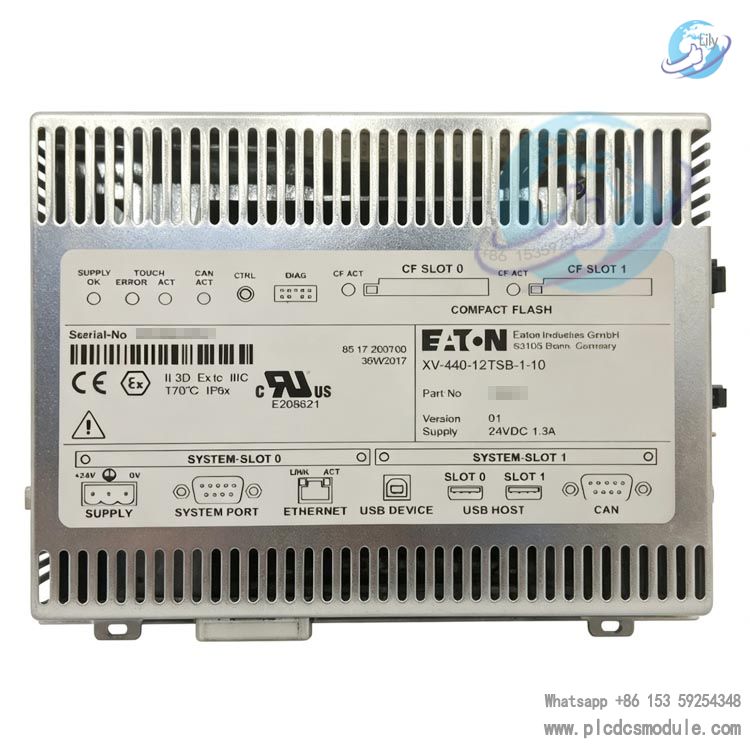

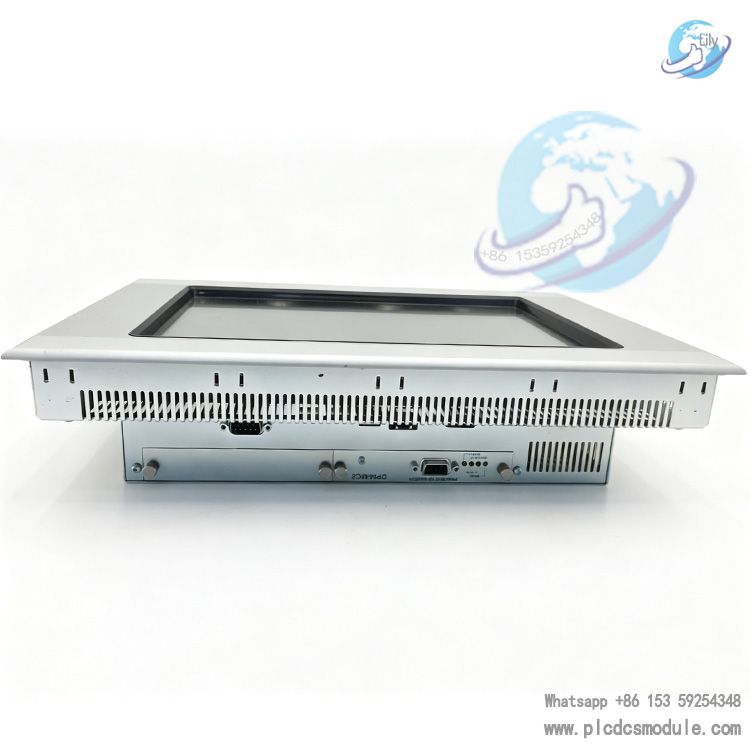

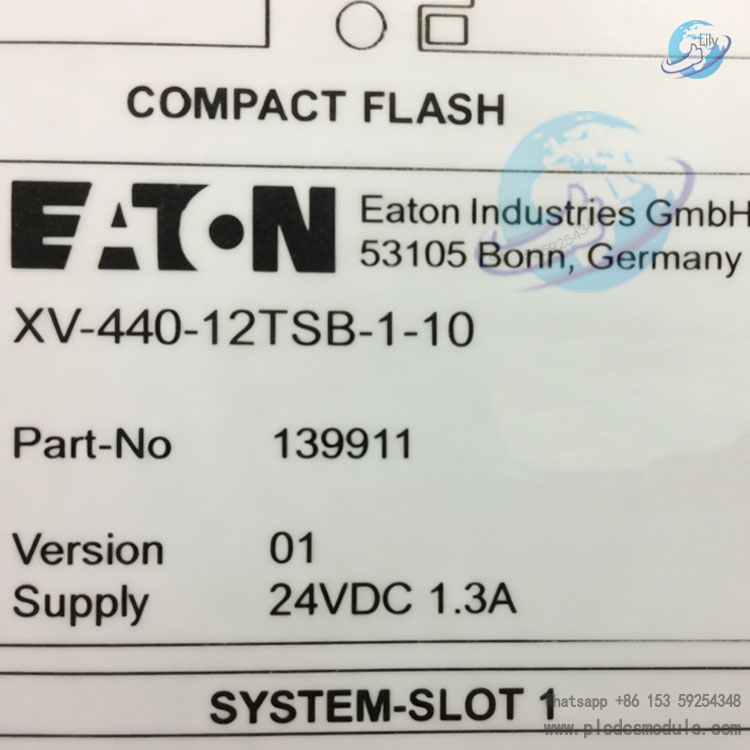

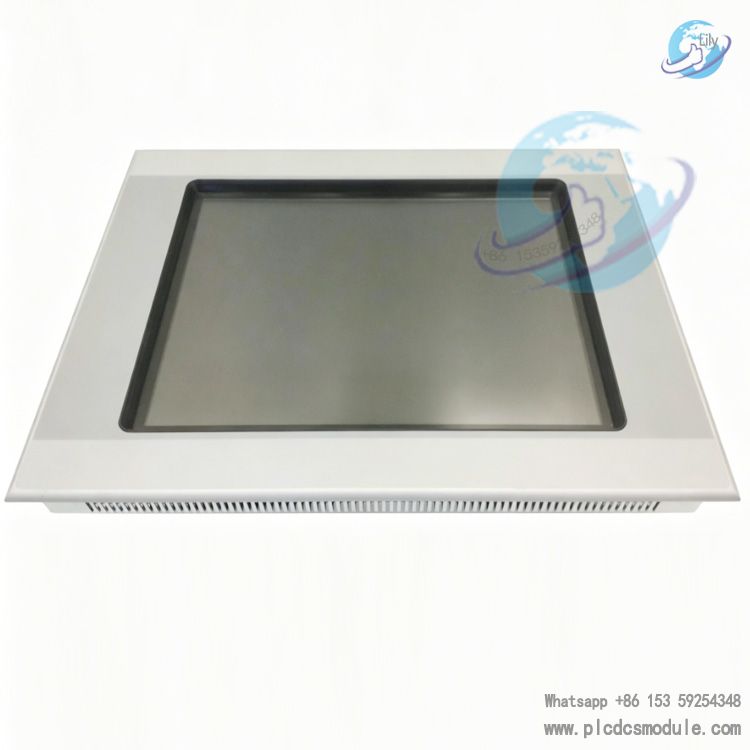

EATON XV-440-12TSB-1-10 belongs to the Eaton XV400 series high-performance industrial HMI. Equipped with a 12.1-inch infrared touch screen and embedded control core, it adopts 24VDC/1.3A power supply. Integrating HMI visualization and optional PLC functions, it is built for harsh industrial environments with a front panel IP65 protection rating, serving as a core operation and monitoring unit for automation systems.
Product Advantages
Highly integrated all-in-one design: Combines HMI and optional PLC functions, simplifying system structure and saving cabinet space and hardware costs.
Robust industrial-grade construction: Metal housing paired with anti-reflective tempered glass screen. Front panel features IP65 protection, resistant to dust, moisture and oil contamination.
Diverse communication ports: Standard equipped with Ethernet, RS232, CAN/easyNet and USB interfaces, enabling seamless connection with mainstream PLCs, inverters and field buses.
Stable touch & display performance: Anti-interference infrared touch panel. 800×600 SVGA resolution and 400nit brightness ensure clear visibility under strong light.
Wide temperature adaptability & high reliability: Operating temperature ranges from 0℃ to 55℃. Certified with UL508, cUL and CE, ideal for continuous operation.
Flexible installation & multilingual support: Compatible with horizontal and vertical mounting. Built-in multilingual library including Chinese, suitable for global projects.
Product Features
1. Hardware Specifications
Display: 12.1-inch TFT color LCD, 800×600 SVGA resolution, non-capacitive infrared touch screenProcessor: ARM Cortex-A9 800MHz, 1GB RAM, 8GB Flash memoryPower Supply: 24VDC ±10%, 1.3A, equipped with reverse polarity and overcurrent protectionProtection Grade: IP65 front panel, IP20 rear panel, vibration-resistant metal enclosureDimensions: Approximately 361mm×279mm×62mm (W×H×D)
2. Communication Interfaces
Ethernet: 1×10/100Base-TX, compatible with Modbus TCP/IPSerial Port: 1×RS232, supports Modbus RTUBus Interface: 1×CAN/easyNet, CANopen compliant, maximum 127 nodesUSB: 2×Host ports for flash drive, mouse and keyboard; 1×Device port for program downloading
3. Software & Functions
System: Windows CE 7.0, compatible with dedicated Eaton HMI configuration softwareControl: Optional licensed PLC function, supports logic programming, data processing and motion controlData Management: Historical trend monitoring, alarm log, formula management and multi-level password protectionExpansion: Optional SmartWire-DT and Profibus-DP interfaces for broader bus system compatibility
Application Scenarios
Manufacturing IndustryAutomotive welding & coating lines, electronic assembly lines, machine tools and packaging machinery, applied for monitoring, parameter setting and fault diagnosis.
Process IndustryWater treatment, chemical, pharmaceutical, food and beverage sectors, realizing process visualization, data logging and remote monitoring.
Energy & InfrastructurePV and wind power control cabinets, pump stations, HVAC systems and building automation.
TransportationPort facilities and onboard rail transit control, meeting wide temperature and vibration resistance requirements.
General AutomationReplaces conventional buttons and indicators to simplify operation panels and enhance system intelligence.
FAQ
Q1: No display, black screen after power-on?Check if 24VDC power supply is normal within 21.6~26.4V and correct polarity connection.Ensure firm wiring without looseness or oxidation.If power supply is normal yet screen stays black, the power module may fail, please contact after-sales service.
Q2: Inaccurate or unresponsive touch control?Clean oil stains and dust on screen surface as infrared touch is susceptible to obstruction.Reboot the device to fix software lag and calibrate touch in system settings.Replacement of screen assembly is required if calibration fails due to touch layer damage.
Q3: Failed Ethernet connection with PLC?Ensure identical IP segment and subnet mask with no IP conflict.Inspect network cable and crystal connector, verify normal switch port status.Disable firewall on PC and PLC, confirm port 502 for Modbus TCP is accessible.
Q4: Unstable CAN bus communication and data packet loss?Switch on 120Ω terminal resistors at both ends of the bus.Use twisted pair cables for CANH/CANL and keep away from power lines to avoid interference.Unify baud rate at 125kbps or 250kbps for better stability.
Q5: Can it replace standalone PLC for small-scale control systems?Yes. This model supports built-in PLC function with separate license available. It fulfills logic control, data calculation and basic motion control, ideal for compact systems with limited I/O points and simple logic to cut hardware cost.
Q6: Maximum operating temperature is 55℃, applicable for high-temperature workshops in summer?It supports operating temperature from 0℃ to 55℃. Keep cabinet well ventilated and avoid enclosed high-temperature space. Cooling fan installation is recommended to keep ambient temperature below 55℃.
