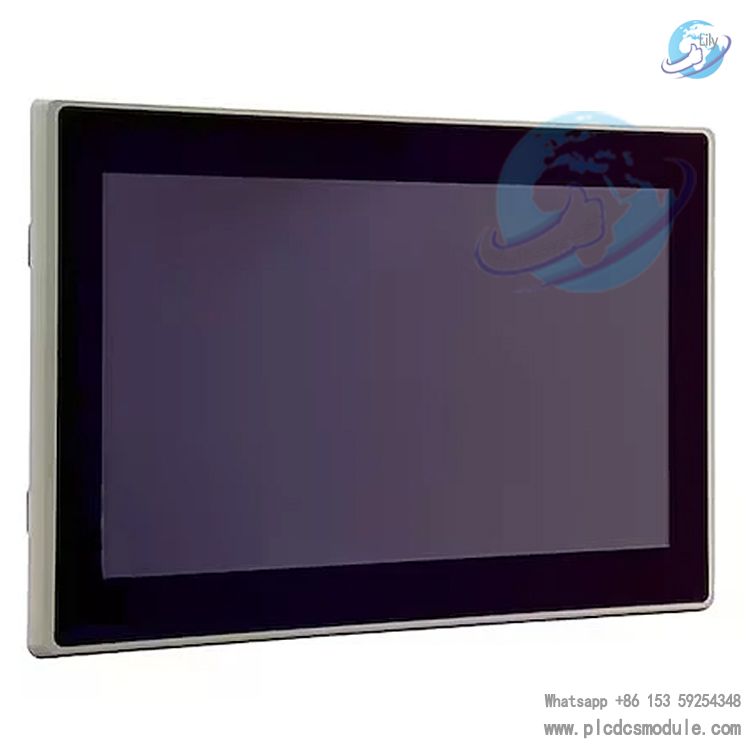

Eaton XV-303-15-CE0-A00-1E is a high-performance all-in-one HMI-PLC unit of Eaton XV300 series. Equipped with a 15.6-inch wide-screen projected capacitive multi-touch display, it integrates PLC functions and serves as a SmartWire-DT bus coordinator. Powered by 24VDC, it is designed for embedded installation at industrial sites. Combining visualization, logic control and communication management capabilities, it acts as the core control unit for compact automation projects.
related documents
Product Advantages
Integrated all-in-one design: Merges HMI and PLC, eliminating separate PLC hardware. It cuts wiring workload and cabinet space occupancy, lowering system complexity and hardware costs.
Industrial-grade stability and reliability: Fanless passive heat dissipation design, operable within 0-50°C wide temperature range. Front panel features IP65 protection against dust, water and oil contamination, suitable for harsh industrial environments.
Diversified native communication ports: Dual Ethernet, RS232, RS485, CAN and SmartWire-DT interfaces. It connects devices and bus systems of various brands without extra expansion modules, delivering superior compatibility.
High-definition touch experience: 15.6-inch screen with 1366×768 WXGA resolution and 24-bit true color (16.77 million colors). Capacitive multi-touch supports gesture control, and anti-glare display works well under strong light.
Low power consumption and high computing performance: Equipped with 800MHz ARM Cortex-A9 processor, 512MB memory and 1GB flash storage. Rated power consumption is 16W with maximum 21.6W, balancing operational efficiency and energy saving.
Key Product Features
1. Hardware Configuration
Display & Touch15.6-inch anti-glare wide TFT screen with 16:9 aspect ratio, viewing angle of 85°/85°/80°/80°. Scratch-resistant glass panel supports capacitive multi-touch and gesture operations.
Core Performance800MHz ARM Cortex-A9 processor; 512MB DRAM, 1GB SLC flash memory and 128kB retentive memory. Fanless natural convection cooling prevents malfunctions caused by dust accumulation.
Power Supply24VDC Safety Extra Low Voltage, acceptable voltage range: 19.2-30VDC. Built-in reverse polarity protection, maximum current 3A, withstands voltage dip within 10ms.
Structure & ProtectionDie-cast aluminum alloy housing. Front rating: IP65 (NEMA 4X/12), rear rating: IP20. Embedded dimension: 404×255×53mm, weight: 3.95kg, designed for panel embedded installation.
2. Software & System
Operating System: Windows Embedded Compact 7 Pro. Pre-installed with VisualDesigner runtime, compatible with XSOFT-CODESYS 2/3 programming.
Function Authorization: Built-in PLC license with no extra charges. Supports visual programming, web monitoring, recipe management, 200-level password access control and switching among 100 online languages.
3. Communication Interfaces
| Interface Type | Quantity | Specification |
|---|---|---|
| Ethernet | 2 | 10/100Mbps, compatible with TCP/IP, EtherNet/IP and MODBUS protocols |
| RS232 | 1 | 9-pin D-sub, non-isolated, serial communication supported |
| RS485 | 1 | 9-pin D-sub, non-isolated, MODBUS-RTU compliant |
| CAN | 1 | 9-pin D-sub, supports CANopen/easyNet protocols |
| SmartWire-DT | 1 | Bus coordinator, connects up to 99 slave stations with automatic address assignment |
| USB | 2 | USB2.0 host & device ports, for USB storage and peripheral connection |
| SD Card Slot | 1 | Compatible with SDSC/SDHC cards for storage expansion and program backup |
Application Scenarios
Intelligent Manufacturing EquipmentEmbedded control and operation panel for CNC machine tools, packaging, textile and printing machinery. Realizes logic control, parameter visualization and fault alarm.
Industrial Automated Production LinesOn-site operation station for electronic assembly, food processing and logistics sorting lines. Connects sensors, inverters and servo systems to monitor data and control production processes.
Building & Infrastructure FacilitiesLocal control unit for HVAC, water treatment equipment, pump stations and elevator systems, adaptable to wide temperature and humid conditions.
Energy & Power FacilitiesApplied to photovoltaic inverters, energy storage devices and low-voltage power distribution systems. Dual Ethernet enables local control and remote monitoring, and CAN bus links energy management modules.
Rail Transit & Vehicle-mounted EquipmentServes as onboard control terminal, port machinery and construction machinery controller. Resists vibration (5-150Hz) and impact (15g), fit for mobile working conditions.
FAQ
- Does this HMI support remote monitoring?Yes. Equipped with dual Ethernet ports, it enables web visualization configuration. Remote access is available via browsers on computers and mobile phones using the HMI IP address. It also connects to remote SCADA systems via MODBUS-TCP.
- Can it operate when ambient temperature exceeds 50℃?Not recommended. The rated operating temperature ranges from 0℃ to 50℃. Short-term overheating will trigger overheat protection and power off the device. Long-term excessive temperature accelerates hardware aging. It is advised to install cooling fans or optimize the installation environment.
- Is connection available with Siemens PLC and inverters of other brands?Affirmative. It supports mainstream protocols including EtherNet/IP, MODBUS-TCP/RTU and CANopen. It can communicate with PLCs and inverters from Siemens, Mitsubishi, Omron and other brands via Ethernet or RS485 ports.
- How to deal with unresponsive touch screen?
- Clean dirt and water stains on the screen then restart the device.
- Ensure stable power supply within 19.2-30VDC to avoid voltage fluctuation.
- Re-download programs to eliminate software malfunctions.
- Contact after-sales service for panel inspection if the issue persists.
- Is recovery accessible for lost programs and data?Yes. Back up files regularly via SD card or USB drive for direct restoration. The built-in 128kB retentive memory can preserve critical data for up to 10 years after power outage.
- Does regular battery replacement require for the device?No. The soldered BR2330 real-time clock battery is non-replaceable. It maintains clock data for 10 years without power supply and needs no routine maintenance.
