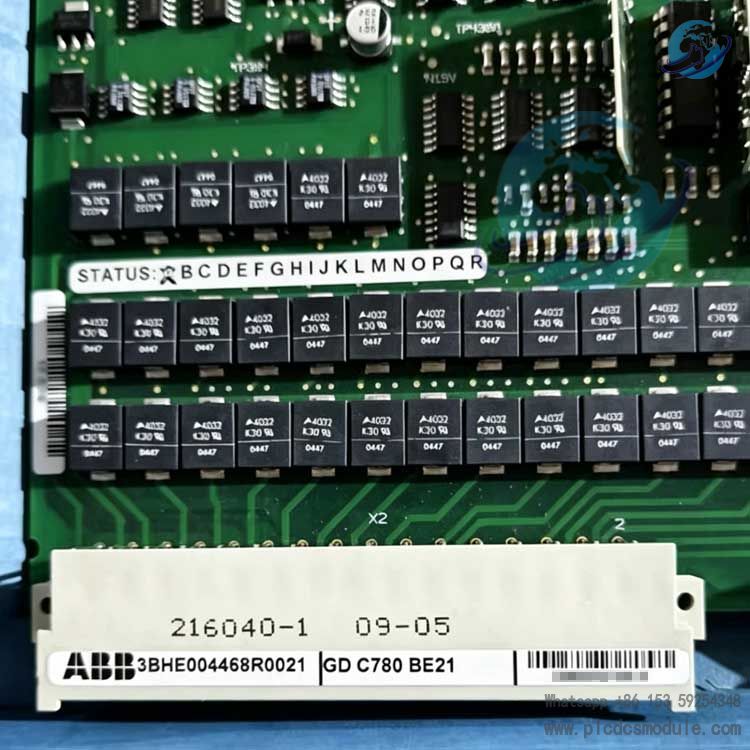

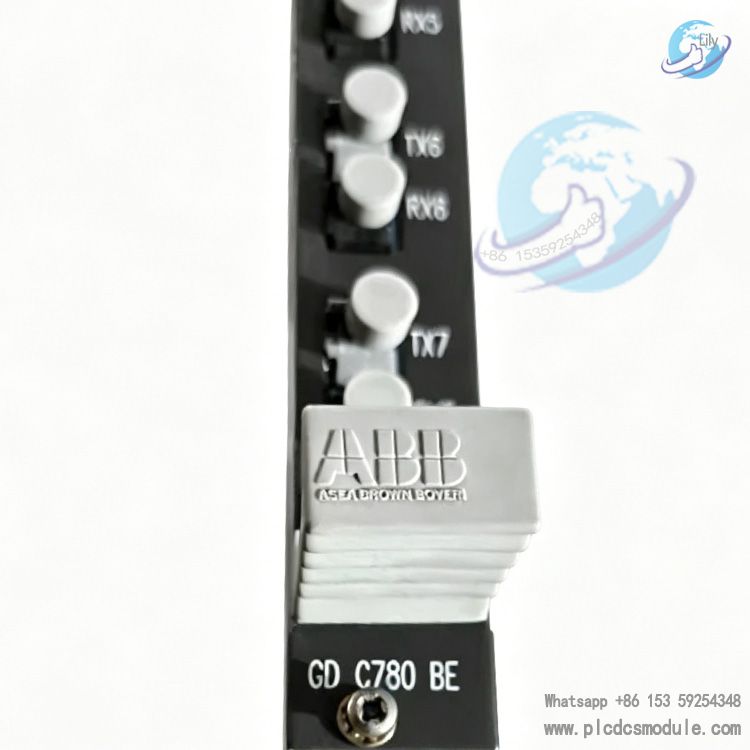

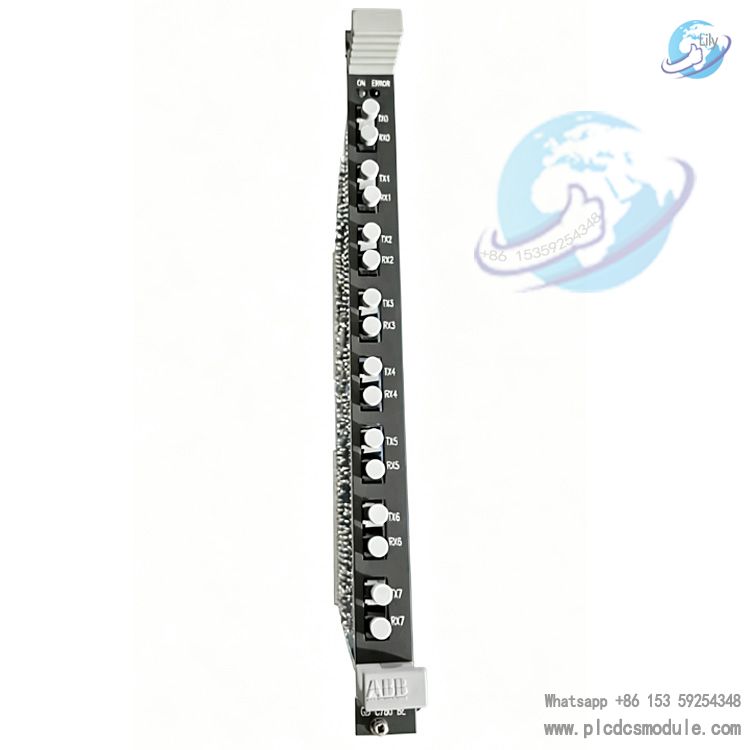

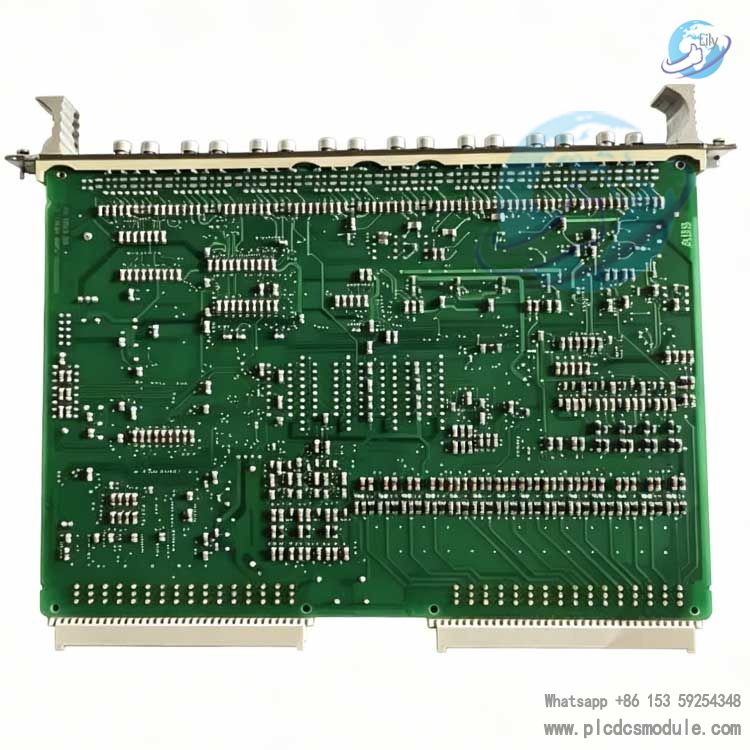

ABB GDC780BE21 3BHE004468R0021 is manufactured in Sweden. It belongs to the GD-series communication I/O control board for ABB Advant OCS distributed control system and acts as the core signal transfer and logic processing card between DCS main control units, field instruments and drive equipment.
Designed as an integrated board combining bus-type I/O interface and local logic control, it integrates four core functions: digital signal acquisition, signal conditioning, fieldbus communication and built-in self-diagnosis. Equipped with 16 DI plus 16 DO channels as standard, it fits all Advant Master controller racks and is widely used in complete control systems for power plant excitation, variable-frequency drives, metallurgical rolling mills and heavy-duty welding machines. It is a mainstream spare part for industrial projects commissioned from the 1990s through 2015.
Rated supply voltage is DC24V; net weight is 0.34kg with dimensions of 20mm×196mm×261mm and IP20 protection rating. The product is certified to CE and UL international industrial safety standards.
Technical Specifications
(1) Hardware Parameters
Power Supply: Standard 24VDC with acceptable operating range from 18VDC to 30VDC; max power consumption: 5W.Memory: 256KB working RAM + 128KB program Flash for local storage of basic PID control parameters.I/O Configuration: 16-channel passive digital inputs (DI, auto-adaptive for NPN/PNP sensors); 16-channel transistor-type digital outputs (DO, max load per channel ≤500mA).Communication Ports: One set of PROFIBUS‑DP terminals and one set of RS485 bus terminals; onboard terminating resistor configurable via DIP switch for enable/disable.Environmental Rating: Storage temperature: -45℃ ~ +75℃; operating humidity: 5%~95% RH non‑condensing.
(2) Functional Features
Local Logic Processing: Integrated micro MCU enables standalone execution of basic interlock and start/stop logic independent of main CPU; critical field points maintain local safety operation during unexpected bus communication failure.Individual Channel Protection: Short-circuit on any single DO channel only shuts down that respective output without disabling the entire card; all remaining I/O channels keep normal operation.Non‑volatile Parameter Storage: Equipped with backup coin cell battery to retain bus address, channel setup and control parameters for minimum 5 years after power loss; configurations auto-load upon power restoration.Excellent Fieldbus CompatibilityNatively supports three mainstream fieldbus protocols including PROFIBUS‑DP, Modbus RTU and CANopen with a maximum single‑channel communication speed up to 12 Mbps. Direct connection to ABB UNITROL excitation systems and ACS series inverters is available without additional adapter modules.
Flexible Address Setting: PROFIBUS-DP station address (range 1~125) set manually via side-mounted DIP switches; no software download required for bus addressing.
Core Advantages
Enhanced Electrical Isolation SafetyAll I/O channels feature 1500 VAC opto‑isolation to eliminate ground loop interference and surge breakdown risks, reliably performing in harsh industrial sites with heavy dust and inverter harmonic distortion.
Rack Hot‑Swap CapabilityHot pluggable on standard Advant U‑rack; individual card replacement can be completed online without system shutdown to effectively cut maintenance downtime.
Stable Performance Over Wide Temperature RangeOperates reliably from -40℃ to +70℃ with I/O acquisition error controlled within ≤0.1% under extreme temperatures, ideal for low‑temperature northern power plants and high‑temperature southern metallurgical workshops.
High Versatility for Legacy Spare PartsAs the primary I/O card of Advant OCS, it is widely equipped on countless operational thermal/hydro power plants and steel mills worldwide. Seamless in‑rack replacement with sibling models GDC780BE11 / BE31 helps reduce spare part replacement cost.
Onboard Built‑in Self‑DiagnosisEquipped with dedicated status LEDs for hardware troubleshooting; individual lamp alerts for abnormal power supply, bus disconnection and channel short-circuit enable quick fault pinpointing for maintenance crews.
Application Scenarios
Power Industry
Applied to UNITROL5000/6000 excitation systems and auxiliary power DCS of thermal & hydropower plants for signal acquisition and interlock output of fans, lube oil pumps and isolating switches.
Metallurgical Industry
Installed in ABB drive cabinets of hot & cold rolling lines to collect limit switch and hydraulic valve feedback signals, and control start/stop of cooling fans and solenoid valves.
Heavy-Duty Welding Equipment
Used in complete electrical control systems of multi-station resistance welders to implement timing sequence and cylinder action logic for ABB dedicated welding control platforms.
Cement & Chemical Production Lines
Deployed in local control cabinets for kiln auxiliaries and ingredient conveyors; acquires level switch and emergency stop signals and controls discharge valves and feed motors.
Marine Electrical Control System
Equipped inside auxiliary machinery DCS cabinets onboard vessels for remote control of bilge pumps and valves, well suited for damp and high-condensation cabin environments.
FAQ
Q: Can GDC780BE11 be directly used to replace GDC780BE21 in the same rack?A: They share the same rack slot dimension, yet differ in total I/O quantity, which requires program modification for tag configuration. Direct replacement is not recommended; prefer same-model BE21 for emergency spare swap.
Q: What is the delivery lead time? Is this model still in original production?A: This part has been discontinued with no ongoing OEM production. Available brand-new units are leftover stock with 3~4 weeks lead time.
Q: What extra accessories are required along with the module purchase?A: Normally PROFIBUS-DP terminal connectors, onboard backup coin batteries and DIN rail fasteners. Backplane connectors are optional spare parts for aged projects.
Q: Power LED is on but communication red LED stays solid ON and bus fails networking after power-up?A: ①Incorrect termination resistor DIP setting; ②Reversed DP A/B wiring; ③Duplicate DP station address with other cards in the rack. Check items sequentially.
Q: Single DO channel has no output while all other channels work fine, how to troubleshoot?A: Internal output power transistor of that channel is damaged (single-point fault). Rewire to spare DO channel temporarily and send faulty card back for repair or replace with spare module directly.
Q: Configuration parameters get lost frequently after 3~5 years of operation?A: Built-in backup coin cell is depleted. Replace with standard 3V coin battery via the side battery compartment and reload all configuration parameters.
Q: Module randomly drops offline under high ambient temperature?A: Install axial cooling fans inside control cabinet to keep cabinet temperature below 65℃. Eliminate harmonic interference from nearby inverters and fit ferrite cores on fieldbus cables.
