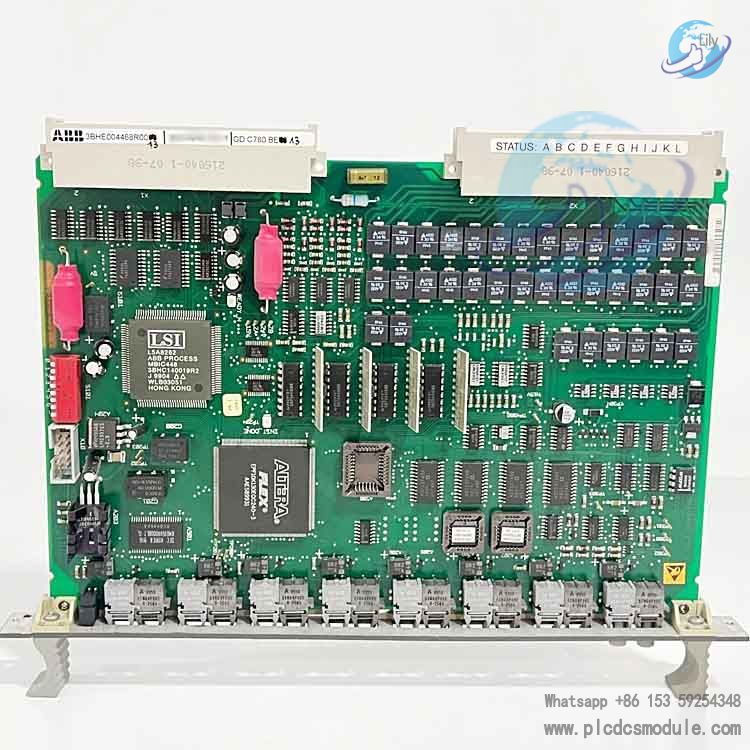

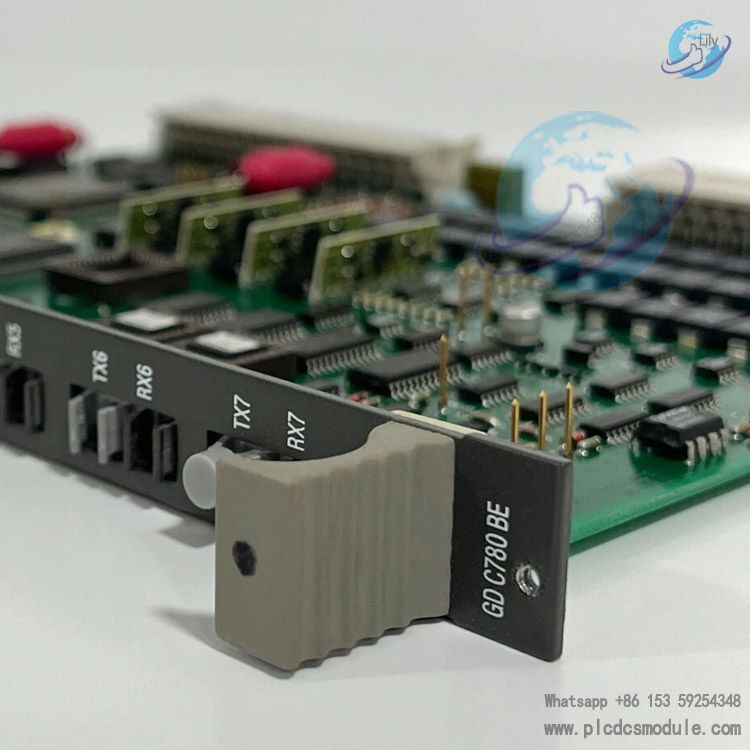

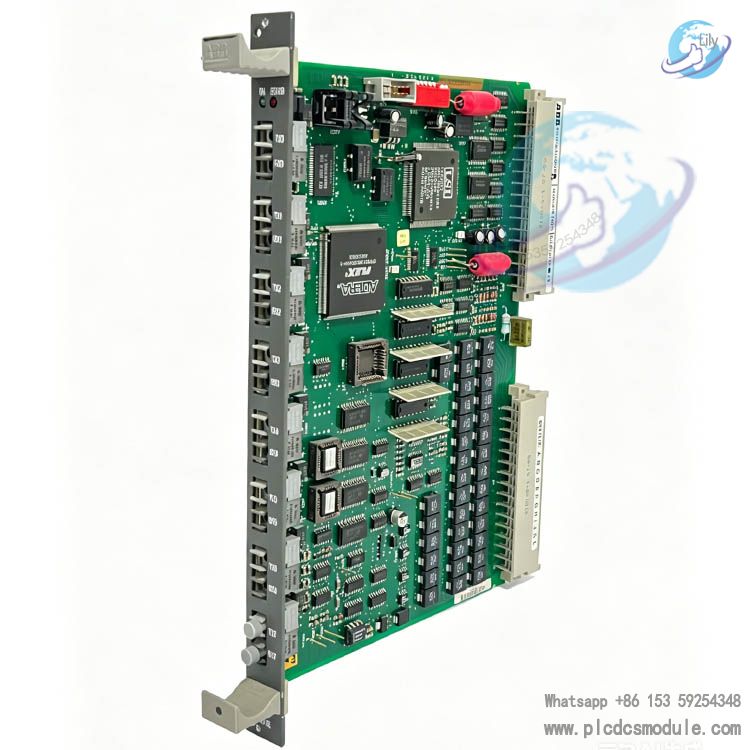

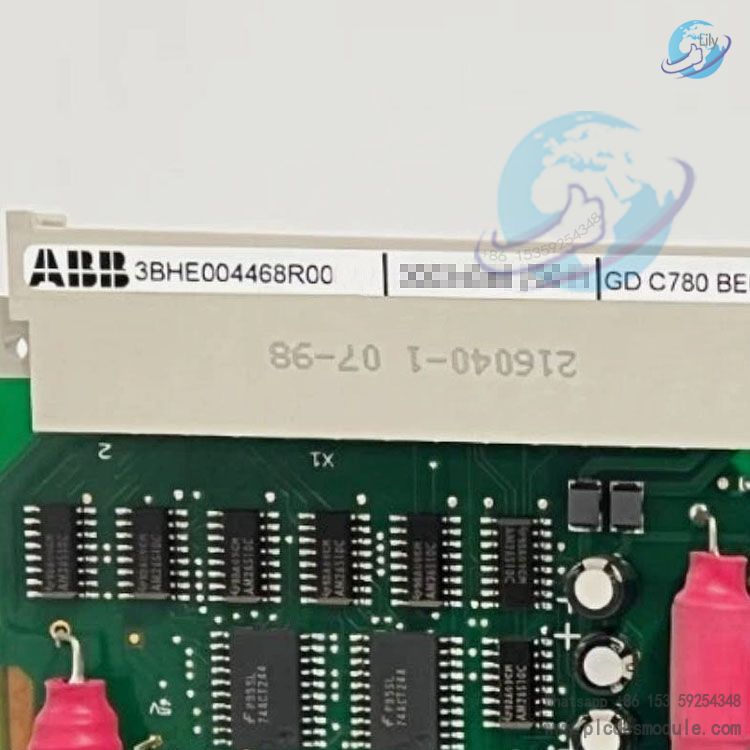

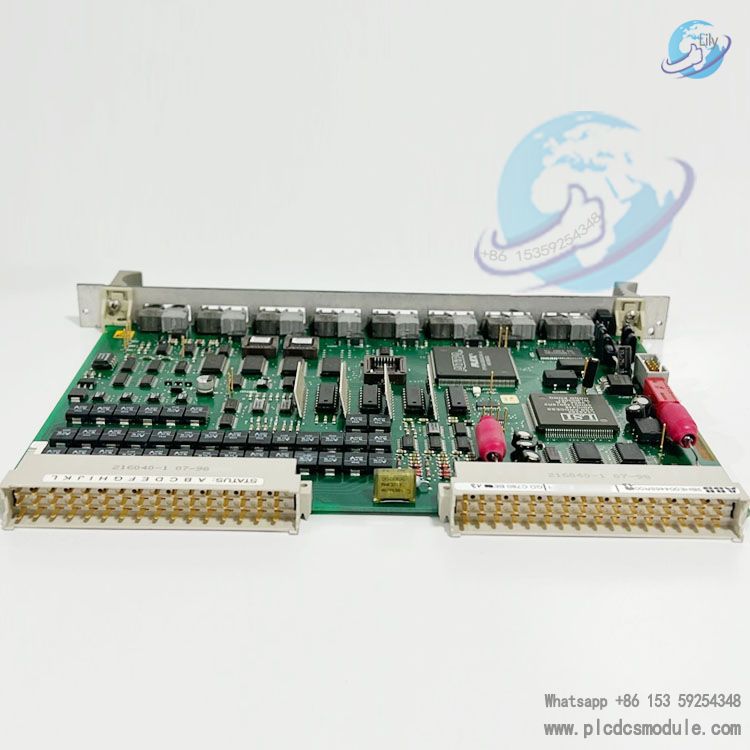

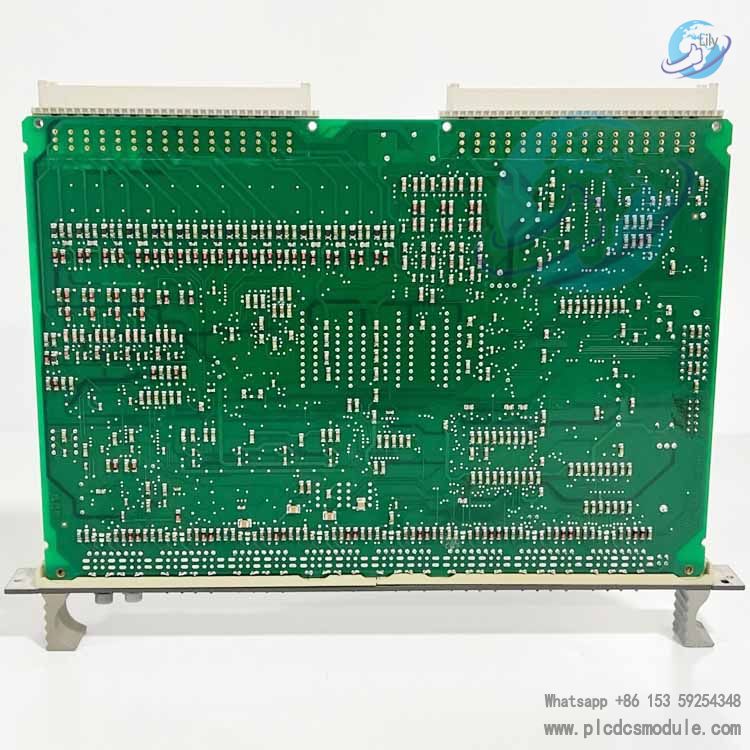

ABB GDC780BE13 3BHE004468R0013 is an original ABB Switzerland signal interface control board exclusively designed for UNITROL5000/UNITROL6000 synchronous generator excitation control systems. Falling under the standardized ABB GDC780 card family, it adopts an in-cabinet backplane plug-in structure and has been officially discontinued by the manufacturer.
This core board undertakes critical tasks including signal acquisition for excitation power units, pulse transmission, fault loop feedback and IGCT component condition monitoring. It serves as the vital intermediate hardware linking the automatic voltage regulator (AVR) and power rectifier bridge. Rated for 24VDC power supply, it natively matches the full lineup of UNITROL master excitation controllers and is standard spare part for excitation systems of thermal and hydro synchronous generating units. Other derivative variants within the same series include GDC780BE21 (3BHE004468R0021) and GDC780BE08.
Manufactured in Switzerland, the product complies with IEC61850 and holds CE & UL industrial safety certifications with IP20 ingress protection for cabinet-mounted installation.
Product Specifications
Electrical Parameters
Power Rating: Rated 24VDC, acceptable operating range 18~30VDC; no-load power consumption ≤32W.Ambient Conditions: Operating temperature: -20℃~+60℃; storage temperature: -40℃~+85℃; relative humidity 5%~95% non-condensing.Physical Dimension: 20mm(Thk) × 196mm(H) × 261mm(D), net weight approx. 0.33kg per piece.Hardware Channels: 8 channels for power unit status acquisition, 4 optical fiber pulse transceivers, 16-point terminal wiring area.
Functional Features
Isolated Pulse Driving & Transfer
Receives low-voltage control pulses from main control board, electrically isolates and forwards pulses to IGCT gate terminals of rectifier bridge. Physically separates strong and weak current loops to prevent high voltage from power side penetrating into master controller and causing component damage.
Power Device Fault Feedback
Collects real-time fault signals of IGCT overcurrent, shoot-through and undervoltage, feeds data back to UNITROL main controller via optical fiber to activate fault interlock and standby channel switchover protection of excitation system.
Auxiliary Cabinet Temperature Monitoring
Built-in NTC thermistor monitors internal temperature of power cabinet and sends over-temperature alarm to upper computer once threshold is exceeded.
DIP Switch Custom Configuration
Side-mounted address DIP switches allow flexible modification of rack slot address. Multiple identical cards can be arbitrarily arranged in different slots to fit excitation cabinets of various power ratings.
Surge Protection Circuit
Input terminals equipped with integrated TVS components to suppress transient grid voltage spikes, reducing card failure risks induced by lightning strike and power grid fluctuation.
Product Advantages
Native System Compatibility
Developed as original ABB matching component, its hardware pin definition and underlying firmware fully comply with UNITROL5000/6000 master excitation controllers. Direct replacement is available without wiring modification or parameter adjustment, eliminating hardware and software incompatibility errors. It is the preferred option for unit technical renovation and spare part replacement.
High-Grade Industrial Components for Superior Stability
The board adopts military-grade SMD components and high-voltage isolation optocouplers, with flame-retardant high-temperature resistant PCB substrate. All products undergo factory aging tests including temperature cycling from -40℃ to +70℃, damp heat and vibration tests to withstand dusty, drastic temperature variation and heavy EMI environments in power plants.
Integrated Built-in Self-Diagnosis
Equipped with onboard fault diagnosis circuitry, it uploads fault codes to the main controller upon abnormality. Combined with UNITROL upper monitoring software, it precisely locates faults such as overcurrent, fiber breakage and loose terminal connection to greatly cut troubleshooting downtime.
Modular Plug-in Structure
Standard Euro-card DIN rail mounting allows hot-swap replacement under derated load (when the unit’s standby excitation channel is online), avoiding unplanned outage of generator sets.
Native Multi-Protocol Compatibility
Dual communication design combining fiber link and backplane parallel bus; natively supports mainstream excitation protocols PROFIBUS-DP and Modbus-RTU for direct connection to central DCS to realize remote data acquisition.
Application Scenarios
Thermal Power Generating Units
Standard fitting for UNITROL5000/6000 excitation cabinets of 30MW~600MW turbo-generator sets, responsible for signal control of rotor excitation rectifier units; it is a mainstream in-service spare part widely used in domestic thermal power plants across China.
Hydraulic Turbine Generating Units
Applied to excitation control systems for small, medium and large hydropower units, suitable for excitation renovation of run-of-river and dam-type hydropower stations.
Captive Power Plants
Spare replacement and excitation system retrofitting for waste-heat turbo-generator units owned by iron & steel, chemical and petrochemical enterprises.
Overseas Power Station Projects
Maintenance spare parts matching original ABB excitation units exported to Southeast Asia, the Middle East and South America.
Retrofit of Legacy Excitation Systems
Component renewal and upgrading for aged circuit boards and domestic transformation of early-generation UNITROL5000 excitation cabinets.
Comparison of GDC Series Modules
| Model | Part No. | Key Differences | Applicable Equipment | Power Supply | Application Scope |
|---|---|---|---|---|---|
| GDC780BE13 | 3BHE004468R0013 | 8 acquisition channels, standard version for regular-power excitation cabinets | Full UNITROL5000/6000 series | DC24V | Conventional generator units of 30~300MW |
| GDC780BE21 | 3BHE004468R0021 | 16 acquisition channels, high-power extended version | High-power UNITROL6000 units | Dual input: DC24V/DC48V | Large-capacity thermal power units above 300MW |
| GDC780BE08 | 3BHE004468R0008 | Compact 6-channel design, economical small excitation variant | Low-power UNITROL5000 | DC24V | Small hydropower & captive power plants below 10MW |
| GDC806A102 | 3BHE028761R0102 | New upgraded driver architecture for latest IGCT drives | ACS6000 medium-voltage drive + latest UNITROL series | DC24V | Integrated sets of modern variable frequency & excitation system |
FAQ
Q: Can GDC780BE13 and GDC780BE21 be directly interchanged?A: Direct interchange is not feasible. BE21 differs in channel quantity and underlying firmware; forced replacement will trigger wrong channel addressing and missing sampling signals from power units. Temporary substitution is available only after program revision and wiring adjustment. Same-model BE13 is recommended for formal replacement.
Q: What auxiliary parts should be purchased together?A: Fiber patch cords and wire crimp terminals are standard accessories. For old card replacement, matching dust-proof gaskets are recommended to prevent dust ingress and moisture inside cabinet after disassembly.
Q: What are common causes of steady red LED fault?A: First check DC24V supply voltage drop, contaminated/broken fiber optic cables, defective IGCT power devices and loose terminal wiring. If above items are normal, internal power IC breakdown is suspected, requiring factory repair or spare replacement.
Q: How to resolve abnormal overheating during routine maintenance?A: Clean filter screens of excitation cabinet monthly and inspect cooling fan operation. Remove dust on PCB surface with anhydrous alcohol. Install axial cooling fans if ambient cabinet temperature exceeds 55℃.
Q: Is hot-swap permissible while the generator is online?A: Hot swapping is allowed only under dual-redundant or standby-channel loaded operation. For single-channel excitation units, reduce load, shut down equipment and cut off power before replacement to avoid field collapse and generator trip.
