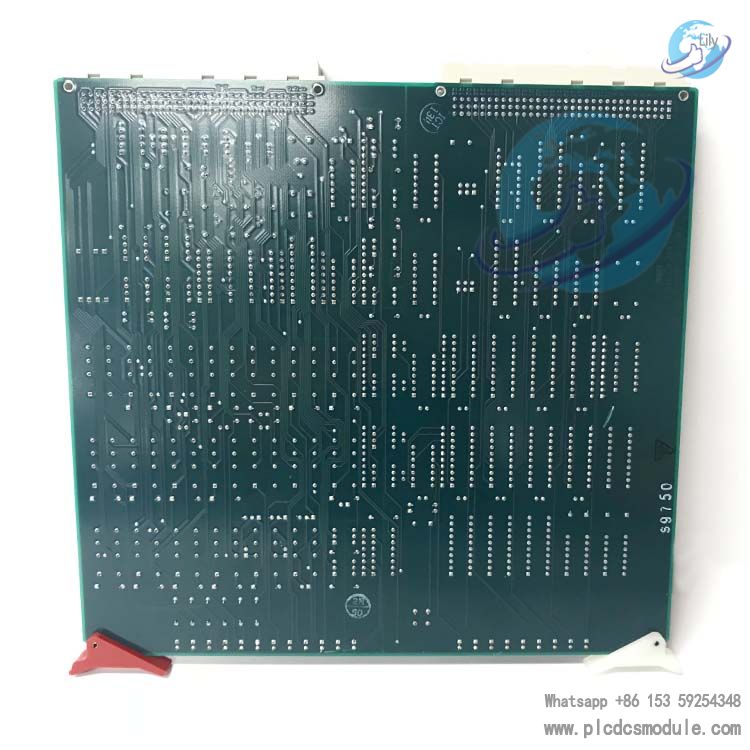

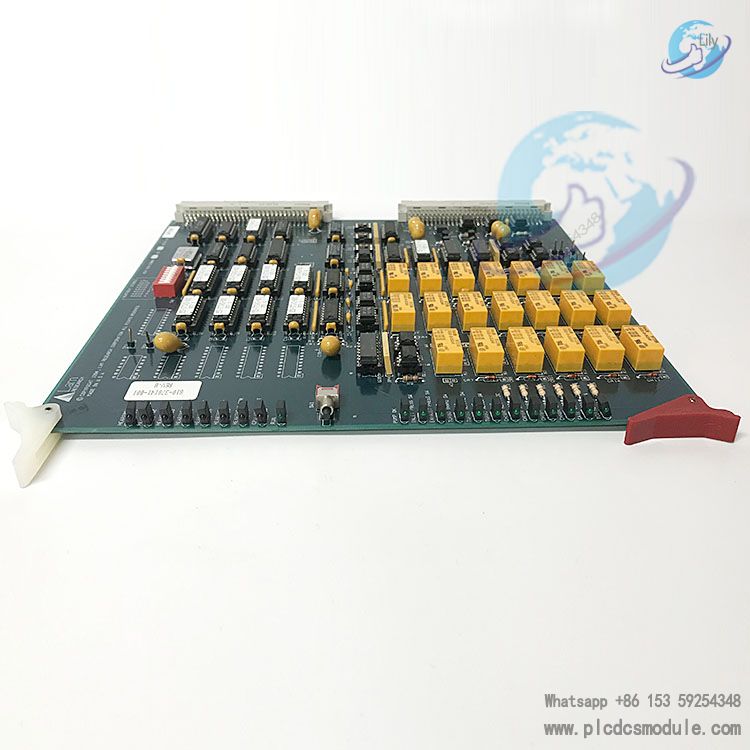

Lam Research 810‑370141‑00 ASSY PCB Board | Etcher System Control PCB
1. Product Overview
810‑370141‑00 ASSY PCB board belongs to the internal assembled printed circuit board of Lam Research semiconductor equipment, serving as a key board card component in the etching process equipment control system. The 810‑370141‑00 undertakes multi-channel internal signal acquisition, relay loop switching, status feedback and data interaction between subsystems of the equipment. It is adapted to the installation of specific machine chassis slots, receives control commands issued by the host, and returns real-time status signals of cavities, gas circuits and safety interlock points.
This PCB assembly ensures a complete and reliable overall machine control link during wafer processing. It is frequently used in production line equipment spare parts replacement and faulty board replacement scenarios, directly affecting the throughput performance of semiconductor machines.
2. Technical Specifications

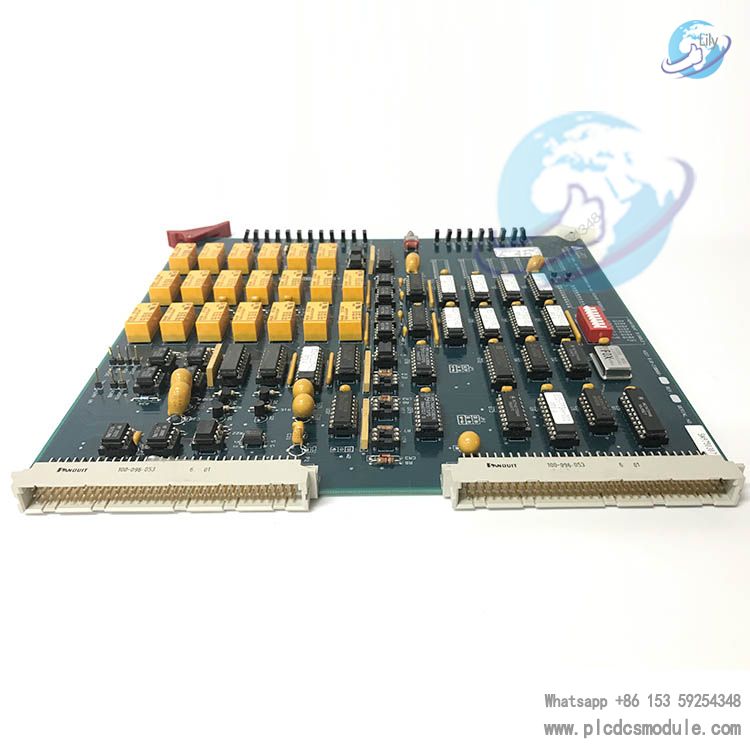

The 810‑370141‑00 adopts a standard European card plug-in PCB structure, equipped with multi-channel relay arrays, digital logic chips and filter components, as well as dual-port European connector interfaces, fully compatible with standard equipment VME chassis slots.
- Power Supply: DC power supplied by equipment backplane, typical +5V, +12V loop input
- Working Environment: Semiconductor clean workshop; working temperature 0‑60℃; humidity range 10‑80% RH (non-condensing)
- Signal Type: Digital DI/DO switch signals, multi-channel relay dry contact output for loop on-off switching
- Communication Method: Signal interaction between board card and main control unit via chassis backplane bus
- Mechanical Features: Chassis plug-in specification with industrial chassis dedicated handle, supporting hot-swap maintenance
Version Note: Multiple REV hardware revision versions available; different versions of 810‑370141‑00 cannot be mixed arbitrarily. Machine BOM list verification is mandatory before replacement
3. Core Functional Advantages
The 810‑370141‑00 ASSY PCB board integrates high-performance industrial control design, optimizing the stability and maintainability of semiconductor etching equipment control systems:
- Integrated Loop Control: Integrates multi-channel relay output loops to centrally complete on-board interlock, solenoid valve and auxiliary actuator on-off control, reducing scattered internal wiring and lowering circuit failure rates
- Strong Anti-interference Capability: Built-in multi-stage filter circuits to resist RF and electromagnetic interference in semiconductor workshops, improving signal acquisition stability and avoiding false trigger alarms
- Fast Maintenance & Replacement: Modular plug-in structure supports direct full-card replacement after failures, greatly shortening production line equipment downtime and maintenance cycles
- Full System Compatibility: Strictly matches the hardware bus protocol of corresponding Lam Research machines. Signal timing and level thresholds are fully adapted to the overall control system without additional program parameter modification
24/7 Industrial Durability: Components are selected for 7×24-hour continuous factory operation, capable of withstanding load shocks from frequent loop switching, meeting high-throughput operation requirements of FAB factories
4. Product Characteristics
- Adopts multi-layer PCB substrate wiring, with isolated analog and digital signal wiring areas to reduce crosstalk interference

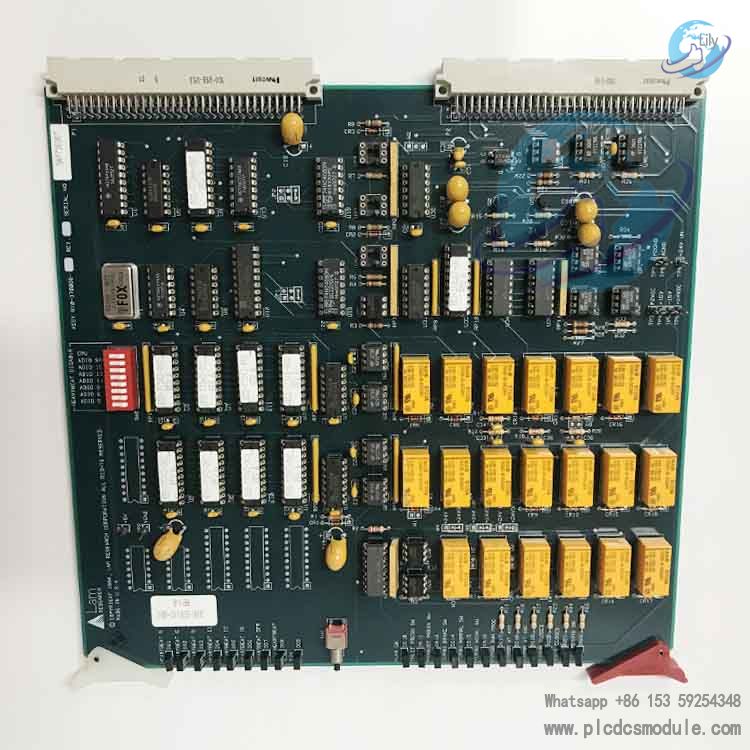

- Equipped with a large number of industrial sealed relays on the board for safety loop and gas circuit control point switching
- Clear board printing and complete point markings, facilitating on-site engineers’ fault inspection and troubleshooting

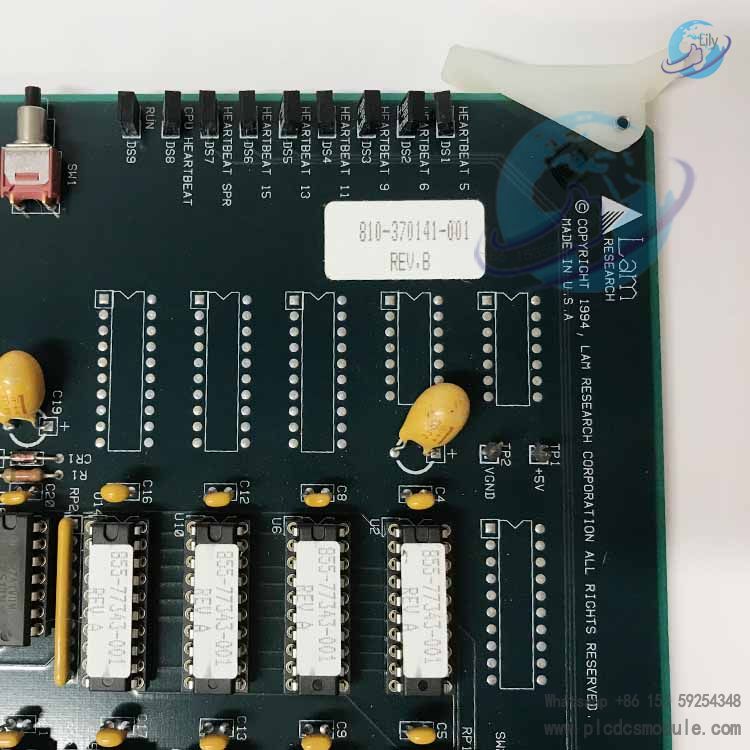

- REV hardware revision is directly printed on the board label for quick version verification during spare part selection
- Complete assembly including PCB substrate, welded components, connectors and positioning hardware handles, not a bare PCB substrate
- High dependence on machine BOM versions; mismatched versions will cause communication exceptions and interlock errors during replacement
5. Application Fields
The 810‑370141‑00 ASSY PCB board is professionally applied to wafer manufacturing semiconductor factories, compatible with Lam Research dry etching series equipment, covering 200mm and 300mm wafer processing machines.
Applicable Processes: Polysilicon etching, dielectric etching, metal etching, photoresist ashing treatment
Downstream Scenarios: Logic chip manufacturing, NAND memory chip production, MEMS device processing, power semiconductor wafer processing
Usage Scenarios: Daily spare parts replacement, faulty board replacement, equipment disassembly maintenance, and second-hand equipment renovation projects in FAB production lines
6. Working Principle
The 810‑370141‑00 ASSY PCB board is inserted into the VME chassis slot of the equipment, with power supply and bus docking completed by the chassis backplane. The equipment main control unit issues control commands to the board card through the backplane bus. The internal logic chip of the board parses the commands and drives the corresponding relay array to complete loop connection or disconnection, so as to control external devices such as solenoid valves and safety interlock loops.
Meanwhile, the board continuously collects status signals from various on-site sensors and limit switches, converts them into bus signals and feeds them back to the equipment main control system. When interlock conditions are not met or loop abnormalities occur, the board immediately reports fault status, and the machine triggers shutdown protection to avoid process accidents, realizing a closed loop of control command issuance, on-site status collection and abnormal status reporting.
7. Product Comparison
Belonging to the Lam Research 810-prefix PCB board series, different part numbers have obvious differences in hardware layout, relay channel quantity and bus logic:
- 810‑370141‑00 focuses on multi-channel relay switch quantity control, mainly responsible for interlock and peripheral loop switching
- Other boards in the same series focus on analog quantity acquisition for temperature and pressure analog signal conversion, while some are dedicated to RF monitoring and gas panel signal processing
- All adopt European plug-in hardware appearance with high similarity, but cannot be directly interchanged due to different on-board component configurations
- REV revision versions have fine-tuned component layouts and resistance-capacitance parameters; old-version hardware cannot be directly used on high-version BOM machines, otherwise startup failures and alarms will occur
- Compared with discrete wiring solutions, 810‑370141‑00 integrated PCB assembly simplifies overall machine wiring and greatly improves fault positioning efficiency
8. Supporting Products
This PCB board is installed in the supporting equipment VME chassis, and the key matching components are as follows (version matching is mandatory):
- Complete Equipment: Lam Research TCP9400, Lam Research 2300 series etching equipment
- Chassis Backplane: 810‑0170xx‑0xx series VME backplane
- Main Control CPU Board: 810‑017031‑004 ADIO PCB Board
- Power Module: 810‑063892‑001 chassis power filter assembly
- Interconnection Cables: Internal multi-core interlock wiring and cavity status acquisition cables
Note: The 810‑370141‑00 board must match the versions of the above supporting boards and backplanes. Single board version correctness cannot avoid communication errors caused by mismatched auxiliary components.
9. Our Supply Advantages
- Support cycle ordering for 810‑370141‑00 ASSY PCB board
- Proficient in Lam Research board version differences, assisting customers in verifying machine BOM and confirming REV versions to avoid on-site use failures caused by version mismatch
- Support small-batch spare parts orders for semiconductor projects, serving domestic and foreign customers
- Global multi-region logistics channels, supporting urgent delivery for emergency shutdown maintenance
10. FAQ
Q1: Can 810‑370141‑00 directly replace board cards of different REV versions?
A: No. REV hardware revisions involve adjustments of component parameters and operating logic. Machine BOM list verification is required before replacement. Version mismatch will cause interlock errors and board communication failures.
Q2: What machine alarms will be triggered by faulty 810‑370141‑00 boards?
A: Common faults include interlock loop errors, DO output no response, partial solenoid valve inaction, and abnormal point status reading by the main controller, which may trigger machine process startup prohibition in severe cases.
Q3: Does the 810‑370141‑00 PCB support hot-swap?
A: The hardware structure supports chassis hot-swap. However, per semiconductor production line specifications, it is recommended to power off the chassis partition before plugging and unplugging to prevent backplane surge voltage from damaging board chips.
Q4: What information is required for purchasing 810‑370141‑00?
A: Provide the complete part number 810‑370141‑00, board REV revision version, corresponding machine model and machine BOM fragments to confirm compatibility.
Q5: What inspections should be performed before installing new spare parts?
A: First verify the label part number and REV version, conduct static relay on-off testing. If conditions permit, perform chassis power-on simulation testing to confirm all channels work normally before installing on production machines.
Q6: What wafer size machines is 810‑370141‑00 applicable to?
A: Compatible with 200mm and 300mm Lam Research dry etching equipment. The final compatibility judgment shall be subject to the machine BOM list.
Q7: What is the general delivery cycle?
A: In-stock products can be delivered quickly; out-of-stock products require transfer and ordering with real-time inventory cycle confirmation. Priority ordering is available for emergency maintenance projects.
