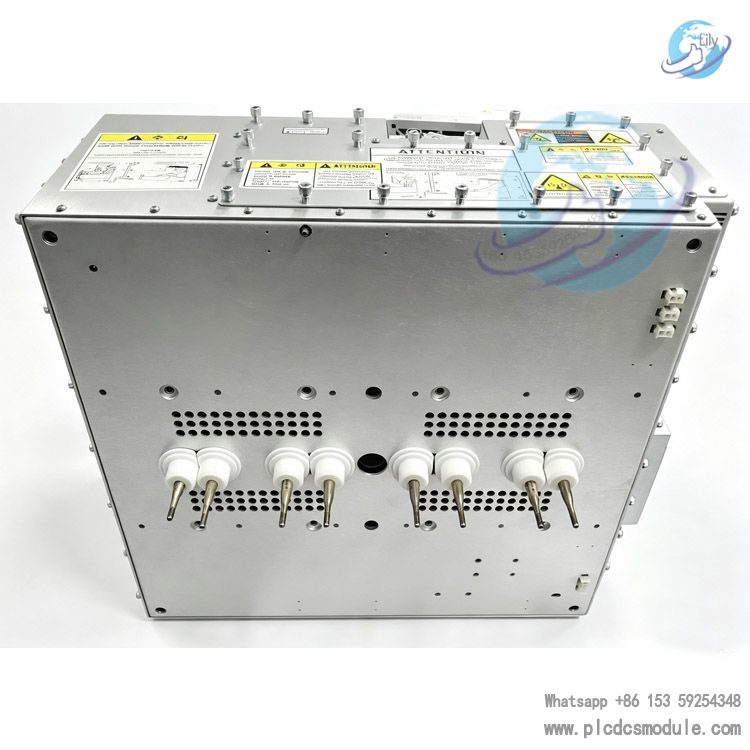

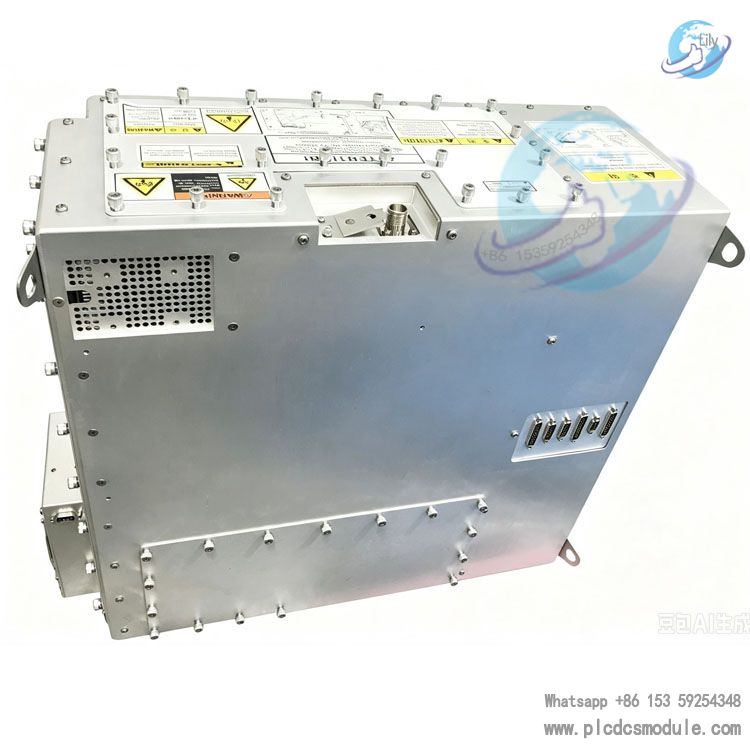

Lam Research 853-043759-006 RF Matcher
Overview
The 853‑043759‑006 is an RF Matcher (RF Matching Network) dedicated for Lam Research TCP etch equipment. Designed for TCP (Transformer Coupled Plasma) high‑density inductively‑coupled plasma etch chambers, it serves as a core RF accessory component for plasma etching systems.
RF power supplies feature a standard output impedance of 50 Ω, whereas the load impedance of the plasma chamber varies dynamically with process gas, pressure and power. This matcher adjusts the LC resonant network in real‑time to convert the dynamic chamber load impedance to 50 Ω. It minimizes RF reflected power, stabilizes plasma discharge, improves RF power transfer efficiency, and ensures repeatable etching processes as well as high wafer processing yield.
This unit is Revision A, an early hardware revision within the 853‑043759 product family. Derivative part numbers in the same family include 853‑043759‑004, ‑021, ‑218, ‑401, etc. Suffix variations denote hardware revisions, interface configurations and power‑rating differences, and these units are not directly interchangeable.
Core Technical Features
TCP Plasma System Compatibility
Developed specifically for Lam TCP9400 and TCP9600 series 200 mm polysilicon and dielectric etchers. It provides impedance matching for inductively‑coupled plasma coils and adapts to operating conditions of high‑density plasma etching processes.
Automatic Impedance Tuning Network
Built‑in servo‑driven vacuum variable capacitors and power inductors form a π‑type LC matching network. Upon commands from the equipment controller, it automatically optimizes impedance, rapidly offsets dynamic impedance drift of plasma loads, lowers VSWR (Voltage Standing Wave Ratio), and reduces RF power reflection loss.
Integrated Sealed Metal Enclosure
The fully‑metal shielded housing delivers RF electromagnetic shielding. Internally integrated temperature monitoring and status feedback sensors support over‑power and over‑temperature fault detection and reporting, feeding matcher operating status and fault alarms to the host system.
Equipment Bus Communication Interface
Communicates with the Lam tool host controller to receive process parameter commands, and reads back real‑time data including matching position, reflected power and temperature. It is integrated into the tool‑level process interlock logic.
Application Scenarios
- Lam Research TCP9400 / TCP9600 series 8‑inch (200 mm) dry etching equipment
- Process chambers for polysilicon etching, silicon oxide / silicon nitride dielectric etching, and thin‑film etching
- Semiconductor wafer manufacturing; spare‑parts for semiconductor process equipment in universities and research institutes; refurbished‑tool retrofitting projects

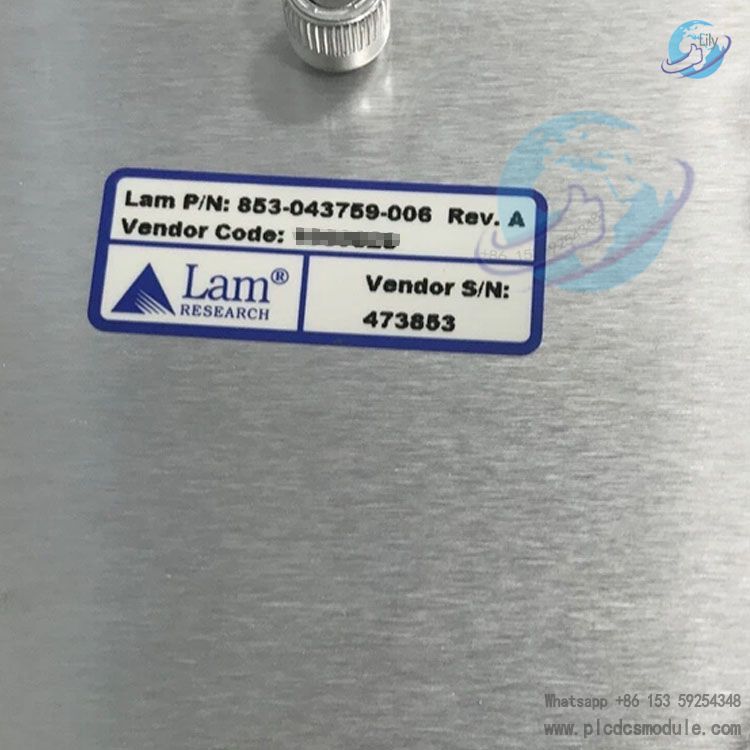

Key Nameplate Information
| Item | Content |
|---|---|
| Lam P/N | 853‑043759‑006 |
| Revision | Rev. A |
| Vendor S/N | 473853 |
| Product Type | RF Matcher / RF Matching Network |
Maintenance & Spare‑part Notes
This part is the OEM‑matching component for the tool. Public‑release datasheets from the original manufacturer are not available for external distribution; technical documents are contained within the tool‑level service manuals.
Rev.A is an early hardware revision. Key maintenance focus includes servo drive motor, vacuum variable capacitor, RF connectors and temperature‑sensor circuit. Non‑professional disassembly inside the RF chamber is strictly prohibited.
When replacing with spare units, the full part‑number suffix as well as Rev revision must be strictly verified. Parts with different suffixes within the same family (‑004, ‑021, ‑401) differ in hardware and firmware. Direct replacement will result in matching abnormalities and process errors.
FAQ
Q: What are the main failure symptoms of the 853‑043759‑006 matcher?A: High RF reflected power, matching‑search timeout alarms, unstable process plasma, and matcher overtemperature alarms. These issues are mostly caused by aged vacuum capacitors, stuck servo mechanisms, and oxidized RF connectors.
Q: Can 853‑043759‑401 be used as a direct replacement for ‑006?A: No. The ‑401 is a later upgraded revision with different hardware interfaces and firmware logic. Direct replacement triggers tool errors. Tool software version verification and adaptation modification are required.
Q: Can this matcher be substituted by an external generic RF matcher?A: Not recommended. This component is deeply tied to Lam TCP tool control logic. Beyond the hardware LC network, it implements status acquisition and equipment‑interaction protocols. Third‑party generic matchers cannot support tool interlock and process‑control functions.
