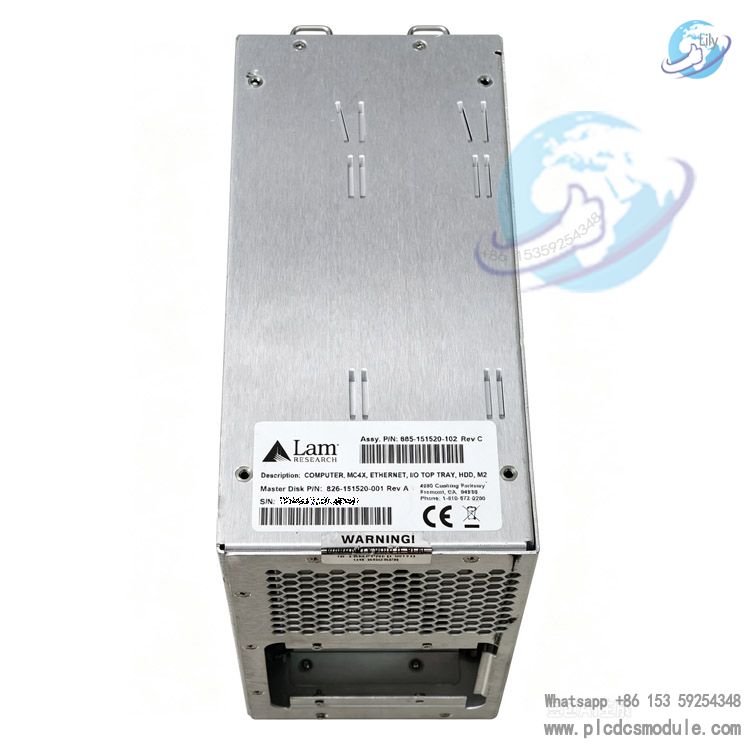

Lam Research 685‑151520‑102 MC4 Controller
Product Introduction
The 685‑151520‑102 MC4 Controller, also designated as MC4X Controller, is a built‑in industrial control computing unit for Lam Research semiconductor equipment. It integrates an I/O tray, hard‑disk storage and multi‑port communication interfaces. It handles overall process scheduling, hardware signal acquisition and equipment status management for etch tools.
Model 685‑151520‑102 is responsible for internal command distribution, sensor data aggregation and human‑machine‑interface data forwarding. As a core control hardware for Lam Research process equipment, it guarantees stable and continuous wafer‑processing workflows. Spare‑part replacement of this unit directly impacts semiconductor production‑line downtime.
Technical Specifications
Unit Weight: 2.85 kg
Mounting: Rack‑mount tray‑style structure

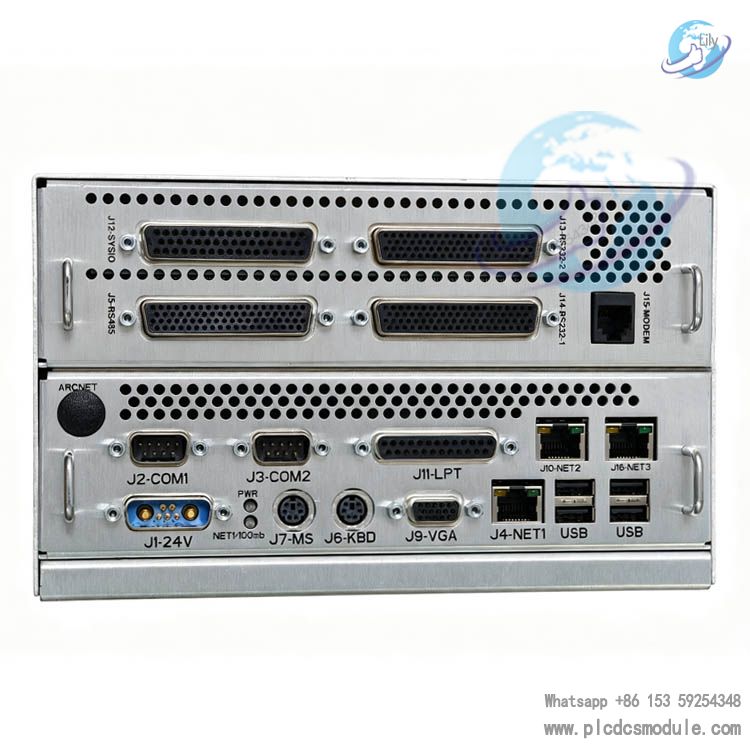

Interfaces: Multiple COM serial ports, LPT port, VGA video port, multi‑group USB ports, dual Ethernet ports, high‑density I/O signal slot

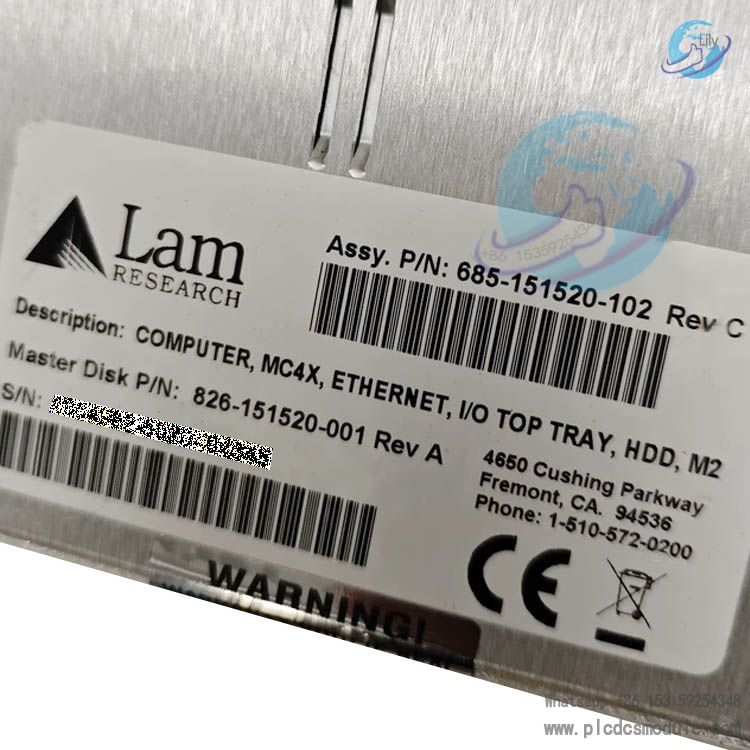

On‑board Storage: Matched HDD assembly, part number 826‑151520‑001 Rev A
Power Input: 24 VDC
Operating Environment: Installed inside semiconductor equipment cabinet; operating temperature 0‑55 °C; non‑condensing humidity
Hardware Form: TOP TRAY integrated controller chassis, metal enclosure, built‑in cooling fan
Core Advantages
The 685‑151520‑102 MC4 Controller performs local process‑logic computation without relying on external host computers for basic sequence control.
Multi‑protocol interface compatibility enables serial‑port, Ethernet and I/O‑slot connections to internal sub‑modules, reducing intermediate adapter boards.
Local hard‑disk storage preserves process recipes, runtime logs and fault records, allowing engineers to retrieve historical data for troubleshooting.
Integrated metal‑tray construction supports easy installation and removal. Full‑unit pull‑out replacement shortens maintenance‑related equipment downtime.
Comprehensive hardware‑status reporting forwards board‑level and communication‑link fault alerts to the equipment operator interface for fast issue diagnosis.
Product Features
The 685‑151520‑102 belongs to the MC4X series integrated control assembly. It is not a standalone PCB board. The complete chassis contains computing hardware, storage assembly and I/O‑interface backplane.
All connectors are front‑facing, permitting cabinet‑side debugging and wiring without chassis disassembly.
Built‑in cooling air duct supports long‑term continuous operation inside semiconductor equipment cabinets.
Firmware is deeply bound to the low‑level software of Lam Research etch systems; generic industrial computers cannot serve as drop‑in replacements.
Hot‑swap‑capable tray design enables maintenance without extensive cabinet teardown.
Application Fields
Primarily deployed on Lam Research plasma etch tools within semiconductor wafer fabs.
Use‑cases include logic‑chip and memory‑chip wafer etch processes, process‑chamber control and system‑wide signal management.
Typical deployments cover spare‑part swap‑outs, faulty‑unit replacement and equipment‑upgrade projects.
Compatible with sub‑system‑control requirements of the 2300‑series etcher platform.
Product Comparison
Variants within the MC4‑controller family differ mainly in hard‑disk configuration, Ethernet‑port quantity and hardware‑revision level.
685‑151520‑102 is the MC4X version equipped with HDD. Lower‑spec family members ship without internal storage and require external drives, increasing deployment complexity.
Higher‑revision units feature minor interface‑layout adjustments and updated firmware. They offer downward compatibility but cannot be cross‑platform substituted arbitrarily.
Compared with discrete Lam Research controller boards, the 685‑151520‑102 is a high‑integration tray assembly. Full‑unit replacement eliminates multi‑board swapping and cuts commissioning workload. Discrete‑board solutions suit partial‑component repairs; complete tray assemblies prioritize fast production‑line recovery after severe failures.
Compatible Accessories
826‑151520‑001: MC4X internal HDD unit for 685‑151520‑102 chassis storage
778‑900046‑403: Equipment I/O signal interface board, mates with MC4‑Controller I/O slot
685‑092593‑001: Robot controller, communicates with 685‑151520‑102 via serial port
810‑031325‑006: Local expansion control unit, Ethernet‑connected to MC4X controller
FAQ
Q: Can the 685‑151520‑102 be directly substituted with a standard industrial PC?
A: No. Its firmware and low‑level software are tightly coupled to Lam Research equipment. Generic industrial PCs lack matched low‑level drivers and cannot interface with process subsystems.
Q: What key information is required when purchasing 685‑151520‑102?
A: Confirm the full equipment model, equipment software revision and complete controller‑part‑number revision to avoid mismatches and on‑tool errors.
Q: What pre‑installation inspections should be performed after receiving the 685‑151520‑102 spare unit?
A: Inspect connector pins for bending or damage, verify HDD integrity, cross‑check part‑number labels, and confirm 24 VDC power‑supply specifications before power‑on.
Q: If the hard disk of 685‑151520‑102 fails, can I install a generic off‑the‑shelf HDD?
A: Installing a standard consumer‑grade HDD is not recommended. The original drive stores pre‑loaded process firmware and configuration files; generic disks with standard OS images will not function properly.
Q: What are common root‑causes for Ethernet‑port communication failures on 685‑151520‑102?
A: Physical port damage, poor backplane contact, or firmware‑version incompatibility. First verify proper tray seating, then validate software‑revision compatibility.
Q: What is the typical lead time? Is stock available?
A: This is an end‑of‑life semiconductor spare part. On‑hand inventory is limited. If out‑of‑stock, overseas sourcing is required; lead time fluctuates with supply availability. Confirm stock status prior to order placement.
Q: Can 685‑151520‑102 be directly swapped with other MC4‑series part numbers?
A: Direct swap‑out is not allowed. Hardware‑revision level and storage configuration must match. Some part‑numbers share identical mechanical form‑factors but run different firmware, triggering hardware‑mismatch alarms upon installation.
Related Lam‑Research Part‑Number Recommendations
685‑151520‑102 ‑ MC4X Controller
685‑151520‑101 ‑ MC4 Controller Unit
853‑064887‑402 ‑ Semiconductor Controller
685‑092593‑001 ‑ Robot Controller
810‑031325‑006 ‑ Control Unit
778‑900046‑403 ‑ I/O Interface Board
853‑800749‑009 ‑ Process Controller
826‑151520‑001 ‑ MC4X Internal HDD
810‑046015‑009 ‑ VOIP Phase III PCB
670‑091765‑080 ‑ Circuit Breaker Module
660‑060191‑001 ‑ SPM‑5 Power Supply
684‑090023‑024 ‑ CA MOD Card
715‑011531‑009 ‑ Process Electrode
515‑012168‑008 ‑ Sensor Assembly
666‑033100‑005 ‑ 12‑Channel Temperature Controller
Important Notes
Avoid impact and heavy vibration during handling; the internal hard disk is vibration‑sensitive.
Verify supply voltage before installation. Incorrect input voltage will permanently damage the 685‑151520‑102 hardware.
Perform tray insertion‑removal only with cabinet power disconnected. Handle connectors carefully to prevent bent pins.
Never flash non‑matching firmware revisions; incorrect firmware renders the unit unbootable.
Store spare assemblies in low‑humidity, low‑dust conditions. Semiconductor spare parts demand strict storage‑environment controls.
