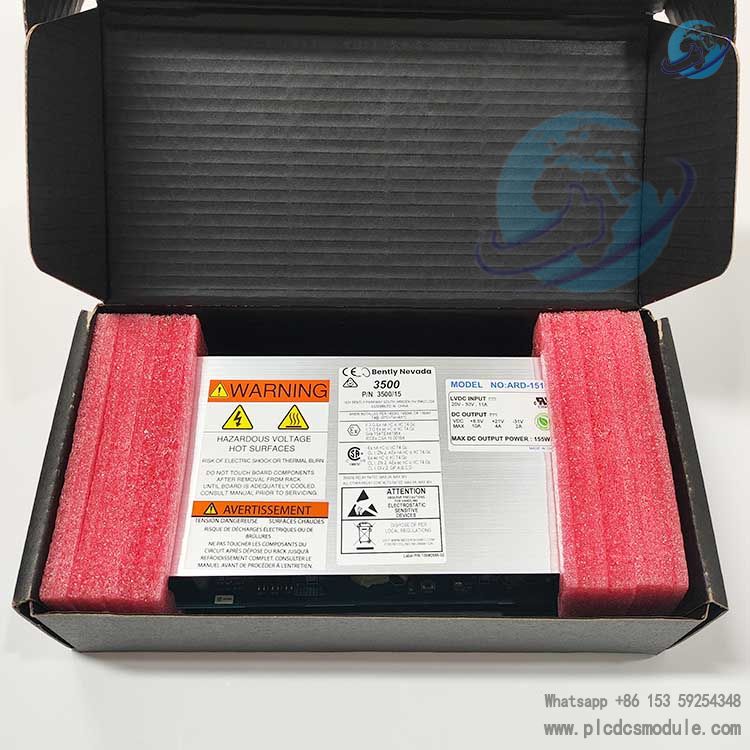

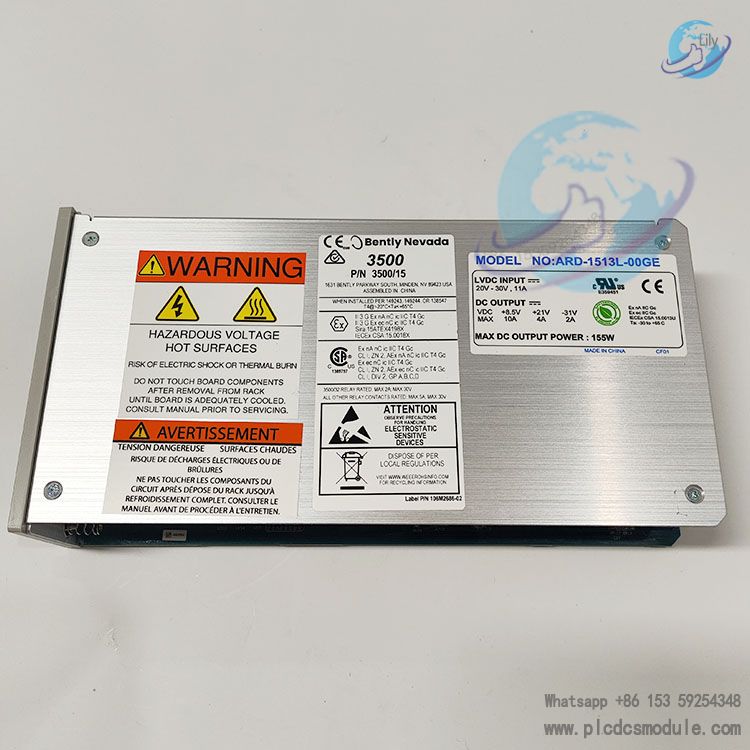

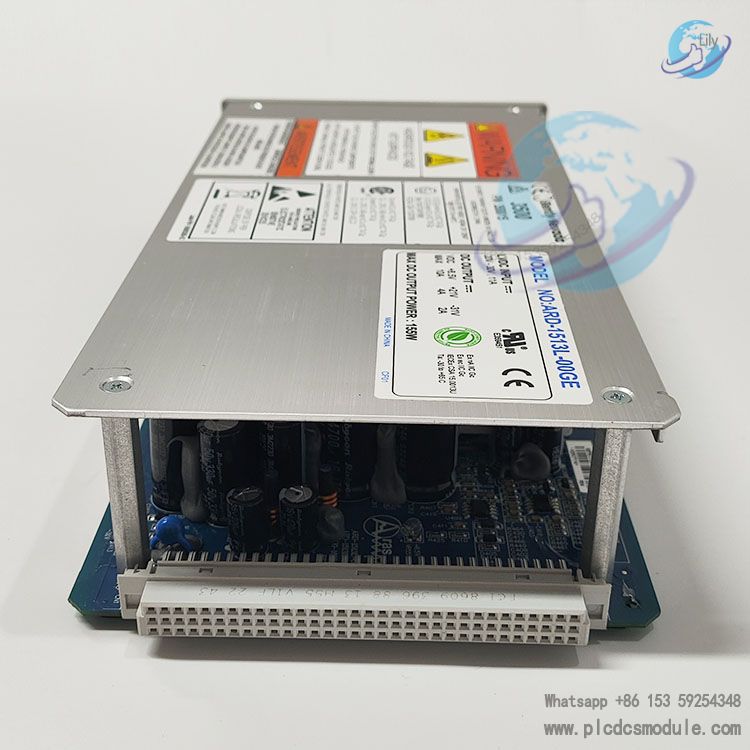

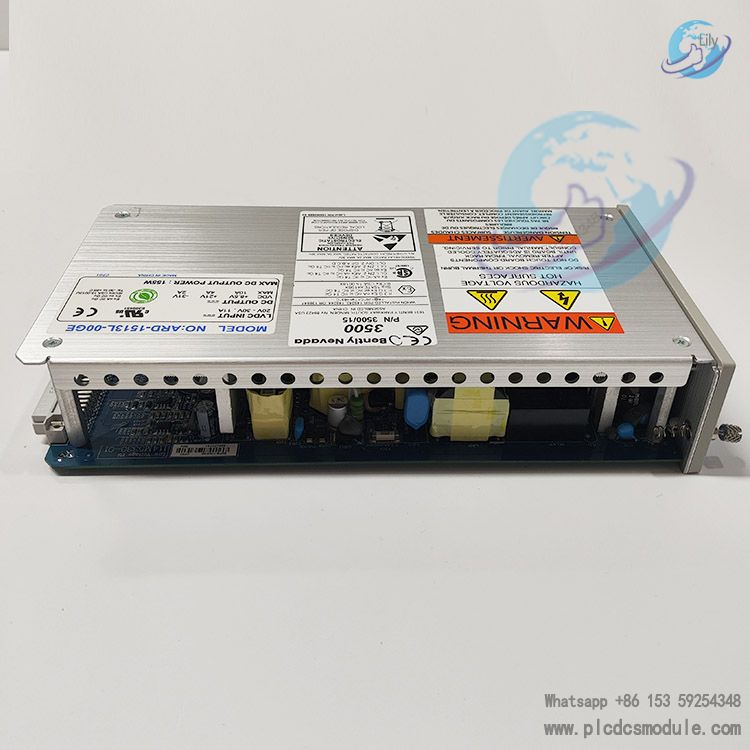

Product Model: 114M5330‑01 | 3500/15 Low Voltage DC Power Supply Module
1. Product Overview
Part Number: 114M5330‑01
Model: 3500/15 Low Voltage DC Power Supply Module
Brand: Bently Nevada (Baker Hughes)
Product Type: Half‑height rack power supply module designed exclusively for the Bently Nevada 3500 series machinery protection and vibration monitoring systems. It provides stable and continuous power to all rack I/O cards, serving as the core power unit for industrial TSI (Turbine Supervisory Instrumentation) racks.
2. Technical Specifications
DC Input Voltage: 20~30 VDC (standard 24V industrial DC power system)
Max Output Power: 120W, fully supports full‑populated 3500 rack operation
Mounting Location: Dedicated left‑side power slot of the 3500 rack; supports dual redundant power configuration (lower slot = primary, upper slot = backup)
Hot‑Swap Support: Full hot‑pluggable design. Module replacement does not interrupt rack operation or machinery protection functions, enabling non‑stop maintenance.
Operating Temperature: 0℃ ~ +55℃ (standard industrial operating range)
Physical Dimensions & Weight: 51 × 252 × 120 mm, approx. 1.14 kg
3. Key Features
Redundant Fault‑Tolerant Operation: Supports single‑module independent operation or dual‑module redundant backup. Automatic primary/backup switching ensures zero system downtime and no protection trip caused by single power supply failure.
Non‑Stop Hot‑Swap Maintenance: Ideal for continuous‑process industries including power generation, petrochemical, and oil & gas. Technicians can replace faulty modules online without unit shutdown or system power‑off.
Built‑In Electrical Protection: Integrated over‑voltage, over‑current, and under‑voltage protection circuits. Under‑voltage conditions will not damage the module, providing strong tolerance to unstable field power.

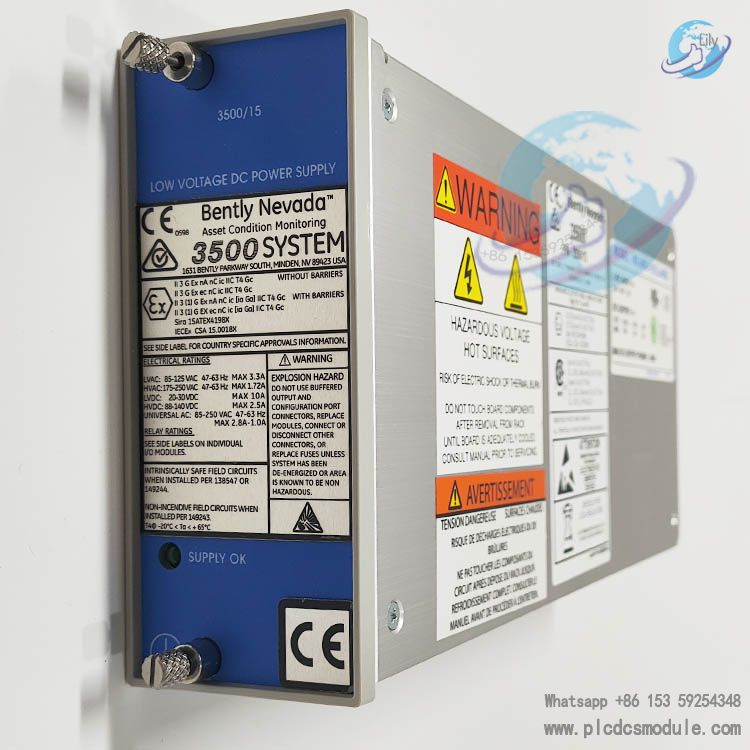

Visual Status Indication: Equipped with a front‑panel SUPPLY OK LED for real‑time operational status monitoring, enabling fast on‑site inspection and fault diagnosis.
4. Compatibility & Critical Restrictions
The 114M5330‑01 low‑voltage DC power supply must be used with a dedicated low‑voltage DC PIM module. Do not mix with high‑voltage DC PIM, AC PIM, or legacy PIM versions. Mismatched PIM hardware causes power failure, system alarms, and permanent hardware damage.
5. Application Scenarios
Widely deployed in TSI protection systems for rotating equipment including steam turbines, centrifugal compressors, industrial blowers, and large pump units. Common industries: thermal power, petroleum, chemical processing, and oil & gas storage. This module is the preferred power solution for field cabinets with only 24VDC power availability.
6. Matching & Compatible Part Numbers
Mandatory Matching Part (Only Compatible Partner)
114M5330‑01 power supply requires 114M5335‑01 (Low Voltage DC PIM Module)
Function: The DC PIM provides 24VDC filtering, isolation, and terminal conversion for stable power input to the rack power module.
Compatible Rack System
Bently Nevada 3500 Standard TSI Rack (half‑height dedicated power slots)
Allowable Redundant Hybrid Configuration
114M5330‑01 (DC) can work with 106M1079‑01 (Universal AC Power) for AC+DC hybrid redundant power backup, maximizing system reliability with dual power sources (mains + battery UPS).
Strictly Incompatible Parts (Forbidden Mix)
Do not use with 115M7750‑01 (HV DC PIM), 106M1081‑01 (AC PIM), or any legacy PIM models. Also incompatible with 114M5329‑01 high‑voltage DC power assemblies due to hardware and firmware differences.
7. 3500/15 Full Series Power Supply Selection Chart (Current Generation)
All 3500/15 power modules are half‑height, hot‑swappable, left‑slot dedicated power units supporting hybrid AC/DC redundancy.
Part Number | Power Type | Input Voltage Range | Matching PIM | Typical Application
114M5330‑01 | Low Voltage DC (LV‑DC) | 20~30VDC (24V industrial DC) | 114M5335‑01 | Plant 24V DC system, battery backup, DC UPS cabinet power
114M5329‑01 | High Voltage DC (HV‑DC) | 88~140VDC | 115M7750‑01 | Power station 110VDC control loop, high‑voltage DC field systems
106M1079‑01 | Universal AC | 85~264VAC, 47~63Hz | 106M1081‑01 | General industrial mains power, universal 110V/220V AC sites
7.1 Legacy Obsolete Models
Legacy Part Number | Type | Input Spec | Legacy PIM
133292‑01 | Old LV DC Power | 20~30VDC | 133300‑01
129486‑01 | Old HV DC Power | 88~140VDC | 129478‑01
127610‑01 | Old AC Power | 85~132VAC / 175~264VAC | 125840‑01 / 125840‑02
8. 3500/15 Ordering Code Rule
Format: 3500/15‑AXX‑BXX‑CXX
Definition:
AXX = Upper slot power configuration
BXX = Lower slot power configuration
CXX = Explosion‑proof certification
Code Index: 01=Low AC, 02=High AC, 03=High DC, 04=Low DC, 05=Universal AC, 00=No power
Example: 3500/15‑04‑04‑00 = Dual low‑voltage DC power (2 × 114M5330‑01), no explosion‑proof certification
9. Selection Guidelines & Installation Notes
1. No PIM Mixing Allowed: AC power matches AC PIM; DC power matches DC PIM. New and legacy PIM hardware and firmware are incompatible.
2. Flexible Redundancy: Supports AC+DC hybrid redundant configuration for dual‑source backup protection.
3. Unified Industrial Grade: All new‑generation modules feature 0~55℃ operating temperature and full hot‑swap capability.
4. New Projects Use New Parts Only: Legacy models are phased out by the factory and only available for legacy equipment spare replacement.
10. Troubleshooting Guide
1. SUPPLY OK LED Off
Check external 24VDC input voltage stability; inspect DC PIM wiring, terminal looseness, and cable connection integrity; verify power and PIM part number matching.
2. Single Power Alarm in Dual Redundant System
Confirm primary/backup slot installation position; strictly verify PIM and power module compatibility.
3. Intermittent Recurring Alarms
Inspect field 24VDC power capacity. Full 3500 rack loading requires sufficient upstream power budget; insufficient capacity causes frequent power module alarms.
11. FAQ for Sales, Procurement & Maintenance
Q1: What is 114M5330‑01 used for?
A1: The 114M5330‑01 is a 3500/15 low voltage DC power supply module for Bently Nevada 3500 TSI racks. It provides stable continuous power to all vibration monitoring and protection cards for steam turbines, compressors and other critical rotating machinery in industrial plants.
Q2: What is the compatible PIM module for 114M5330‑01?
A2: It exclusively matches the 114M5335‑01 Low Voltage DC PIM module. Any AC PIM, high‑voltage DC PIM or legacy PIM models are incompatible and will cause system faults or hardware damage.
Q3: What is the input voltage range of 114M5330‑01?
A3: The standard input voltage is 20~30 VDC, designed for 24V industrial DC power systems, battery backup and DC UPS cabinet power supply scenarios.
Q4: Does 114M5330‑01 support hot‑swap?
A4: Yes. It features full hot‑swappable capability. Engineers can replace the module online without shutting down the TSI system or interrupting machinery protection functions, ensuring non‑stop industrial operation.
Q5: What is the difference between 114M5330‑01 and 114M5329‑01?
A5: 114M5330‑01 is a 20~30VDC low‑voltage DC power supply paired with 114M5335‑01 PIM; 114M5329‑01 is an 88~140VDC high‑voltage DC model matched with 115M7750‑01 PIM. The two models are completely non‑interchangeable in hardware and firmware.
Q6: What is the maximum output power of this module?
A6: The 114M5330‑01 delivers a maximum output power of120W, which fully supports stable operation of a fully populated standard 3500 monitoring rack.
Q7: Why does the SUPPLY OK LED turn off?
A7: Common reasons include abnormal 24VDC input voltage, loose or faulty wiring of the DC PIM module, and mismatched PIM model. It is recommended to check power supply stability and accessory matching first for troubleshooting.
Q8: Is dual redundant power configuration necessary?
A8: Single power configuration is applicable to non‑critical auxiliary equipment. For core equipment such as turbines and compressors, dual redundant power (dual 114M5330‑01) is strongly recommended to eliminate single‑point power failure risks and ensure reliable protection system operation.
