GE IS420UCSCH2A | IS420UCSCH2A‑C Mark VIe SPEEDTRONIC Control Module
Product Basic Information

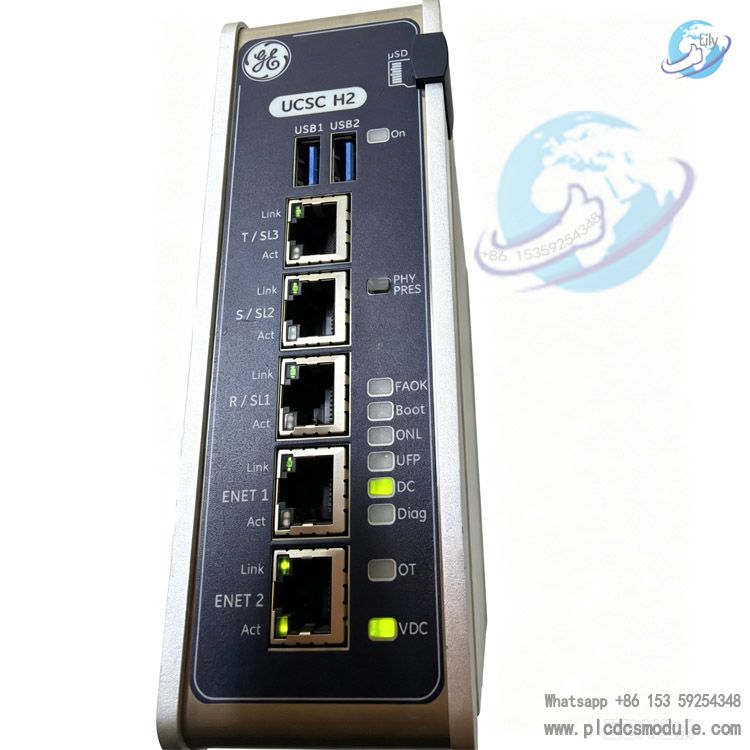

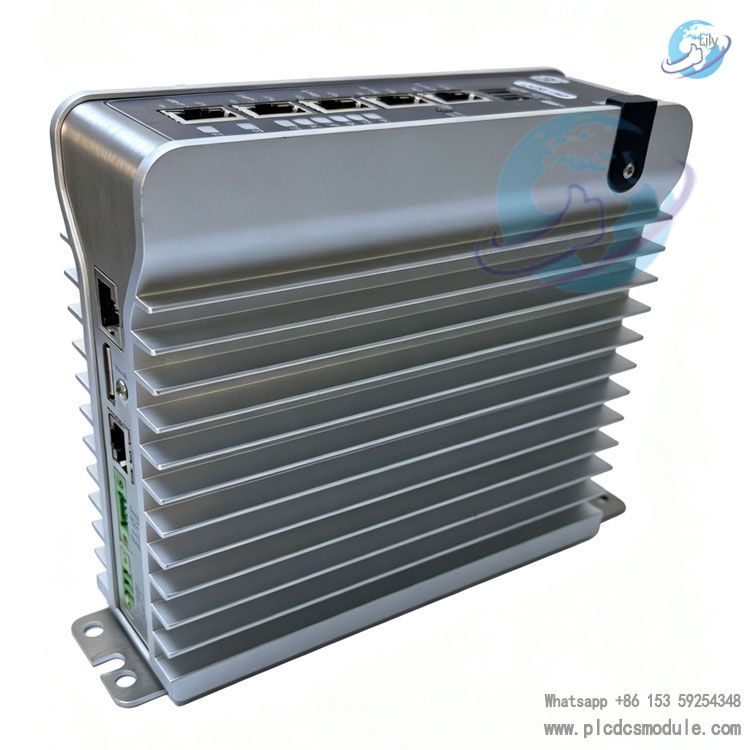

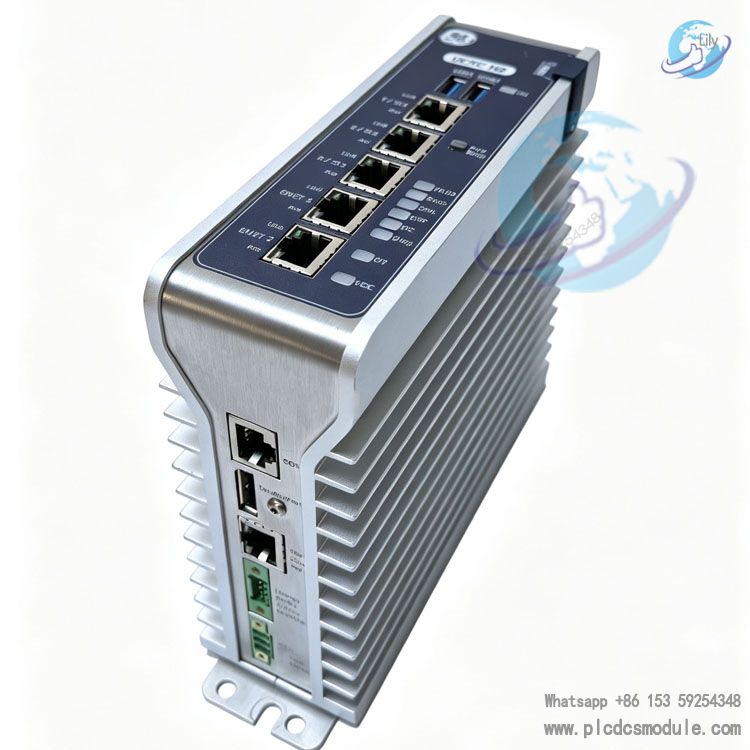

GE IS420UCSCH2A belongs to the Mark VIe SPEEDTRONIC series controller module. IS420UCSCH2A‑C is a derivative version based on identical hardware, serving as the core computing unit for power plant turbine control systems. Running the QNX Neutrino real‑time multitasking operating system, IS420UCSCH2A executes turbine protection logic, closed‑loop regulation, and I/O data interaction. It is widely deployed in the control architecture of gas turbines, steam turbines and combined‑cycle power plants.
IS420UCSCH2A achieves high‑speed synchronization with field I/O modules via the dedicated IONet industrial Ethernet and fits simplex system configurations. It features deep compatibility with the complete Mark VIe DCS software and hardware. IS420UCSCH2A‑C adopts iterative component revisions on the original hardware body, while keeping interfaces, mounting dimensions and software compatibility unchanged for spare‑part replacement and system upgrade projects.
Download
Technical Specifications
- Processor: AMD GX‑216HC, Dual‑Core, 1.6GHz; 2 cores available for Mark VIe
- L2 Cache: 2MB
- Operating System: QNX 6.5 /7.1
- Memory: 2GB DDR3‑1066 with ECC error correction support
- Flash Storage: 40GB pSLC SSD, 16GB allocated for system operation
- Ethernet Ports: 6‑channel 100MB IONet Ethernet
- Console Interface: RJ‑45, adapter to be purchased separately
- Additional Interfaces: 2 × USB2.0
- Power Supply Input: 18‑30VDC, rated 24/28VDC
- Max Power Consumption: 31W
- Non‑Volatile Variables: ControlST V07.05 and above supports 6139 non‑volatile program variables, 338 forced variables, 128 accumulators
- Operating Temperature: ‑40℃ ~ +70℃
- Storage Temperature: ‑40℃ ~ +85℃
- Humidity: 5%‑95%, non‑condensing
- Physical Dimensions: 168mm (H) ×150mm (D) ×55mm (W) (excluding mounting bracket)
- Weight: 1327g
- Software Requirement: ControlST V07.05 or higher version
- Synchronization Protocol: IEEE1588, I/O clock synchronization accuracy ±100 microseconds
- Communication Protocol: IONet, PROFINET not supported
- Mounting: Vertical rack‑mount
- Polarity Protection: Built‑in reverse polarity protection
- Fuse: Non‑replaceable 4A DC fuse
Core Advantages
- Deterministic Real‑Time Control Performance: Equipped with QNX real‑time OS, IS420UCSCH2A delivers stable response latency for turbine protection loops and meets critical timing requirements of power generation units.
- Native Compatibility with Full Mark VIe Ecosystem: IS420UCSCH2A‑C can directly replace IS420UCSCH2A, cutting modification costs for spare‑part swap without extensive control logic reprogramming.
- Hardware‑based ECC Memory & Non‑Volatile Storage: Critical parameters are retained after power loss, reducing on‑site parameter re‑configuration workload.
- Dedicated IONet Industrial Network: Enables high‑precision clock synchronization between controller and I/O modules and guarantees consistent timing for multi‑point acquisition.
- Wide Temperature & Humidity Hardware Design: Adaptable to harsh industrial environments of power‑plant control rooms and auxiliary equipment rooms, complying with multiple industrial EMC standards.
Underlying Cybersecurity Capabilities: Supports encrypted firmware updates to mitigate man‑in‑the‑middle and DoS network threats.
Product Features
- IS420UCSCH2A is a standalone controller module with no local I/O signals onboard. All field I/O acquisition and output are realized via external I/O packs over IONet network.
- Supports online firmware update via ToolboxST without hardware removal.
- Only supports simplex architecture deployment; not applicable for TMR triple‑redundant turbine main control.
- Allows mixed networking communication with legacy Mark VIe controllers; new and legacy hardware can coexist within one system.
- Built‑in comprehensive self‑diagnosis; hardware faults and communication link anomalies can be reported to HMI.
- IS420UCSCH2A‑C features identical hardware pin‑out, mechanical dimensions and port definitions versus IS420UCSCH2A, released for spare‑part supply‑chain version iteration.
- Requires vertical rack mounting with adequate rack ventilation to avoid local overheating.
- Electrostatic‑sensitive device; ESD protection must be implemented during handling and maintenance.
Application Fields
- Gas turbine auxiliary control system
- Steam turbine DCS distributed control node
- Balance‑of‑Plant auxiliary control for combined‑cycle power plants
- Non‑safety‑critical control loops for gasification and hydropower plants
- Power‑generation unit compressor control
- Spare‑part replacement for legacy power‑plant system retrofits
Comparison with GE Peer Controllers
| Model | IS420UCSCH2A | IS420UCSEH2A | IS420UCSCH1A/B | IS220UCSBH4A |
|---|---|---|---|---|
| CPU | AMD GX‑216HC Dual‑Core 1.6G | Intel i7‑1186‑GRE Quad‑Core 2.8G | AMD GX‑412HC Quad‑Core 1.2G | Intel EP80579 1066Mhz |
| PROFINET | Not supported | Supported | Supported | Not supported |
| Memory | 2GB | 8GB | 4GB | 256MB |
| Port Count | 6 | 8 | 6 | 5 |
| Applicable Architecture | Simplex system | Simplex / Redundant system | Simplex system | Simplex system |
| Typical Application | Auxiliary & BoP control | Turbine main control, DCS node | Auxiliary & BoP control | Legacy Mark VIe retrofits |
Related Matching Products
- I/O Modules: IS420AICH2A Analog Input Module, IS420ADOH2A Digital Output Module
- Terminal Boards: IS200TBAIH1C Signal Terminal Board
- Communication Accessories: IONet industrial Ethernet cable, 121T8700P0002 power adapter cable
- Software Tools: ControlST ToolboxST V07.05 or higher
- HMI: Mark VIe HMI Workstation
- Power Unit: 24VDC redundant industrial power supply module
FAQ
Q: Can IS420UCSCH2A be directly used for gas‑turbine TMR triple‑redundant main control?
A: IS420UCSCH2A only supports simplex system and cannot serve as TMR triple‑redundant turbine main controller. Other controller models shall be selected for turbine protection with triple‑redundancy requirements.
Q: Are IS420UCSCH2A‑C and IS420UCSCH2A directly interchangeable?
A: Hardware interfaces, dimensions and software compatibility are fully identical. Direct spare‑part replacement is available without control‑logic modification.
Q: What is the minimum ControlST software version required for IS420UCSCH2A?
A: ControlST V07.05 minimum. Versions below this release lack non‑volatile variable functions.
Q: Does IS420UCSCH2A support PROFINET fieldbus?
A: This model has no PROFINET capability. Select UCSEH2A controller if PROFINET is required.
Q: What are the mandatory cooling requirements for on‑site installation of IS420UCSCH2A?
A: Vertical rack‑mount with unobstructed airflow. Minimum 100 mm clearance above modules. Ambient temperature shall never exceed 70℃.
Q: Which components should be prioritized for troubleshooting IONet packet loss?
A: Inspect IONet cables & connectors, rack supply voltage, rack ventilation first, then verify matching ControlST firmware revision.
Q: Will accumulators and forced‑variable data get lost after power‑off?
A: When configured under ControlST V07.05 or newer, non‑volatile storage preserves accumulators and forced variables; data remains intact upon power loss.
Q: Can IS420UCSCH2A run in mixed networking with legacy IS220‑series Mark VIe controllers?
A: Supported. New‑generation and legacy controllers can exchange data over IONet; coordinate firmware versions across the system.
Related GE Part Numbers
IS420UCSEH2A Controller Module, IS420UCSEH2B Controller Module, IS420UCSEH2C Controller Module, IS420UCSCH1A Controller Module, IS220UCSBH1A Controller Module, IS220UCSBH3A Controller Module, IS220UCSBH4A Controller Module, IS220UCSAH1A Controller Module, IS420AICH2A Analog Input Module, IS420ADOH2A Digital Output Module, IS200TBAIH1C Terminal Board, IS200TDBTH6A Terminal Board, IS420SDOH2C Digital Output Module, IS420AIH2A Analog Input Module, IS200ACLAH1A Application Control Layer Module
Important Notes
- IS420UCSCH2A is electrostatic‑sensitive hardware. Wear ESD wrist strap during disassembly and maintenance; avoid direct contact with circuit‑board metal contacts.
- Keep supply voltage strictly within 18‑30VDC. Excessive voltage will blow the onboard non‑replaceable DC fuse.
- Only vertical rack mounting is permitted; horizontal or inverted installation is forbidden to secure unobstructed cooling airflow.
- Perform firmware upgrade via ToolboxST. Do not cut power during firmware flashing, otherwise module boot failure may occur.
- Cross‑check part number upon spare‑part receipt, confirm marking IS420UCSCH2A or IS420UCSCH2A‑C and hardware revision level.
- Do not operate outside ‑40℃~+70℃ operating temperature range; keep zero condensation under high‑humidity conditions.
