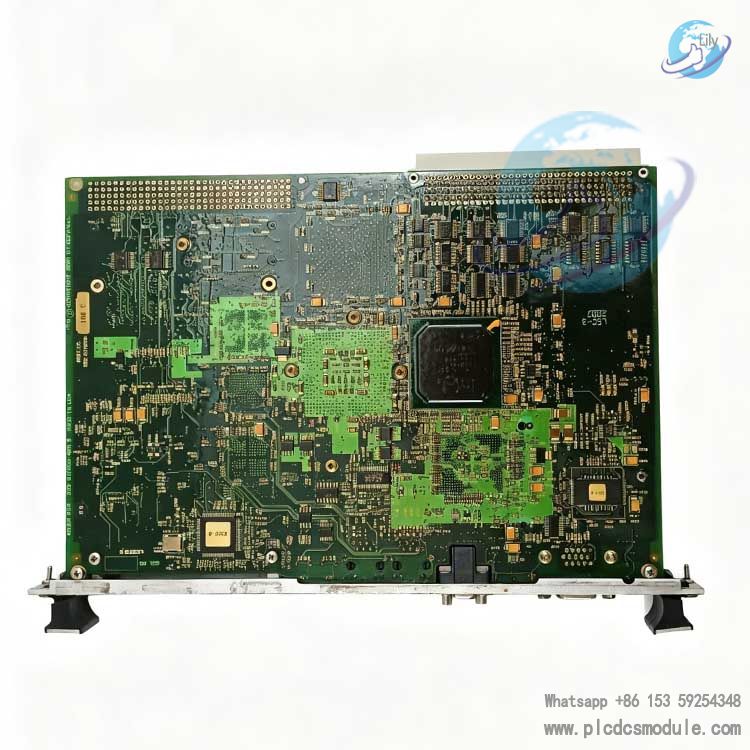

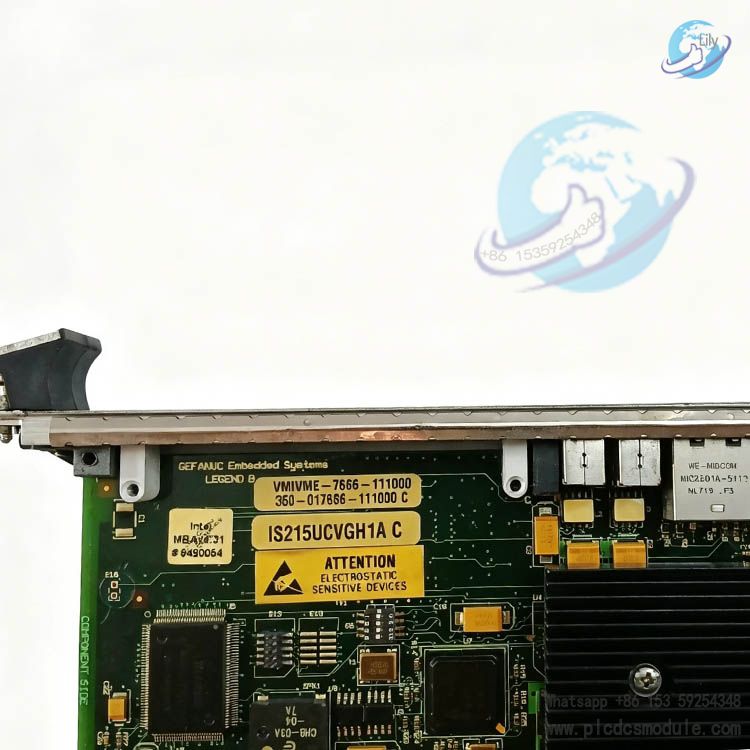

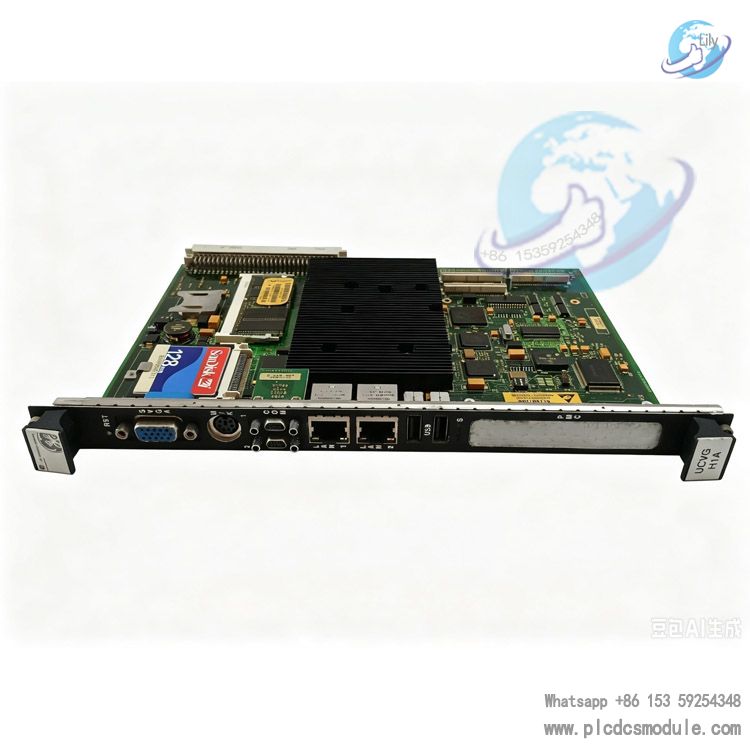

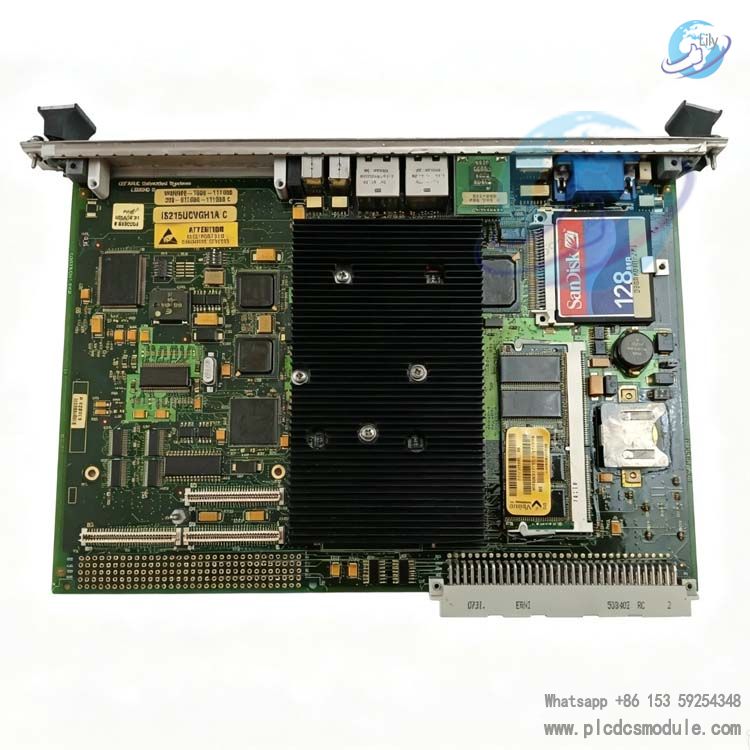

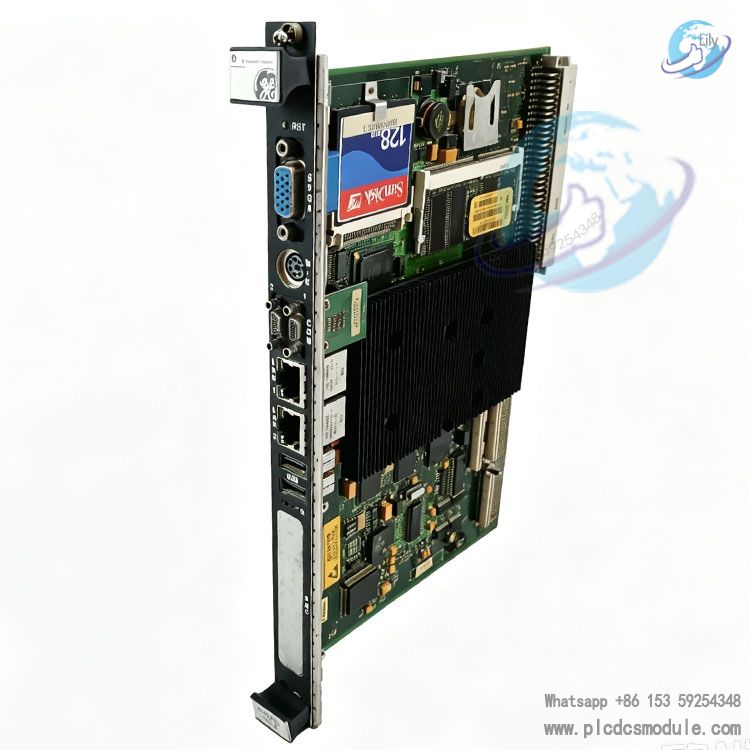

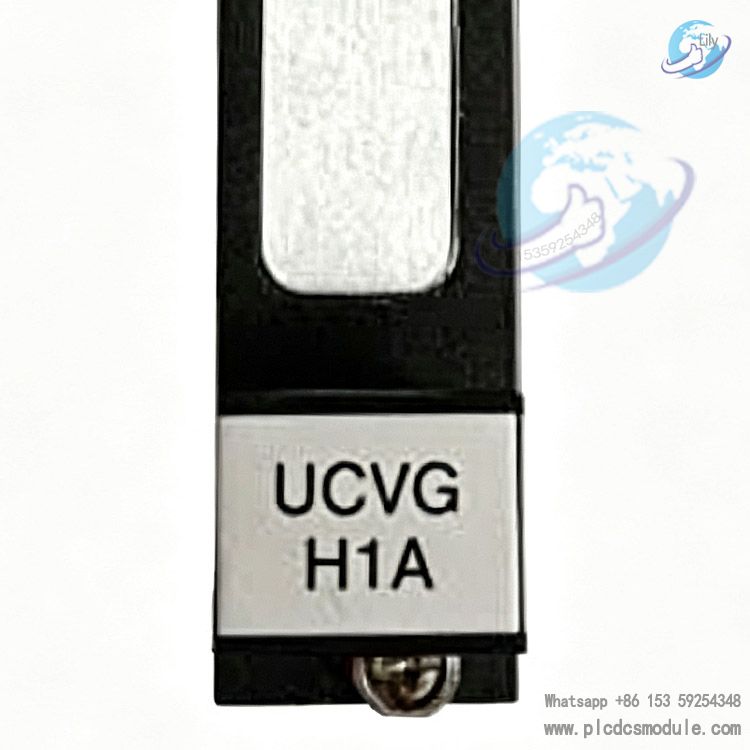

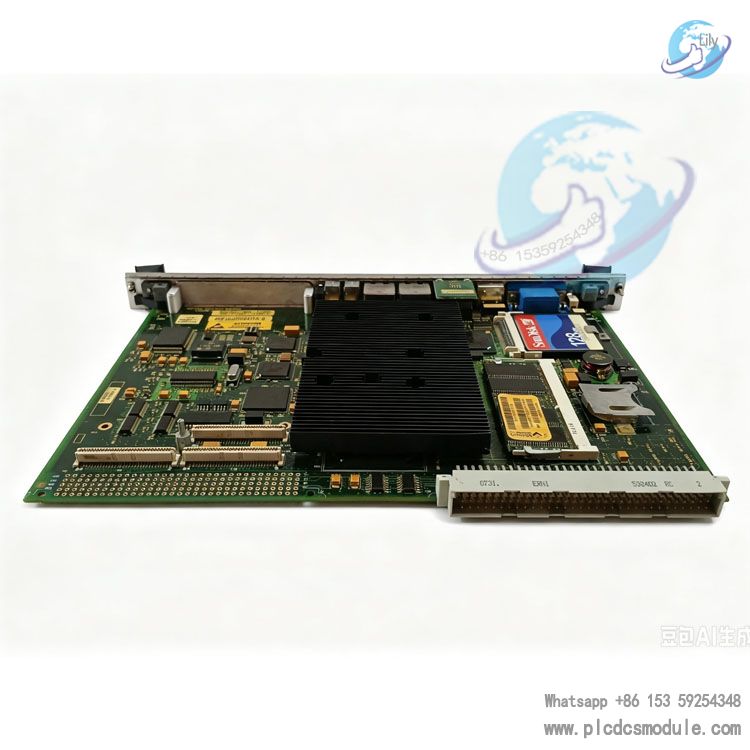

GE IS215UCVGH1A VMIVME‑7666‑111000 VME Controller Board
Basic Information
GE IS215UCVGH1A VMIVME‑7666‑111000 is a VME bus controller board for Mark VI Speedtronic control system. It adopts 6U single‑slot VME hardware form factor and serves as the core computing and communication unit of turbine control system.
IS215UCVGH1A is equipped with an embedded real‑time operating system, responsible for field I/O data processing, logic operation and multi‑protocol communication forwarding. It interfaces with HMI, SCADA and engineering debugging tools. VMIVME‑7666‑111000 is the corresponding VME part number of this hardware, both refer to the same hardware unit.
It is widely installed inside control cabinets of gas turbines and steam turbines, delivering millisecond‑level deterministic control output under industrial sites with high electromagnetic interference.
IS215UCVGH1A can directly replace older‑generation UCV controllers without modifying the VME backplane, lowering implementation difficulty for on‑site retrofitting.
Technical Specifications
| Processor | Intel Ultra‑Low‑Voltage Celeron 650MHz |
| Memory | 128MB SDRAM running memory, 128MB Flash firmware storage |
| Operating System | QNX real‑time multitasking operating system |
| Board Form Factor | 6U single‑slot VME bus board |
| Communication Interfaces | 2‑channel 10/100 Base‑TX RJ45 Ethernet, 2‑channel RS‑232 serial port, SVGA video interface, USB interface |
| Power Requirement | +5V DC typical 4A, max 5.4A; +12V, ‑12V low current consumption |
| Total Power Consumption | Approx. 25W |
| Operating Temperature | 0℃‑70℃ |
| Storage Temperature | ‑40℃‑85℃ |
| Weight | 0.45kg |
| Support Debug Software | ToolboxST, for firmware configuration, parameter modification, fault diagnosis and firmware upgrade |
Core Advantages
- IS215UCVGH1A VMIVME‑7666‑111000 adopts industrial‑grade components and conformal coating technology, adapting to high‑temperature and strong electromagnetic interference conditions inside turbine cabinets.
- Dual Ethernet ports support redundant network links to guarantee uninterrupted control data exchange.
- The QNX real‑time system ensures low‑latency execution of control logic, meeting timing requirements for power‑generation equipment grid connection and load regulation.
- The board supports hot‑swap architecture for spare‑part replacement; backplane modification is unnecessary during maintenance.
- ToolboxST enables remote parameter configuration, fault troubleshooting and firmware update to reduce on‑site manual operations.
- Downward hardware compatibility: IS215UCVGH1A can directly replace previous‑generation UCV controllers and cut material costs for system upgrade.
Product Features
- Status LED indicators are arranged on the board panel to directly reflect power supply, network and running fault status, helping maintenance personnel quickly locate abnormalities.
- Multiple built‑in external interfaces can connect debugging terminals, upper monitoring systems and field serial peripherals simultaneously.
- High‑speed VME bus realizes high‑speed data transmission and reception with I/O modules in the rack.
- Supports SNTP and PTP time synchronization to achieve time alignment of the whole control system.
- Supports protocol conversion for data forwarding among I/ONET, Modbus TCP and OPC UA.
- Hardware is designed with surge resistance and electromagnetic interference resistance, suitable for harsh environments of power plants and oil & gas facilities.
- Compatible with simplex and TMR triple‑modular redundant system architectures to satisfy safety requirements of different levels.
Application Fields
- Gas turbine control systems, steam turbine control systems
- Thermal power and combined‑cycle power plant turbine cabinets in power‑generation industry
- Turbine unit control for oil & gas exploitation
- Real‑time process control for large‑scale industrial power equipment
- Gateway for DCS system interconnection in energy plants
- Turbine equipment retrofitting and spare‑part replacement projects for legacy control systems
Comparison With Peer‑Brand Products
| Model | Positioning | Key Differences |
| IS215UCVGH1A VMIVME‑7666‑111000 | Basic VME Controller Board | Single‑slot, dual‑Ethernet ports, basic serial & video interfaces, standard computing power for turbine control |
| IS215UCVGH2 | High‑Version Controller Board | Upgraded memory specification, firmware supports more extended protocols |
| IS215UCVGM06A | Extended Communication Controller | Adds Profibus and ISBus extended interfaces for scenarios with multiple peripheral connections |
| IS215UCVEH2AE | High‑Performance Controller | Higher CPU frequency, applicable for high‑point‑count I/O load scenarios |
Matching Part Numbers
- IS200TBAIH1C, Analog Input Terminal Board
- IS200TBAOH1A, Analog Output Terminal Board
- IS200TBDIH1A, Digital Input Terminal Board
- IS200TBDOH1B, Digital Output Terminal Board
- IS215GFOIH1A, Fiber Optic Communication Board
- VMIVME‑7666, Backplane Rack Unit
- IS200VGENH1B, Generator Monitoring Board
- IS200ERIOH1A, Remote I/O Interface Board
FAQ
Q: Is IS215UCVGH1A VMIVME‑7666‑111000 directly compatible for replacement of legacy UCV controllers?
A: Hardware can be installed directly without replacing the VME backplane. Please verify the firmware version of Mark VI system before replacement; mismatched firmware will lead to startup failure.
Q: What configuration and debugging software is supported by IS215UCVGH1A?
A: Only ToolboxST is supported for parameter configuration, fault diagnosis and firmware upgrade. It is not compatible with third‑party configuration software.
Q: Does this board support hot‑swap operation?
A: Physical slot plug‑in is available. Hot‑plug is not recommended for running production systems. Carry out replacement under shutdown maintenance mode to avoid system disturbance caused by bus surge.
Q: Can IS215UCVGH1A VMIVME‑7666‑111000 be used in TMR triple‑modular redundant systems?
A: Yes. The hardware supports both simplex single system and TMR triple‑modular redundant architecture. Corresponding firmware and redundant I/O modules are required.
Q: Should hardware revision be considered when purchasing spare parts?
A: Yes. Different hardware revisions correspond to different firmware compatibility ranges. Please provide revision label information of original board when placing orders to prevent incompatibility.
Q: What items should be checked first when Ethernet ports cannot connect to network?
A: Check shielded network cable and IP configuration, read port status via ToolboxST, verify firmware version, check panel LED indicators and inspect loose contact of VME backplane.
Q: What are the causes for constant‑on fault LED of IS215UCVGH1A?
A: Common causes include corrupted firmware, poor VME bus contact, abnormal power supply voltage and memory hardware failure. Check power supply and slot first, then retrieve detailed fault logs via ToolboxST.
Series Product Part Numbers
- IS215UCVGH2, VME Controller Board
- IS215UCVGM06A, VME Communication Controller Module
- IS215UCVEH2AE, Mark VI Controller Board
- IS200TBAIH1C, Analog Input Terminal Board
- IS200TBAOH1A, Analog Output Terminal Board
- IS215GFOIH1A, Fiber Optic Interface Board
- IS200VGENH1B, VME Generator Monitoring Board
- IS200ERIOH1A, Remote I/O Interface Board
- VMIVME‑7740‑850, VME Single‑Board Computer
- VMIVME‑2540, VME Digital IO Module
- IS200TBDIH1A, Digital Input Terminal Board
- IS200TBDOH1B, Digital Output Terminal Board
- IS215UCVGM01A, UCV Communication Module
- VMIVME‑7650, VME Processor Board
- IS200GPAAH1A, Power Interface Board
Notes
Take full anti‑static protection during installation of IS215UCVGH1A VMIVME‑7666‑111000. Static electricity will cause permanent damage to board chips.
Make sure VME slots are clean and free of oxidation before installation. Fasten screws to guarantee reliable contact of backplane bus.
Calculate overall cabinet power consumption to meet maximum power‑dissipation requirement of the board.
Magnet‑ring shielded network cables are preferred to mitigate electromagnetic interference in industrial environments.
Firmware upgrade must be performed within scheduled shutdown window. Running‑time upgrade will trigger control interruption.
Store spare parts in anti‑static bags. Keep storage environment dry to avoid circuit‑board corrosion caused by moisture.
Retrieve internal logs via ToolboxST for fault diagnosis. Do not modify underlying firmware parameters arbitrarily.
