Honeywell DC‑PDIL51 (51454818‑175) 24V Digital Input Module
Product Overview
DC‑PDIL51 (Part Number: 51454818‑175) is a 24VDC digital input module for Honeywell DCS systems, belonging to the Honeywell Series‑C I/O hardware family. It is mainly used to collect 24V DC switching signals from field switches, relay contacts, proximity switches and other field devices, and upload field device status to the DCS controller for process monitoring and interlock logic processing. The module adopts an opto‑isolation design to isolate the field‑side and control‑system‑side circuits, and suppress the impact of industrial field surges and electromagnetic interference on the main control unit. It comes with on‑board hardware diagnostics, supporting open‑circuit and channel abnormality alarms. Widely used in process industries such as petrochemical, power generation and metallurgy. It is compatible with redundant IOTA bases and supports hot‑swap replacement to reduce system downtime for maintenance.
Core Functions
- Switching Signal Acquisition: Collect 24VDC field digital input signals, identify normally open / normally closed contact status, and upload data to the DCS controller.
- Opto‑Isolation Protection: Channel‑level opto‑isolation isolates field high‑voltage surges and common‑mode interference to protect the DCS main control backplane circuit.
- Built‑in Diagnostic Capability: Supports open‑circuit detection, channel fault and module hardware fault diagnostics. Alarm messages can be generated directly within the DCS system for quick location of wiring or module faults.
- Hot‑swap Support: Modules can be replaced while the system is powered on without system shutdown. Matched with dedicated IOTA terminal base CC‑TDIL51, and also compatible with redundant base CC‑TDIL61.
- Software Filtering and Debouncing: Channel digital filter time can be configured in DCS configuration software to eliminate signal jitter caused by mechanical contact bounce and electromagnetic interference.
Technical Specifications
| Parameter Item | Parameter Value |
| Product Model | DC‑PDIL51, Part Number 51454818‑175 |
| Module Type | Digital Input Module (DI) |
| Input Channels | 32 channels |
| Rated Input Voltage | 24 VDC, operating range 18‑30 VDC |
| Input Impedance | 4.2 kΩ |
| Logic ON Minimum Current | 3 mA; Logic OFF maximum leakage current 1.2 mA |
| Isolation Method | Opto‑isolation, isolation rating 1000 VAC RMS |
| Response Time | 5 ms (±20%) |
| Compatible Base | CC‑TDIL51 (standard), CC‑TDIL61 (redundant) |
| Operating Temperature | ‑40℃ ~ +70℃ |
| Storage Temperature | ‑40℃ ~ +85℃ |
| Relative Humidity | 5%‑95%, non‑condensing |
| Ingress Protection | IP20 (for cabinet‑internal use only) |
| Certifications | CE, UL508, CSA |
| Mounting Method | DCS rack slot mounting |
Product Appearance Features

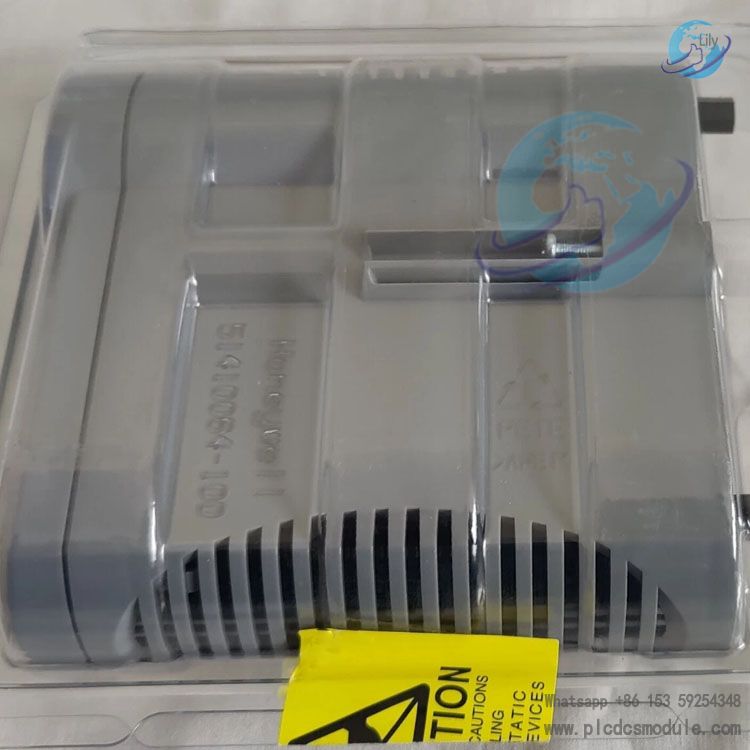

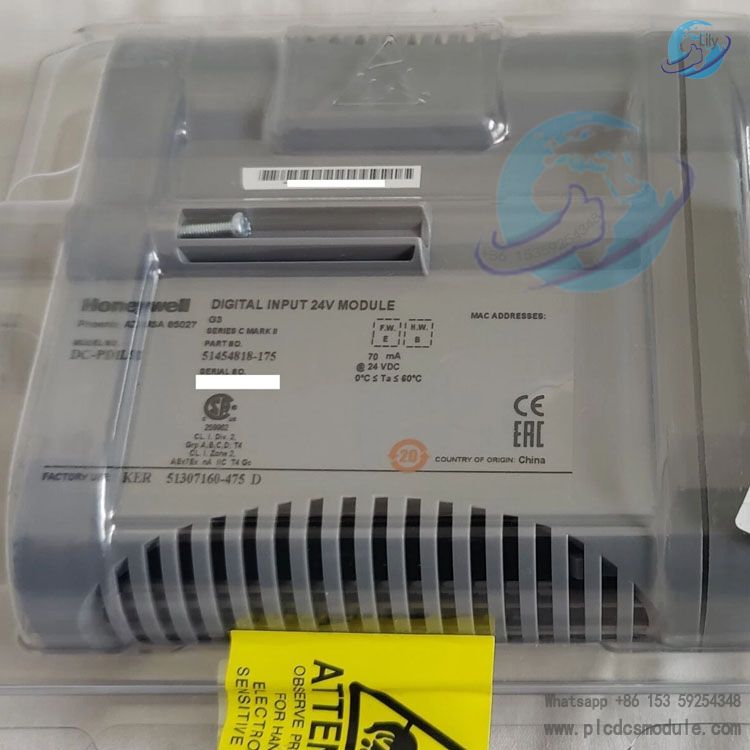

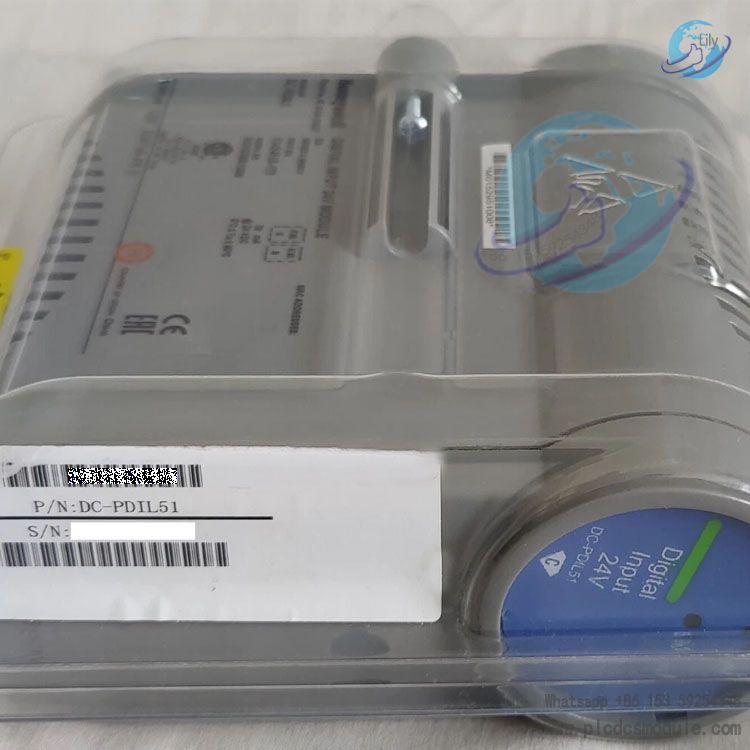

The module adopts a grey / silver‑grey cuboid industrial housing. A round blue display panel is located on the left side of the front face, printed with "Power / Status / Digital Input 24V" status labels and indicator LEDs. Heat‑dissipation grilles are arranged on both sides of the housing, with snap‑lock structures on side edges for secure fixation inside the rack. Gold‑finger pins at the bottom communicate with the Series‑C backplane via the IOTA base. It features a neat overall shape without external adjustable knobs, typical of Series‑C plug‑in I/O module design.
Model Naming and Series Affiliation
DC‑PDIL51 (51454818‑175) belongs to the Honeywell Experion PKS Series‑C (G3 series) I/O module family. The definition of each model segment is shown below:
| Model Segment | Definition |
| DC‑ / CC‑ / 8C‑ / TC‑ | Module housing / package generation prefix (DC = standard card generation). Corresponding models are available for the same function across multiple generations. |
| P | Processor‑point I/O category |
| DI | Digital Input |
| L | Low‑level / logic‑level input type |
| 51 | Hardware version / configuration code (the same "51" hardware platform includes DI/DO and other variants) |
| 51454818‑175 | Honeywell part number (P/N); "‑175" denotes hardware revision number |
Equivalent functional models: CC‑PDIL51 (51454405‑175), 8C‑PDIL51 (51454359‑175). They share the same platform with DC‑PDIL51, featuring identical channel count, base compatibility and functions, and can be mutually replaced. Please verify hardware revision and rack generation compatibility during replacement.
System Compatibility and Configuration
- Communication: The module connects to Series‑C IOM via backplane interface and is managed by main controllers such as C300. It only provides discrete 24V DC input channels without independent communication protocol stack.
- Channel Scan Performance: Standard scan 20 ms; Fast scan 5 ms; SOE (Sequence‑of‑Events) resolution 1 ms, suitable for accident review and interlock first‑out judgment.
- Configuration Requirements: Within Experion Control Builder, correctly match module slot position, channel address, filter time and open‑circuit diagnostic switches. Base type (CC‑TDIL51 / CC‑TDIL61) must match rack configuration.
Matching Bases and Redundancy
- Standard Base CC‑TDIL51: Non‑redundant installation; one IOTA for one single module.
- Redundant Base CC‑TDIL61: Supports I/O redundancy configuration with dual modules running in parallel; bumpless switchover upon fault, suitable for interlock and safety‑related loops.
Field 24V cables are connected uniformly to IOTA terminal blocks. Electrical connection between module and base relies on gold‑finger and snap‑lock structure. Hot‑swap replacement is supported under powered condition without system shutdown.
Application Scenarios
- Valve position feedback, pump status feedback and interlock switch signal acquisition in petrochemical and chemical plants
- Switch‑status monitoring for boiler and turbine auxiliary equipment in power plants
- Limit switch and safety interlock contact acquisition for process equipment in metallurgical plants
- DCS system retrofitting and spare‑part replacement projects for process industries
Installation & Wiring Notes
- Install only on Honeywell Series‑C I/O racks; mixing with racks of other series is prohibited.
- Field 24VDC wiring must terminate on matched IOTA base terminals; direct wiring to the module body is forbidden.
- Separate digital input cables from power cables to mitigate electromagnetic interference; implement single‑end grounding for shielding layers.
- Hot‑swap is supported. Confirm rack backplane power supply is normal before plugging / unplugging; do not touch module gold‑finger contacts.
- Match actual base model during configuration and enable open‑circuit diagnostics for timely detection of cable damage.
Same‑Series Comparison
| Model | P/N | Channel Count | Scan Mode | Typical Application |
| DC‑PDIL51 | 51454818‑175 | 32 | Standard / Fast / SOE | This unit, standard rack digital input |
| CC‑PDIL51 | 51454405‑175 | 32 | Standard / Fast / SOE | Previous‑generation package on same platform |
| 8C‑PDIL51 | 51454359‑175 | 32 | Standard / Fast / SOE | Conformal‑coated version for harsh environments |
Frequently Asked Questions
Q1: The field switch is closed but channel status shows no change on DCS. How to troubleshoot?
A: ① Measure voltage at IOTA base terminals with multimeter and verify input voltage exceeds 13VDC turn‑on threshold;
② Check whether terminal connections are loose or corroded;
③ Confirm channel address and module slot configuration inside DCS are correct;
④ Inspect contact between base and module, re‑insert the module;
⑤ Confirm leakage current does not exceed maximum parameter value to avoid false status triggered by high‑leakage sensors.
Q2: Can the module be repaired on‑site? Can blown internal fuses be replaced by disassembling?
A:The module is an integrated sealed hardware unit. Disassembly will invalidate safety certifications. On‑site repair is prohibited. Replace the complete module upon hardware failure. Do not disassemble printed circuit boards to prevent damage to rack backplane circuits.
Q3: Can this module be used for high‑speed pulse counting?
A:It is not suitable for high‑speed pulse counting. As a standard DI module with 5 ms response time, it is designed for ordinary switch‑status acquisition. Select dedicated Honeywell pulse input modules for high‑frequency pulse applications.
Q4: Signal fluctuates frequently during operation while actual field switch status remains stable. What are the possible causes?
A:It is most likely caused by contact bounce or field electromagnetic interference. Increase channel digital filter time inside DCS software; re‑route cables away from high‑power motor power lines; inspect field contacts for aging or poor contact.
Q5: Hot‑swap is supported. What operations are required for module replacement?
A:Pull out the faulty module and insert a unit of identical model. Confirm DCS software recognizes the new module and verify channel status after replacement. System shutdown is not required. Avoid touching metal contacts to prevent ESD damage to components.
Q6: What is the relationship between DC‑PDIL51 and CC‑PDIL51?
A:DC‑PDIL51 (51454818‑175) and CC‑PDIL51 belong to the same hardware series. They differ only in part‑number revision. Channel parameters, base compatibility and functions are fully identical, and they can serve as mutual spare‑part replacements.
Ordering Information Quick Reference
| Item | Content |
| Product Model | DC‑PDIL51 |
| Part Number P/N | 51454818‑175 |
| Product Series | Experion PKS Series‑C (G3) |
| Origin | USA (Honeywell Original) |
| Standard Base | CC‑TDIL51 |
| Redundant Base | CC‑TDIL61 |
| Package Form | Plug‑in card type, rack mounting |
| Compatibility | C300 and other Experion controller I/O racks |
