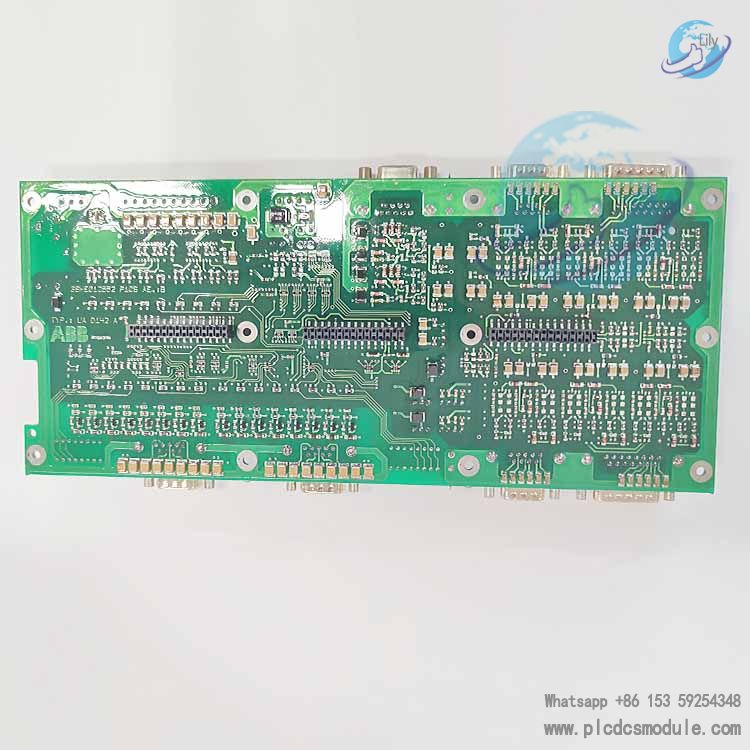

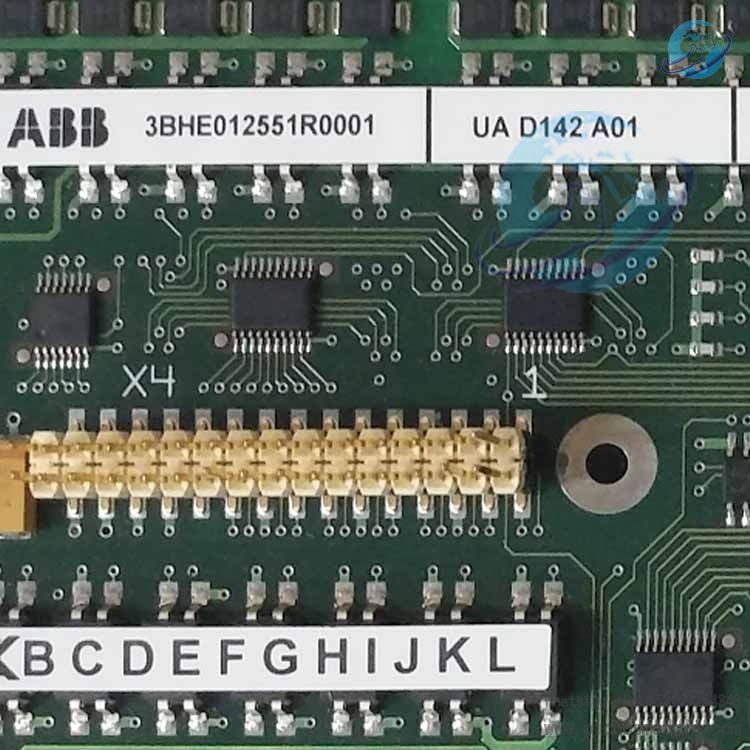

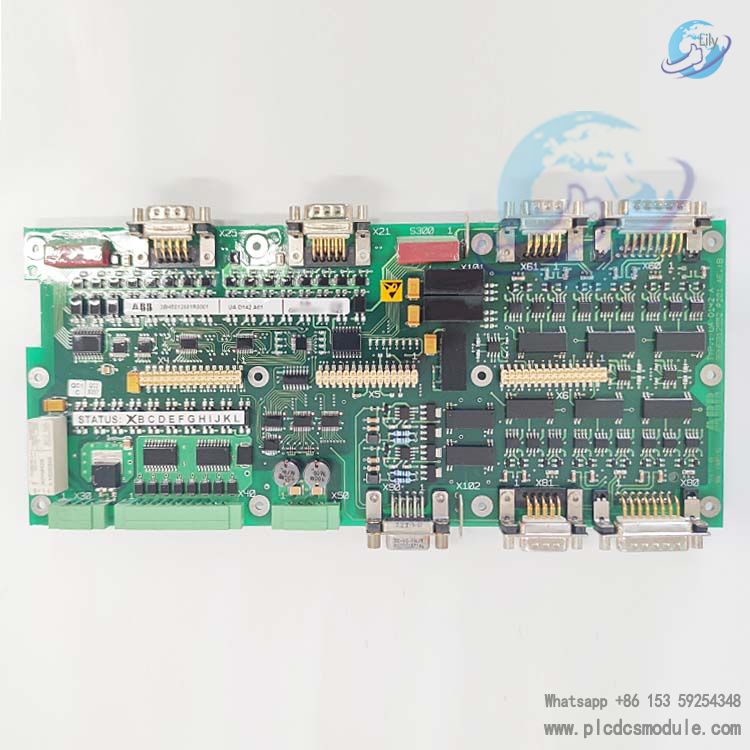

ABB UAD142A01 3BHE012551R0001 is a high-performance, highly reliable expansion output power board specifically engineered for industrial automation systems. As a core component of ABB Advant Master Distributed Control System (DCS), it delivers efficient and stable power supply to external devices including extended I/O modules, robot controllers, and motors. Boasting exceptional scalability, flexible configuration capabilities, and robust environmental adaptability, the product fulfills the power requirements of diverse complex industrial scenarios while ensuring the reliable operation of the entire control system.
Technical Parameters
Rated voltage is DC 24V and rated power reaches 1440W with efficiency exceeding 90% The maximum output current is 60A and the output voltage can be configured as DC 0-10V or customized according to requirements It is equipped with 16 input channels and 16 output channels which can be flexibly set as analog or digital signals The product size is 220 x 110 x 55 mm and the weight is 25kg The installation method supports wall mounted or DIN rail mounting which is convenient for on-site layout.
Core Features
It has high reliability and undergoes strict testing and verification with isolation design and overcurrent protection function to effectively prevent equipment damage caused by abnormal current The modular design makes installation maintenance and upgrade more simple and convenient reducing the downtime of the system.
It has excellent scalability that allows users to add additional power outputs according to actual needs to adapt to the expansion of the industrial automation system The flexible configuration capability can match different power requirements of various devices improving the compatibility and applicability of the product.
Application Scenarios
The product is widely used in industrial manufacturing power generation oil and gas chemical processing and other fields It is suitable for process control discrete control data acquisition and robot control scenarios In building automation it can supply power for lighting control security systems and other automation equipment.
It also plays an important role in power distribution systems providing stable power for control and monitoring equipment In transportation and communication equipment fields it can meet the high reliability power demand of related automation components ensuring the continuous and efficient operation of the system.
