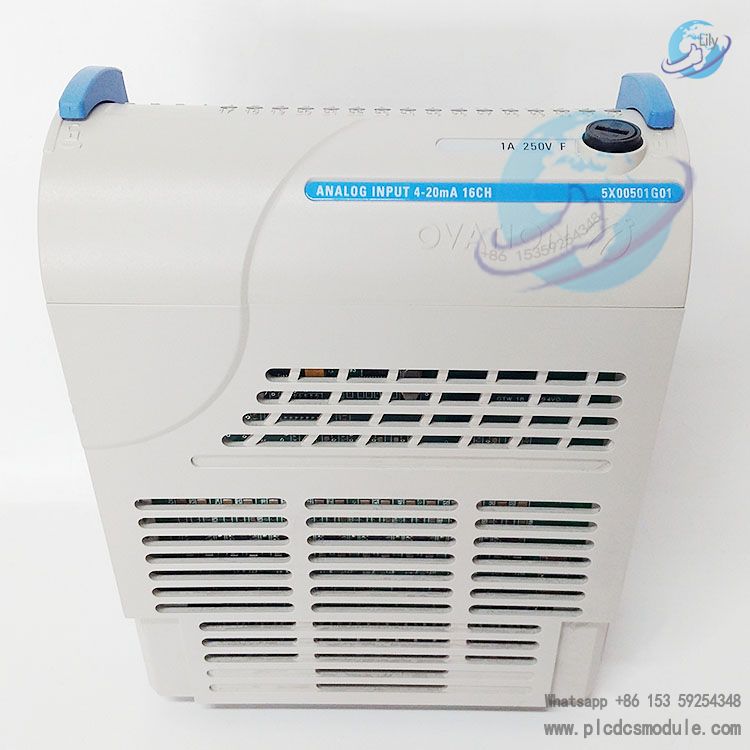

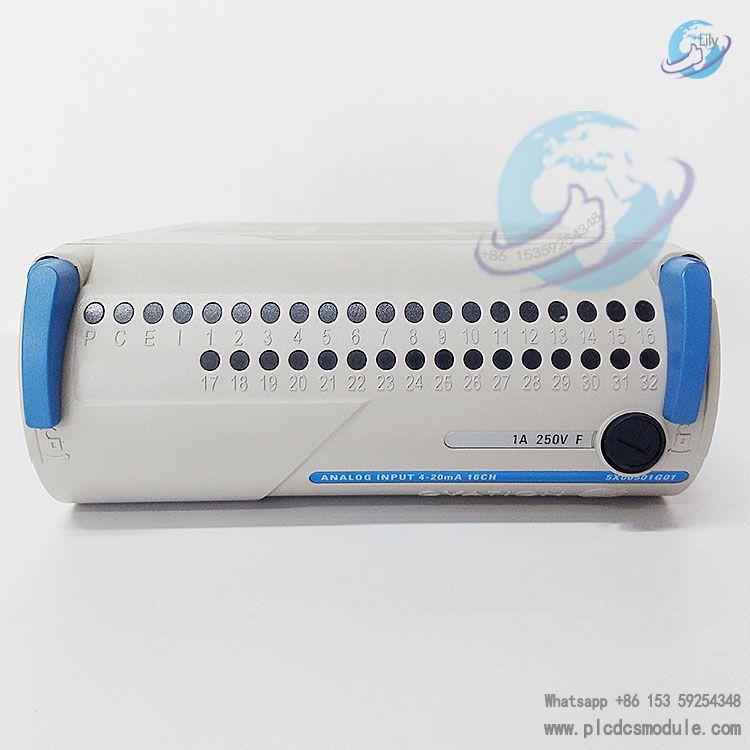

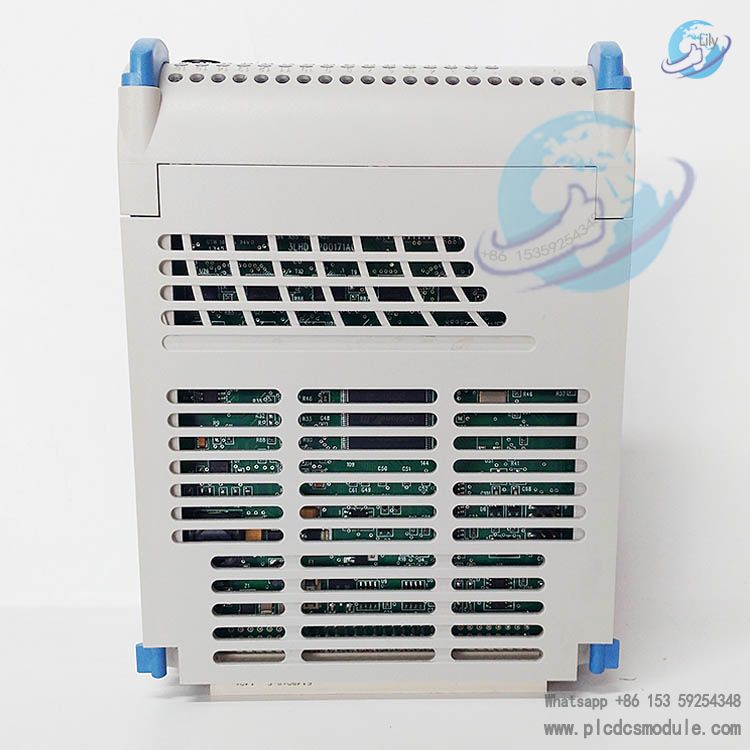

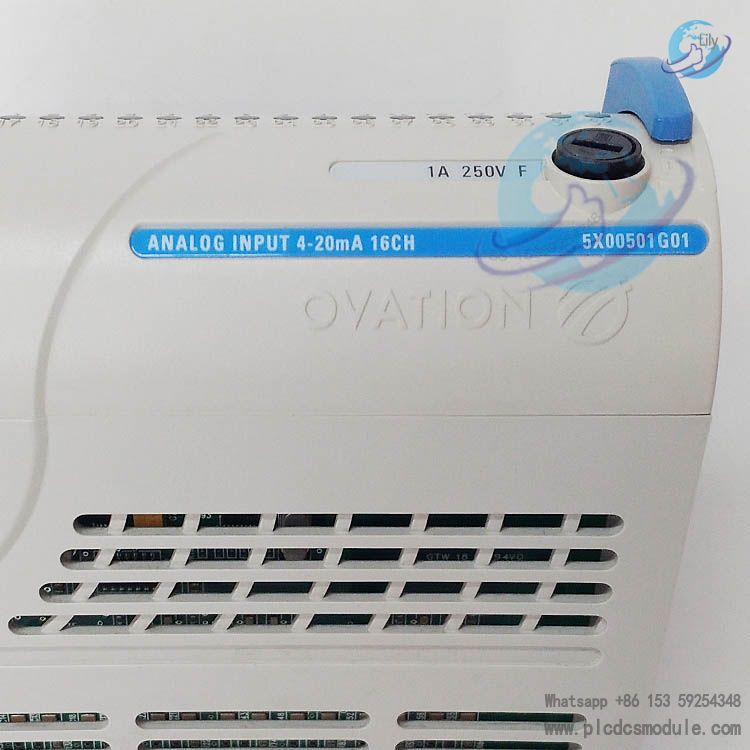

Emerson Ovation 5X00501G01 is a dedicated 16-channel analog input module that supports 4-20mA current signals. It is an important component of the Emerson Ovation distributed control system designed to accurately collect analog data from various industrial field devices. The module adopts advanced signal processing technology and industrial-grade hardware design to ensure stable and reliable data acquisition even in harsh industrial environments such as high interference and large temperature fluctuations. It seamlessly integrates with the Ovation control system, providing accurate and real-time input data for industrial process control, monitoring and optimization. This module is widely used in power generation petrochemical water treatment and other key industries, effectively improving the precision and efficiency of industrial process control.
Technical Parameters
Input type: 4-20mA analog current inputNumber of channels: 16 independent channels
Operating voltage: 24VDC
Operating temperature range: 0°C to 70°C
Storage temperature range: -40°C to 85°C
Measurement accuracy: ±0.1% of full scale
Sampling rate: Up to 10 samples per second per channel
Input impedance: ≤100Ω
Isolation: Channel-to-channel and channel-to-ground isolation
Communication interface: Compatible with Ovation system bus
Dimensions: Standard 3U rack - mount size, consistent with Ovation series module specifications
Weight: Approximately 450g
Product Features
16 independent channels: Each channel works independently, supporting simultaneous collection of multiple 4-20mA signals without mutual interference.
High precision acquisition: Adopts high-performance ADC chip to ensure measurement accuracy and data reliability.
Strong anti-interference ability: Equipped with advanced filtering technology and isolation design to resist electromagnetic interference in industrial fields.
Easy integration: Perfectly matches Emerson Ovation control system, realizing plug - and - play and reducing integration difficulty.
Stable and durable: Industrial-grade shell and components, with good dustproof moisture-proof and shockproof performance, suitable for long-term operation in harsh environments.
Diagnostic function: Built-in self-diagnostic and channel fault diagnostic functions, which can timely feedback module and channel status.
Application Fields
Power industry: Used in thermal power nuclear power and hydropower plants for collecting signals of pressure temperature flow and other parameters of boilers turbines and other equipment.
Petrochemical industry: Applied to signal collection of field instruments in oil exploration refining and chemical production processes to ensure stable operation of production processes.
Water treatment industry: Used for collecting data of water level flow turbidity and other parameters in water purification sewage treatment and other processes
Metallurgical industry: Suitable for signal acquisition of temperature pressure and other parameters in smelting rolling and other production links.
Pharmaceutical industry: Used in the production process of pharmaceuticals to collect parameters such as temperature humidity and pressure to meet GMP standards.
