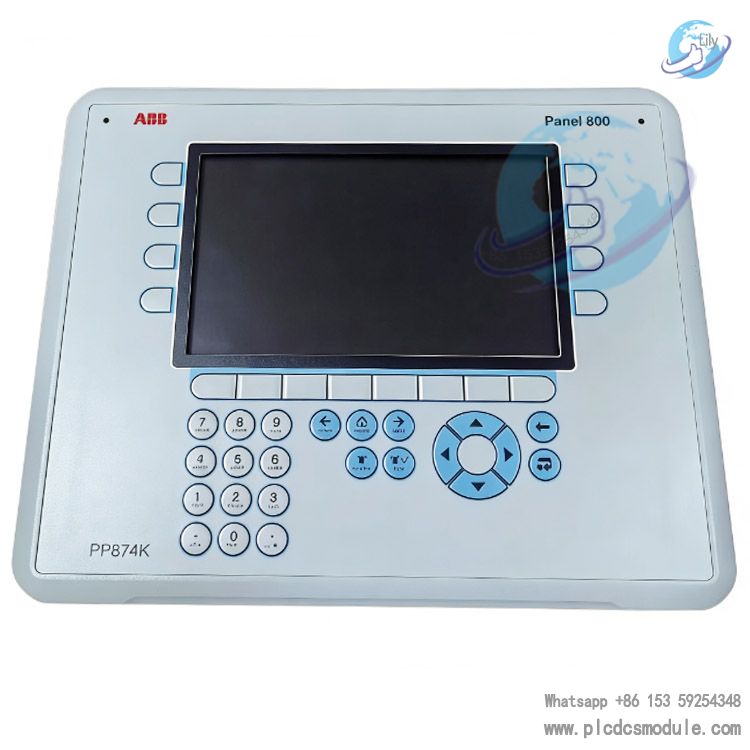

PP874K 3BSE069273R1 is a 7-inch key-operated panel (Key Panel) from the Panel 800 Version 6 series. It is a standard HMI product under ABB Compact Product Suite by ABB Group.Designed specifically for industrial process automation applications, it combines physical keys with a TFT color display for interaction, balancing operational accuracy and visual feedback. It delivers stable and efficient human-machine interaction and process control in harsh industrial environments, making it one of the core operator terminals for control systems such as ABB 800xA.
Specifications
1. Display & Interaction
- Screen size: 7-inch widescreen (16:9)
- Resolution: 800×480 pixels
- Display type: TFT color LCD, 64K colors, LED backlight
- Interaction: 16 physical function keys (F1–F16) + arrow/enter keys (no touch, key-only operation)
- Key life: Industrial-grade design for millions of presses
2. Hardware Configuration
- Processor: ARM9 (1 GHz)
- Application memory: 80 MB (SSD)
- Storage expansion: 1× SD card slot (supports SDHC)
- Real-time clock: Built-in, maintains time after power loss

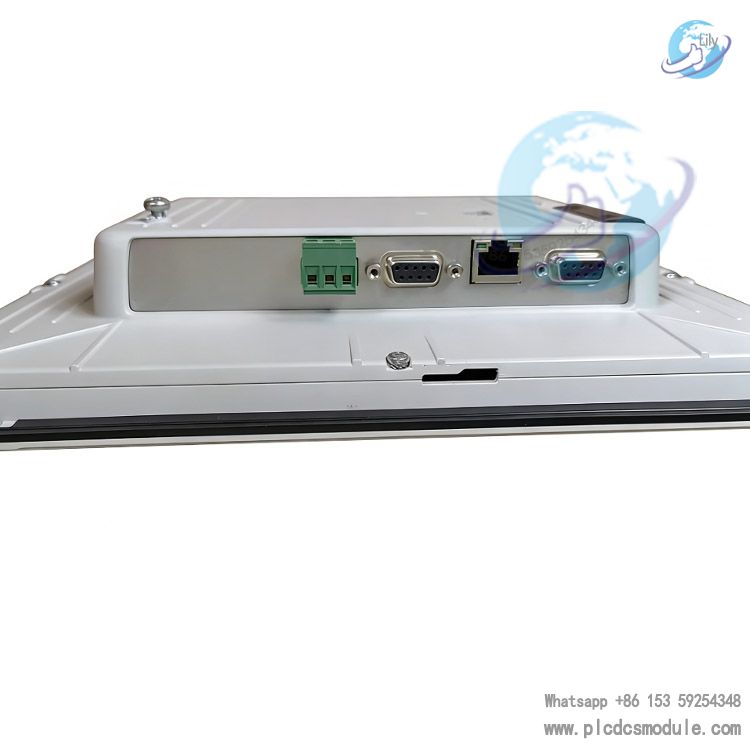

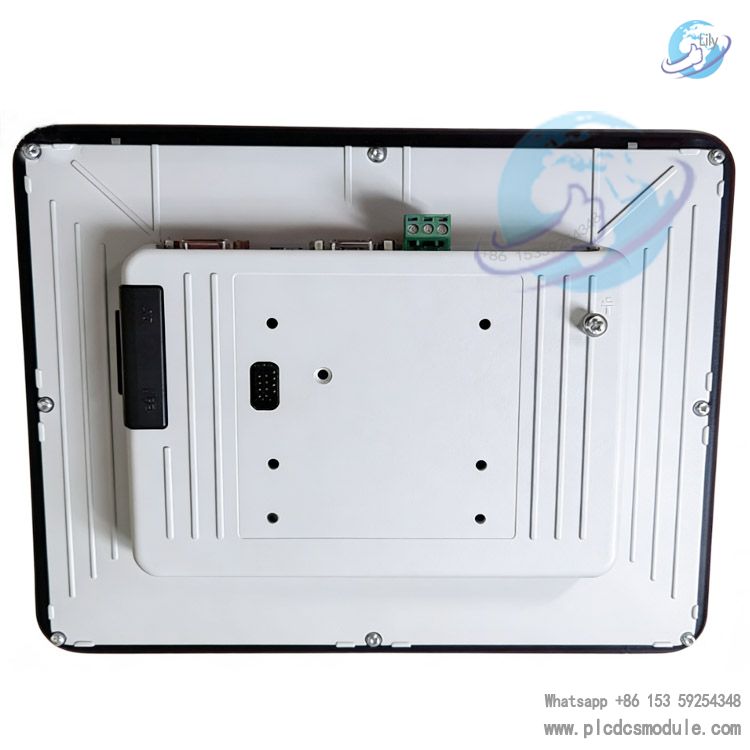

3. Interfaces & Communication
- Ethernet: 1× 10/100 Base-T (shielded RJ45)
- USB: 1× USB 2.0 Host (max. 500 mA)
- Serial ports: 2× combo ports (RS232/RS422/RS485, 9-pin D-Sub)
- Power supply: 24 VDC (18–32 VDC wide-range input)
- Power consumption: Approx. 6.0 W
4. Environment & Protection
- Operating temperature: -10 °C to +60 °C
- Storage temperature: -20 °C to +70 °C
- Humidity: 5%–85% RH (non-condensing)
- Ingress protection: Front panel IP65, rear IP20
- Shock/vibration resistance: 10G shock, 0.7G vibration
- Material: Die-cast aluminum housing, powder-coated, rugged and lightweight

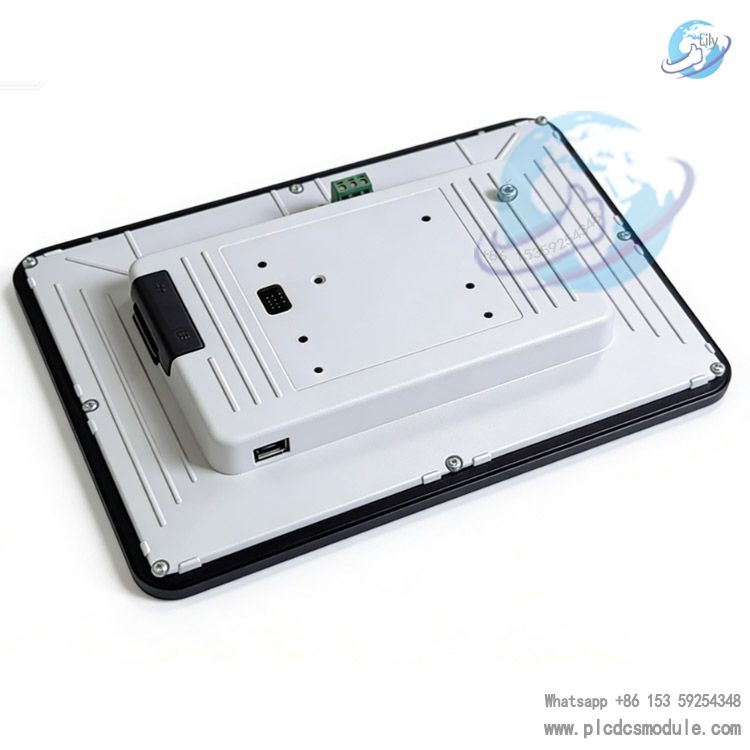

5. Installation & Dimensions
- Mounting: Panel-mounted
- Front panel dimensions: 280 mm (W) × 228 mm (H) × 7 mm (D)
- Cut-out dimensions: 262 mm (W) × 209 mm (H)
- Installation depth: 44 mm (144 mm including safety clearance)
Features
1. Industrial-Reliable Design
- Full die-cast metal housing, shock‑ and corrosion‑resistant, suitable for harsh industrial environments including humidity, dust and oil.
- Wide temperature and voltage range for demanding applications such as outdoor sites, workshops and marine environments.
- Front panel IP65 protection allows direct water cleaning, ideal for hygienic or corrosive environments such as food, pharmaceutical and chemical industries.

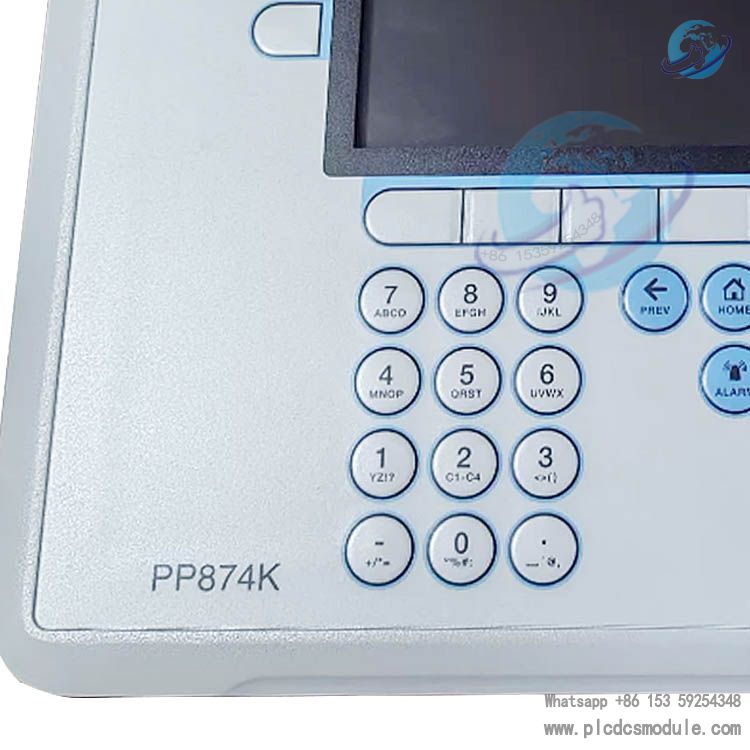

2. Efficient Key Operation
- 16 programmable function keys plus arrow/enter/numeric keys support one‑touch access to common operations, alarm acknowledgement and screen switching.
- More reliable than touchscreens for precise operation with gloves or in oily environments.
- Ergonomic key layout with clear tactile feedback reduces misoperations and improves maintenance efficiency.
3. Powerful HMI Functions
- Built-in Panel Builder 800 configuration tool supports vector graphics, icon-based navigation, alarm management, trend curves, data logging, recipe management and audit trail.
- Compatible with ABB 800xA, AC 800M and other control systems.
- Supports mainstream industrial protocols including Modbus, Profibus, EtherNet/IP, enabling seamless connection to multi-brand PLCs and controllers.
- Supports remote access and online simulation to shorten project commissioning time.
4. Open & Expandable Platform
- Open platform based on .NET architecture, supporting custom scripts and third-party component integration for complex process scenarios.
- SD card for easy storage expansion, program backup, upgrades and data export.
- USB port for peripheral connection and fast data transfer.
Application Areas
Process Industry: Monitoring and operation for continuous production in petroleum, natural gas, chemical, pharmaceutical, paper, metallurgy and other sectors.
Discrete Manufacturing: Equipment control, status monitoring and parameter setting for production lines in automotive, electronics, machining and other industries.
Energy & Utilities: Local operation terminals for power, water treatment, HVAC and other systems.
Shipbuilding & Offshore Engineering: Equipment control in bridge, engine room and similar environments (supported by DNV, GL and other classification society certifications).
Harsh Operating Conditions: High-dust, high-humidity, oily, low‑/high‑temperature workshops, as well as applications requiring operation with gloves.
Product Positioning & Advantages
PositioningStandard key-operated HMI of the Panel 800 V6 series, focusing on stability, reliability, precise key operation and industrial durability, addressing the limitations of pure touch panels in harsh environments.
Core Advantages
- Dual guarantee of physical keys + display: No reliance on touchscreen, ensuring trouble‑free operation in extreme environments.
- ABB ecosystem compatibility: Deep integration with ABB control systems, easy configuration and stable communication.
- Full‑life reliability: Industrial‑grade hardware and long‑life design reduce maintenance costs.
- Flexible deployment: Compact size and flush mounting, suitable for various control cabinets and operator stations.
Comparison within the Panel 800 V6 Standard Series
- PP871: 4-inch, touch operation, no function keys, suitable for small equipment and compact spaces.
- PP874: 7-inch, touch operation, no function keys, designed as a general‑purpose industrial HMI.
- PP874K: 7-inch, pure key operation with 16 function keys, ideal for harsh environments and precise control.
- PP877: 10.4-inch, touch operation, no function keys, used for large production lines and complex monitoring.
- PP877K: 10.4-inch, pure key operation with 22 function keys, for large equipment and multi‑task operation.
