The ICS Triplex T6100C A1-D6, generally known as the T6100 ACK Loop Controller, is a dedicated alarm acknowledgement and loop control unit for Rockwell Automation ICS Triplex Trusted safety system. Designed specifically for SIL 3 safety-critical applications, it integrates a local operation interface and a TMR (Triple Modular Redundancy) architecture.
It is applied to alarm management and closed-loop control of Emergency Shutdown (ESD) as well as Fire & Gas (F&G) protection systems. The module can be directly installed in the Trusted system rack, enabling on-site safety operation and real-time status visualization.
Basic Information & Model Interpretation
- Manufacturer: ICS Triplex (A brand of Rockwell Automation)

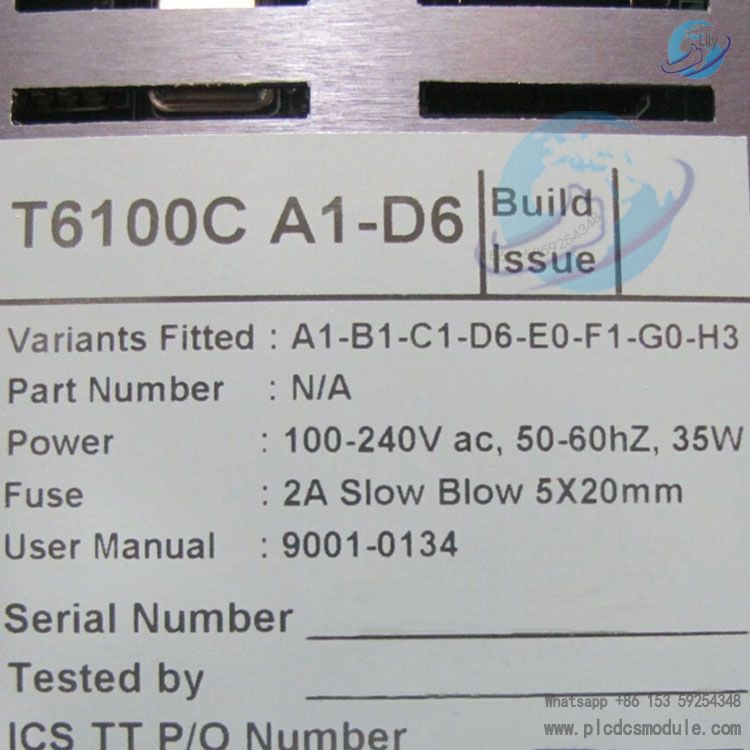

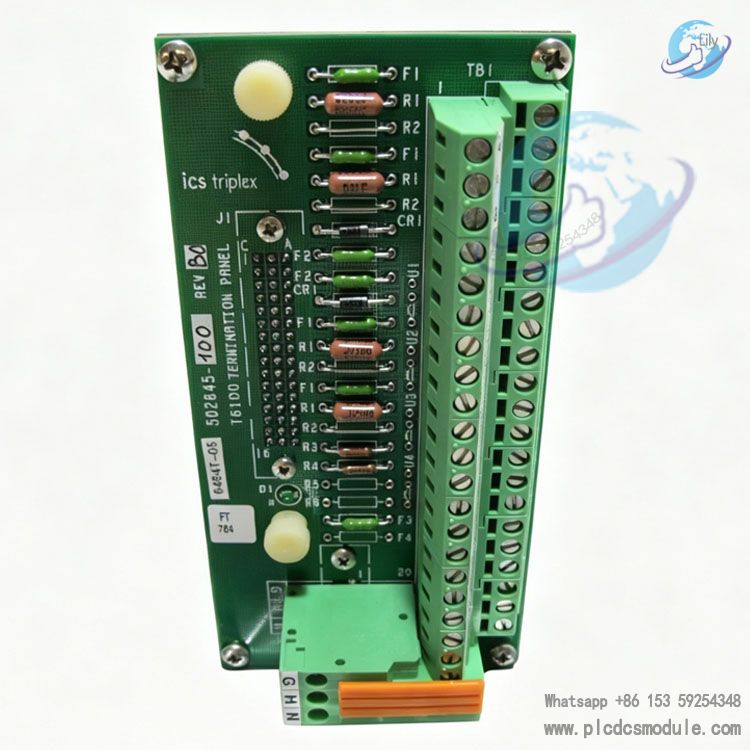

- Model: T6100C A1-D6 (Full Part Number: T6100CA1-D6)
- Series: Trusted T6100 ACK Series
- Type: Loop Controller / Alarm Acknowledgement Interface Module

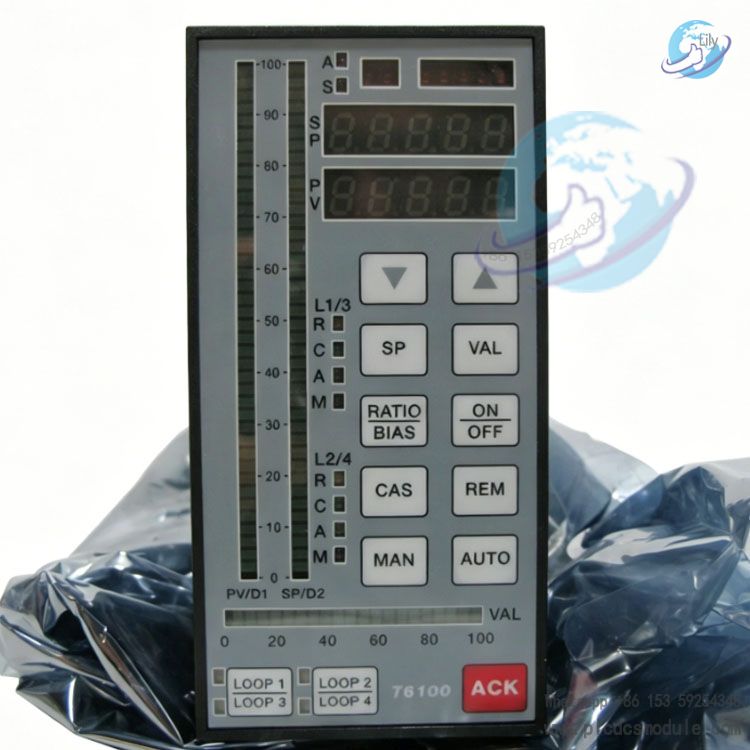

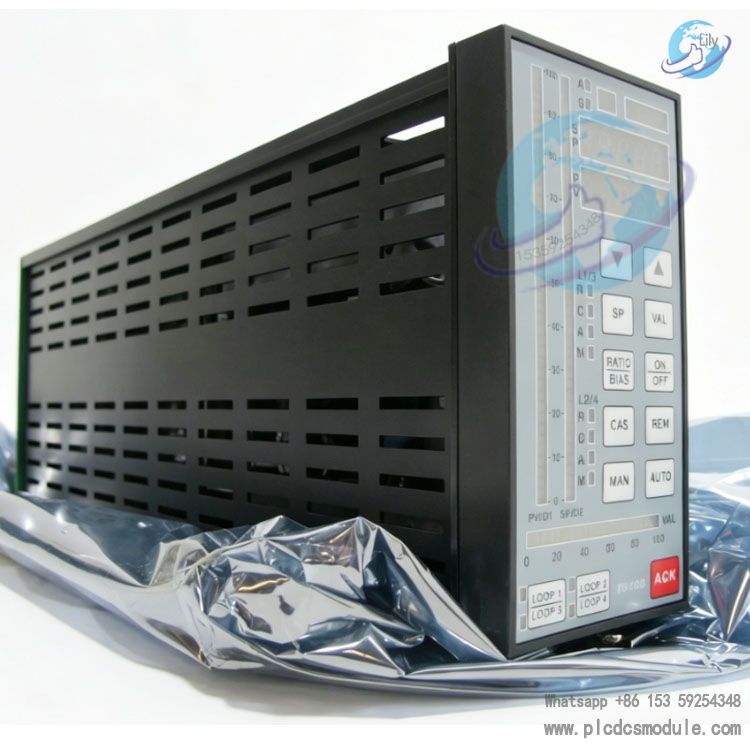

- Appearance: Standard 6U rack-mounted module. The front panel is equipped with LED indicators, operation buttons and an ACK confirmation key; the rear panel adopts a dedicated connector for the Trusted system.
Core Functions
- Alarm Acknowledgement (ACK) ManagementWith dedicated ACK buttons and built-in logic, it receives and executes system alarm acknowledgement, reset and silence commands. It supports both local and remote operation and complies with safety system alarm processing specifications.
- Multi-Loop Closed-Loop ControlBuilt-in 4 independent control loops (LOOP1~LOOP4). It supports PID regulation, Setpoint (SP) / Process Value (PV) display, and Manual/Auto (MAN/AUTO) mode switching, suitable for continuous control scenarios such as temperature, pressure and flow regulation.
- TMR Triple Modular RedundancyKey internal circuits adopt triple modular design with a hardware voting mechanism (3-2-0 degradation mode). A single point of failure will not affect system operation, ensuring continuous controllability of safety loops.
- Local Operation & Status Indication
- Nixie tube / LED real-time display of PV, SP, output value (VAL) and loop status;
- Physical buttons for mode switching, parameter modification and loop start/stop;
- Fault LED indicators to visually display module and loop fault status.
- System Integration & DiagnosticsIt communicates with the T8111C processor module via the Trusted system backplane, supporting system-level diagnostics and fault reporting. It can be configured and monitored through the IEC 61131 toolset software of the Trusted system.
Technical Specifications
1. Safety & Environmental Parameters
- Safety Integrity Level: SIL 3 (Certified per IEC 61508, TÜV certified)
- Rated Operating Voltage: 24V DC (Operating range: 20~32V DC)
- Operating Temperature: -20℃ ~ +60℃
- Storage Temperature: -40℃ ~ +85℃
- Ingress Protection: IP20 (For cabinet internal installation)
- Vibration & Shock Resistance: 5~25Hz with ±2mm displacement; 11g peak shock (11ms half-sine cycle)
2. Hardware & Interface
- Dimension: 6U standard rack module (Approx. 100mm×80mm×120mm)
- Power Consumption: ≤12W (Typical value)
- Control Loops: 4 independent loops
- Front Panel: LED status indicators, 4-digit nixie tube, MAN/AUTO button, loop selection button, red ACK confirmation key
- Backplane Interface: Dedicated Trusted system connector for TMR communication and power supply
- Fuse: 2A slow-blow fuse, 5×20mm size
3. Performance & Reliability
- Control Cycle: ≤100ms per single loop
- Response Time: Alarm acknowledgement ≤50ms; loop control response ≤200ms
- MTBF: ≥1,200,000 hours (At 25℃, Telcordia standard)
- Redundancy Feature: Triple modular hardware voting; supports online hot swapping; faulty modules can be replaced without system disturbance.
Application Scenarios
- Oil & Gas: Wellhead ESD, compressor unit protection, flare system control
- Chemical & Petrochemical: Reactor safety interlock, toxic gas detection & protection, emergency shutdown loop control
- Power & Energy: Boiler burner management, steam turbine protection, power plant ESD system
- Industrial Safety: Fire & Gas (F&G) system alarm acknowledgement, hazardous area loop monitoring
FAQ
Q1: What is the SIL level of T6100C A1-D6? What applications is it suitable for?A: The module is certified to SIL 3 per IEC 61508. It is applicable to high-integrity safety-critical scenarios, including ESD emergency shutdown, F&G fire and gas protection, burner management and turbomachinery interlock, effectively reducing safety risks caused by single-point failures.
Q2: How does T6100C A1-D6 integrate with the Trusted system? Is dedicated configuration software required?A: The module is directly inserted into the expansion slot of the Trusted T8100 rack and realizes TMR communication with the T8111C processor via the backplane. No separate software is required. Loop configuration, alarm logic setup and parameter monitoring can be completed by the standard Trusted IEC 61131 Toolset, supporting online modification and program download.
Q3: What is the function of the ACK button on the front panel? How does it differ from system remote alarm acknowledgement?A: The red ACK key is a dedicated local button for acknowledging/resetting system alarms, silencing alarms and clearing alarm status. Compared with remote system acknowledgement, the local ACK key has higher priority. It can independently perform alarm acknowledgement even when system communication is interrupted, ensuring on-site emergency handling capability.
Q4: Does T6100C A1-D6 support online hot swapping? Is system shutdown required for module replacement?A: It supports online hot swapping as a standard feature of the Trusted system. No shutdown is needed when replacing a faulty module; the system automatically identifies the new module and synchronizes configurations. The TMR redundant architecture ensures uninterrupted loop control and alarm functions during replacement, perfectly suited for 24/7 continuous operation environments.
