Woodward 5466‑258 Simplex Disc I/O MODULE
Product Overview
Woodward 5466‑258 is a simplex discrete I/O module of the MicroNet digital control series. It is compatible with MicroNet and Vertex‑Pro chassis and can be deployed in simplex architecture or integrated into redundant control systems.
Woodward 5466‑258 provides 48 discrete input channels and 24 discrete output channels. It performs field digital signal acquisition and actuator driving, establishing signal paths between the controller and field devices for control applications of power equipment such as compressors and gas turbines.
The Woodward 5466‑258 exchanges data with the main controller via the chassis backplane bus. Field wiring is completed by matching with FTM field terminal modules. It is widely used for spare‑part replacement projects of legacy control systems in oil‑gas and power generation industries.
Technical Specifications
- Power Supply: 24VDC, power consumption approx. 6.5W
- Channel Configuration: 48 optically‑isolated discrete inputs, 24 discrete outputs
- Operating Temperature: 0‑55℃
- Storage Temperature: ‑40℃~+40.5℃
- Pollution Degree: Pollution Degree 2
- Over‑voltage Category: Category II
- Certifications: ATEX, CE (EMC), DNV, ABS, LRS
- Physical Dimensions: 24.6cm ×26.1cm ×2.4cm
- Weight: 0.86kg
- Chassis Compatibility: 8‑slot, 14‑slot Vertex‑Pro / MicroNet chassis
- Status Indication: Single red fault LED indicator
- Installation Location: Non‑hazardous area or Class I Division 2 Groups A/B/C/D environment
Core Advantages
- High‑density channel integration. Single Woodward 5466‑258 delivers 72‑point discrete signal processing capacity, reducing module quantity inside cabinet and saving cabinet mounting space.
- Supports simplex and redundant system architectures. No major modification on existing hardware layout during project retrofits, well‑suited for legacy unit upgrades.
- Optical isolation for channels suppresses electromagnetic interference from industrial sites and lowers risk of misoperation caused by signal disturbance.
- Front‑panel fault LED offers intuitive module status feedback. Channel‑level fault location can be realized with system configuration software to simplify on‑site troubleshooting.
Multiple marine classification society and explosion‑proof certifications meet harsh operating requirements for offshore platforms and onshore oil‑gas stations.
Product Features

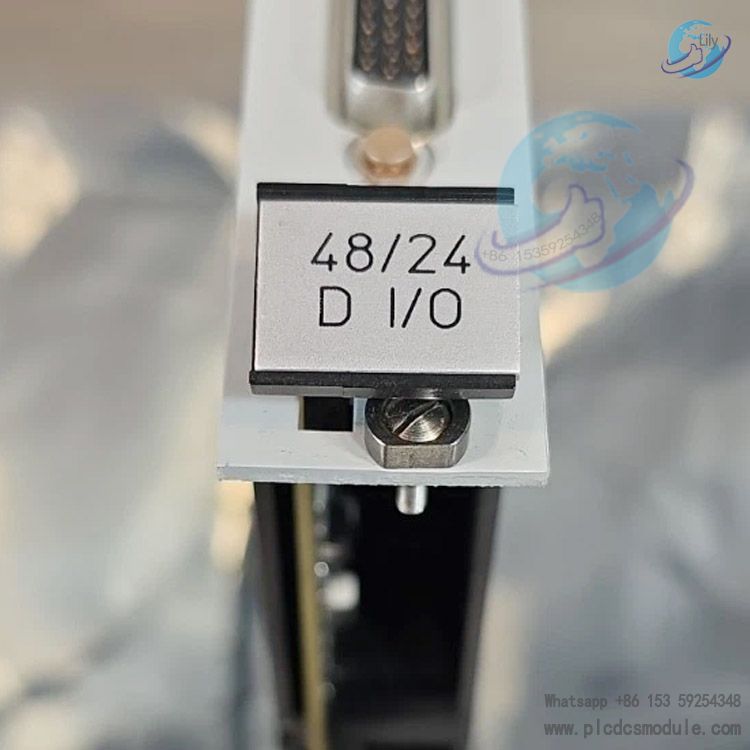

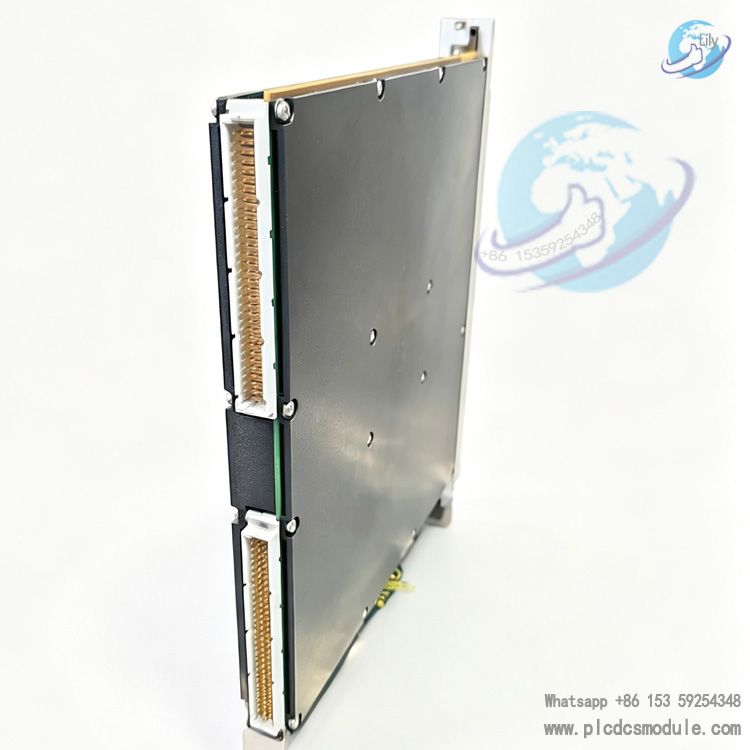

- Adopts backplane plug‑in card structure. Insert directly into chassis slot and realize high‑speed data communication through backplane bus.

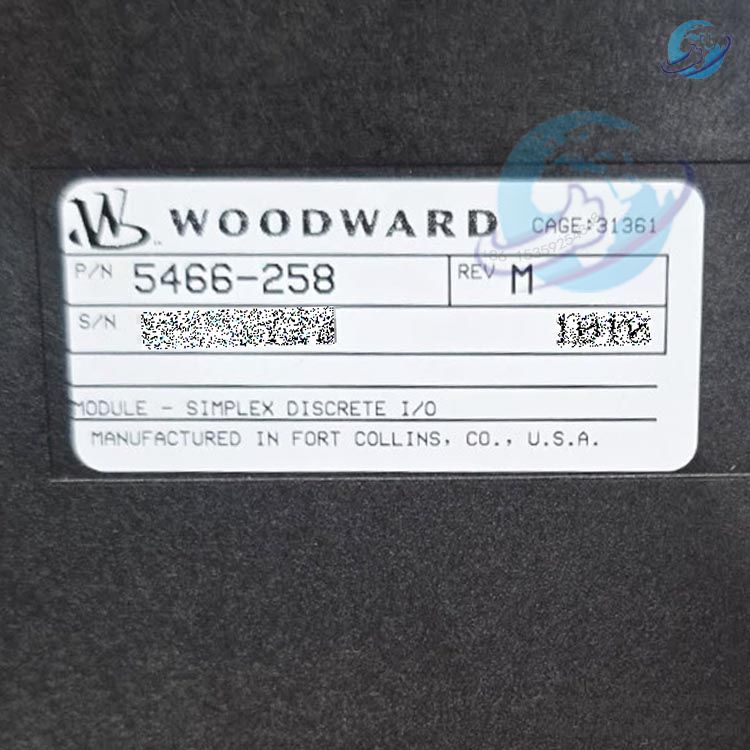

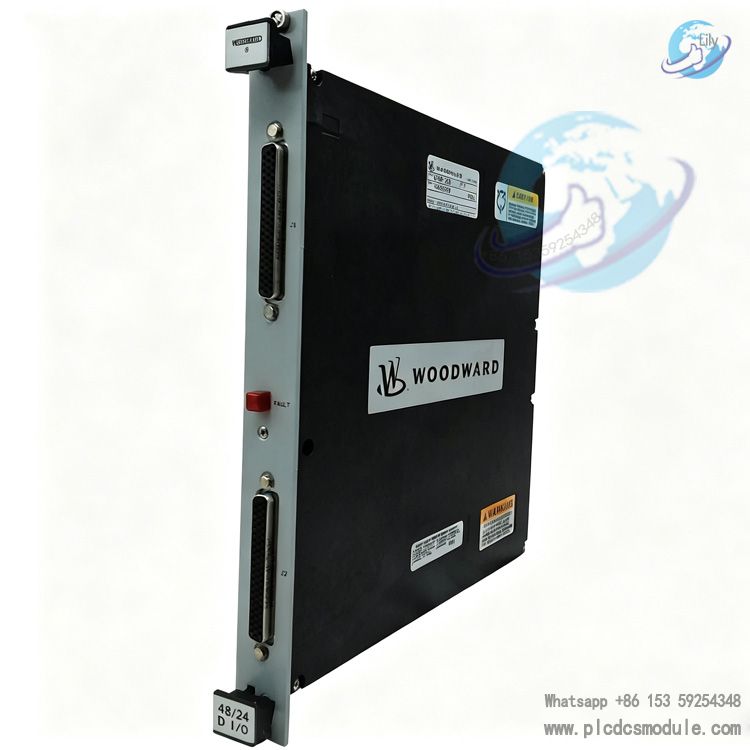

- Two high‑density D‑Sub interfaces on module front side connect to 24/12‑channel FTM field terminal modules via dedicated cables. Separated field wiring reduces wiring load on the module itself.
- On‑board self‑diagnosis detects channel abnormality and bus communication failure. Fault messages are uploaded to MicroNet main controller.
- Input channels accept dry‑contact signals for valve position feedback, limit switches and alarm relay contacts. Output channels drive field devices such as solenoid valves, indicator lamps and contactors.
Compatible with MicroNet Plus hardware platform. Corresponding version Coder configuration software is used for parameter setup and logic commissioning.
Application Fields
- Control of natural gas pipeline compressor stations: collect valve and interlock switch signals and output interlock drive commands.
- Gas turbine and steam turbine auxiliary control systems: process unit protection discrete signals and alarm contact signals.
- Onshore and offshore oil‑gas production power equipment: satisfy requirements for marine certification and explosion‑proof for offshore environments.
- Generator set auxiliary control: realize discrete signal acquisition and output for auxiliary pumps, valves and interlock loops.
Spare‑part replacement for legacy industrial control systems: hardware replacement for faulty I/O modules of original MicroNet systems.
Woodward Product Comparison
| Item | Woodward 5466‑258 | 5466‑256 (TMR Redundant Discrete I/O) | 5466‑315 High‑Density Analog I/O |
|---|---|---|---|
| Operation Mode | Simplex | TMR Triple Modular Redundancy | Simplex Analog |
| Channel Type | 48DI+24DO discrete | 48DI+24DO discrete | Analog input & output |
| Applicable System | Simplex & partial redundant MicroNet systems | TMR triple redundant safety control systems | Applications requiring analog signal acquisition |
| Positioning | General‑purpose high‑density discrete I/O module | High‑safety redundant discrete I/O module | Analog signal processing module |
5466‑258 focuses on high‑density discrete signal processing and does not support TMR hardware redundancy. For triple‑redundant safety‑critical systems, select 5466‑256. For 4‑20mA analog signal acquisition, deploy 5466‑315 series analog I/O modules.
Compatible Accessories
- 5466‑317 MicroNet CPU Controller
- 5466‑318 MicroNet Chassis Power Module
- 5466‑285 4‑Channel Solenoid Protection Module
- FTM‑24/12 Discrete Field Terminal Module
- MicroNet Vertex‑Pro 14‑Slot Chassis
- MicroNet Vertex‑Pro 8‑Slot Chassis
- High‑Density Discrete Signal Cable (for 5466‑258 and FTM Terminal Board)
5466‑332 High‑Density Analog I/O Module
Frequently Asked Questions
Q:Is Woodward 5466‑258 still in production?
A:Woodward 5466‑258 has been discontinued. Market supply is based on stock spare parts.
Q:Does the input channel of Woodward 5466‑258 support wet‑contact signals?
A:The module is natively designed for passive dry‑contact signals. External current‑limiting measures are required for active wet‑contact signals. Wiring must strictly follow official manuals; improper wiring will burn out channels.
Q:What is the maximum quantity of Woodward 5466‑258 modules per chassis?
A:Maximum quantity is constrained by chassis slot count, backplane bus load and chassis power capacity. Up to 8 units for 8‑slot chassis and up to 14 units for 14‑slot chassis. Total I/O load and power budget shall be calculated before deployment.
Q:How to troubleshoot when the red fault LED of Woodward 5466‑258 lights up?
A:Red LED indicates module self‑diagnostic fault. First, verify chassis supply voltage. Second, check backplane slot contact condition. Third, read module fault word via MicroNet configuration software to distinguish bus fault or individual channel hardware damage.
Q:Can Woodward 5466‑258 connect directly to field sensors?
A:No. Front‑side D‑Sub interfaces must connect to FTM field terminal modules via dedicated cables. All field device wires terminate on FTM terminals, not directly on the module body.
Q:Is control program modification required when replacing Woodward 5466‑258?
A:Direct replacement with identical model without changing slot address requires no program modification. If replaced with alternative model 5466‑1050, verify software version; partial configuration adjustment may be needed in some scenarios.
Q:Can Woodward 5466‑258 be applied in Hazardous Zone 0 explosion‑risk locations?
A:The module itself shall only be installed in non‑hazardous areas or Class I Division 2 Groups A/B/C/D. Field‑side signal processing is handled by FTM terminals and isolation components. The module cannot be mounted directly in Zone 0.
Q:What key information shall be confirmed when purchasing Woodward 5466‑258 spare parts?
A:Confirm original hardware revision, chassis type, Coder software version, actual DI/DO point requirements, and system architecture (simplex or redundant) to avoid hardware incompatibility after delivery.
Related Woodward Part Numbers
- 5466‑256 TMR Discrete I/O Module
- 5466‑1050 Simplex Discrete I/O Module
- 5466‑1051 TMR Discrete I/O Module
- 5466‑315 High Density Analog I/O Module
- 5466‑316 Analog Combo I/O Module
- 5466‑317 NetCon CPU Module
- 5466‑318 MicroNet TMR Power Supply Module
- 5466‑285 Solenoid Protect Module
- 5466‑320 Solenoid Protect Module
- 5466‑332 High Density Analog I/O Module
- 5466‑303 Dual Overspeed Module
- 5466‑326 NetCon IIIB Pressure Input Module
- 5466‑334 NetCon CPU Module
Precautions
- ESD protection must be implemented during installation of Woodward 5466‑258. Touching module metal housing may cause electrostatic damage to onboard chips.
- Disconnect chassis power before inserting or removing modules. Hot‑swap operation is strictly forbidden, as hot‑swap will damage backplane bus and module components.
- Only use matched high‑density discrete cables. Non‑compliant cables may lead to signal loss and unstable communication.
- Check tightness of FTM terminal connections periodically. Loose terminals under field vibration will trigger random channel faults for Woodward 5466‑258.
- Store in dry environment and avoid high humidity and condensation to prevent circuit board corrosion.
- Keep module revision label records in spare‑part warehouse for compatibility reference in future maintenance work.
